Case IH Tractor McCormick Deering W-30 Operator’s Manual
FILE DETAILS:
Case IH Tractor McCormick-Deering W-30 Operator’s Manual_INT-5366A
Size : 3.65 MB
Format : PDF
Language : English
Number of Pages : 50 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Operator’s Manual
Model: McCormick-Deering W-30
Part No: INT-5366A
VIDEO PREVIEW OF THE MANUAL:

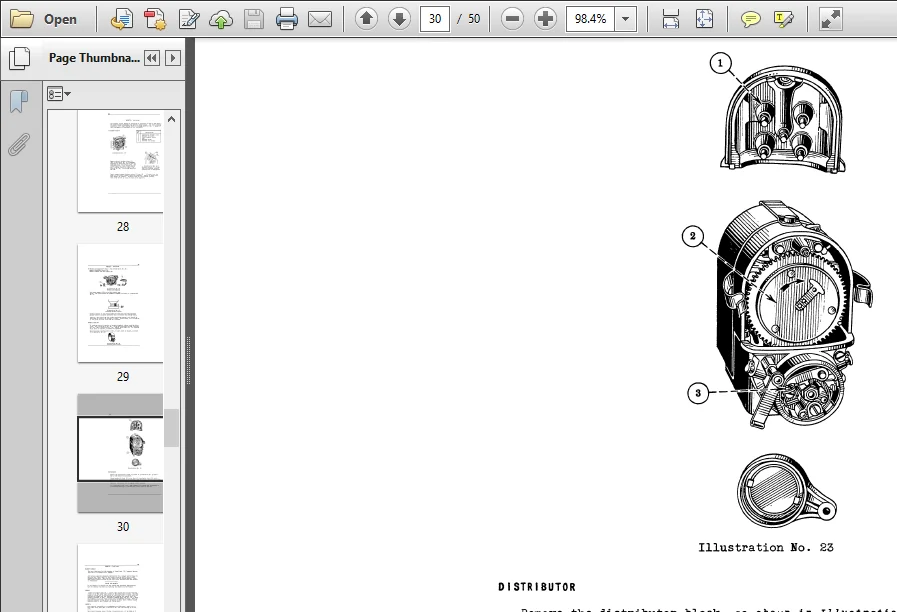

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Case IH Tractor McCormick-Deering W-30 Operator’s Manual_INT-5366A
TO OWNERS:
- This Tractor is designed and built to give good performance and maximum service. Quality materials and good workmanship are employed throughout the en— tire unit . The suggestions and requirements for operating outlined in this book are essential to maintain satisfactory performance and economical service.
- The care and daily attention given the Tractor will largely determine its maintenance cost and success of operation. Tractor Owners should use the extensive facilities offered by McCormick— Deering and International Dealers when service is needed that requires the knowledge of an experienced service man.
- This is advisable as Dealers are kept informed on the best methods of servicing Tractors and are in a position to give satisfactory service.
OPERATING PRECAUTIONS:
Read Instruction Book carefully. Follow ”Lubrication Chart”. Before cranking tractor engine, be sure:-
1. Gear shift lever is in neutral position.
2. Radiator is filled with water.
3. Engine has sufficient oil in crankcase pan.
- When cranking the engine, retard spark control. Operator should take his position so aslo avoid being struck by starting crank if there is a reversal of the direction of the engine from any cause whatsoever. When starting the Tractor always engage clutch gradually, so engine will pick up the load slowly.
- This is particularly necessary when going up a steep hill,climbing out of ditches or when hitched to a heavy or difficult load. Never hitch to a stump or other object by means of a long chain or rope with slack so that when Tractor moves forward it will jerk into the load. Never operate engine at more than the regular governed speed. Excessive speeds are harmful.
TABLE OF CONTENTS:
Case IH Tractor McCormick-Deering W-30 Operator’s Manual_INT-5366A
- Lubrication
- Operating Precautions
- Cooling System/ Distillate Operation/ Gasoline
- Operation
- Radiator Shutter Winter front
- Preparing Tractor for Operation (Distillate)
- Starting The Distillate Engine
- Stopping The Distillate Engine
- Preparing Tractor for Operation (Gasoline)/Starting Gasoline Engine
- Gear Shifting/ Starting Tractor/ Stopping The Gasoline Engine/ Stooping Tractor Governor/ Draw bar and Hitch
- Alemite Hydraulic Lubrication System
- Cold Weather Operation
- Anti-Freezing Solutions/ Fuel Tanks
- Fuel Strainer
- Carburetor
- Air Cleaner
- Oil Filter Care
- Engine Ignition/ Spark Plugs/ and Cables
- Magneto
- Valves
- Engine Cooling System
- Clutch/ Connecting Rod Bearings/ Crankshaft/Bearings/ Hand Brakes Pistons and Rings/ Steering Gear
- Belt Pulley/ Power Take-Off
- Transmission
- Wheels
- Storing Tractor
- Corrective Measures
- Tractor Specifications
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
