Case IH B/FL 1011/T Deutz Service Manual (291-1942)
VIDEO PREVIEW:

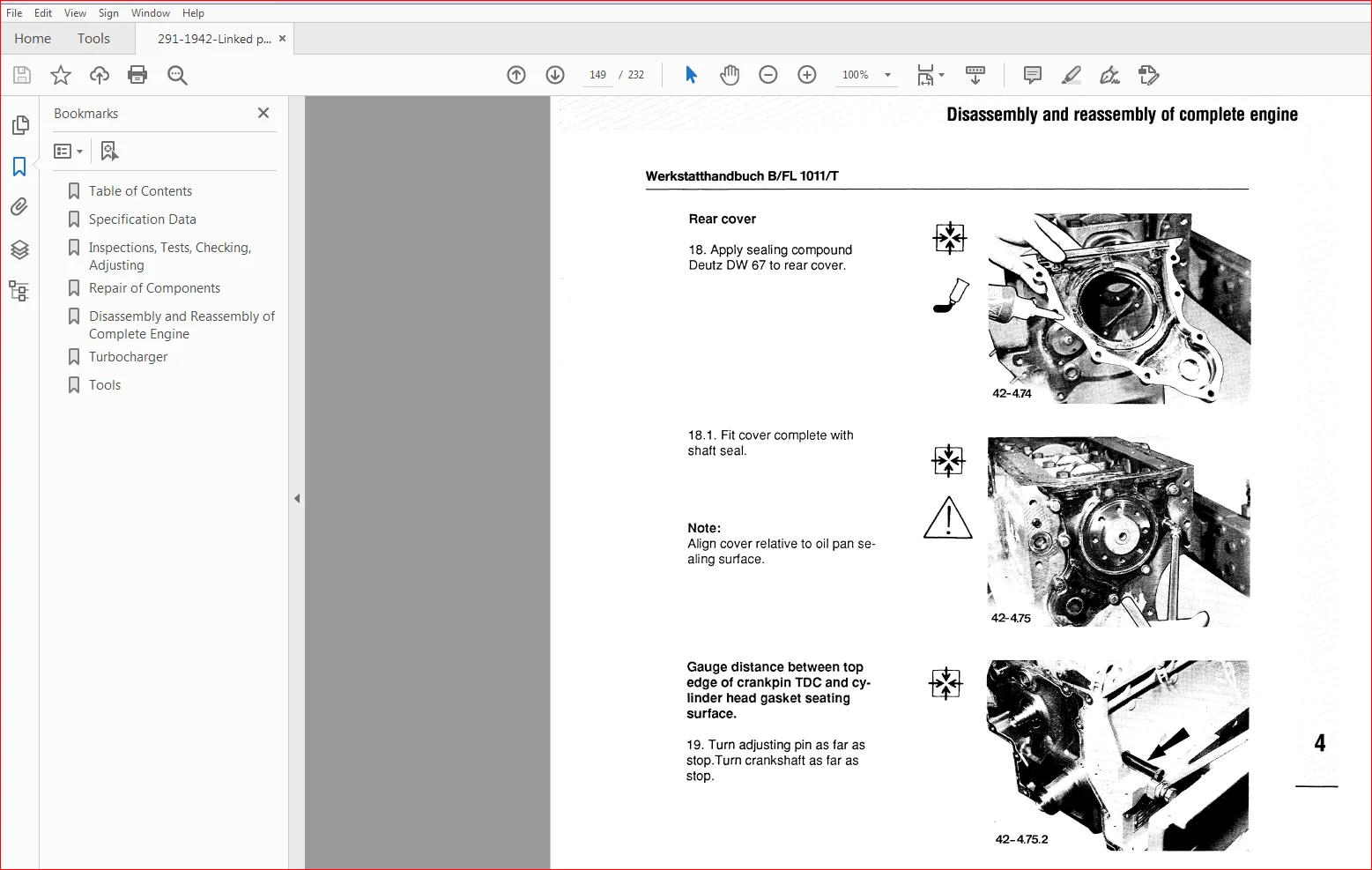

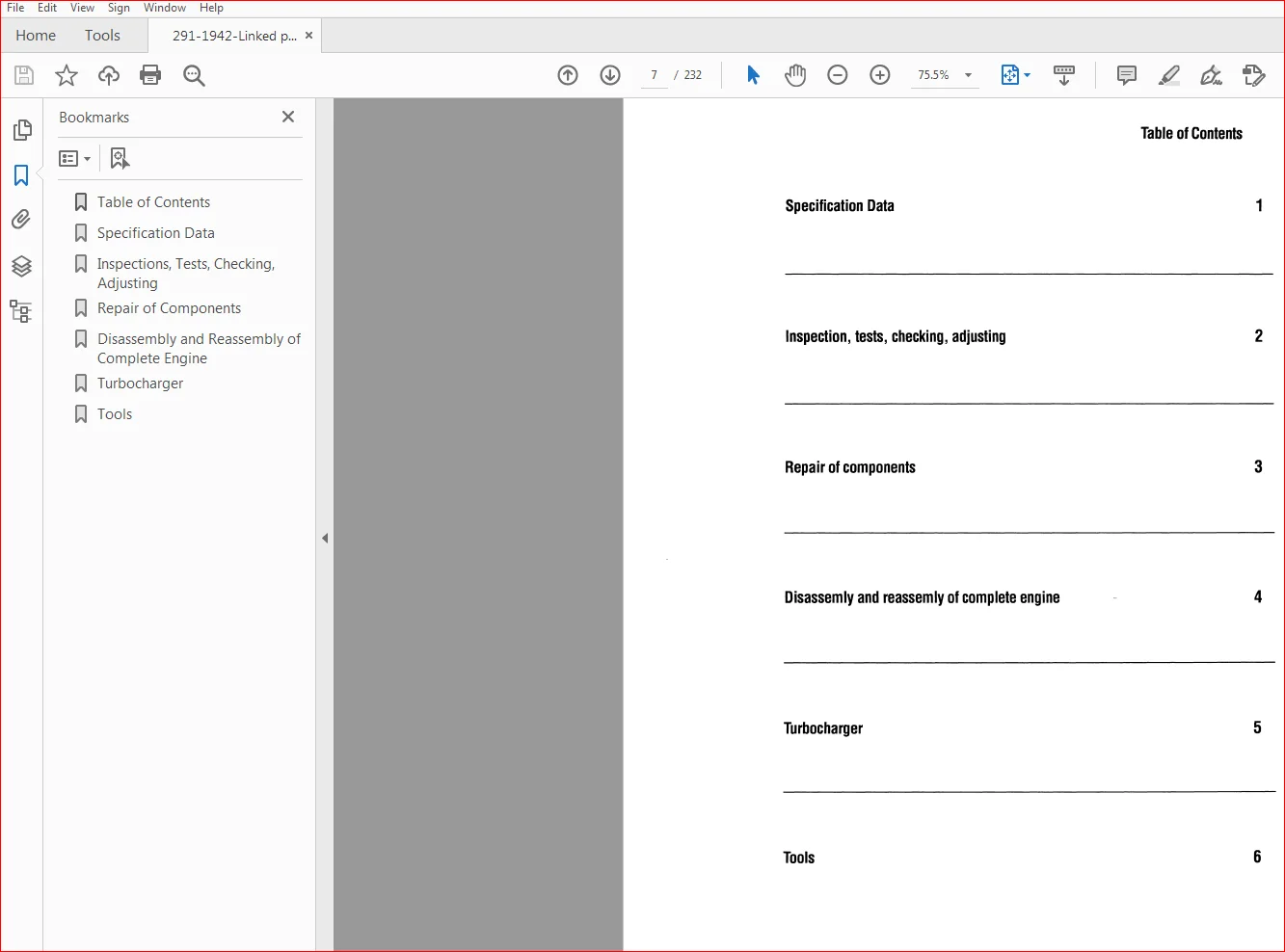

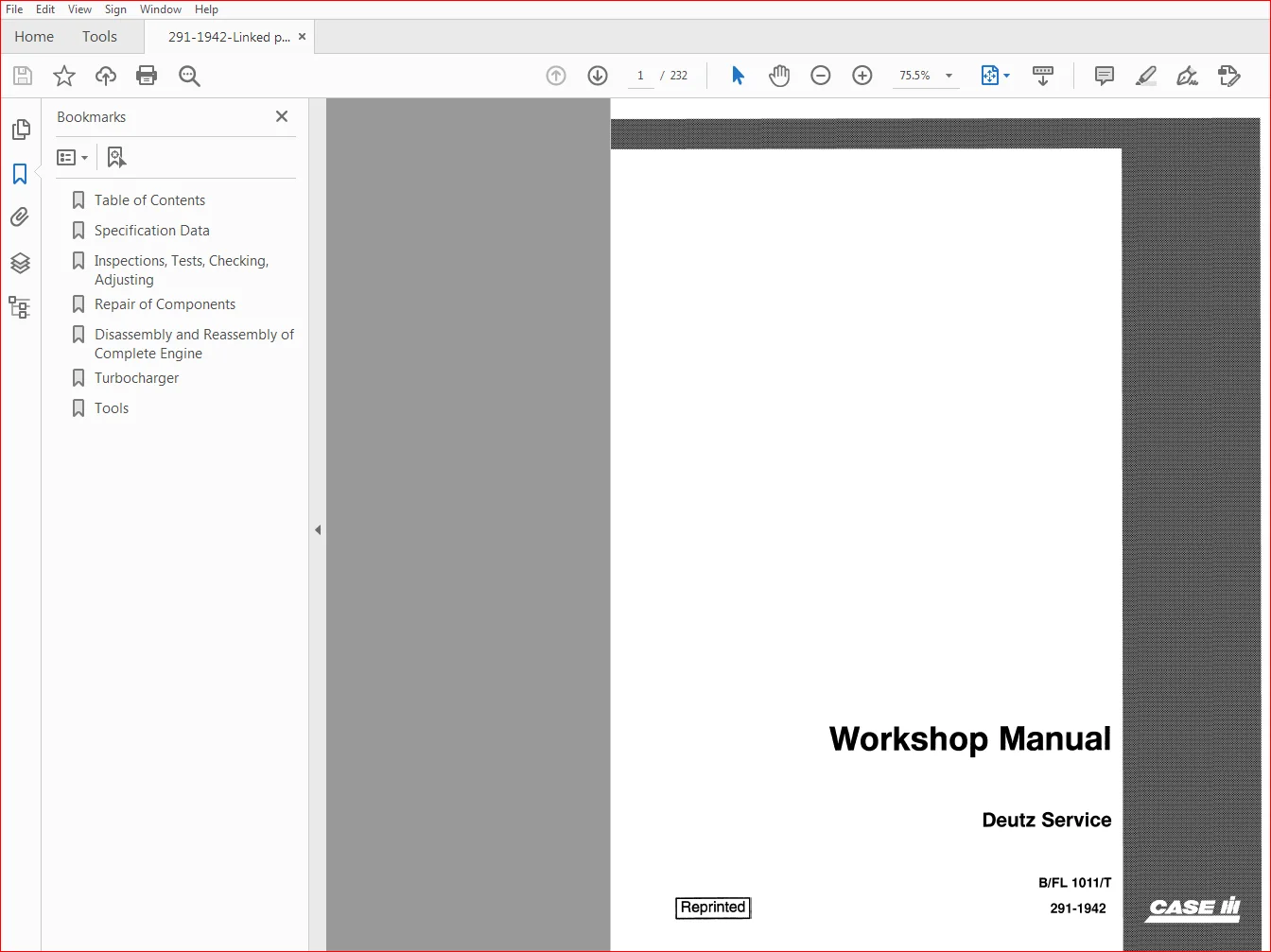

SCREENSHOOTS OF THE MANUAL:
DESCRIPTION:
Case IH B/FL 1011/T Deutz Service Manual (291-1942)
- Reliable engine operation is dependent on properly executed repairs as well as adjustment work.
- This Workshop Manual describes the appropriate operations for any repair and adjustment work on the engine and engine components. It is presumed that this work will be carried out by qualified personnel.
- The Manual has been made up in a manner which en5ures quick comprehension of the contents, i. e graphic symbols have been placed beside the brief text passages, which visualize the working operation concerned.
- Aspects of operation and maintenance are dealt with in the respective Engine Operation Manual. For spare parts orders the spare parts catalogue should be referred to.
- This Workshop Manual is not regularly updated. Any engineering changes hawng been introduced in the meantime will be considered in the next issue. Therefore please refer to the information announed in our Technical Circulars when carrying out repairs.
TABLE OF CONTENTS:
Case IH B/FL 1011/T Deutz Service Manual (291-1942)
ODD Generalenginedata 1/1-1/2
001 Engine weights 1/1
100 Fuel injection system 1/3-1/5
110 Fuelinjection pump 1B
120 Governor 1/3
130 lnjection nozzle 1/4
140 Commencement of fuel delivery U5
200-400 Cylinder unit 1/6-1/17
200 Cylinder head 1/6-1/13
210 Valve guide 1/6
220 Valveseatinsert 1/6- 1/7
230 Valve 1/7-1/9
250 Valve spring 1/10
260 Valve clearance 1/10
270 Distancesto be checked 1/11
280 Cylinderhead studs 1/12
300 Cylinder 1/3
400 Piston 1/14-1/15
420 Piston rings H 1/16-1/17
500-700 Motion parts 1/18-1/27
500 Crankshaft 1/18-1/23
510 Crankpins 1/18-1/19
520 Main bearing journals 1/19-1/20
540 Thrustbearingjournalw 1/20-1/21
550 Main bearing 1014/22
560 Main bearing bore 1/22
570 Thrust hearing H 102-1/23
600 Connecting rod 1/23-1/25
700 Camshaft 106-107
710 Camshaft “254/27
720 Valvetiming 1 1/27
800 Lubrication system 1/28
800 Lube oil pump 1/28
810 Oilpressure _ 1/23
900 Tightening specifications 1129-1/35
Tightening Cylinder Head Studs Order l/37
