Case 430, 530 Construction King Loader Service Manual 9-70011
VIDEO PREVIEW:
Case 430, 530 Construction King Loader Service Manual 9-70011

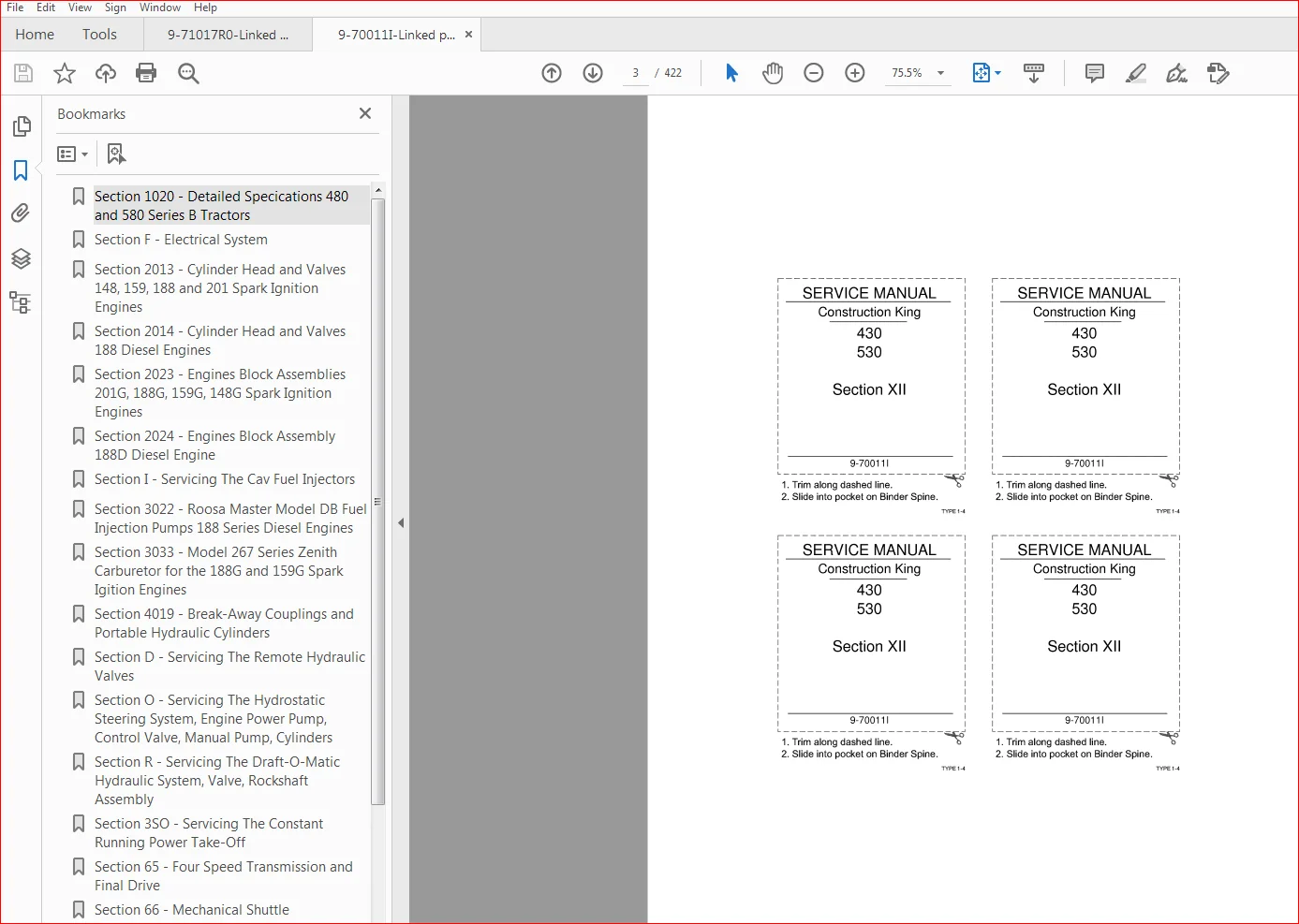

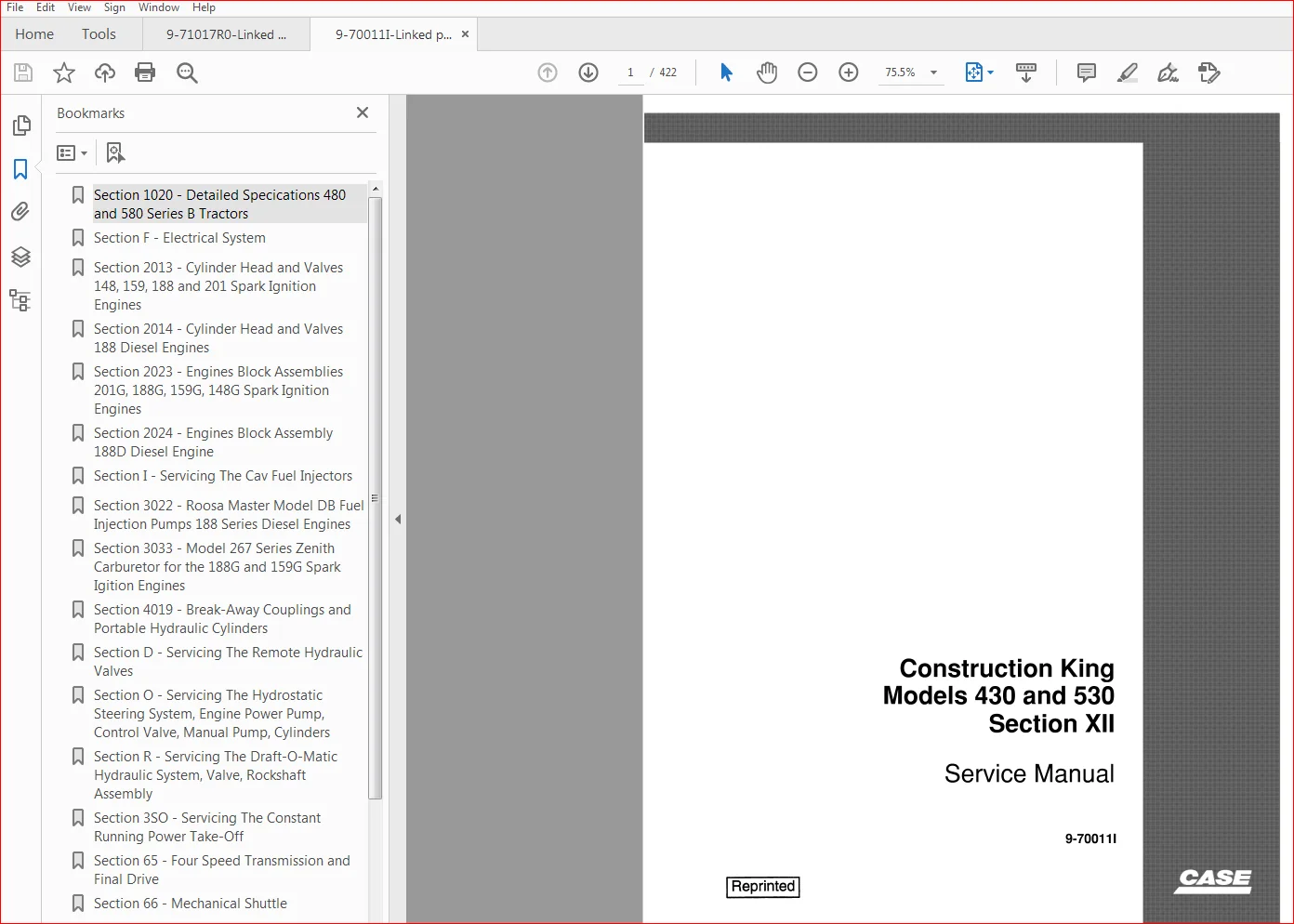

SCREENSHOOTS OF THE MANUAL:

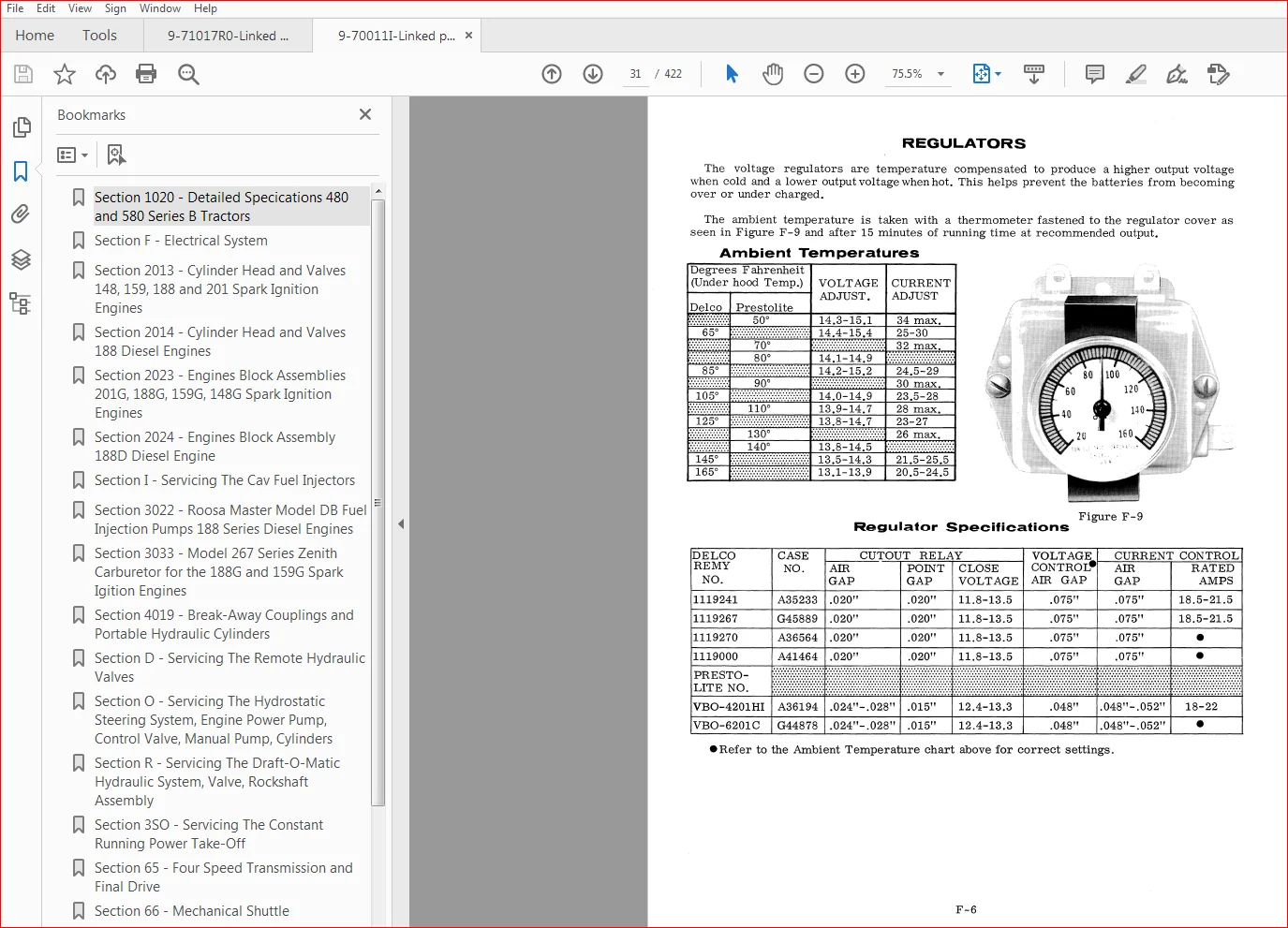

SAMPLE PAGE FROM THE MANUAL:
- Section F contains the specifications and wiring diagrams necessary to diagnose and make minor adjustments on the electrical components on the Case Wheel Tractors.
- All major adjustments and overhaul of electrical components should be performed by an Authorized Electrical Service Station (Delco-United Motors Service or Auto-Lite Service Stations) where specialized equipment and trained personnel are available.
- DO NOT ATTEMPT EVEN MINOR ELECTRICAL ADJUSTMENTS WITHOUT THE AID OF PROPER TEST EQUIPMENT Gas engines before Serial No. 8233766 and Diesel engines before Serial No. 8232882 used a positive grounded system.
- These Serial Numbers and after use a negative grounded system.
- Visual Inspection
- Check the battery terminals and cables for dirty or corroded conditions which will cause high resistance, resulting in undercharged batteries and very poor cranking speed. The battery tray, holdown terminals and cable ends must be cleaned when contaminated with baking soda and water. This will help to prevent self discharge of batteries.
- After cleaning and drying a thin coating of vasoline, light cup grease or paint will help prevent contamination. A cracked or leaking battery case will let the electrolyte leak out and cause damage to the equipment, a battery in this condition should be replaced. When just the top sealing compound is leaking the battery can be resealed.
DESCRIPTION:
Case 430, 530 Construction King Loader Service Manual 9-70011
- Case 430, 530 Loader Service Manual – 422 Pages
- Publication Number: 9-70011
- English
- Format: PDF
TABLE OF CONTENTS:
Case 430, 530 Construction King Loader Service Manual Table of Contents:
Section 1020 – Detailed Specications 480 and 580 Series B Tractors………………………………………….. 6
Section F – Electrical System…………………………………………………………………………… 26
Section 2013 – Cylinder Head and Valves 148, 159, 188 and 201 Spark Ignition Engines ………………………….. 46
Section 2014 – Cylinder Head and Valves 188 Diesel Engines…………………………………………………. 72
Section 2023 – Engines Block Assemblies 201G, 188G, 159G, 148G Spark Ignition Engines ………………………… 92
Section 2024 – Engines Block Assembly 188D Diesel Engine ………………………………………………….132
Section I – Servicing The Cav Fuel Injectors………………………………………………………………176
Section 3022 – Roosa Master Model DB Fuel Injection Pumps 188 Series Diesel Engines …………………………..200
Section 3033 – Model 267 Series Zenith Carburetor for the 188G and 159G Spark Igition Engines ………………..210
Section 4019 – Break-Away Couplings and Portable Hydraulic Cylinders…………………………………………228
Section D – Servicing The Remote Hydraulic Valves………………………………………………………….240
Section O – Servicing The Hydrostatic Steering System, Engine Power Pump, Control Valve, Manual Pump, Cylinders ….252
Section R – Servicing The Draft-O-Matic Hydraulic System, Valve, Rockshaft Assembly……………………………276
Section 3SO – Servicing The Constant Running Power Take-Off …………………………………………………304
Section 65 – Four Speed Transmission and Final Drive……………………………………………………….316
Section 66 – Mechanical Shuttle………………………………………………………………………….348
Section 67 – Dual Range Assembly …………………………………………………………………………356
Section 68 – 11 Inch Traction Clutch……………………………………………………………………..366
Section 74 – Differential Brakes, Differential Lock and Parking Brake………………………………………..380
Section X – Servicing The Case-O-Matic 11-Inch Torque Converter/ Control Valve/ Pressure Regulator and Pump ……..392
PLEASE NOTE:
⦁ This is the SAME exact manual used by your dealers to fix your vehicle.
⦁ The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
⦁ Any queries / doubts regarding your purchase, please feel free to contact [email protected]
–
Had a download problem, customer service worked me through it, now works fine. Great product with volumes of information.
Benicio –
It’s good
