Bobcat Angle Broom 68 84 Operation & Maintenance Manual – PDF DOWNLOAD
FILE DETAILS:
Bobcat Angle Broom 68 84 Operation & Maintenance Manual – PDF DOWNLOAD
Language : English
Pages :94
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Bobcat Angle Broom 68 84 Operation & Maintenance Manual – PDF DOWNLOAD
(68 Angle Broom) S/N 231311101 & Above
(84 Angle Broom) S/N 231411101 & Above
FOREWORD
This Operation & Maintenance Manual was written to give the owner/operator instructions on the safe operation and maintenance of the heavy duty box blade. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR HEAVY DUTY BOX BLADE. If you have any questions, see your Bobcat dealer.
SAFETY INSTRUCTIONS
Operator must have instructions before operating the machine. Untrained operators can cause injury or death.
Safe Operation Needs A Qualified Operator
For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or coordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.
A Qualified Operator Must Do The Following:
Understand the Written Instructions, Rules and Regulations
- The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
- Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. Regulations may apply to local driving requirements or use of a Slow Moving Vehicle (SMV) emblem. Regulations may identify a hazard such as a utility line.
Have Training with Actual Operation
- Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
- The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.
Know the Work Conditions
- Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
- The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
- Know the location of any underground lines. Call local utilities or the TOLL FREE phone number found in the Call Before You Dig section of this manual.
- Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, and hearing protection are required for some work. See your Bobcat dealer about Bobcat safety equipment for your machine.
SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules
- Read and follow instructions in the machine and the attachment’s / implement’s Operation & Maintenance Manual before operating.
- Check for underground lines before operating attachment / implement (if applicable).
- In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
- Check that the attachment mounting pins and hardware are installed correctly and securely fastened (if equipped).
- Check that the loader is securely installed to the compact tractor using the correct pins and hardware.
- Check that the Bob-Tach® levers are in the locked position and the wedges are fully engaged into the mounting holes of the attachment (if applicable).
- Check that the implement is securely fastened to the machine.
- Depress brake pedals (or make sure parking brake is engaged) and make sure all the machine controls are in the NEUTRAL position before starting the machine. • Always start the machine from the operator’s seat.
- Operate the attachment / implement according to the Operation & Maintenance Manual.
- When learning to operate the attachment / implement, do it at a slow rate in an area clear of bystanders.
- DO NOT permit personnel to be in the work area when operating the machine and attachment / implement.
- The attachment / implement must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments / implements for each machine model.
- DO NOT modify equipment or add attachments / implements that exceed manufacturer’s specifications.
- DO NOT make any adjustments or repairs on the machine or attachment / implement while the engine is running.
- Keep shields and guards in place. Replace if damaged.

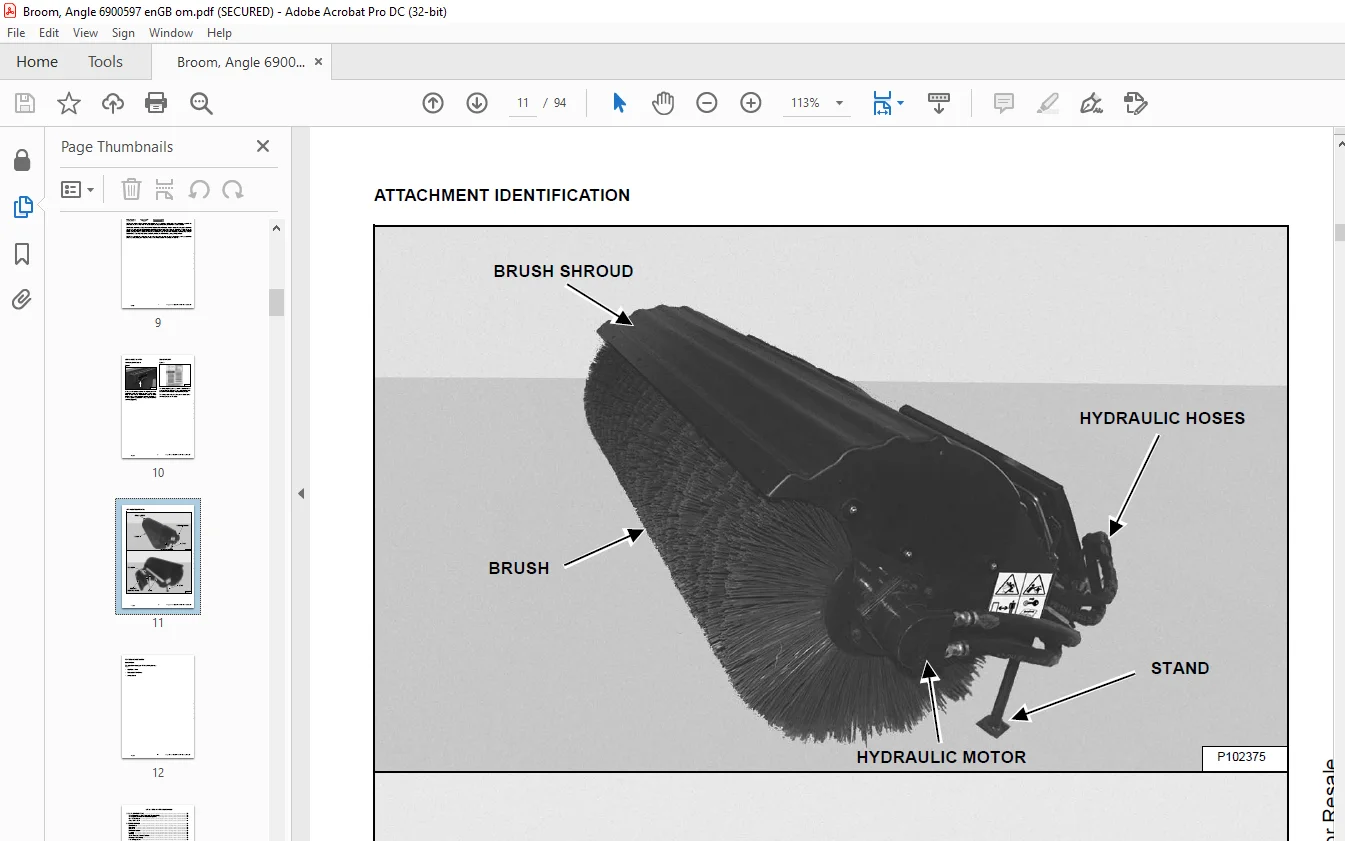

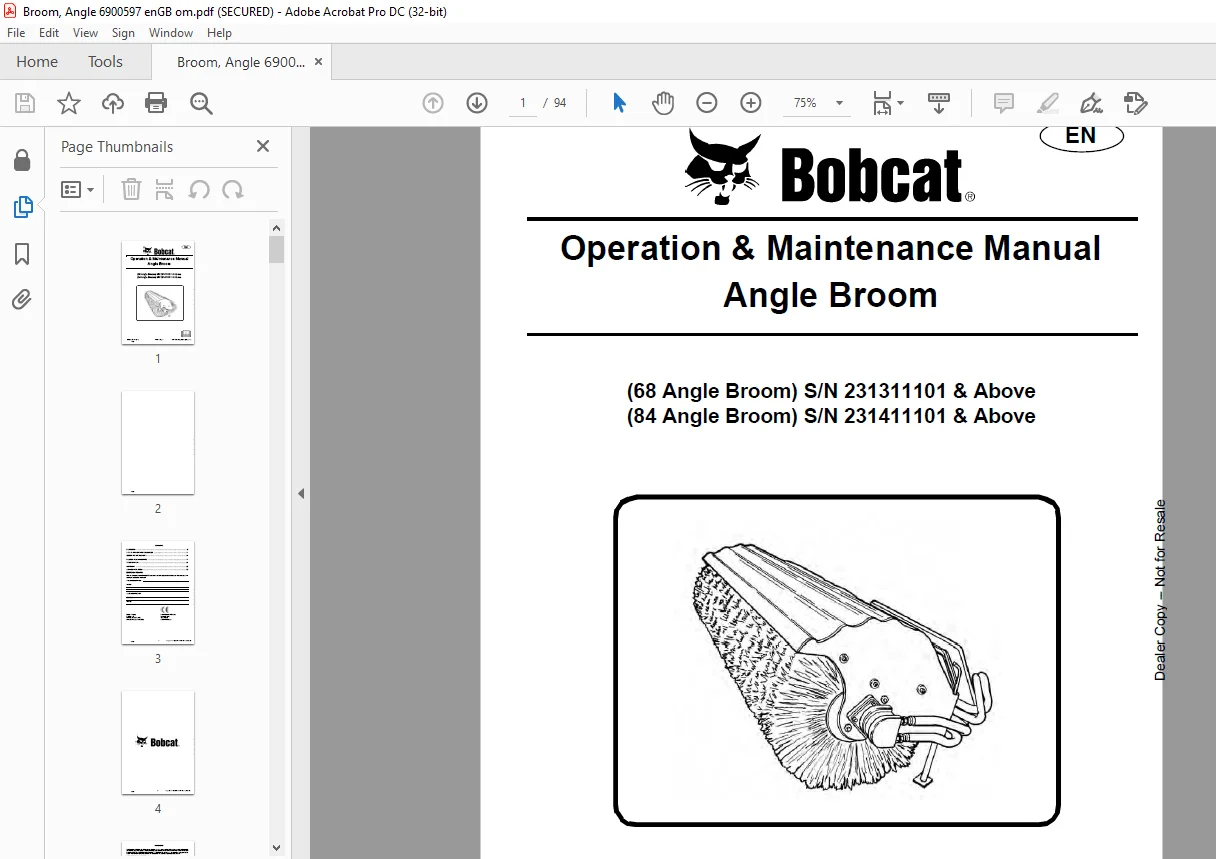

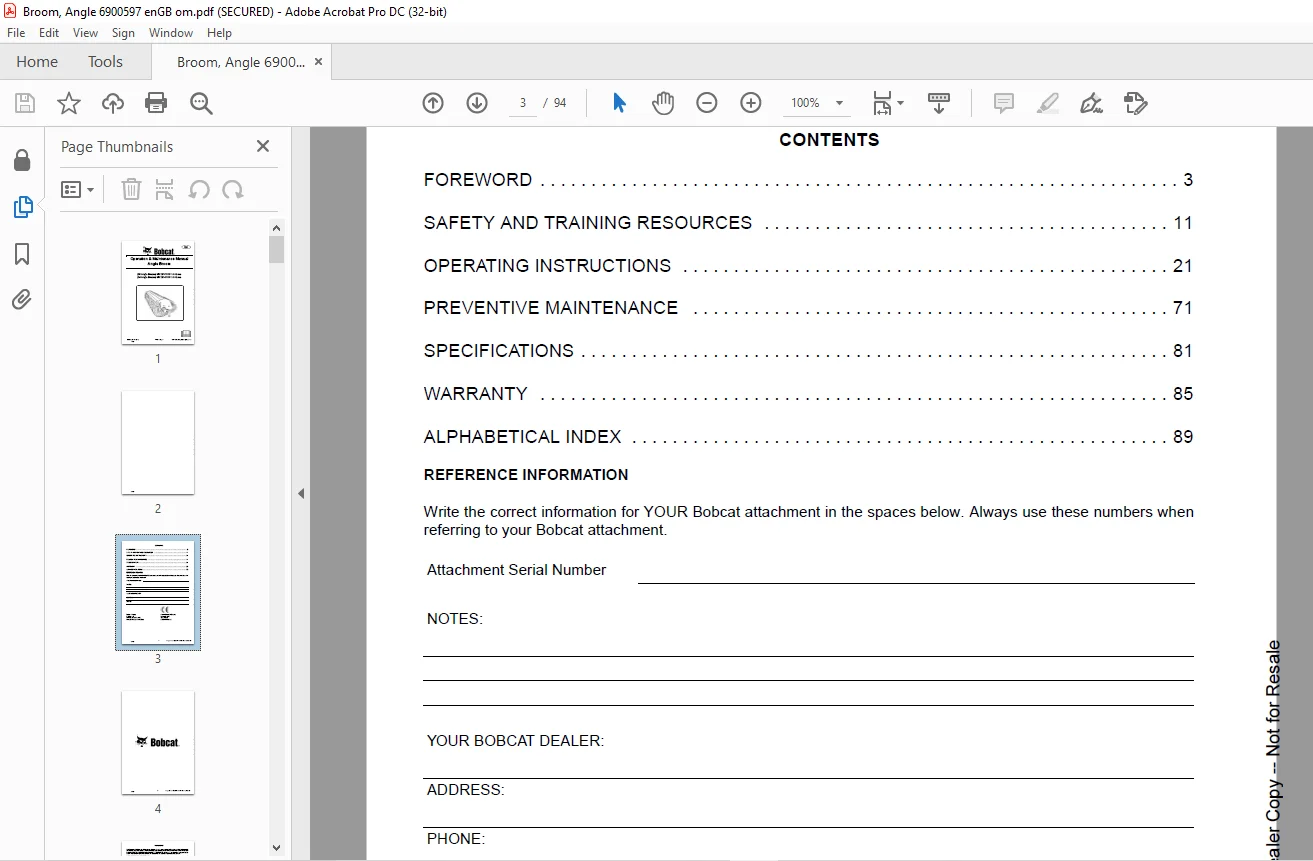

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Bobcat Angle Broom 68 84 Operation & Maintenance Manual – PDF DOWNLOAD
CONTENTS 3
FOREWORD 5
DECLARATION OF CONFORMITY 7
BOBCAT COMPANY IS IS0 9001 CERTIFIED 9
SERIAL NUMBER LOCATION 10
Attachment Serial Number 10
DELIVERY REPORT 10
ATTACHMENT IDENTIFICATION 11
FEATURES AND ACCESSORIES 12
Standard Items 12
SAFETY AND TRAINING RESOURCES 13
SAFETY INSTRUCTIONS 15
Safe Operation Is The Operator’s Responsibility 15
Safe Operation Needs A Qualified Operator 15
Use Safety Rules 16
Avoid Silica Dust 16
FIRE PREVENTION 17
Maintenance 17
Operation 17
Electrical 17
Hydraulic System 17
Fuelling 17
Starting 17
Spark Arrester Exhaust System 17
Welding And Grinding 18
Fire Extinguishers 18
PUBLICATIONS AND TRAINING RESOURCES 19
ATTACHMENT SIGNS (DECALS) 20
Pictorial Only Safety Signs 21
OPERATING INSTRUCTIONS 23
DAILY INSPECTION 25
Attachment Mounting Frame 25
Angle Broom Bristle Minimum Length 25
Bob-Tach 26
OPERATING PROCEDURE WITH LOADERS 29
Approved Loader Models And Requirements 29
Machine / Attachment Setup 30
Entering And Exiting The Loader 32
Installation 34
Hydraulic Quick Couplers 44
Electrical Harness 45
Control Functions 46
Operation With The Loader 47
Bobcat Loaders With Deluxe Instrument Panel 48
Removal 51
OPERATING PROCEDURE WITH TELESCOPIC HANDLERS 55
Approved Telescopic Handler Models And Requirements 55
Entering And Exiting The Telescopic Handler 56
Installation 58
Hydraulic Quick Couplers 63
Electrical Harness 64
Control Functions 65
Operation With The Telescopic Handler 67
Removal 68
LIFTING THE ATTACHMENT 70
Procedure 70
TRANSPORTING THE ATTACHMENT ON A TRAILER 70
Fastening 70
TRANSPORTING THE ATTACHMENT AND MACHINE ON A TRAILER 71
Loading And Fastening 71
PREVENTIVE MAINTENANCE 73
MAINTENANCE SAFETY 75
TROUBLESHOOTING 77
Chart 77
LUBRICATING THE ATTACHMENT 78
Lubrication Locations 78
REMOVAL AND INSTALLATION OF BRISTLES 79
Procedure(s) 79
ATTACHMENT STORAGE AND RETURN TO SERVICE 82
Storage 82
Return To Service 82
SPECIFICATIONS 83
(68 ANGLE BROOM, 84 ANGLE BROOM) ANGLE BROOM SPECIFICATIONS 85
Dimensions 85
Performance 86
WARRANTY 87
WARRANTY 89
ALPHABETICAL INDEX 91
