Bobcat Angle Broom 48 Operation & Maintenance Manual 700000101 & Above – PDF DOWNLOAD
FILE DETAILS:
Bobcat Angle Broom 48 Operation & Maintenance Manual 700000101 & Above – PDF DOWNLOAD
Language : English
Pages :100
Downloadable : Yes
File Type : PDF
TABLE OF CONTENTS:
Bobcat Angle Broom 48 Operation & Maintenance Manual 700000101 & Above – PDF DOWNLOAD
CONTENTS 3
FOREWORD 5
BOBCAT COMPANY IS IS0 9001 CERTIFIED 7
SERIAL NUMBER LOCATION 9
Attachment Serial Number 9
DELIVERY REPORT 9
ATTACHMENT IDENTIFICATION 10
FEATURES AND ACCESSORIES 11
Standard Items 11
Options 11
SAFETY AND TRAINING RESOURCES 13
SAFETY INSTRUCTIONS 15
Safe Operation Is The Operator’s Responsibility 15
Safe Operation Needs A Qualified Operator 15
Use Safety Rules 16
Call Before You Dig 16
Avoid Silica Dust 16
FIRE PREVENTION 17
Maintenance 17
Operation 17
Electrical 17
Hydraulic System 17
Fueling 17
Starting 17
Spark Arrester Exhaust System 17
Welding And Grinding 18
Fire Extinguishers 18
PUBLICATIONS AND TRAINING RESOURCES 19
ATTACHMENT SIGNS (DECALS) 20
OPERATING INSTRUCTIONS 21
DAILY INSPECTION 23
Attachment Mounting Frame 23
Angle Broom Bristle Minimum Length 23
Bob-Tach 24
OPERATING PROCEDURE WITH LOADERS 25
Approved Loader Models And Requirements 25
Machine / Attachment Setup 26
Entering And Exiting The Loader 28
Installation 30
Hydraulic Quick Couplers 34
Control Functions 35
Operation With The Loader 36
Removal 38
OPERATING PROCEDURE WITH MINI TRACK LOADERS 40
Approved Mini Track Loader Models And Requirements 40
Entering And Leaving The Operator’s Position 41
Installation 42
Hydraulic Quick Couplers 45
Control Functions 46
Operation With The Mini Track Loader 47
Removal 49
OPERATING PROCEDURE WITH SMALL ARTICULATED LOADERS 50
Approved Small Articulated Loaders Models And Requirements 50
Machine / Attachment Setup 51
Entering And Exiting The Small Articulated Loader 52
Installation 54
Hydraulic Quick Couplers 61
Control Functions 63
Operation With The Small Articulated Loader 64
Removal 66
LIFTING THE ATTACHMENT 70
Procedure 70
TRANSPORTING THE ATTACHMENT ON A TRAILER 71
Fastening the Attachment to the Transport Vehicle 71
TRANSPORTING THE ATTACHMENT AND MACHINE ON A TRAILER 72
Loading And Fastening 72
PREVENTIVE MAINTENANCE 73
MAINTENANCE SAFETY 75
TROUBLESHOOTING 77
Chart 77
LUBRICATION 78
Lubrication Points 78
REGULAR MAINTENANCE ITEMS 79
Adjusting Chain Tension 79
Bristle Removal 80
Bristle Installation 82
MACHINE SIGN TRANSLATIONS 85
MACHINE SIGN TRANSLATIONS 87
Warning (6673400) 87
Warning (6708822) 88
SPECIFICATIONS 89
(ANGLE BROOM 48) ANGLE BROOM Specifications 91
Dimensions 91
Performance 91
WARRANTY 93
WARRANTY 95
ALPHABETICAL INDEX 97

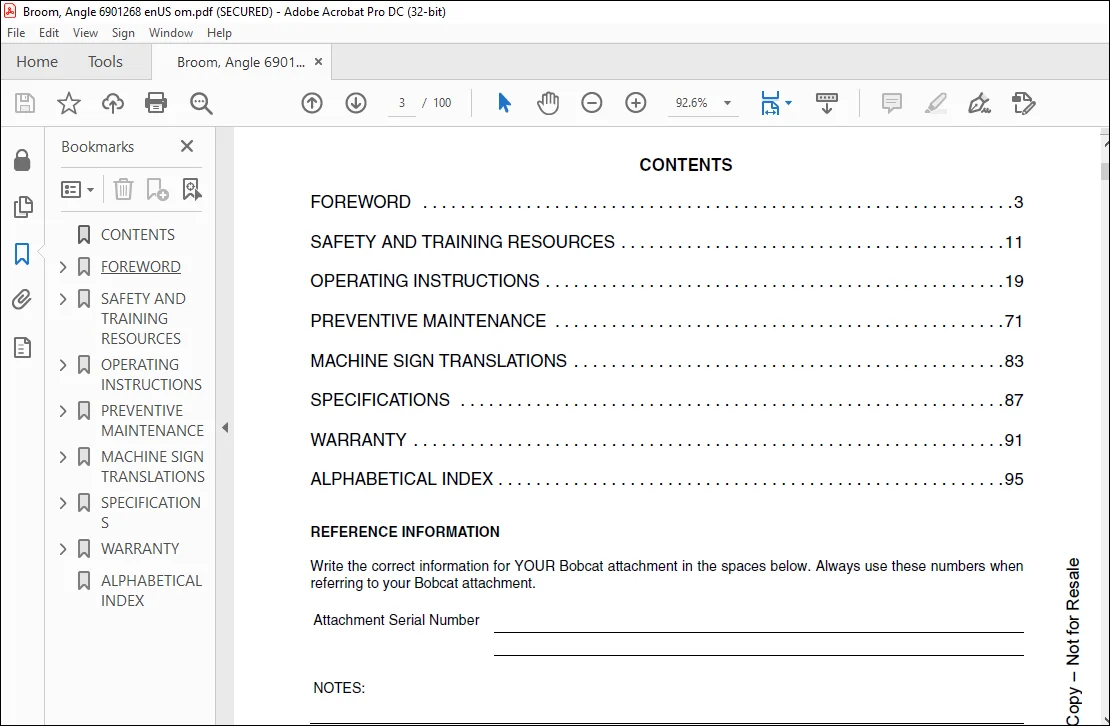

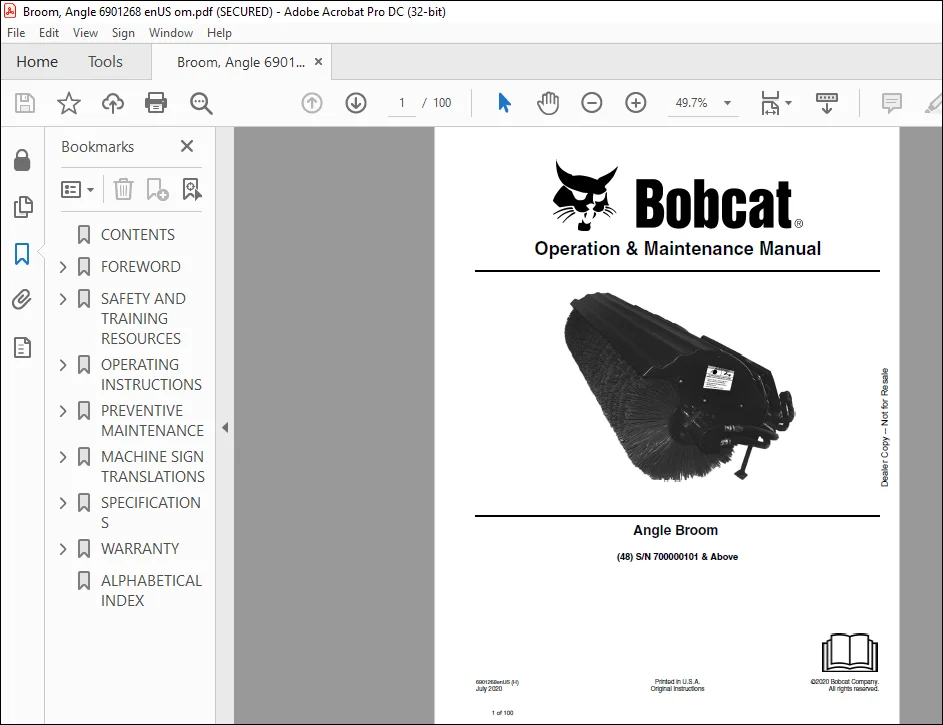

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Bobcat Angle Broom 48 Operation & Maintenance Manual 700000101 & Above – PDF DOWNLOAD
SAFETY INSTRUCTIONS
Operator must have instructions before operating the machine. Untrained operators can cause injury or death.
Safe Operation Needs A Qualified Operator
For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or coordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.
A Qualified Operator Must Do The Following:
Understand the Written Instructions, Rules and Regulations
- The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
- Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. Regulations may apply to local driving requirements or use of a Slow Moving Vehicle (SMV) emblem. Regulations may identify a hazard such as a utility line.
Have Training with Actual Operation
- Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
- The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.
Know the Work Conditions
- Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
- The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
- Know the location of any underground lines. Call local utilities or the TOLL FREE phone number found in the Call Before You Dig section of this manual.
- Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, and hearing protection are required for some work. See your Bobcat dealer about Bobcat safety equipment for your machine.
SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules
- Read and follow instructions in the machine and the attachment’s / implement’s Operation & Maintenance Manual before operating.
- Check for underground lines before operating attachment / implement (if applicable).
- In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
- Check that the attachment mounting pins and hardware are installed correctly and securely fastened (if equipped).
- Check that the loader is securely installed to the compact tractor using the correct pins and hardware.
- Check that the Bob-Tach® levers are in the locked position and the wedges are fully engaged into the mounting holes of the attachment (if applicable).
- Check that the implement is securely fastened to the machine.
- Depress brake pedals (or make sure parking brake is engaged) and make sure all the machine controls are in the NEUTRAL position before starting the machine. • Always start the machine from the operator’s seat.
- Operate the attachment / implement according to the Operation & Maintenance Manual.
- When learning to operate the attachment / implement, do it at a slow rate in an area clear of bystanders.
- DO NOT permit personnel to be in the work area when operating the machine and attachment / implement.
- The attachment / implement must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments / implements for each machine model.
- DO NOT modify equipment or add attachments / implements that exceed manufacturer’s specifications.
- DO NOT make any adjustments or repairs on the machine or attachment / implement while the engine is running.
- Keep shields and guards in place. Replace if damaged.
