ALLIS CHALMERS 840 & 840B WHEEL LOADER FORKLIFT 840 PARTS MANUAL PRIOR TO SN 4001 9006763 – PDF DOWNLOAD
FILE DETAILS:
ALLIS CHALMERS 840 & 840B WHEEL LOADER FORKLIFT 840 PARTS MANUAL PRIOR TO SN 4001 9006763 – PDF DOWNLOAD
Format: PDF
Language: English
Brand: Allis Chalmers
DESCRIPTION:
ALLIS CHALMERS 840 & 840B WHEEL LOADER FORKLIFT 840 PARTS MANUAL PRIOR TO SN 4001 9006763 – PDF DOWNLOAD
TRACTORS
Models
840 & 8406
Articulated
Wheel Loader
and
840 Forklift

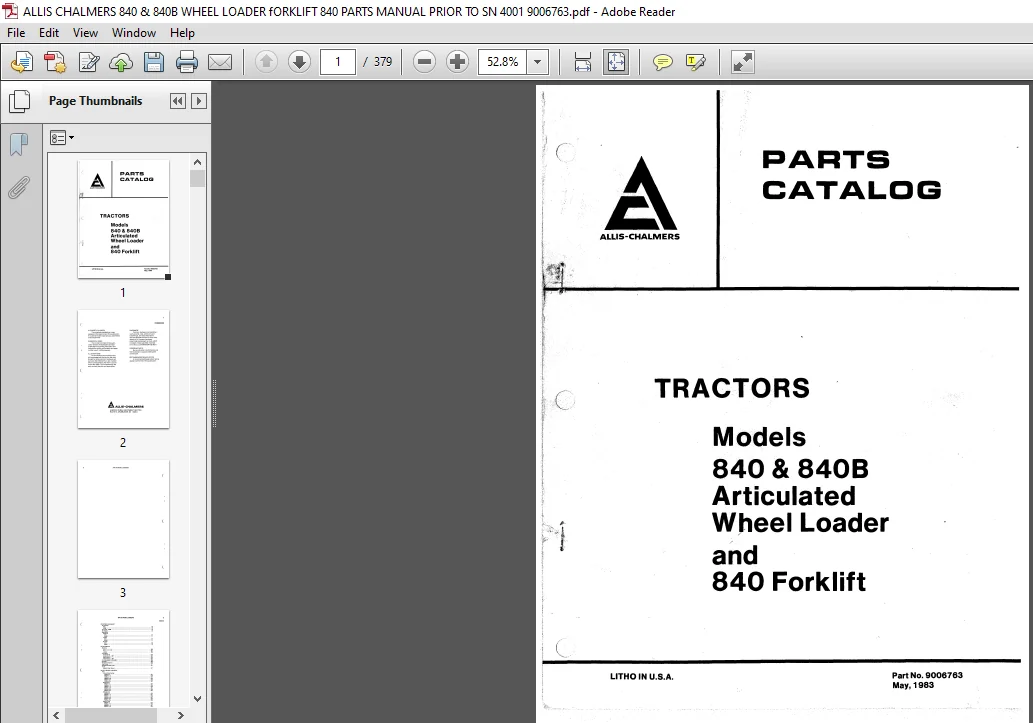

- ALPHABETICAL INDEX The complete alphabetical index appears at the beginning of this publication. It is used to locate major groups, assemblies and components. NUMERICAL INDEX The numerical index of this publication follows the Alphabetical Index at the beginning of the publication and indicates at which grid location and page number a part number appears.
- ILLUSTRATIONS All illustrations are located on the left hand page with the text on the right. Except for some common hardware, all parts are identified with an item number which corresponds to the “item” column on the text page. This is followed by the part number, quantity and description.
- HARDWARE Common hardware not identified such as bolts, nuts, cotter pins and tube fittings, are listed indented in the text beneath the item to which they attach or fit. Common hardware listed indented beneath an item is NOT included unless specified. Example: (Incl. BOLT, LOCKWASHER AND NUT). ORDERING PARTS Be sure to refer to both the text and the illustration to assure ordering the correct part. RECOMMENDED DEALER STOCK A recommended dealer stock listing appears at the end of this publication.

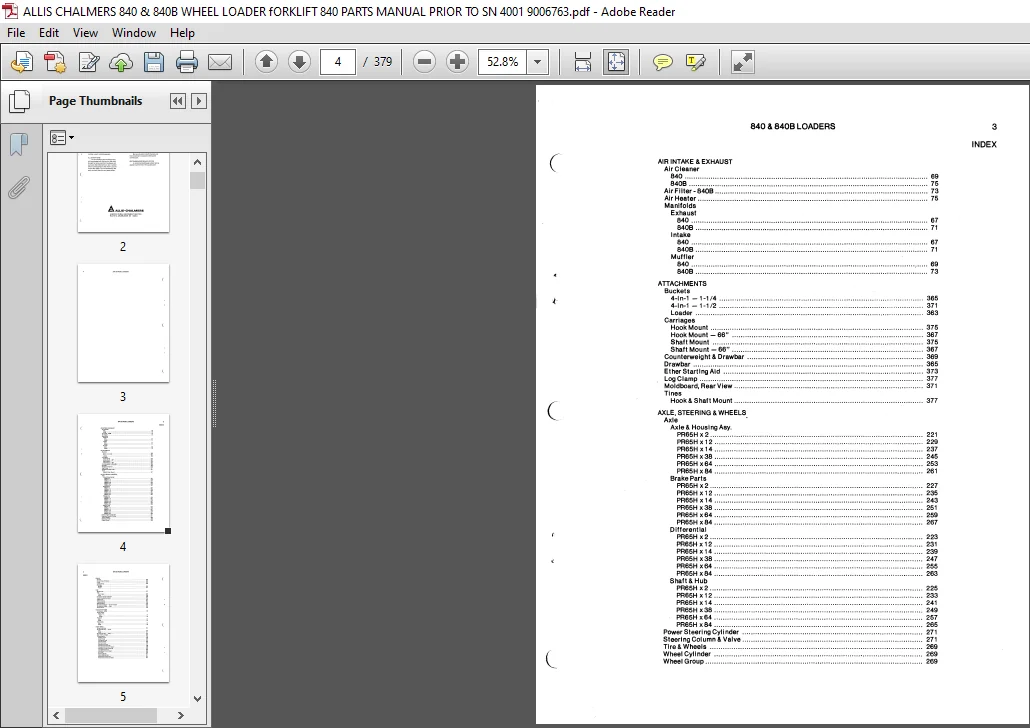

TABLE OF CONTENTS:
ALLIS CHALMERS 840 & 840B WHEEL LOADER FORKLIFT 840 PARTS MANUAL PRIOR TO SN 4001 9006763 – PDF DOWNLOAD
AIR INTAKE & EXHAUST
Air Cleaner
840
840B
Air Filter-8408
Air Heater
Manifolds Exhaust
840
840B
Intake
840
840B
Muffler
840
840B
ATTACHMENTS
Buckets
4-ln-1 – 1-1/4
4-1n-1 – 1-1 /2
Loader
Carriages
Hook Mount
Hook Mount – 66″
Shaft Mount
Shaft Mount – 66″
Counterweight & Drawbar
Drawbar
EtherStartlngAid
Log Clamp
Moldboard, Rear View
Tines
Hook & Shaft Mount
AXLE, STEERING & WHEELS
Axle •
Axle & Housing Asy
PR65H x 2
PR65H x 12
PR65H x 14
PR65H x38
PR65H x64
PR65H x84
Brake Parts
PR65H x2
PR65H x 12
PR65H x 14
PR65H x38
PR65H x64
PR65H x84
Differential
PR65H x2
PR65H x 12
PR65H x 14
PR65H x38
PR65H x64
PR65H x84
Shaft & Hub
PR65H x2
PR65H x 12
PR65H x 14
PR65H x38
PR65H x64
PR65H x84
Power Steering Cylinder
Steering Column & Valve
Tire & Wheels
Wheel Cylinder
Wheel Group
BRAKE
Brakes
Clutch Cut-off Valve
Lines
Lines Group
Cylinder
· Master
Power
CAB
BlowerAsy
Cab
Full Vision
Sims
Fresh Air Heater & Blower
Front Window Defroster
Heater Asy
Heater Group
Outside Mirror
Space Heater :
Windshield Wiper – Front Window
Windshield Wiper – Rear
Wiper Motor
COOLING SYSTEM
Oil Cooler-8408
Pump, Water Blade, Fan
840
8408
Radiator
840 ·············”·
8408
Thermostat
840
8408
DRIVE TRAIN
Drive Shaft Asy
Drive Shaft Asy – Front
840 ·············
8408
Drive Shaft Asy – Rear,•-·””””‘·
Gear Shift Linkage ·:
Transmission
Case & Cover
Case Group
Charging Pump
Control Valve
Converter Asy
Converter Group
Forward & 3rd Clutch
Forward & 3rd Clutch Gears
Hydraulic Piston Housing
Low Speed Clutch
Low Speed Clutch Gear
Oil Filter
Parking Brake
Parking Brake Asy
Reverse & 2nd Clutch
Reverse & 2nd Clutch Gear
ELECTRICAL & INSTRUMENTS Alternator
Instrument Panel
Left
Right
LampAsy
Road Lamp
Warning
Wiring Group Battery Group
840 ·······························
8408
Platform -840
Power Module
840
8408 ··········–················· Starting Motor
840
8408
ENGINE
Camshaft
840
8408 ································ Connecting Rod
840 ··································
8408
Crankshaft
840
8408
Cylinder Block
840 ··································
8408 ································ CylInder Head
840
8408
Cylinder Head Cover
840
8408
Flywheel Housing
840 ··································
8408 ··············”················ Gasket Sets
Bottom Overhaul – 840
Engine Overhaul -8408
Intermediate – 8408
Top Overhaul – 840
Idler Gear
840 ··································
8408 ································ Lubricating System
Oil Filter
840 ······–··–·················–
8408
Oil Pump& Pan
840
8408 ····························
Piston
840
8408
Pu hRods
840 ··································
8408 ································ Replacement
Engine
840 ·······························
8408 ····························· Short Block
840 ·······························
8408 ··············•””””‘”
ENGINE (Continued) Rocker Arm
840 ·············
840B
Timing Gear
840
840B
Valve Operating Mechanism Exhaust & Intake
840
840B
Spring
840
840B
FORKLIFT MAST
MastAsy
10 Ft
14 Ft
21 Ft
30 Ft
FUEL SYSTEM
Controls
840
840B
Electric Shut-off – 840B
Fuel Injection System Fuel Filter Asy
840
840B
Fuel Filter & Lines
840
840B

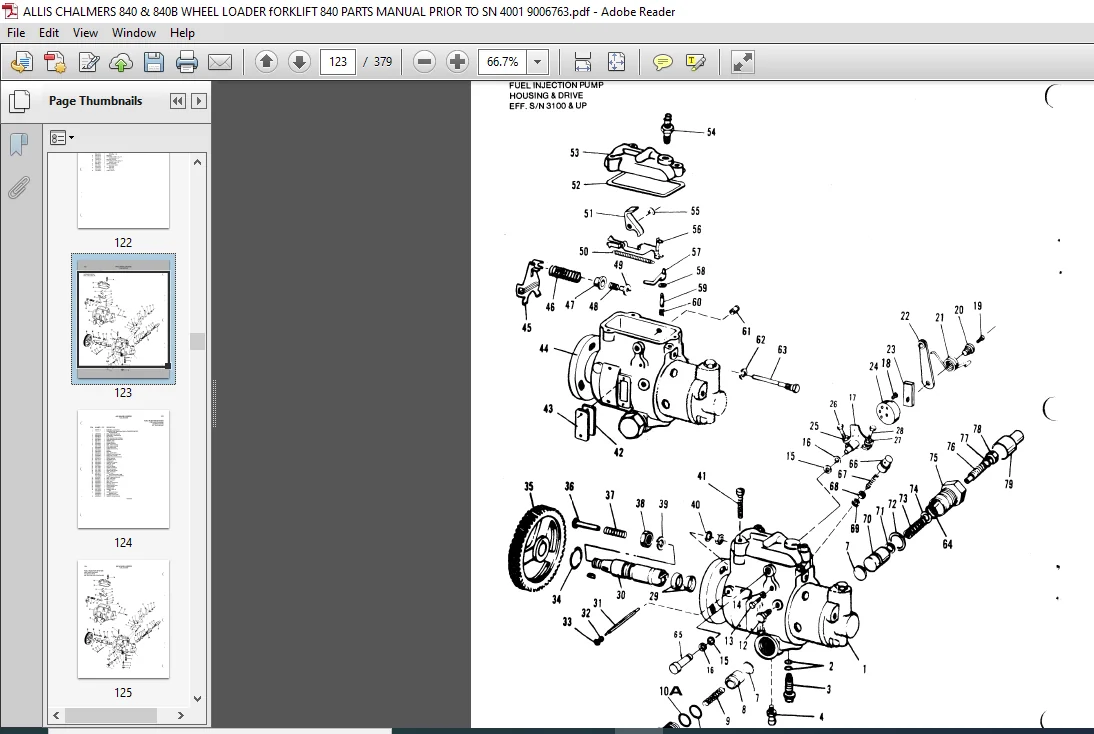

Fuel Injection Pump & Drive-840
Fuel Injector
840
8408 Head & Rotor
840
840B
Housing & Drive
840
840B
Injection Lines
840
840B
Nozzle Holder
840
840B
Fuel Lift Pump- 840
Fuel Tank
840
840B
Fuel Strainer-840
Hand Primer Pump – 840B
Sending Unit
840
840B
