2018 Harley-Davidson Wiring Diagram Manual – PDF DOWNLOAD
FILE DETAILS:
2018 Harley-Davidson Wiring Diagram Manual – PDF DOWNLOAD
Language : English
Pages : 55
Downloadable : Yes
File Type : PDF
Size: 3.55 MB

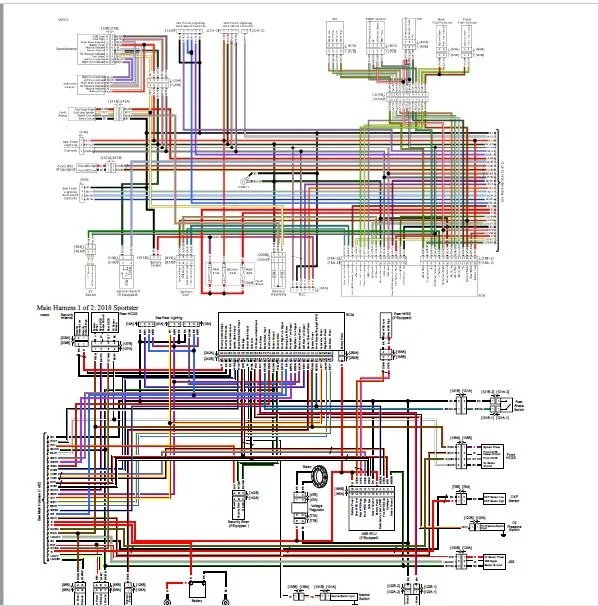

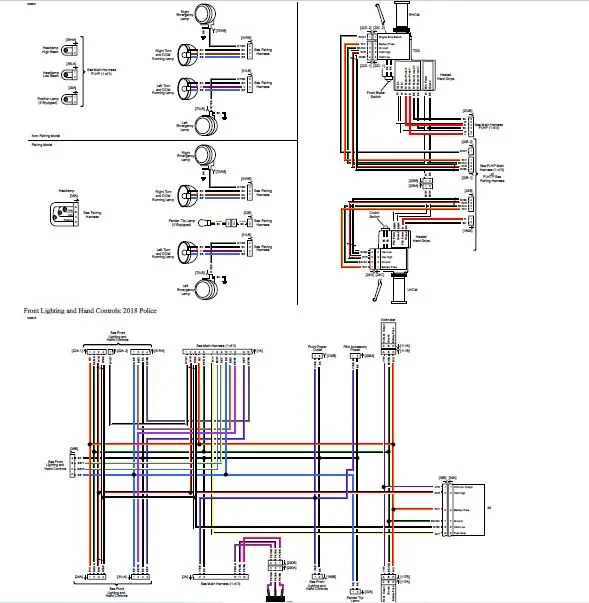

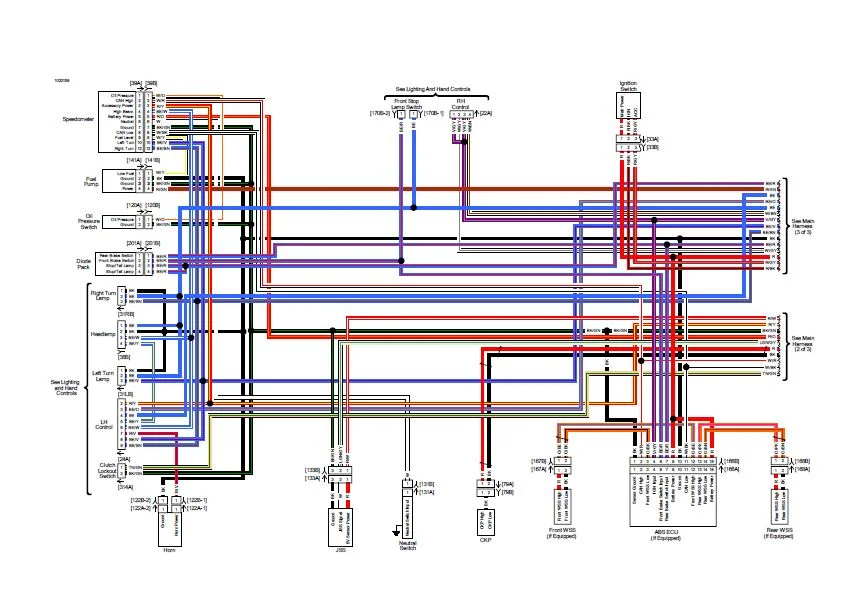

IMAGES PREVIEW OF THE MANUAL:\

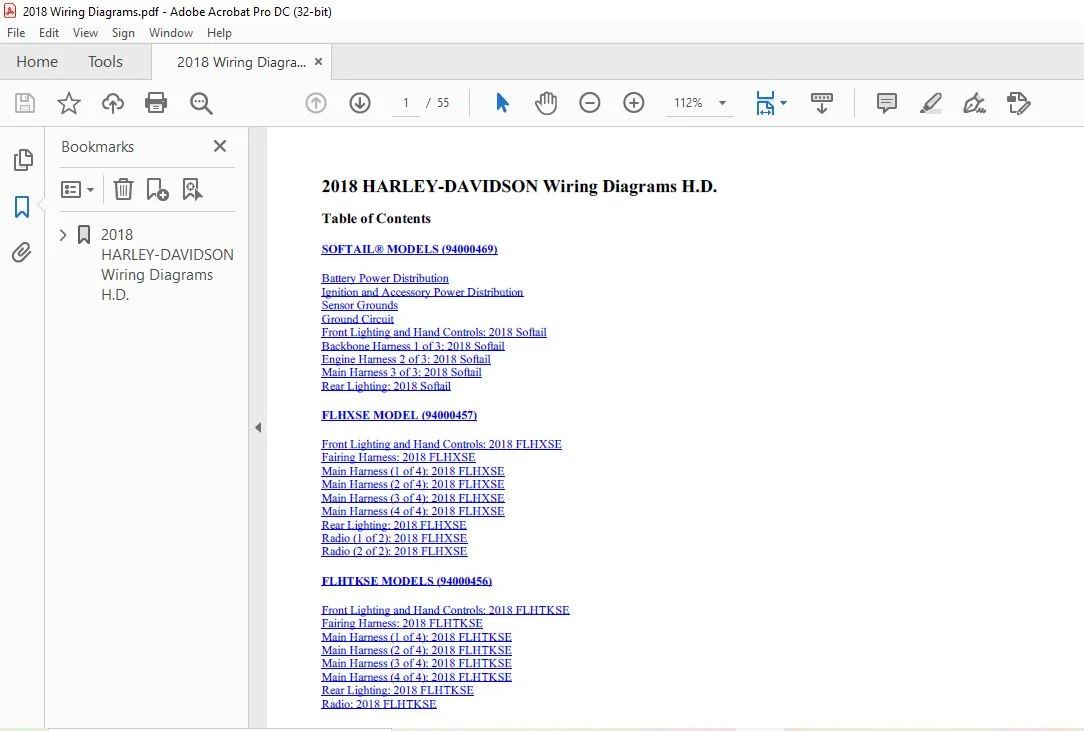

TABLE OF CONTENTS:
2018 Harley-Davidson Wiring Diagram Manual – PDF DOWNLOAD
SOFTAIL® MODELS (94000469)
Battery Power Distribution
Ignition and Accessory Power Distribution
Sensor Grounds
Ground Circuit
Front Lighting and Hand Controls: 2018 Softail
Backbone Harness 1 of 3: 2018 Softail
Engine Harness 2 of 3: 2018 Softail
Main Harness 3 of 3: 2018 Softail
Rear Lighting: 2018 Softail
FLHXSE MODEL (94000457)
Front Lighting and Hand Controls: 2018 FLHXSE
Fairing Harness: 2018 FLHXSE
Main Harness (1 of 4): 2018 FLHXSE
Main Harness (2 of 4): 2018 FLHXSE
Main Harness (3 of 4): 2018 FLHXSE
Main Harness (4 of 4): 2018 FLHXSE
Rear Lighting: 2018 FLHXSE
Radio (1 of 2): 2018 FLHXSE
Radio (2 of 2): 2018 FLHXSE
FLHTKSE MODELS (94000456)
Front Lighting and Hand Controls: 2018 FLHTKSE
Fairing Harness: 2018 FLHTKSE
Main Harness (1 of 4): 2018 FLHTKSE
Main Harness (2 of 4): 2018 FLHTKSE
Main Harness (3 of 4): 2018 FLHTKSE
Main Harness (4 of 4): 2018 FLHTKSE
Rear Lighting: 2018 FLHTKSE
Radio: 2018 FLHTKSE
FLTRXSE MODEL (94000455)
Front Lighting and Hand Controls: 2018 FLTRXSE
Fairing Harness: 2018 FLTRXSE
Main Harness (1 of 4): 2018 FLTRXSE
Main Harness (2 of 4): 2018 FLTRXSE
Main Harness (3 of 4): 2018 FLTRXSE
Main Harness (4 of 4): 2018 FLTRXSE
Rear Lighting: 2018 FLTRXSE
Radio (1 of 2): 2018 FLTRXSE
Radio (2 of 2): 2018 FLTRXSE
SPORTSTER® MODELS (94000452)
Battery Power Distribution
Ignition and Accessory Power Distribution
Sensor Grounds
Ground Circuit: 1 of 2
Ground Circuit: 2 of 2
Front Lighting and Hand Controls: 2018 Sportster
Main Harness 1 of 2: 2018 Sportster
Main Harness 2 of 2: 2018 Sportster
Rear Lighting: 2018 Sportster
TOURING MODELS (94000451)
Battery Power Distribution: FLH with Fairing
Battery Power Distribution: FLT
Battery Power Distribution without Fairing
Ignition and ACC FLH: 2018 Touring
Ignition and ACC FLT: 2018 Touring
Sensor Grounds FLH: 2018 Touring
Sensor Grounds FLT: 2018 Touring
Ground Circuit FLH: 2018 Touring
Ground Circuit FLT: 2018 Touring
Front Lighting and Hand Controls: 2018 Touring
Fairing Harness FLH: 2018 Touring
Main Harness FLH (1 of 3): 2018 Touring (with Fairing)
Main Harness FLH (2 of 3): 2018 Touring (with Fairing)
Main Harness FLH (3 of 3): 2018 Touring (with Fairing)
Fairing Harness FLT: 2018 Touring
Main Harness FLT (1 of 3): 2018 Touring (with Fairing)
Main Harness FLT (2 of 3): 2018 Touring (with Fairing)
Main Harness FLT (3 of 3): 2018 Touring (with Fairing)
Main Harness (1 of 3): 2018 Touring (without Fairing)
Main Harness (2 of 3): 2018 Touring (without Fairing)
Main Harness (3 of 3): 2018 Touring (without Fairing)
Rear Lighting: 2018 Touring
OE Radio: 2018 Touring (Except FLHX/S, FLT)
OE Radio: 2018 Touring (No Tour-Pak)
Speaker and P&A Amplifier Layout: 2018 Touring
P&A Radio with 1 Amp: 2018 Touring
P&A Radio with 2 Amps (1 of 2): 2018 Touring
P&A Radio with 2 Amps (2 of 2): 2018 Touring
P&A Radio with 4 Amps (1 of 4), Front Amp: 2018 Touring
P&A Radio with 4 Amps (2 of 4), Left Saddlebag Amp: 2018 Touring
P&A Radio with 4 Amps (3 of 4), Right Saddlebag Amp: 2018 Touring
P&A Radio with 4 Amps (4 of 4), Tour-Pak Amp: 2018 Touring
HARLEY-DAVIDSON STREET™ MODELS (94000453)
IGN and ACC
Grounds
Lighting and Hand Controls: 2018 Street
Main Harness (1 of 3): 2018 Street
Main Harness (2 of 3): 2018 Street
Main Harness (3 of 3) (750A): 2018 Street
Main Harness (3 of 3) (except 750A): 2018 Street
POLICE MODELS (94000454)
Front Lighting and Hand Controls: 2018 Police
Fairing Harness: 2018 FLHTP
Main Harness (1 of 3): 2018 FLHTP
Main Harness (2 of 3): 2018 FLHTP
Main Harness (3 of 3): 2018 FLHTP
Main Harness (1 of 3): 2018 FLHP
Main Harness (2 of 3): 2018 FLHP
Main Harness (3 of 3): 2018 FLHP
Rear Lighting: 2018 Police
TRIKE MODELS (94000458)
Front Lighting and Hand Controls: 2018 Trike Models (FLHTCUTG)
Front Lighting and Hand Controls: 2018 Trike Models (FLRT)
Fairing Harness FLHTCUTG: 2018 Trike Model
Main Harness FLHTCUTG (1 of 3): 2018 Trike Model
Main Harness FLHTCUTG (2 of 3): 2018 Trike Model
Main Harness FLHTCUTG (3 of 3): 2018 Trike Model
Main Harness FLRT (1 of 3): 2018 Trike Model
Main Harness FLRT (2 of 3): 2018 Trike Model
Main Harness FLRT (3 of 3): 2018 Trike Model
Rear Lighting: 2018 Trike Models (FLHTCUTG)
Rear Lighting: 2018 Trike Models (FLRT)
Radio: 2018 Trike Models
Reverse FLHTCUTG: 2018 Trike Model
Reverse FLRT: 2018 Trike Mod
