2016 Hyundai Genesis 5.0 GDI Workshop Manual – PDF DOWNLOAD

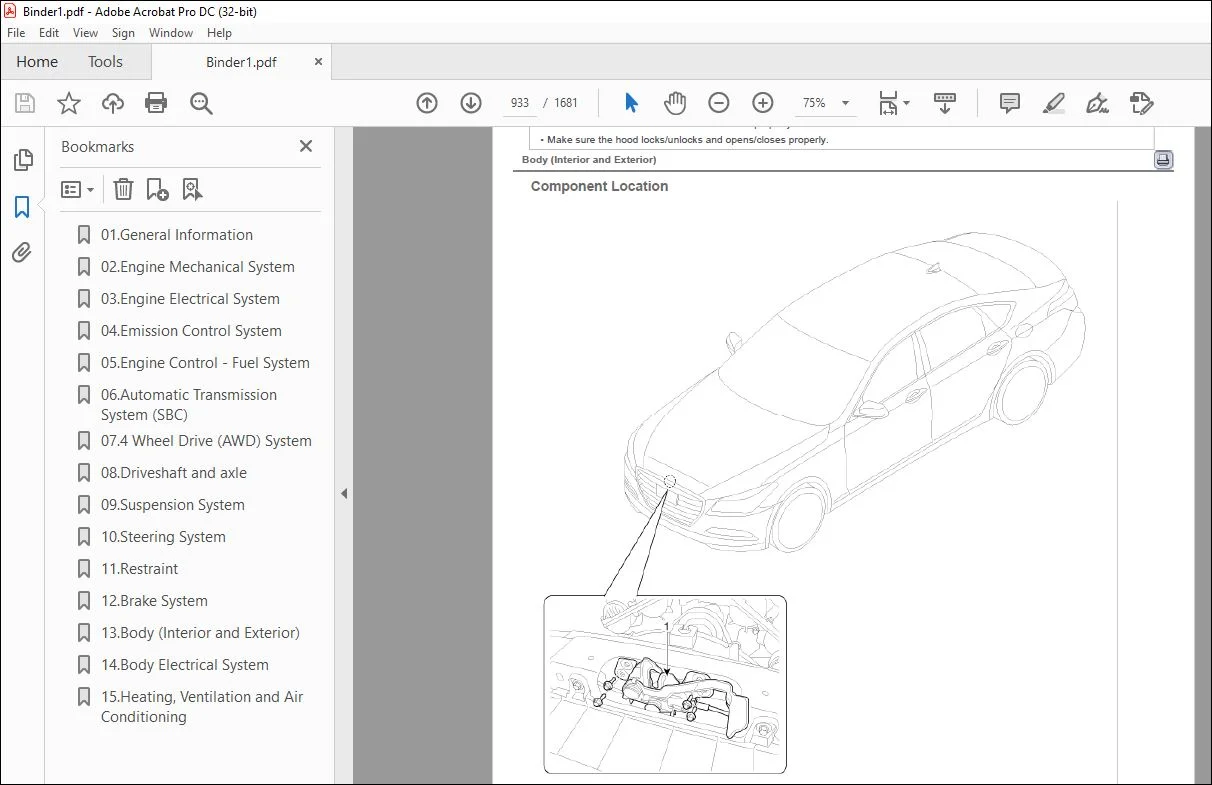

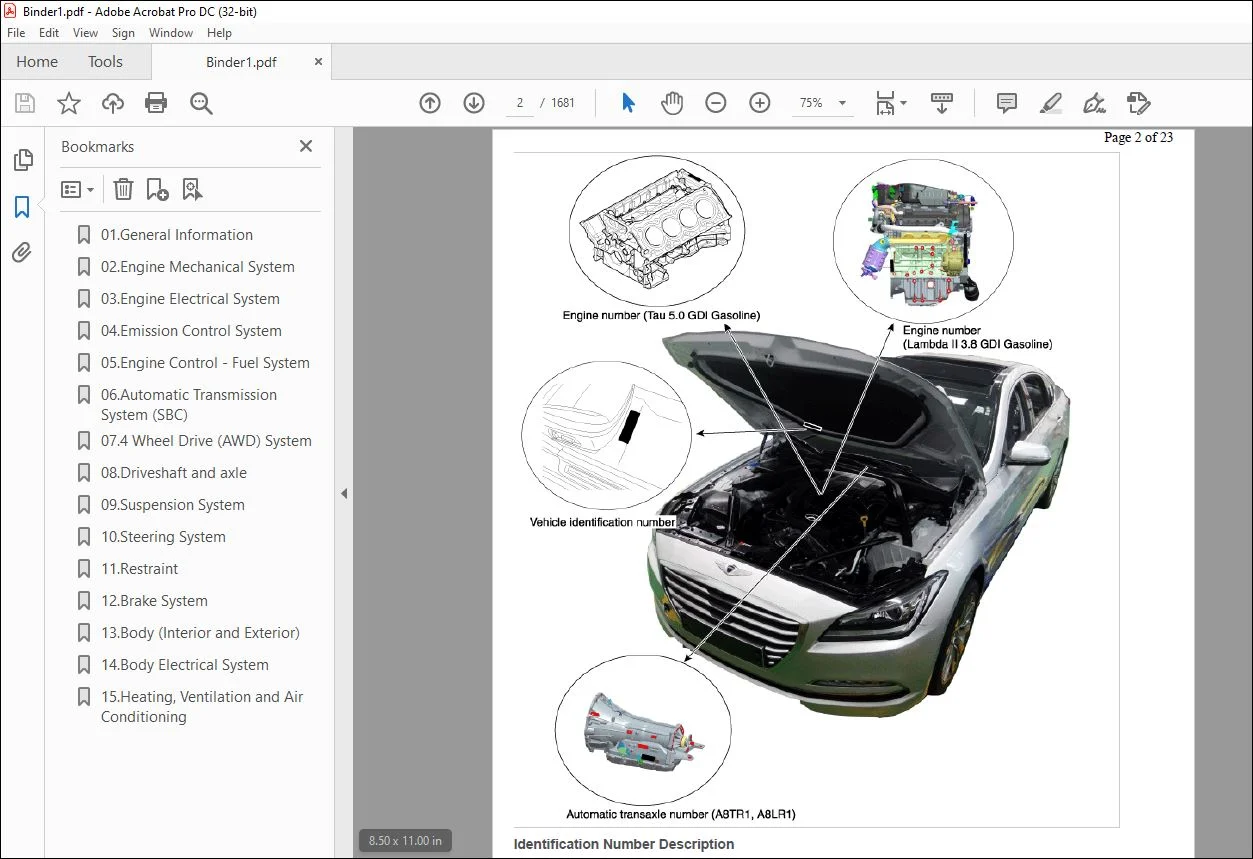

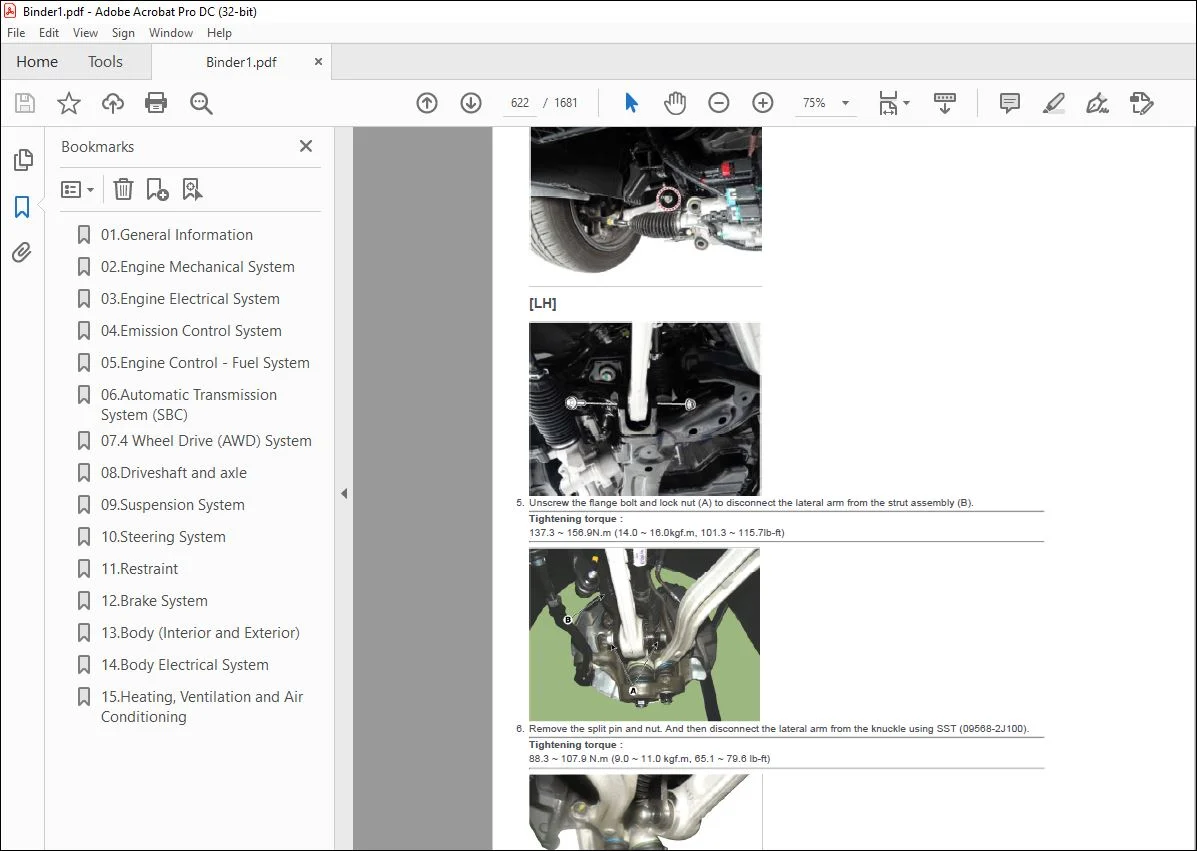

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
2016 Hyundai Genesis 5.0 GDI Workshop Manual – PDF DOWNLOAD
General Information
Important Safety Notice
Proper service methods and repair procedures are essential for safe, reliable operation of all motor vehicles as well as personal safety of the
operator. The service procedures and descriptions in this shop manual provide general directions for service and repair.
There are various procedures, techniques, tools and pars for service as well as the skill of technicians.
Therefore, it is impossible for this manual to provide advice or caution for each case.
Accordingly, if you use a replacement part, service procedure, or tool which are not recommended by the vehicle manufacturer, make sure that
neither the personal safety nor the safe operation of the vehicle is jeopardized.
The following list contains some general WARNINGS that you should follow while working on a vehicle.
• Always wear safety glasses for eye protection.
• Use safety stands whenever a procedure requires you to be under the vehicle.
• Make sure that the ignition switch is always in the OFF position, unless otherwise required by the procedure.
• Set the parking brake when working on the vehicle. If you have an automatic transaxle, set the vehicle in the P position.
• Place supporters against the front and rear surfaces of the tires to prepare for the vehicle suddenly moving.
• Operate the engine only in a well-ventilated area to avoid the danger of carbon monoxide poisoning.
• Keep yourself and your clothing away from moving parts when the engine is running, especially the drive belts.
• To prevent serious burns, avoid contact with hot metal parts such as the radiator, exhaust manifold, tail pipe, catalytic converter and muffler.
• Do not smoke while working on a vehicle.
• To avoid injury, always remove rings, watches, loose hanging jewelry, and loose clothing before beginning to work on a vehicle.
• When it is necessary to work under the hood, keep hands and other objects clear of the radiator fan blades! Your vehicle may be equipped
with a cooling fan that may turn on, even though the ignition switch is in the OFF position. For this reason care should be taken to ensure
that the radiator fan electric motor is completely disconnected when working under the hood and that the engine is not running.
TABLE OF CONTENTS:
2016 Hyundai Genesis 5.0 GDI Workshop Manual – PDF DOWNLOAD
01.General Information…………………….. 1
02.Engine Mechanical System………………… 24
03.Engine Electrical System………………… 206
04.Emission Control System…………………. 284
05.Engine Control – Fuel System…………….. 299
06.Automatic Transmission System (SBC)………. 427
07.4 Wheel Drive (AWD) System………………. 495
08.Driveshaft and axle…………………….. 529
09.Suspension System………………………. 608
10.Steering System………………………… 699
11.Restraint……………………………… 719
12.Brake System…………………………… 785
13.Body (Interior and Exterior)…………….. 888
14.Body Electrical System…………………..1156
15.Heating, Ventilation and Air Conditioning….1608
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
- The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
- Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
