2007 CHEVROLET CORVETTE TREMEC 6 SPEED TRANSMISSION MANUAL – PDF DOWNLOAD

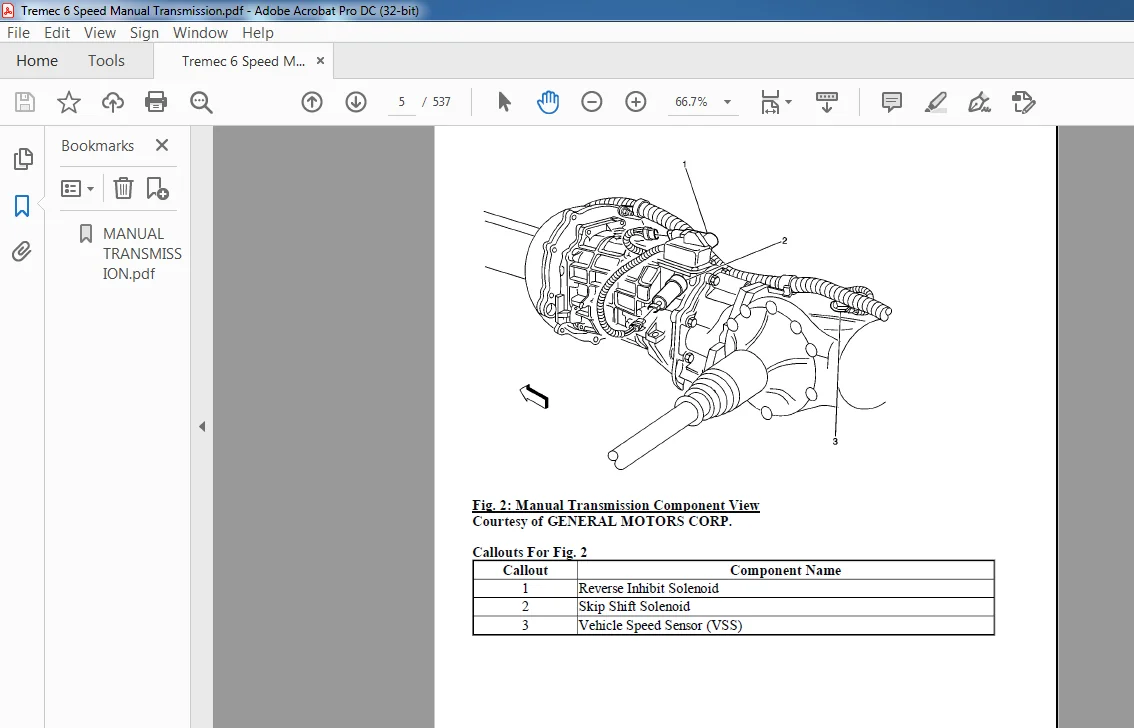

- This parameter displays the state of the clutch pedal switch circuit input. The scan tool will display APPLIED when the clutch pedal is depressed, and RELEASED when the clutch pedal is released. Reverse Inhibit Solenoid Command This parameter displays the commanded state of the reverse inhibit solenoid.
- When the vehicle speed is greater than 5 km/h (3 mph), the solenoid is commanded ON, inhibiting shifts to Reverse. When the vehicle speed is less than 5 km/h (3 mph), the solenoid is commanded OFF, allowing shifts to Reverse. The scan tool will display ON/OFF. Skip Shift Lamp Command This parameter displays the commanded state of the skip shift lamp.
- The scan tool will display ON/OFF. Skip Shift Solenoid Command This parameter displays the commanded state of the skip shift solenoid. The scan tool will display SKIP/NO SKIP.
- TFT Sensor This parameter displays the voltage drop across the transmission fluid temperature (TFT).sensor circuit. 5 volts is applied to the TFT sensor circuit.
- The sensor is a thermistor which changes internal resistance based on temperature. When the sensor is cold, the internal resistance is high, resulting in a high signal voltage.
- As the sensor warms, the internal resistance decreases, and the signal voltage will also decrease. A low signal voltage indicates a warm TFT, and a high signal voltage indicates a cold TFT.
- Vehicle Speed Sensor This parameter displays the speed at which the vehicle is traveling. The scan tool displays vehicle speed as kilometers per hour (km/h), miles per hour (mph).
- The vehicle speed is calculated based on the input signal from the vehicle speed sensor. SCAN TOOL OUTPUT CONTROLS Scan Tool Output Controls DIAGNOSTIC TROUBLE CODE (DTC) TYPE DEFINITIONS Diagnostic trouble codes (DTCs) are categorized into emissions and non-emissions related types.
- If a DTC is set, the malfunction indicator lamp (MIL) and failure data are utilized by the control module diagnostic executive according to the DTC type. Each DTC is set based upon the individual DTCs running and setting criteria.
- Read the Action Taken When the DTC Sets and Conditions for Clearing the MIL/DTC in the supporting text for taking appropriate action to each DTC.
TABLE OF CONTENTS:
2007 CHEVROLET CORVETTE TREMEC 6 SPEED TRANSMISSION MANUAL – PDF DOWNLOAD

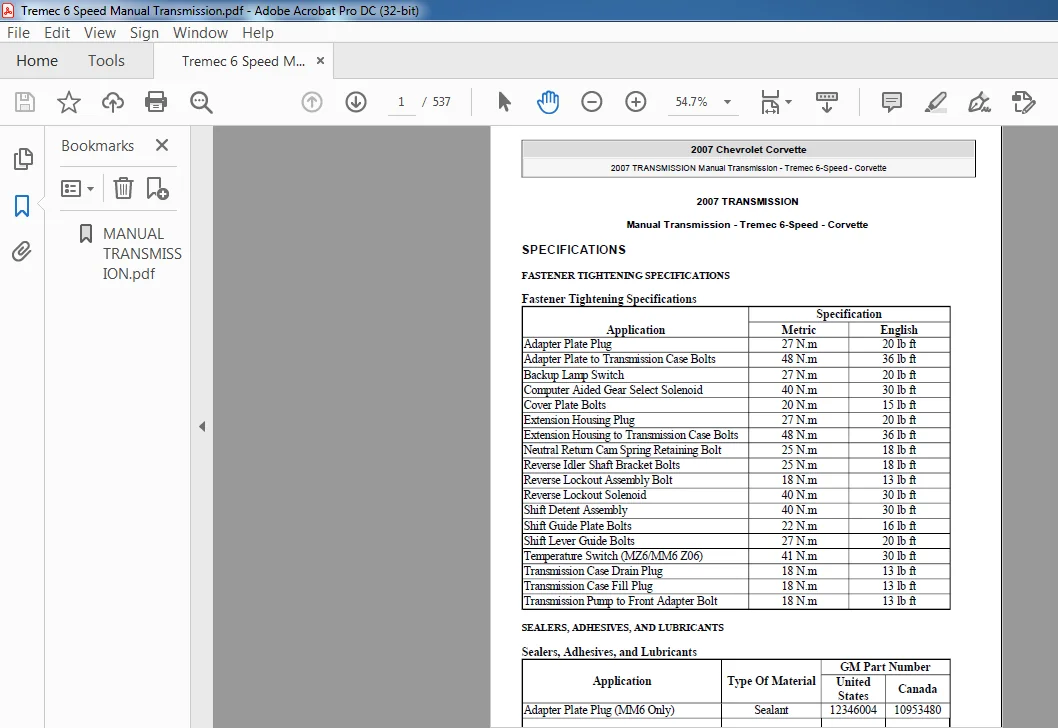

Adapter Plate Plug 27 N.m 20 lb ft
Adapter Plate to Transmission Case Bolts 48 N.m 36 lb ft
Backup Lamp Switch 27 N.m 20 lb ft
Computer Aided Gear Select Solenoid 40 N.m 30 lb ft
Cover Plate Bolts 20 N.m 15 lb ft
Extension Housing Plug 27 N.m 20 lb ft
Extension Housing to Transmission Case Bolts 48 N.m 36 lb ft
Neutral Return Cam Spring Retaining Bolt 25 N.m 18 lb ft
Reverse Idler Shaft Bracket Bolts 25 N.m 18 lb ft
Reverse Lockout Assembly Bolt 18 N.m 13 lb ft
Reverse Lockout Solenoid 40 N.m 30 lb ft
Shift Detent Assembly 40 N.m 30 lb ft
Shift Guide Plate Bolts 22 N.m 16 lb ft
Shift Lever Guide Bolts 27 N.m 20 lb ft
Temperature Switch (MZ6/MM6 Z06) 41 N.m 30 lb ft
Transmission Case Drain Plug 18 N.m 13 lb ft
Transmission Case Fill Plug 18 N.m 13 lb ft
Transmission Pump to Front Adapter Bolt
