1990 – 1997 Ford Escort Factory Service Repair Manual
FILE DETAILS:
1990 – 1997 Ford Escort Factory Service Repair Manual
Language : English
Pages : 500+
Downloadable : YES
Format : PDF
Size : 10.2 MB
DESCRIPTION:
1990 – 1997 Ford Escort Factory Service Repair Manual
GENERAL:
The manufacturer’s recommended maintenance schedule for these vehicles is as described below – note that the schedule starts from the vehicle’s date of registration. These are the minimum maintenance intervals recommended by the factory for Escorts and Orions driven daily, but subjected only to “normal” use. If you wish to keep your vehicle in peak condition at all times, you may wish to perform some of these procedures even more often.
- Because frequent maintenance enhances the efficiency, performance and resale value of your vehicle, we encourage you to do so. If your usage is not “normal”, shorter intervals are also recommended – the most important examples of these are noted in the schedule. These shorter intervals apply particularly if you drive in dusty areas, tow a caravan or trailer, sit with the engine idling or drive at low speeds for extended periods (ie, in heavy traffic), or drive for short distances (less than four miles) in below-freezing temperatures.
- When your vehicle is new, it should be serviced by a Ford dealer service department to protect the factory warranty. In many cases, the initial maintenance check is done at no cost to the owner. Note that this first free service (carried out by the selling dealer 1500 miles or 3 months after delivery), although an important check for a new vehicle, is not part of the regular maintenance schedule, and is therefore not mentioned here.
- It should be noted that for the 1992 model year, the service time/mileage intervals were extended by the manufacturer to the periods shown in this schedule. Although these intervals can be applied retrospectively, owners of earlier vehicles may notice a discrepancy between this schedule and the one shown in the Service Guide supplied with the vehicle.
TABLE OF CONTENTS:
1990 – 1997 Ford Escort Factory Service Repair Manual
Air conditioning system check 14
Air cleaner element renewal 29
Automatic transmission fluid level check 7
Automatic transmission fluid renewal 32
Auxiliary drivebelt check and renewal 11
Battery check, maintenance and charging 9
Brake check 23
Brake fluid renewal 36
Coolant renewal 28
Door and bonnet check and lubrication 24
Driveshaft rubber gaiter and CV joint check 20
Electrical system check 8
Engine compartment wiring check 13
Engine oil and filter change 16
Exhaust system check 21
Fluid level checks 3
Ford Escort and Orion maintenance schedule 1
Fuel filter renewal 35
Handbrake adjustment 33
Idle speed and mixture check and adjustment 17
Ignition timing check See Chapter 5
Introduction 1
Manual transmission oil level check 18
Oil filler cap check 31
Positive Crankcase Ventilation (PCV) system check and
filter cleaning 30
Power steering fluid level check 5
Road test 26
Roadwheel nut tightness check 25
Routine maintenance 2
Seat belt check 10
Spark plug renewal 27
Steering, suspension and roadwheel check 19
Timing belt renewal 34
Tyre and tyre pressure checks 4
Underbody and fuel/brake line check 22
Underbonnet check for fluid leaks and hose condition 12
Valve clearance adjustment 15
Windscreen/tailgate washer system and wiper blade check 6
VIDEO PREVIEW OF THE MANUAL:

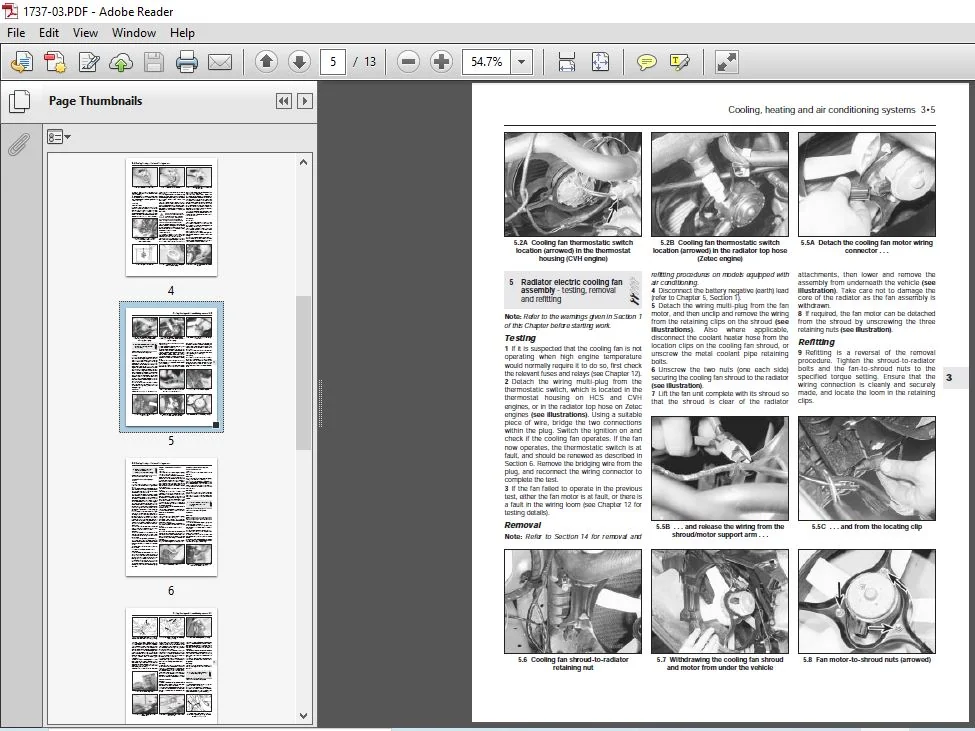

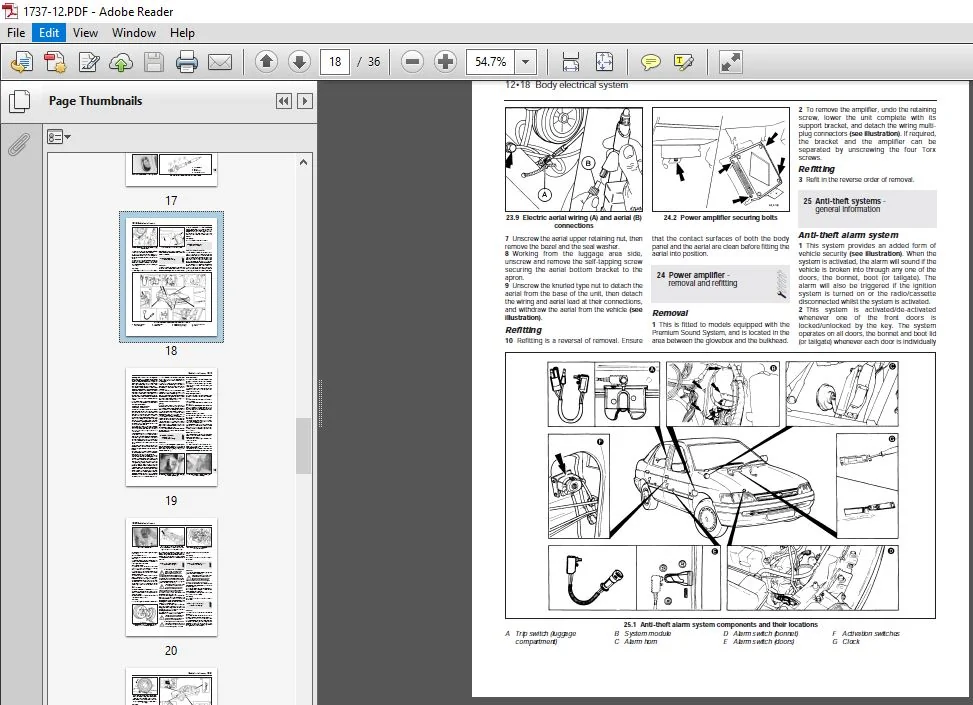

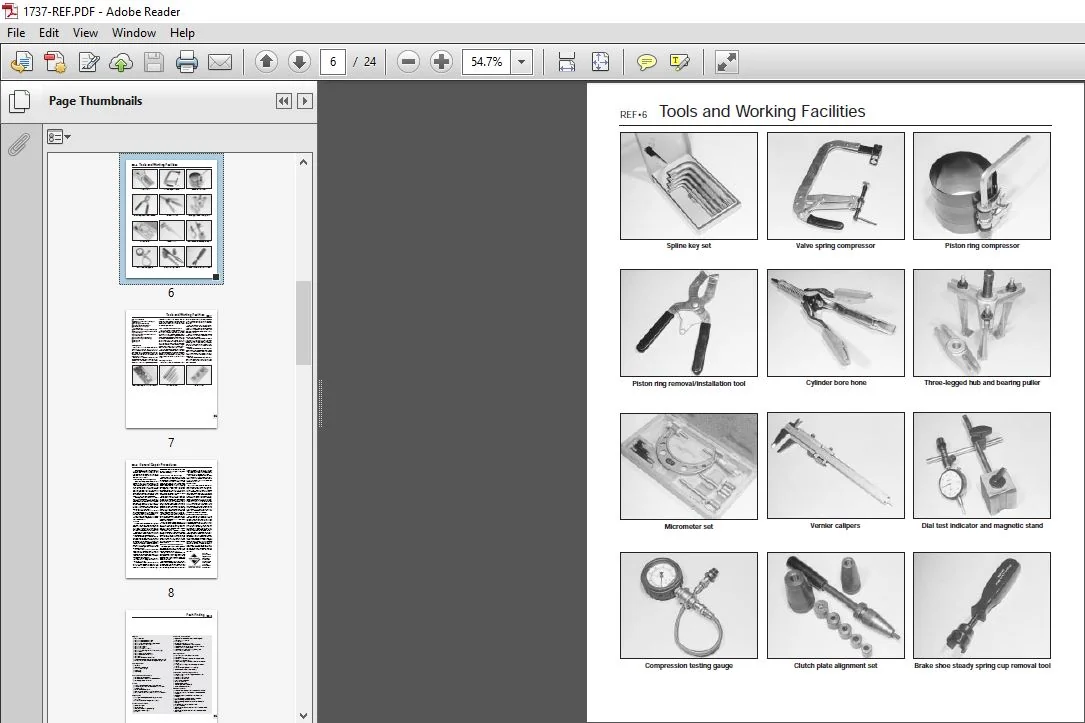

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
