FORD E-450 2012 SERVICE MANUAL
FILE DETAILS:
FILE TYPE:PDF
DOWNLOADABLE:YES
MANUAL LANGUAGE:ENGLISH
PAGES:15000+
DESCRIPTION:
- Using This Manual Introduction This manual describes and directs repair procedures for this vehicle model year. It includes diagnostics for all vehicle systems except driveability and emission control. Refer to the separate Powertrain Control/Emissions Diagnosis (PC/ED) manual for driveability and emission control diagnostics. Information is organized into groups, with sections that have subsections dividing them. Warnings, Notices, and Notes in This Manual Warnings provide information to avoid personal injury and to make sure service actions on critical safety systems are performed correctly.
- Notices provide information to avoid damage to the vehicle or a component. Notes provide information critical for a complete and effective repair. Warnings that apply to an entire system or workshop manual section are located in section 100-00 Description and Operation Safety Warnings . Warnings, Notices, or Notes that apply to an entire procedure will be placed at the beginning of the procedure. Warnings, Notices, or Notes that apply to a single step are placed at the beginning of the step. Those that apply to a group of steps will be placed at the first step requiring it. Vehicle and Engine Orientation Identifiers LH and RH vehicle designations are oriented from the driver’s seat position looking forward.
- LH and RH engine designations are oriented from the flywheel position looking towards the crankshaft pulley. How to Use Diagnostic Information DTC and Symptom Charts Module DTC Charts are used to begin and direct the diagnosis of a DTC. Symptom Charts contain concern symptoms and direct solutions either in the chart or in a linked Diagnostic Routine. Both DTC and Symptom Charts may provide the solution within the chart, or provide a link to the appropriate Diagnostic Routine. In some sections, the Symptom Chart is preceded by a Preliminary Inspection which must be followed prior to using the Symptom Chart Using Module DTC Charts This Workshop Manual contains diagnostics for DTCs set by vehicle modules.
- Driveability and emission DTCs are covered in the separate Powertrain Control/Emissions Diagnosis (PC/ED) manual. If a PCM-set DTC is not listed in the Workshop Manual, it is serviced in the Powertrain Control/Emissions Diagnosis (PC/ED) manual. DTC diagnostics are found in both on-line and printed publications and are used as follows: 2012 E-Series Workshop Manual Using This Manual 21 On-line publications: Using the left side menu, click on the Master DTC Chart link to view the vehicle module DTC charts. Each module has a chart with links or in-chart solutions for all DTCs diagnosed in the Workshop Manual. ·
- · Printed publications: Use the DTC index in the rear of the book. Diagnostic Methods Diagnostic Methods provides information to support diagnosing Ford vehicles. Diagnostic strategies, diagnostic tool support information, and advanced circuit testing methods are included. REFER to Diagnostic Methods . Diagnostic Routines Diagnostic Routines provide information to determine the root cause of concerns addressed in either a DTC Chart or Symptom Chart. Each Diagnostic Routine contains: Diagnostic Overview ¨ Wiring Diagram References (as applicable) ¨ Normal Operation and Fault Conditions ¨ Visual Inspection and Diagnostic Pre-checks ·
- · Tool Table (as applicable) · Material Table (as applicable) · Pinpoint Test Steps Component Tests Component Tests are used to separately analyze a single common component in a system. The test will determine if the part is functioning correctly. Mechanical Procedures Such As Removal and Installation Reuse Of Fasteners, Seals, Or Gaskets The following is a list of assumptions made in the reuse of fasteners, seals, or gaskets.
- · Seals and gaskets must be replaced unless otherwise specified. · Standard fasteners are reused unless otherwise specified. Fasteners with self-locking features must be replaced unless otherwise noted. Reminder text may or may not be included with the procedure step. Examples of fastener coatings or fasteners with mechanical locking (with the locking features highlighted yellow) are shown in illustration 1. · Torque to yield bolts (bolts with more than one stage of tightening torque and a final torque angle specification) must be discarded and new torque to yield bolts installed unless otherwise stated within the procedure.
TABLE OF CONTENTS:
- FORD E-450 2012 SERVICE MANUAL
1: General Information
00: Service Information
2: Chassis
04: Suspension
05: Driveline
06: Brake System
11: Steering System
3: Powertrain
03: Engine
07: Automatic Transmission
09: Exhaust System
10: Fuel System
4: Electrical
12: Climate Control System
13: Instrumentation and Warning Systems
14: Battery and Charging System
15: Audio Systems
17: Lighting
18: Electrical Distribution
19: Electronic Feature Group
5: Body and Paint
01: Body
02: Frame and Mounting

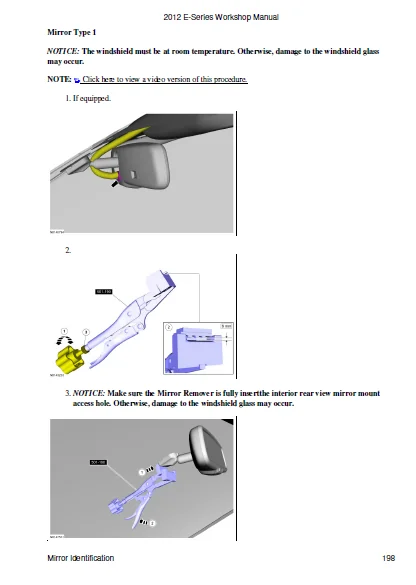

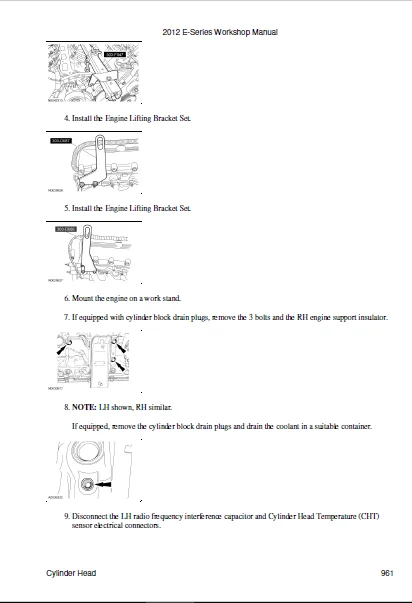

SCREENSHOT OF THE MANUAL:
