ZF Tractor Transmission T-7336 PS Repair Manual – PDF DOWNLOAD
FILE DETAILS:
ZF Tractor Transmission T-7336 PS Repair Manual – PDF DOWNLOAD
Language : English
Pages : 186
Downloadable : Yes
File Type : PDF
Size: 4.85 MB

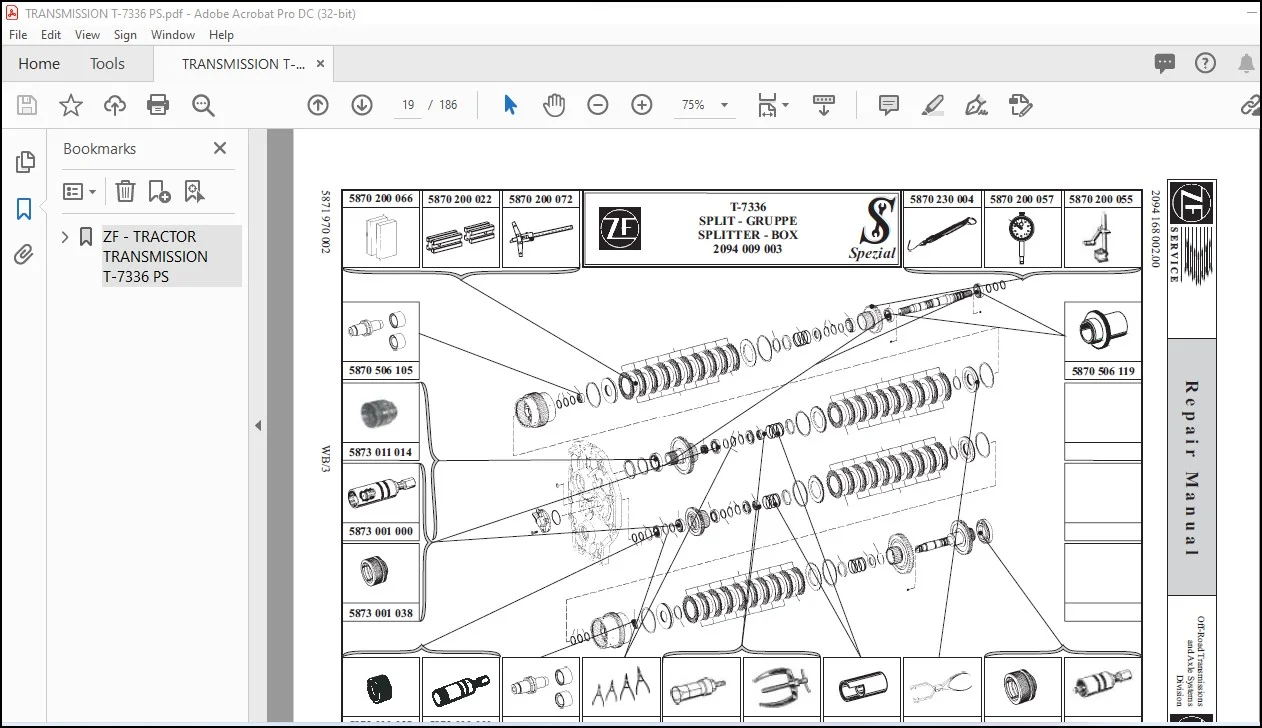

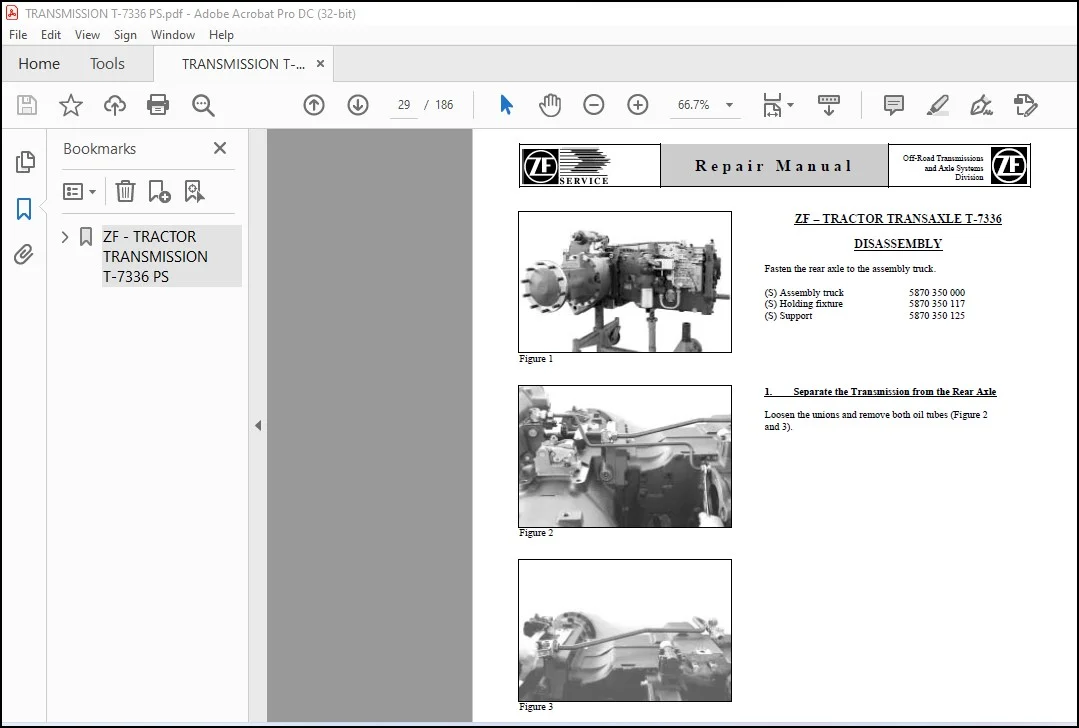

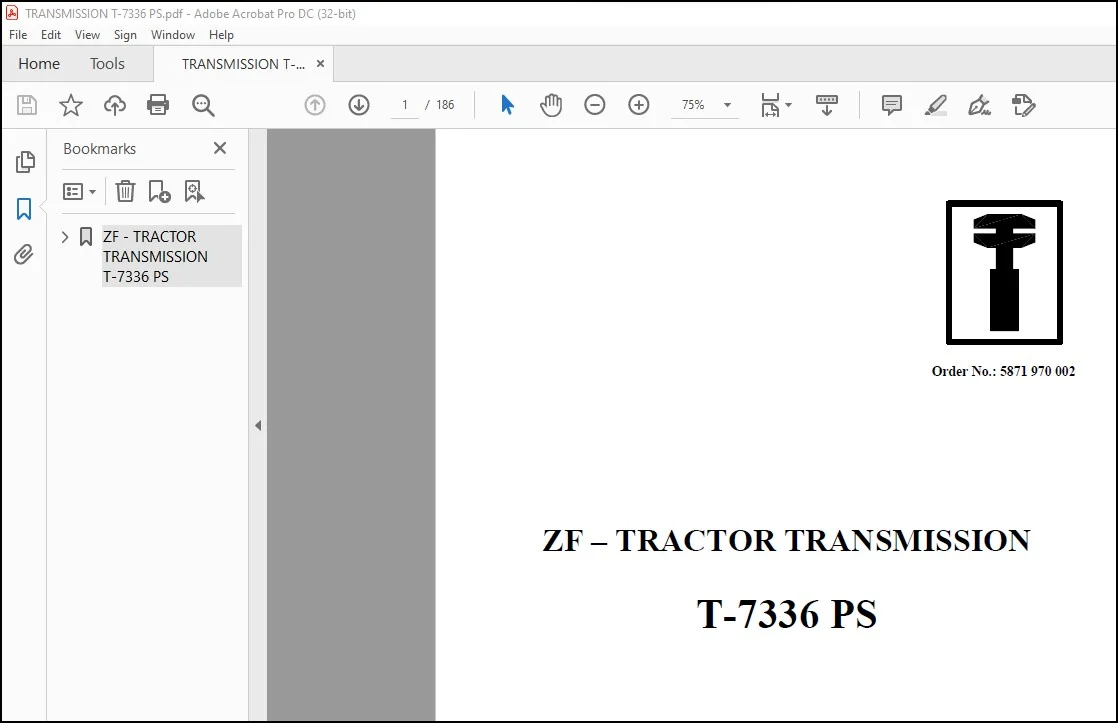

IMAGES PREVIEW OF THE MANUAL:
VIDEO PREVIEW OF THE MANUAL:
DESCRIPTION:
ZF Tractor Transmission T-7336 PS Repair Manual – PDF DOWNLOAD
GENERAL:
The Service Manual covers all work required for dismantling and the pertaining installation.
When repairing the axle, ensure utmost cleanliness and that the work is carried out in an expert-like manner.
The axle should only be disassembled for renewing damaged parts. Covers and housing parts installed with
seals must be loosened by slight blows with a plastic mallet after screws and nuts have been removed. For
removing parts being in tight contact with the shaft such as antifriction bearings, bearing races, and similar,
use suitable pulling devices.
Dismantling and mounting work must be carried out at a clean working place. Use the special tools
developed for this purpose. Prior to the re-installation of the parts, clean the contact surfaces of housings
and covers from the residues of old seals. Remove burrs, if any, or similar irregularities with an oil stone.
Clean housings and locking covers with a suitable detergent, in particular corners and angles. Damaged
parts or parts heavily worn down must be renewed. Here, the expert must assess, whether parts such as
antifriction bearings, thrust washers etc. subjected to normal wear during operation, can be installed again.
Parts such as sealing rings, lock plates, split pins etc. must generally be renewed. Radial sealing rings with
worn down or torn sealing lip must also be renewed. Particularly ensure that no chips or other foreign
bodies remain in the housing. Lube oil bores and grooves must be checked for unhindered passage.
All bearings must be treated with operating oil prior to installing them:
TABLE OF CONTENTS:
ZF Tractor Transmission T-7336 PS Repair Manual – PDF DOWNLOAD
ZF – TRACTOR TRANSMISSION T-7336 PS……………………………………………….. 1
Preface…………………………………………………………………….. 3
General…………………………………………………………………….. 4
Conversion table for dimensional units…………………………………………. 6
Denomination of standard dimensions……………………………………………. 7
Torque limits for screws……………………………………………………… 8
List of special tools………………………………………………………… 9
Illustrated Tables…………………………………………………………… 17
1. Separate the transmission from the rear axle…………………………………. 29
2. Removal of the Electro-hydraulic shift control and disassembly of the pump drive…. 31
2.1 Removal of the electro-hydraulic shift control…………………………… 31
2.1.1 Removal of the 4-speed powershift control block…………………….. 31
2.1.2 Removal of the forward-reverse control block……………………….. 33
2.2 Disassembly of the pump drive………………………………………….. 35
3. Disassembly of powershift clutches………………………………………. 39
3.1 Disassembly of Clutch A/C………………………………………….. 40
3.2 Disassembly of Clutch B/D………………………………………….. 44
3.3 Disassembly of Clutch F/G………………………………………….. 48
4. Disassembly of the front wheel, Crawler gear shifting and main clutch……….. 52
4.1 Disassembly of the front wheel drive………………………………… 52
4.2 Disassembly of the crawler gear shifting…………………………….. 56
4.3 Disassembly of the main clutch……………………………………… 58
5. Disassembly of the main transmission (6-speed synchro, Transmission)………… 61
5.1 Disassembly of the mechanical shift control………………………….. 61
5.2 Disassembly of the main shaft………………………………………. 65
5.3 Disassembly of the layshaft………………………………………… 67
5.4 Disassembly of the pump gear drive………………………………….. 72
6. Reassembly main transmission (6-speed Synchro. transmission………………… 73
6.1 Preassembly of the transmission housing……………………………… 73
6.2 Reassembly of the pump gear drive…………………………………… 75
6.3 Reassembly of the layshaft…………………………………………. 76
6.4 Reassembly of the main shaft……………………………………….. 85
6.5 Reassembly of the shift system (mechanical part)……………………… 96
7. Reassembly of the main clutch, Crawler gear shifting and front wheel drive……103
7.1 Reasembly of the main clutch………………………………………..103
7.2 Reassembly of the crawler gear shifting………………………………115
7.3 Reassembly of the front wheel drive………………………………….119
8. Reassembly of the powershift clutches…………………………………….131
8.1 Reassembly of clutch A/C……………………………………………131
8.2 Reassembly of clutch B/D……………………………………………139
8.3 Reassembly of clutch F/G……………………………………………149
8.4 Reassembly of the cover…………………………………………….157
8.5 Adjust the axial clearance of the clutches……………………………159
8.6 Adjust the excess shift travel of the crawler gear shifting…………….163
9. Reassembly of the pump drive and attachment of the Electro-hydraulic control….164
9.1 Reassembly of the pump drive ……………………………………….164
9.2 Attachment of the electro-hydraulic control…………………………..178
9.3 Attachment of the forward-reverse control block……………………….180
9.4 Attachment of the 4-speed powershift control block…………………….181
9.5 Attachment of the pump……………………………………………..183
10. Attachment of the transmission to the rear axle…………………………..184
PLEASE NOTE:
- This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
- The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
- Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
