White MY20 25 30 & 40C Forklift Trucks Parts Manual – PDF DOWNLOAD
SERIAL NUMBERS
GASOLINE AND LP GAS
MY20-49990001 AND AFTER
MY25—50000001 AND AFTER
MY30–501 00001 AND AFTER
MY20–30-62001 01 AND AFTER
MY40C-6200501 AND AFTER
FOREWORD:

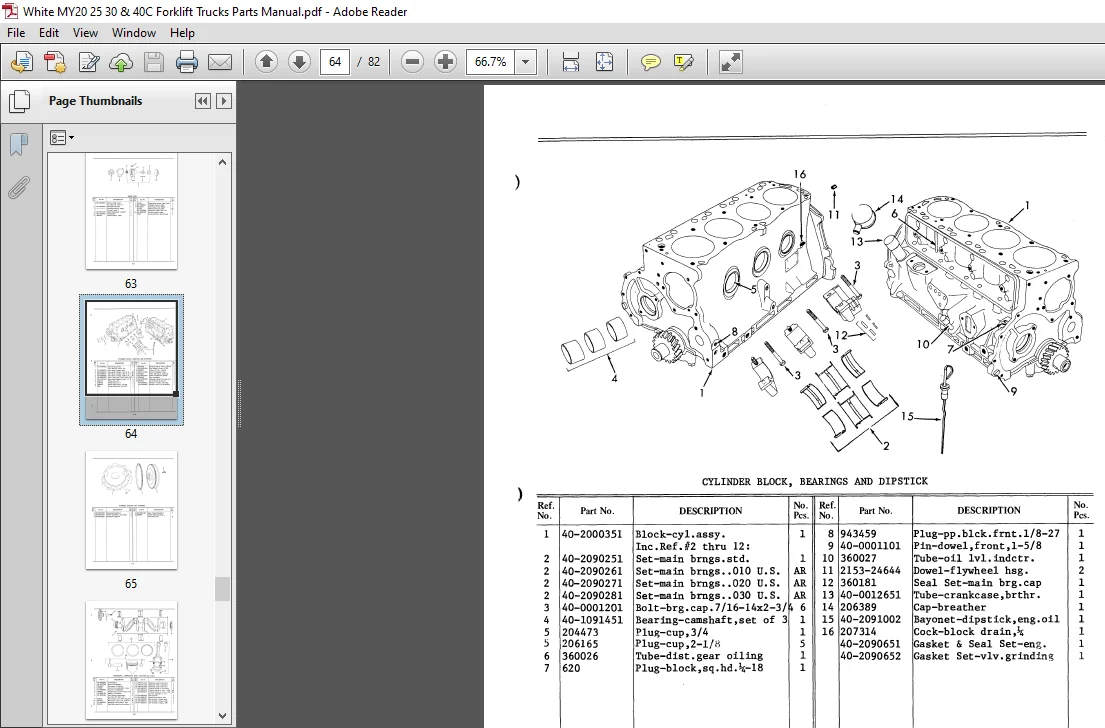

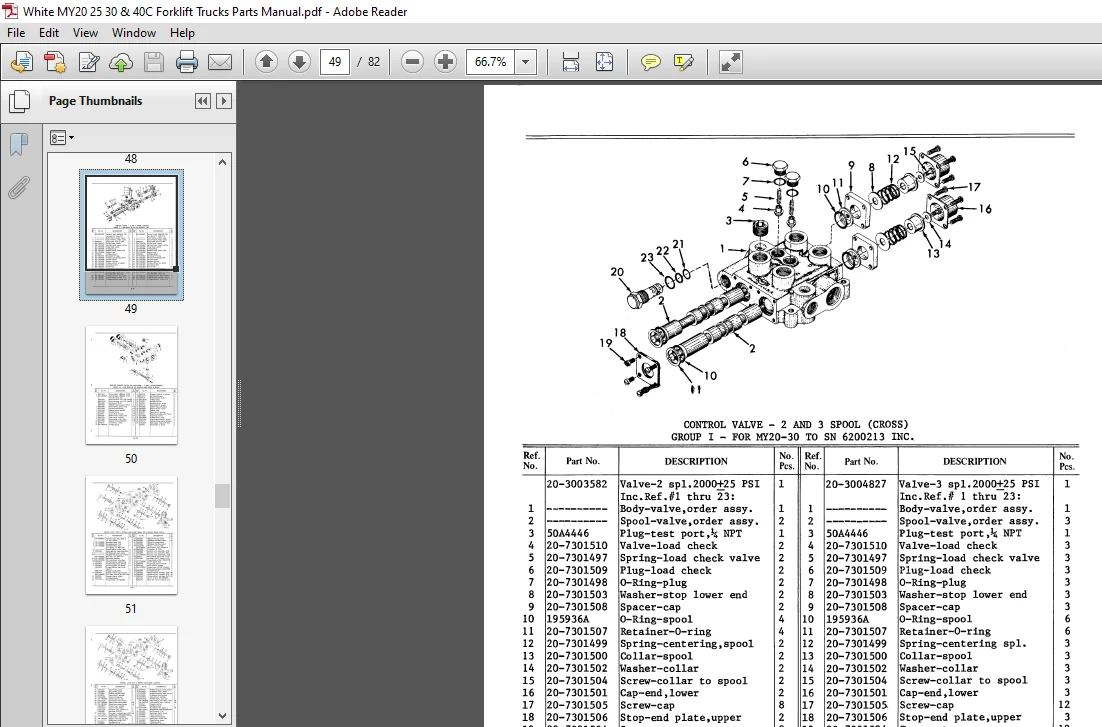

- This catalog contains a complete list of parts for the lift truck. To assist in determining the part numbers and descriptions, the parts in this catalog are grouped according to their location on the lift truck. Reference numbers only are shown in each illustration. These numbers correspond to those in the reference number column in the list of parts which follows each “exploded view”. TYPICAL PARTS ARE SHOWN, AND MAY NOT ALWAYS BE IDENTICAL WITH CURRENT PARTS. REFER TO THE TEXT. “RIGHT OR LEFT” IS DETERMINED BY FACING TOWARD THE UPRIGHT FROM THE LIFT TRUCK SEAT.
- To further assist in locating repair parts, the part numbers are arranged in numerical sequence and indexed at the rear of this catalog. Component parts of assemblies are listed following the assembly itself and are identified as being part of the assembly by this notation following the description: Consists of the following … parts or Includes the following … parts: Part numbers only make up an assembly.
- Hardware items are not to be included. Parts such as standard bolts, nuts, screws, washers, etc., are listed under the respective individual parts with which they are used. The quantity for many of the shims listed is shown as A.R. (as required). The correct amount of shims should be determined in order to get the proper clearance. Bolts and nuts listed are standard Grade 5, special grades will be shown in text. Order hardware thru Standard Fastner Program or purchase locally. Occasionally new part numbers replace old numbers in the Part No. column.
- In those cases where the new number substitutes for the old number, the old number will be enclosed in parenthesis and it will appear at the end of the text in the description column. When in need of repair parts, order from your local dealer. All parts orders should plainly specify your name, post office address, and whether shipment is to go by parcel post, express, or freight. Claims of shortage or breakage should be made to the transportation company on receipt of goods. Before returning repair parts to the factory or parts depot, it is necessary to secure written permission from the Company authorizing the return of such parts. In the returning of repair parts be sure the package is tagged with your name and address.
- Prepay transportation charges. It is the policy of the Company to improve its products whenever it is possible and practical to do so. We reserve the right to make changes or add improvements in the design or construction of parts at any time without incurring the obligation to install such changes on products previously delivered.
