Volvo ZL 402 Series C Tractor Operators Manual – PDF DOWNLOAD
FILE DETAILS:
LANGUAGE:ENGLISH
PAGES:84
DOWNLOADABLE:YES
FILE TYPE:PDF
VIDEO PREVIEW OF THE MANUAL:

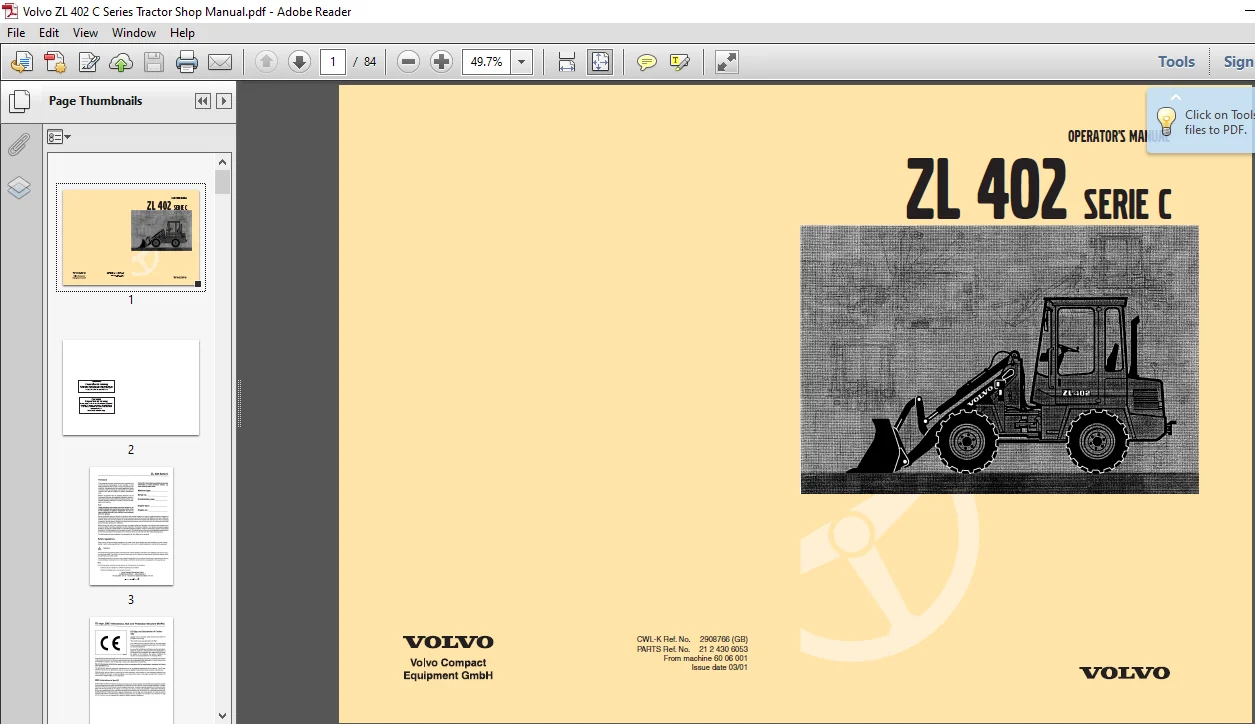

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Volvo ZL 402 Series C Tractor Operators Manual – PDF DOWNLOAD
Foreword :
This operating instruction manual serves as a guide for the correct use and maintenance of your machine. It must always be kept with the machine. The recommendationsfor operation, maintenance and the safety regulations (safety -brochure) must be thoroughly read before you start the machine, work with the machine or perform maintenance work. Become acquainted with all operating elements and all instructions and store the operating instruction manual in such a place in the machine where it is always at hand. lyou lose the operating instruction manual you should immediately buy a new one.
- We are continually trying to improve our products and reserve therefore the right to implement design changes and improvements. if we are ofthe opinion thatthis may improve the performance and the abilities of the product. With this. however. we do not committ ourselves to modify machines which have already been delivered and wich are already in operation.
- We also reserve the right to change data and equipment as well as instructions for maintenance and other service activities without prior notification. Before leaving the factory the machine has been thoroughly tested and adjusted. if the machine was handed over to you by our dealer it has been subjected to another inspection, the delivery inspection.
- Our dealers are always available to help you to keep your wheel loader in an excellent operating condition. They are authorized to perform the specified inspections. Thefirst inspection is to be performed within 100 operating hours. the second one after 500 operating hours and the third one before the expiration of the warranty period. but not later than after 1000 operating hours.
TABLE OF CONTENTS:
Volvo ZL 402 Series C Tractor Operators Manual – PDF DOWNLOAD
Regulations
Driving on public roads – Operation
When changing location“
Before leaving the machine”,
General safety instructions
Safety instructions when filling tires
introduction
Technical data
Technical information
Description of the wheel loader
Marking of the wheel loader
Marking of the engine

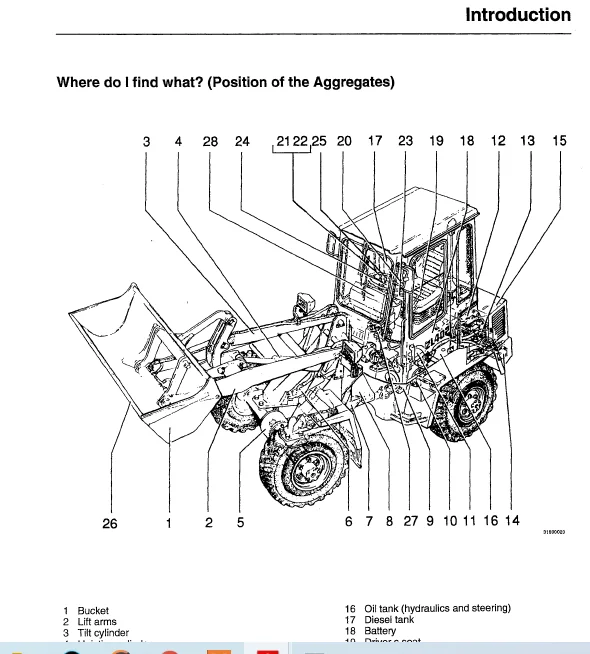

Where do I find what? (Position of the aggregates)
Control piatforrn – Operational elements
Display and operating elements
Engine oil pressure
Air cleanerindication
Battery/charge control/fonrrard/reverse driving
Hydraulic fluid temperature
Engine temperature~
Main beam warning fight] Glowing warning light] Handbrake warning light
Differential lock warning light I Flasher unlt waming light
Fuel gauge I Operating hourcounter
Light switch / Heater starter] Tum indicator switch
Hazard warning system pressure switch
Driving switch I Tip switch for gear shifting I Washer wiper system
Heating
Handbrake
Working hydraulics
Inching brake pedal
Operation
What must be done before stariup?
Check brake fluid level
Fuel tank
Check engine oil level
Check oil level of driving I Working and steering hydraulics
Drivers seat
Measures prior to starting a
Starting the engine”
Warming up instructions
Driving I Driving multiple-function stalk
Attaching and detaching quick-change attachments
Differential Lock
Stopping and parking the machine
Battery
Towing
immobilizer
Pipaihose rupture safely devrce
Maintenance
Hints on maintenance

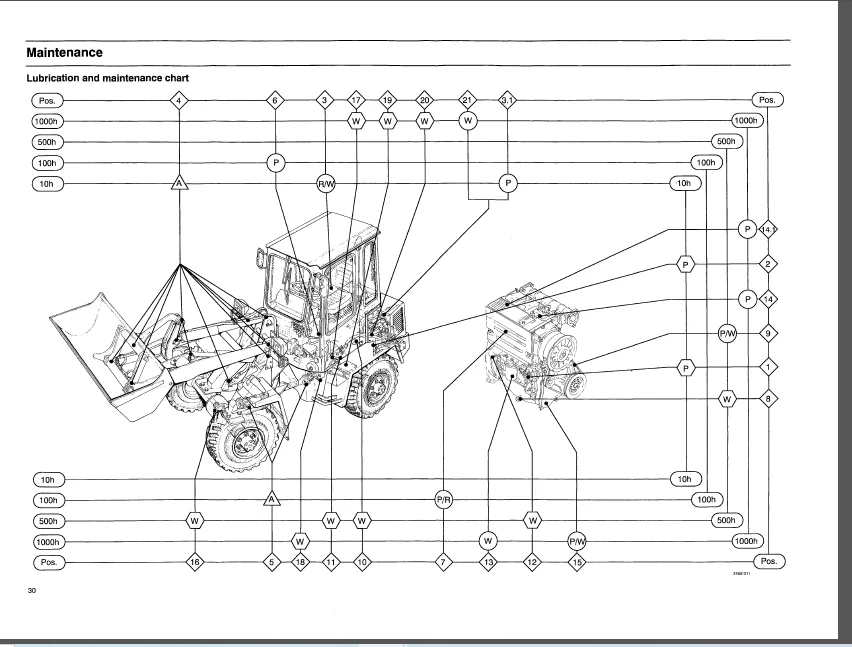

Lubrication and maintenance chart
Lubrication chart
Fiunning-in instructions
Tyres
Maintenance every 10 operating hours
Checking engine oil level
Driving hydraulics – Steering hydraulics – Working hydraulics
Cleaning and changing air filter
Checking the fuel system – water separator
Stroke Kinematics, Centre hinge, Steering ram
Maintenance every 100 operating hours
Universal drive shaft
Check brake fluid level
Cooling system – check and clean engine and hydraulics
Maintenance every 500 operating hours
Changing engine Oil
Checking V-belt / V-belt tensrcn
Driving hydraulics filter change
Changing working and steering hydraulics
Changing lubricating oil filter cartridge
Maintenance every 1000 operating hours _
Changing fuel filter cartridge
Checking or reset valve clearance
Checking fuel leakage oil pipe
Checking toothed belts
Oil change front and rear axle
Oil Change Distributor Pinions
Driving [Working and Steering Hydraulics Oil Change
Filter element for water separator – fuel system
Wiring Diagrams
Hydraulics diagram
Electric wiring diagram
Electric wiring diagram – Driving switch
Attachments (Option)
Loading fork
Sweeper unit
Loading
Lifting and lashing
Spare Parts / Customer Service
