Toyota Forklift 6BNCU15 6BNCU17 6BNCU18 6BNCU19 6BNCU20 6BNCU23 6BNCU25 6BNCU28 6BNCU30 6BVNCU13 Parts Catalog Manual – PDF DOWNLOAD
FILE DETAILS:
Toyota Forklift 6BNCU15 6BNCU17 6BNCU18 6BNCU19 6BNCU20 6BNCU23 6BNCU25 6BNCU28 6BNCU30 6BVNCU13 Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages : 151
Downloadable : Yes
File Type : PDF

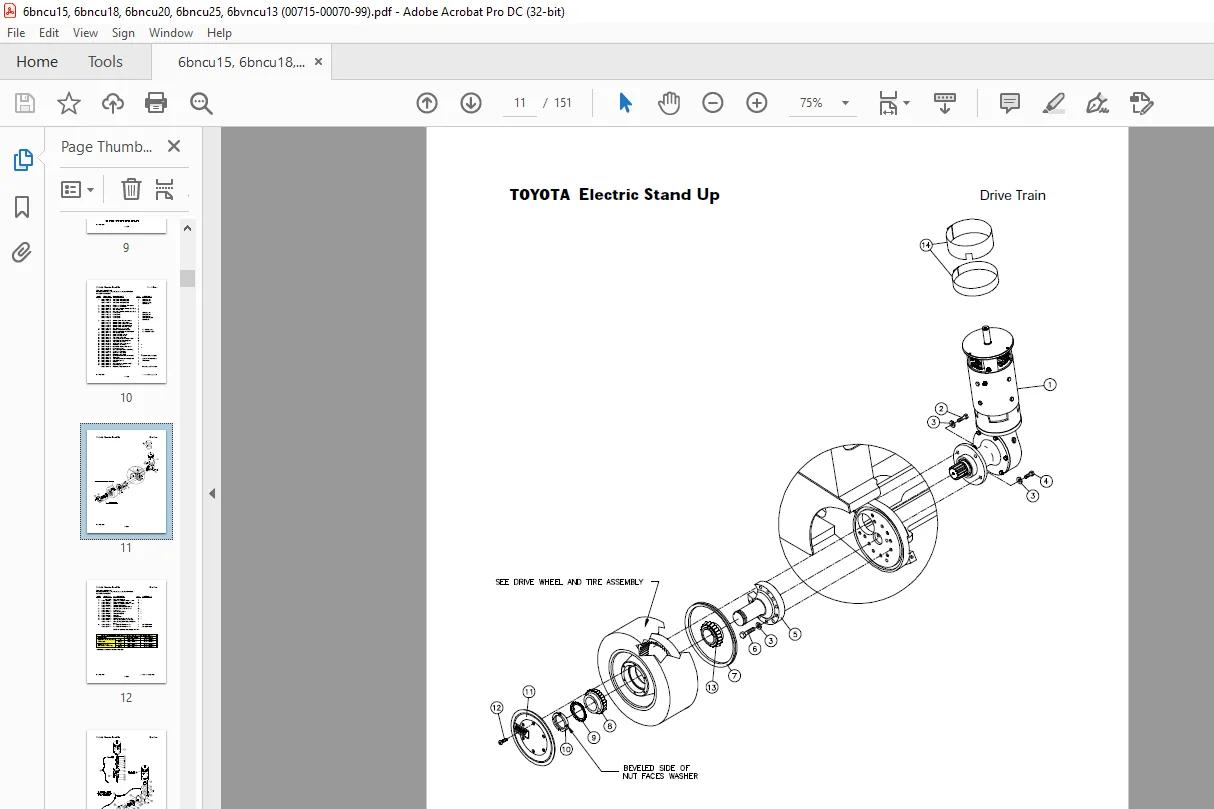

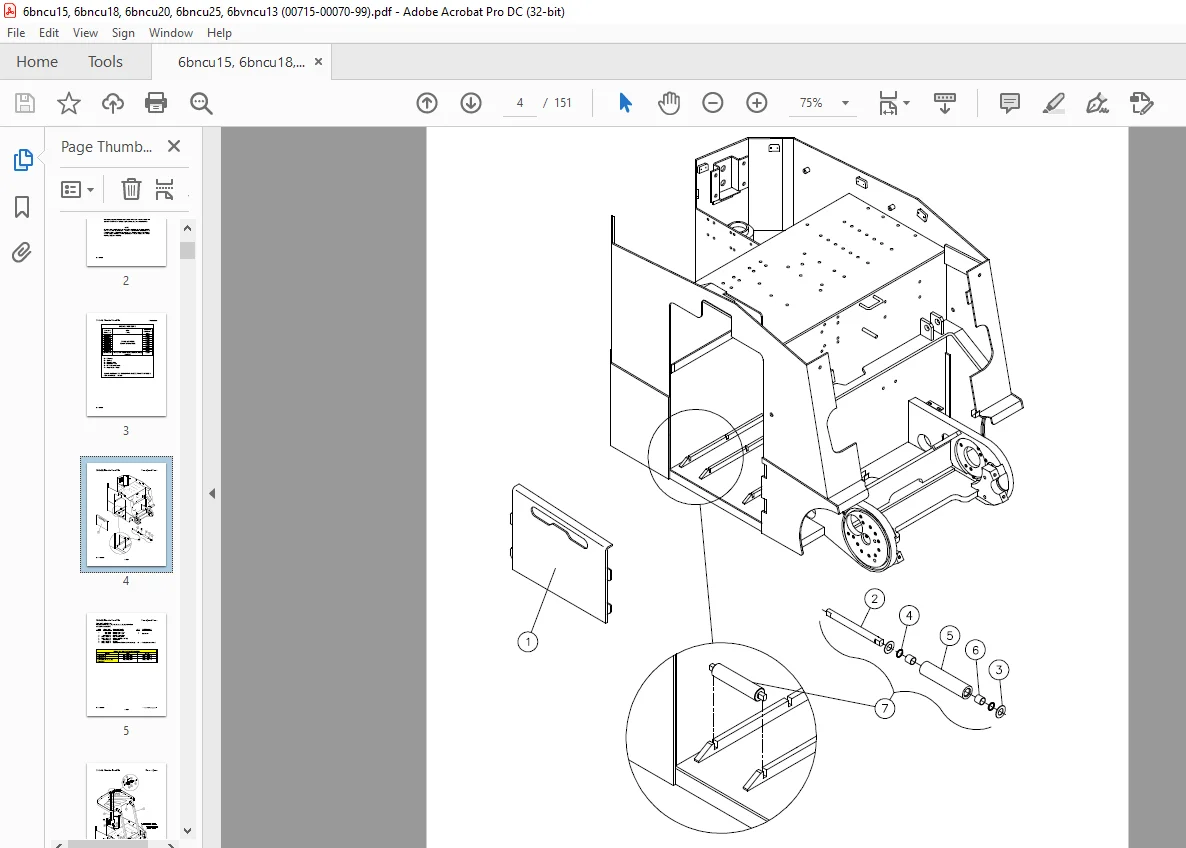

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Toyota Forklift 6BNCU15 6BNCU17 6BNCU18 6BNCU19 6BNCU20 6BNCU23 6BNCU25 6BNCU28 6BNCU30 6BVNCU13 Parts Catalog Manual – PDF DOWNLOAD
- The Parts section of this manual contains information for TOYOTA electric stand-up counterbalance lift trucks, models 6BNCU15, 6BNCU17, 6BNCU18, 6BNCU19, 6BNCU20, 6BNCU23, 6BNCU25, 6BNCU28, 6BNCU30, 6BVNCU13. This manual applies to all vehicles shipped after 06/01/99.
- The model number & serial number can be found on the Serial Identification number plate in the operator compartment. Refer to the model number example on the following page. All quantities (QTY) in the parts listings should be considered as each amounts unless otherwise indicated.
- Items marked with a checkmark ( ) before the COMMENTS column are Recommended Spare Parts and should be stocked byTOYOTA dealers.
- Refer to the SERVICE manual for repair and adjustment procedures. This manual does not provide information about operating and safety considerations for TOYOTA products. Consult the OPERATOR’S manual for instruction about the
ration of these lift trucks.

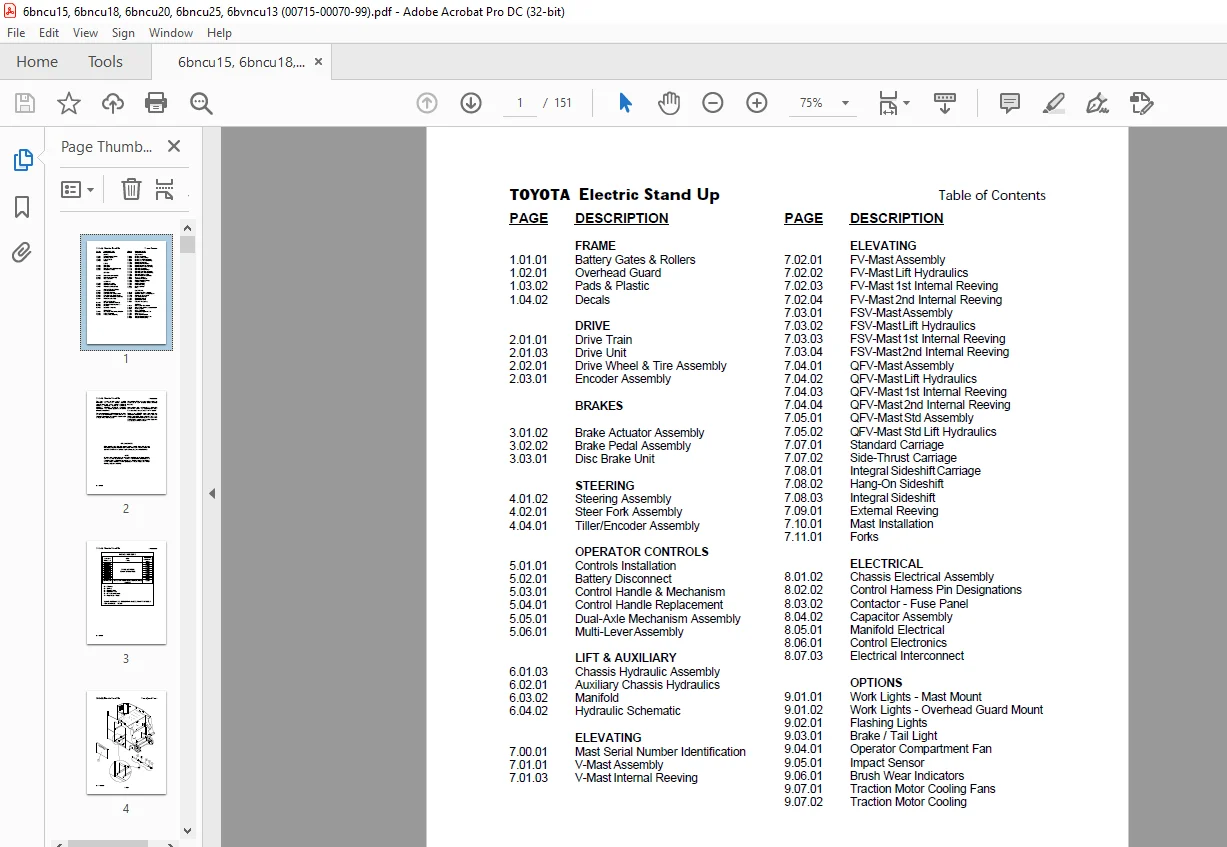

TABLE OF CONTENTS:
Toyota Forklift 6BNCU15 6BNCU17 6BNCU18 6BNCU19 6BNCU20 6BNCU23 6BNCU25 6BNCU28 6BNCU30 6BVNCU13 Parts Catalog Manual – PDF DOWNLOAD
FRAME
1.01.01 Battery Gates & Rollers
1.02.01 Overhead Guard
1.03.02 Pads & Plastic
1.04.02 Decals
DRIVE
2.01.01 Drive Train
2.01.03 Drive Unit
2.02.01 Drive Wheel & Tire Assembly
2.03.01 Encoder Assembly
BRAKES
3.01.02 Brake Actuator Assembly
3.02.02 Brake Pedal Assembly
3.03.01 Disc Brake Unit
STEERING
4.01.02 Steering Assembly
4.02.01 Steer Fork Assembly
4.04.01 Tiller/Encoder Assembly
OPERATOR CONTROLS
5.01.01 Controls Installation
5.02.01 Battery Disconnect
5.03.01 Control Handle & Mechanism
5.04.01 Control Handle Replacement
5.05.01 Dual-Axle Mechanism Assembly
5.06.01 Multi-Lever Assembly
LIFT & AUXILIARY
6.01.03 Chassis Hydraulic Assembly
6.02.01 Auxiliary Chassis Hydraulics
6.03.02 Manifold
6.04.02 Hydraulic Schematic
ELEVATING
7.00.01 Mast Serial Number Identification
7.01.01 V-Mast Assembly
7.01.03 V-Mast Internal Reeving
PAGE DESCRIPTION
ELEVATING
7.02.01 FV-Mast Assembly
7.02.02 FV-Mast Lift Hydraulics
7.02.03 FV-Mast 1st Internal Reeving
7.02.04 FV-Mast 2nd Internal Reeving
7.03.01 FSV-Mast Assembly
7.03.02 FSV-Mast Lift Hydraulics
7.03.03 FSV-Mast 1st Internal Reeving
7.03.04 FSV-Mast 2nd Internal Reeving
7.04.01 QFV-Mast Assembly
7.04.02 QFV-Mast Lift Hydraulics
7.04.03 QFV-Mast 1st Internal Reeving
7.04.04 QFV-Mast 2nd Internal Reeving
7.05.01 QFV-Mast Std Assembly
7.05.02 QFV-Mast Std Lift Hydraulics
7.07.01 Standard Carriage
7.07.02 Side-Thrust Carriage
7.08.01 Integral Sideshift Carriage
7.08.02 Hang-On Sideshift
7.08.03 Integral Sideshift
7.09.01 External Reeving
7.10.01 Mast Installation
7.11.01 Forks
ELECTRICAL
8.01.02 Chassis Electrical Assembly
8.02.02 Control Harness Pin Designations
8.03.02 Contactor – Fuse Panel
8.04.02 Capacitor Assembly
8.05.01 Manifold Electrical
8.06.01 Control Electronics
8.07.03 Electrical Interconnect
OPTIONS
9.01.01 Work Lights – Mast Mount
9.01.02 Work Lights – Overhead Guard Mount
9.02.01 Flashing Lights
9.03.01 Brake / Tail Light
9.04.01 Operator Compartment Fan
9.05.01 Impact Sensor
9.06.01 Brush Wear Indicators
9.07.01 Traction Motor Cooling Fans
9.07.02 Traction Motor Cooling
