Tigercat 822C L822C 830C L830C FELLER BUNCHER SERVICE MANUAL – PDF DOWNLOAD
DESCRIPTION:
Tigercat 822C L822C 830C L830C FELLER BUNCHER SERVICE MANUAL – PDF DOWNLOAD
SERIAL NUMBER 822*2001 TO 822*3000
SERIAL NUMBER 830*2001 TO 830*3000
INTRODUCTION :
- An Operator’s manual, Service manual and a Parts catalog are made available by Tigercat to assist the dealer, customer and operator in becoming familiar with the features of the 822C/L822C/830C/L830C Feller Bunchers.
Serial numbers:
822C 82212001 to 82213000
L822C 82222001 to 82223000
830C 83012001 to 83013000
L830C 83022001 to 83023000 - The 822C/L822C/830C/L830C Feller Bunchers are designed for harvesting trees, selective felling, thinning and final felling applications in plantations and natural stands.
- The operator’s manual will assist the operator with the techniques of proper and safe operation of the
822C/L822C/830C/L830C Feller Bunchers. There is also important information regarding the safe operation of the saw head. The service manual contains safety and servicing procedures and a preventive maintenance schedule to ensure optimum machine performance. - Section 1 in both the operator’s manual and the service manual contains safety information that must be followed. As well, throughout the rest of the manuals, DANGER, WARNING and CAUTION notices are displayed where necessary, drawing attention to possible hazards when performing certain procedures.
- Only trained personnel should be allowed to operate or work on the machine.
- The information contained in this manual is current at time of printing. Improvements to the machine are on-going and may not be covered, therefore in these cases contact your Tigercat dealer for the appropriate information.
- Tigercat reserves the right to make changes to the machine after this manual release date that may not immediately appear in this manual.
TABLE OF CONTENTS:
Tigercat 822C L822C 830C L830C FELLER BUNCHER SERVICE MANUAL – PDF DOWNLOAD
TABLE OF CONTENTS……………………….. 3
INTRODUCTION……………………………. 5
STANDARD TOPS, FOPS, OPS…………………. 6
NON-APPROVED FIELD PRODUCT CHANGES………… 7
SECTION 1 – SAFETY………………………. 9
USING HIGH-SPEED DISC SAWS SAFELY…………. 51
SECTION 2 – CONTROLS AND OPERATION………… 65
SECTION 3 – LUBRICATION AND MAINTENANCE…….157
SECTION 4 – HYDRAULIC SYSTEM………………213
SECTION 5 – PILOT SYSTEM………………….241
SECTION 6 – ELECTRICAL AND COMPUTERS……….255
SECTION 7 – ENGINE START AND STOP………….339
SECTION 10 – COOLING……………………..361
SECTION 11 – TRACK DRIVE AND UNDERCARRIAGE….377
SECTION 12 – BOOM FUNCTIONS……………….423
SECTION 13 – LEVELING…………………….437
SSECTION 15 – WING……………………….471
SECTION 17 – SAW DRIVE……………………487
SECTION 18 – WRIST AND CLAMPS……………..497

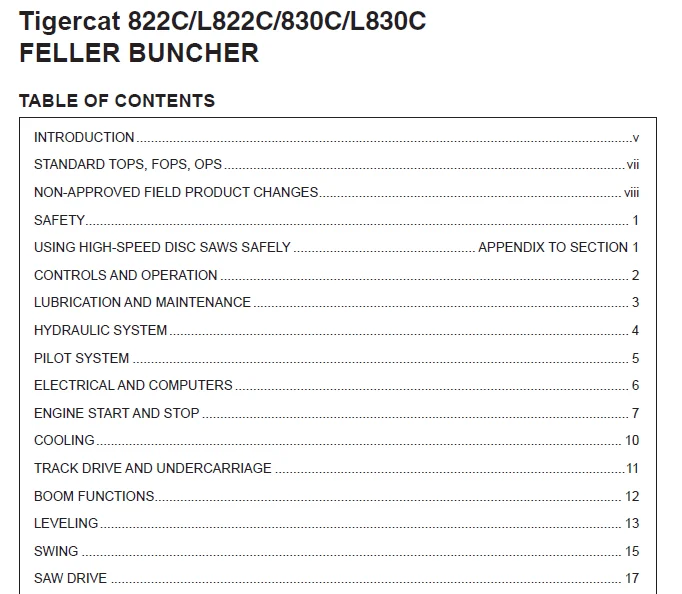

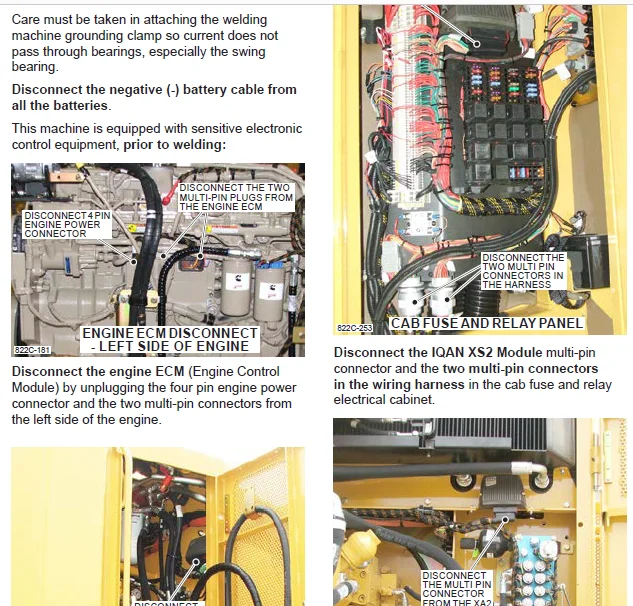

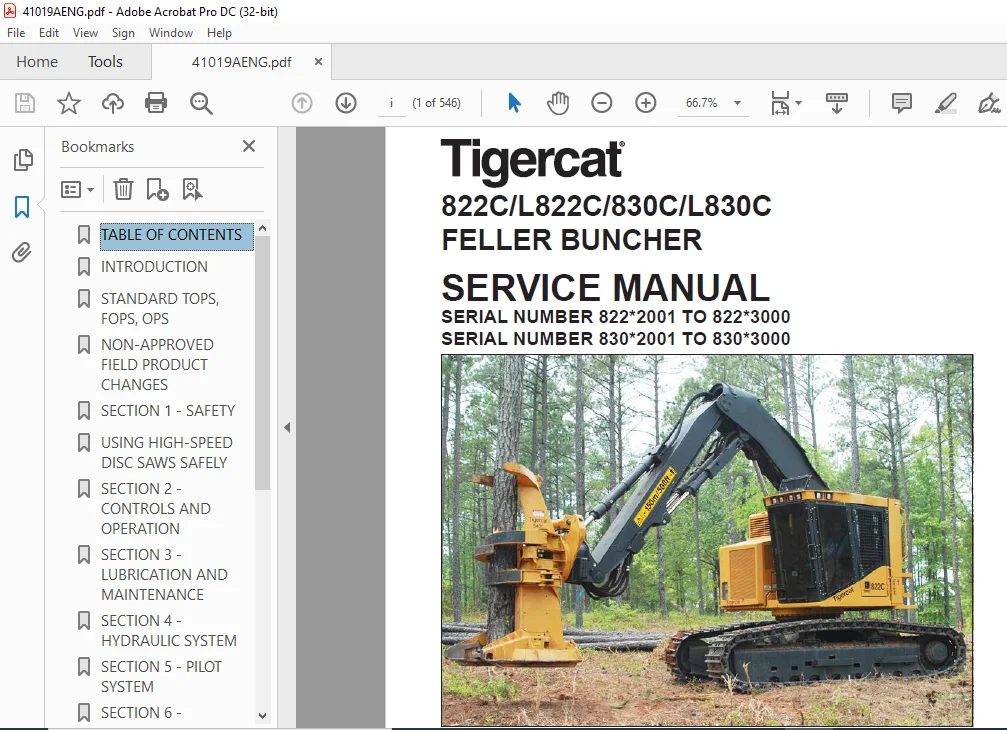

IMAGES PREVIEW OF THE MANUAL:
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
