Takeuchi Tl26 Operators Manual
VIDEO PREVIEW OF THE MANUAL:
IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Walk around the machine and warn all personnel who may be servicing the , machine or are in the machine path priorto starting. Do not start until all personnel are ~ clearly away from the machine.\ Check that the parking device is applied, place the travel levers in neutral before ‘ starting the machine. Adjust, secure and latch the seat and fasten the seat belt before starting the machine. : Start and operate the machine only from the operator’s station.
Do not bypass the machine’s neutral-start system. The neutral-start system must I be repaired if It malfunctions. = Use jumper cables only In the recommended manner. Improper use can result in , battery explosion or unexpected machine motion. 3 Do not operate the engine in an enclosed area without adequate ventilation. 3 Park the machine on level ground whenever possible and apply the parking i device. On grades, park the machine with the track securely blocked.
I Before leaving the operator’s station, place the travel levers in the neutral 3 position, lower the equipment to the ground or put in the locked position. set the i parking device and shut off the engine. Remove the starter key or disconnect switch key when leaving the machine 3 parked or unattended.
TABLE OF CONTENTS:
OPERATOR PRECAUTIONS
PREFACE
SAFETY INSTRUCTIONS
PART NAMES AND FUNCTIONS

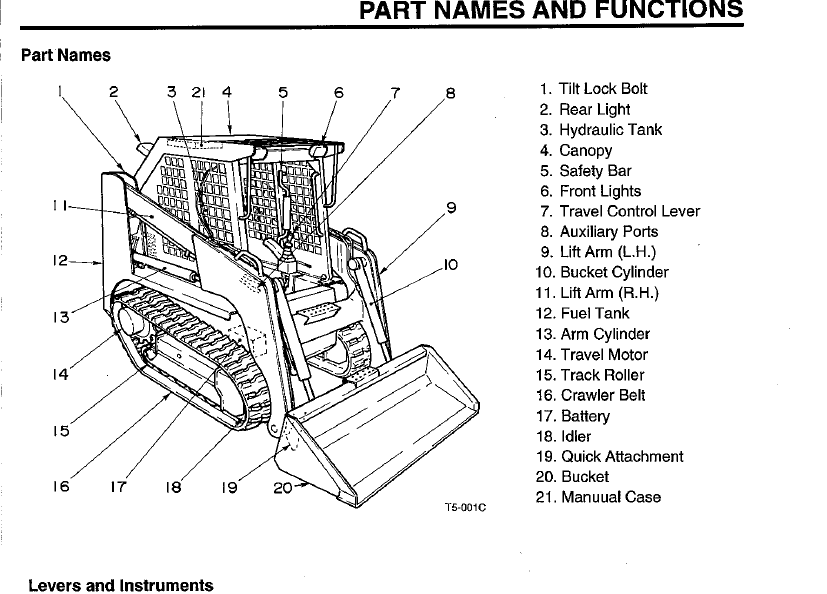

Part Names
Levers and Instruments
Seat
Seat Belt
OPERATION
Before Starting Operation
Starting the Engine
Stopping the Engine
Operating the Levers
Operating the Arm and Bucket
Using the Auxiliary Ports
Operating Outline
Cautions During Operation
Transporting the Loader
INSPECTION AND MAINTENANCE
Tilting the Canopy Up
Greasing

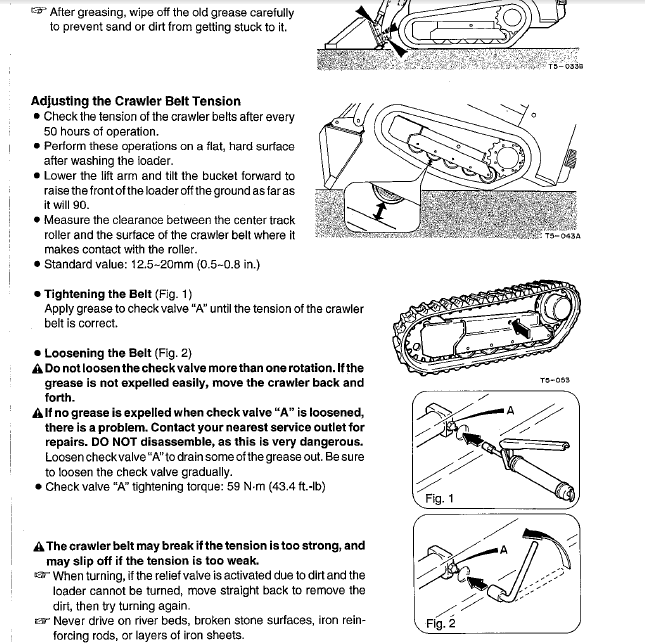

Adjusting the Crawler Belt Tension
Replacing the Hydraulic Oil
Replacing the Return Filter
Replacing the Line Filter
Replacing the Gear Oi
inspecting and Servicing the Fuel System a
Cleaning and Replacing the Air Cleaner Element
Replacing the Engine Oil
Replacing the Engine Oil Filter
Inspecting and Replenishing Coolant
Inspecting and Replacing the Fan Belt
Inspecting the Battery Fluid
Charging the Battery
Handling Booster Cables
Replacing the Bucket
Handling in Cold Weather
Long-term Storage
SERVICE SCHEDULE
TROUBLESHOOTING
TIGHTENING TORQUES
LUBRICANTS CHART
ORDERING PARTS
Ordering Parts and Notifying
of Problems
Expendabies
MAIN SPECIFICATIONS
Major Dimensions
Operating Ranges
Performance
HYDRAULIC SYSTEM DIAGRAM
ELECTRICAL SYSTEM DIAGRAM
OPTIONS
Front Door and Side Window
Seat (with Switch) and Seat Belt
FILE FORMAT:
LANGUAGE:ENGLISH
PAGES:64
DOWNLOADABLE:YES
FILE TYPE:PDF
