STEYR KOMPAKT 4055 S KOMPAKT 4065 S Tractor Service Manual 84419887A – PDF DOWNLOAD
The Service Manual for STEYR KOMPAKT 4055 S and KOMPAKT 4065 S Tractors (84419887A) in PDF format provides detailed instructions for efficient tractor service and maintenance.
FILE DETAILS:
STEYR KOMPAKT 4055 S KOMPAKT 4065 S Tractor Service Manual 84419887A – PDF DOWNLOAD
Language : English
Pages : 507
Downloadable : Yes
File Type : PDF

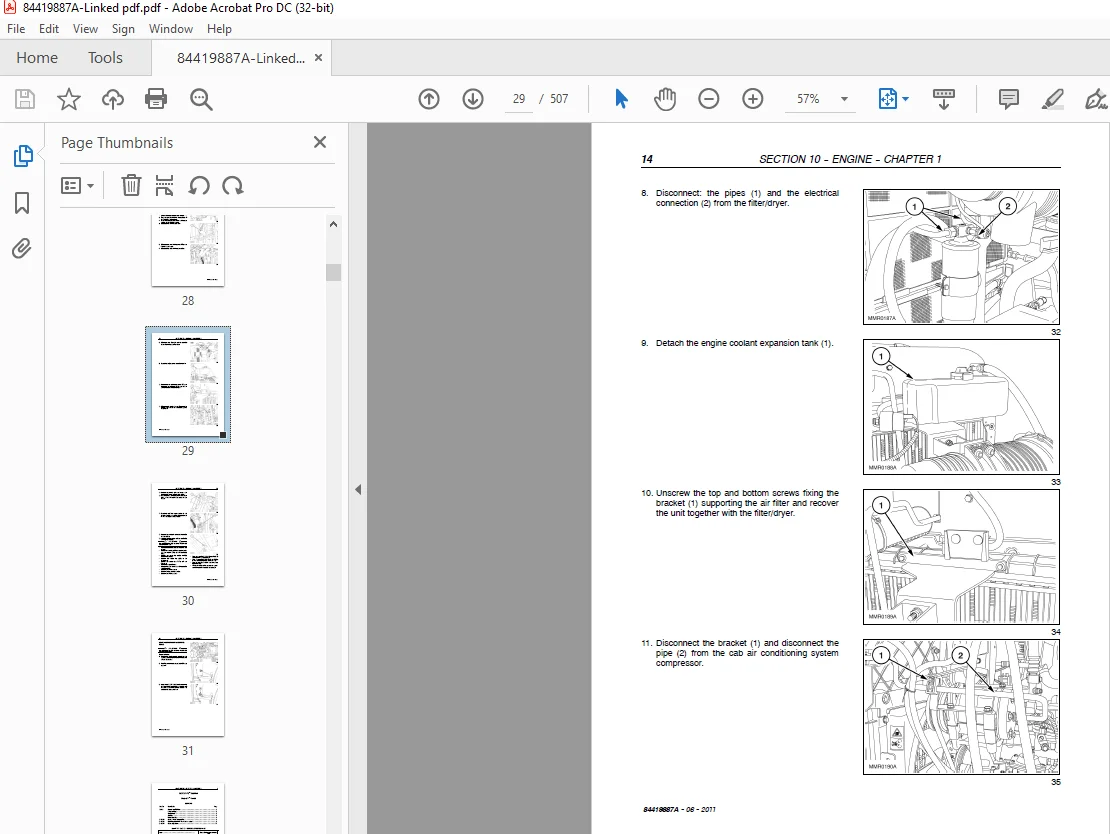

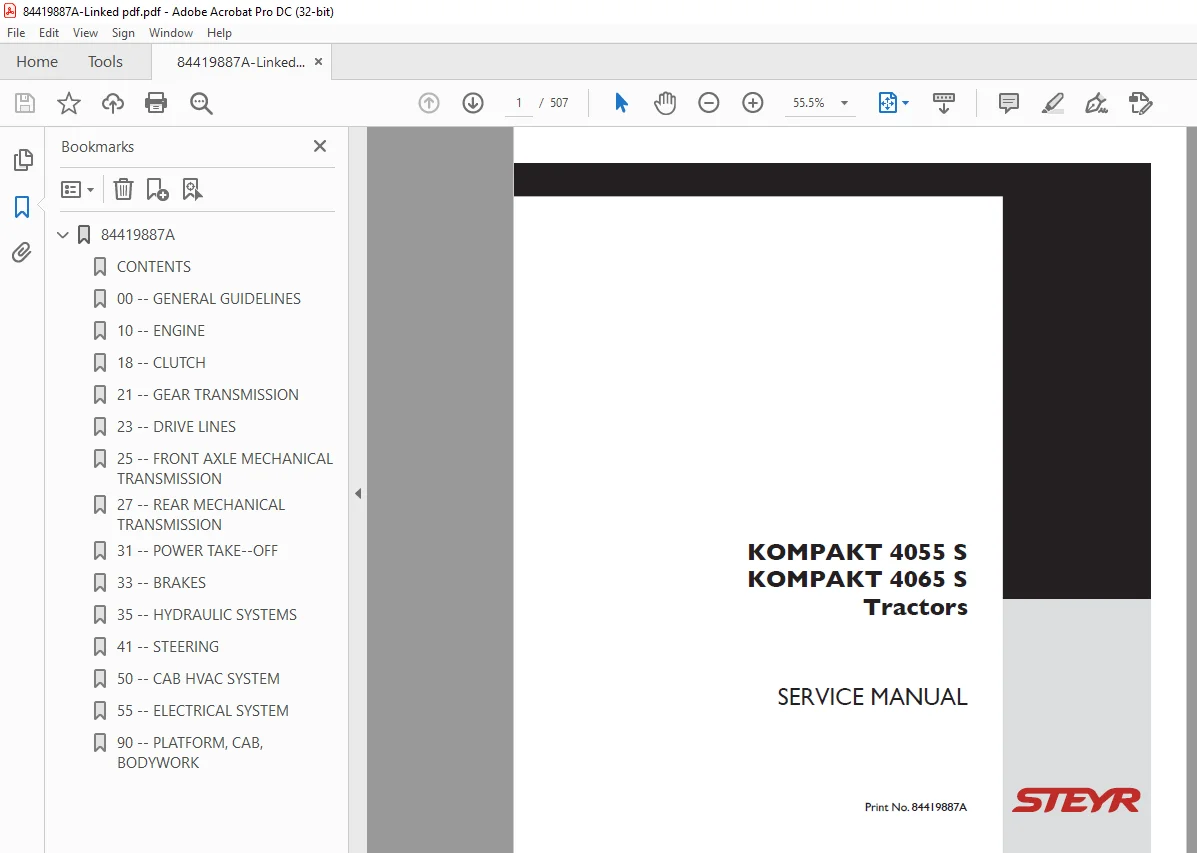

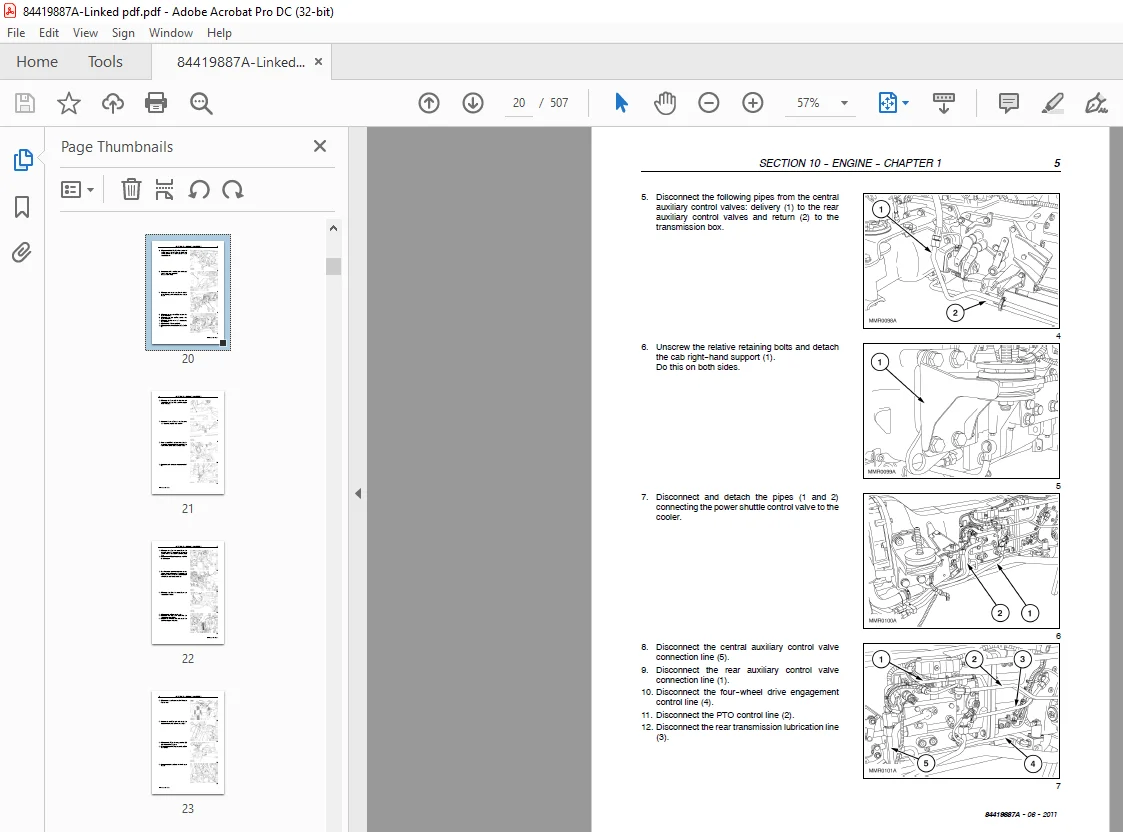

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
STEYR KOMPAKT 4055 S KOMPAKT 4065 S Tractor Service Manual 84419887A – PDF DOWNLOAD
00 — GENERAL GUIDELINES
General instructions 1–2 06–11
Safety regulations 3–4–5 06–11
Tractor refuelling 6 06–11
10 — ENGINE
CHAPTER 1
Summary 1 06–11
General specifications 2–3 06–11
Engine removal–installation
4–5–6–7–8
–9–10
06–11
Removal–Installation fuel
tank 11–12 06–11
Coolant radiator removal–
installation 13–14–15 06–11
Accelerator control cable
adjustment 16 06–11
18 — CLUTCH
Main Data 1 06–11
Torque Specifications 2 06–11
Tools 2 06–11
Sections 3 06–11
Troubleshooting 4 06–11
Removal–Installation —
clutch 5 06–11
Clutch Overhaul 6–7–8–9 06–11
Checks and measurements
— clutch 10–11 06–11
Adjustments — clutch disengagement
levers 11 06–11
Adjustments — clutch pedal
12 06–11
Sectional view of PTO
clutch servo control 13 06–11
Description and operation
of PTO servo control 14–15 06–11
PTO servo control adjustment
16 06–11
PTO engaged switch adjustment
17 06–11
Page Date
21 — GEAR TRANSMISSION
Chapter 1 — Mechanical transmission
Main Data 1–2 06–11
Torque Specifications 2–3 06–11
Tools 4 06–11
Sections 5–6–7 06–11
Description and operation 8 06–11
Troubleshooting 8–9 06–11
Removal–Installation —
rear transmission — gearbox
casing 10–11–12–
13 06–11
Disassembly–Assembly —
transmission–gearbox casing
17–18 06–11
Disassembly–Assembly —
clutch casing 19–20–21 06–11
Sealing compound application
diagram 22 06–11
Transmission oil cooler removal–
installation 23 06–11
CHAPTER 3 — Power Shuttle transmission
Main Data 1–2 06–11
Torque Specifications 3 06–11
Tools 4 06–11
Sections 5–6–7 06–11
Description and operation 8 06–11
Troubleshooting 8 06–11
Disassembly–Assembly —
clutch casing 9–10–11 06–11
Main clutch adjustments 12 06–11
23 — DRIVE LINES
Main Data 1 06–11
Torque Specifications 2 06–11
Sections 3–4 06–11
Description and operation 5 06–11
Troubleshooting 6 06–11
Drive shafts and guard Disassembly
— Assembly 7 06–11
4 CONTENTS
84419887A — 06 — 2011
Page Date
Removal–Installation — drive
gear casing 8 06–11
25 — FRONT AXLE MECHANICAL
TRANSMISSION
CHAPTER 1 — Front mechanical transmission
Main Data 1–2 06–11
Torque Specifications 3–4 06–11
Tools 5 06–11
Sections 6 06–11
Removal–Installation —
front axle 8–9–10 06–11
Front axle Disassembly —
Assembly 11–12–13–
14–15–16–
17–18 06–11
Replacing steering knuckle
pins and bearings 19 06–11
Adjustments — steering
knuckle bearings 20–21 06–11
Adjustments — bevel drive 22–23–24–
25–26–27–
28 06–11
Overhaul — front differential 29 06–11
LIM–SLIP self–locking differential
30–31 06–11
Checking leading wheel
alignment 32 06–11
Disassembly–Assembly —
front epicyclic final drive 33–34 06–11
27 — REAR MECHANICAL
TRANSMISSION
Main Data 1–2 06–11
Torque Specifications 3–4 06–11
Tools 5 06–11
Sections 6–7 06–11
Description and operation 8 06–11
Troubleshooting 8 06–11
Disassembly–Assembly —
transmission–gearbox casing
9–10–11–
12 06–11
Adjustments — differential
lock engagement sleeve
position 13 06–11
Page Date
Adjustments — bevel drive 14–15–16 06–11
Removal — Installation
side gear casing 17–18–19–
20 06–11
Disassembly–Assembly —
drive wheel shaft 21–22 06–11
31 — POWER TAKE–OFF
CHAPTER 1 — Mechanical power take–off
Main Data 1–2 06–11
Torque Specifications 3–4 06–11
Sections 5–6 06–11
Description and operation 7–8 06–11
Troubleshooting 8 06–11
33 — BRAKES
Main Data 1–2 06–11
Torque Specifications 2 06–11
Sections 3 06–11
Description and operation 4 06–11
Troubleshooting 5–6 06–11
Removal–Installation — service
brake 7 06–11
Removal–Installation — service
brake pump 8–9 06–11
Adjustments — service brake
pedals travel 10 06–11
Service brake circuit air
bleeding 11–12 06–11
35 — HYDRAULIC SYSTEMS
CHAPTER 1 — Rear mechanical hydraulic lift
Main Data 2 06–11
Torque Specifications 2–3 06–11
Tools 3 06–11
Sections 4 06–11
Troubleshooting 5 06–11
Description and operation 6–7–8–9–
10–11 06–11
Lift internal controls Disassembly
— Assembly 12–13–14–
15 06–11
CONTENTS 5
84419887A — 06 — 2011
Page Date
Draft reading unit Disassembly
— Assembly 16–17 06–11
Lift arms shaft Disassembly
— Assembly 18–19 06–11
Removal–Installation — lift
control valve 20 06–11
Adjusting the lift 21–22–23 06–11
CHAPTER 2 — Open centre system auxiliary
control valves
Main Data 2 06–11
Tools 2 06–11
Torque Specifications 2 06–11
Sections 3–4 06–11
Description and operation 5–6–7–8 06–11
Auxiliary control valves Disassembly
— Assembly 9–10–11 06–11
CHAPTER 3 — Trailer brakes auxiliary control
valves
Sections 1 06–11
Description and operation 1–2–3–4–5
–6–7 06–11
Troubleshooting 8–9–10 06–11
CHAPTER 8 — Front Loader
Main Data 1 06–11
Sections 2 06–11
Torque Specifications 3 06–11
Troubleshooting 4–5 06–11
Parking the front loader 6 06–11
Front loader arm connection
bracket Removal–Installation
7 06–11
Replacement of control
struts (mod MSL) 8 06–11
Replacement of triangular
articulation levers (mod
MSL) 9 06–11
Bucket support device removal–
installation 10 06–11
Position indicator disassembly–
assembly 11 06–11
Bushing replacement 12–13 06–11
Loader cylinder removal–
installation 14 06–11
Page Date
Bucket control cylinder removal–
installation 15 06–11
Replacement of pins 16 06–11
41 — STEERING
CHAPTER 1 — Steering
Main Data 2 06–11
Torque Specifications 2 06–11
Tools 3 06–11
Description and operation 4–5–6 06–11
View of hydrostatic steering
control valve components 7 06–11
Troubleshooting 8–9 06–11
Replacement — hydrostatic
steering wheel 10 06–11
Removal–Installation — hydrostatic
steering control
valve
11–12 06–11
Disassembly–Assembly —
hydrostatic control valve 13–14–15–
16–17–18–
19–20–21–
22–23–24–
25–26–27–
28 06–11
Hydrostatic steering control
valve bench testing 29–30 06–11
Pressure relief valve testing 31 06–11
Steering control cylinder
Removal — Installation 32–33 06–11
Steering control cylinder
Disassembly–Assembly 34–35 06–11
50 — CAB HVAC SYSTEM
Safety regulations 2 06–11
Main Data 3 06–11
Tools 4 06–11
Operating principles 5 06–11
Conditioning system components
6–7–8–9–
10 06–11
Cab controls 11–12–13 06–11
Testing operation and cooling
14–15 06–11
6 CONTENTS
84419887A — 06 — 2011
Page Date
Air conditioning system
maintenance 16–17 06–11
Troubleshooting 18–19–20–
21 06–11
Refrigerant recovery–recycling
and evacuation–charging
stations 22–23 06–11
Dehydration, recharging
and refrigeration check 24–25–26–
27–28–29–
30 06–11
Checking for and eliminating
any gas leaks 31–32 06–11
Cab heating/air–conditioning
system Removal — Installation
33–34 06–11
Cab electric fan unit Disassembly
— Assembly 35 06–11
Air–conditioning system
condenser removal–installation
36 06–11
55 — ELECTRICAL SYSTEM
CHAPTER 1 — Instruments
Summary 1 06–11
Digital analog instrument 2 06–11
Speedometer/tachometer 3 06–11
LCD panel settings 3÷7 06–11
Coolant temperature 7 06–11
Fuel level 7 06–11
Indicator lights 8÷9 06–11
Transmitters, sensors and
switches 10÷18 06–11
Electronic control unit inputs/
outputs (ADIC) 19÷21 06–11
CHAPTER 2 — Starting System
Summary 1 06–11
Technical data 2 06–11
Torque Specifications 2 06–11
Description and operation 3 06–11
Starter and recharging circuit
4–5 06–11
Troubleshooting 6–7 06–11
Fuse and relay locations 7–8 06–11
Page Date
System testing 8÷10 06–11
Starter motor removal–installation
11÷13 06–11
CHAPTER 3 — Charging system
Summary 1 06–11
Technical data 2 06–11
Torque Specifications 2 06–11
Tools 3 06–11
Description and operation 3–4 06–11
System testing 5 06–11
Belt Tension 6 06–11
Alternator motor removal
and installation 7–8 06–11
CHAPTER 4 — Battery
Summary 1 06–11
Technical data 2 06–11
Description and operation 2 06–11
Battery removal and installation
3 06–11
Battery testing and charging
procedure 4÷14 06–11
CHAPTER 5 — Electrical circuits
Summary 1 06–11
Maxi power fuses 2÷5 06–11
Power fuses 4÷15 06–11
Battery cut–out 15 06–11
Sockets 16 06–11
Grid heater 17 06–11
Electronic modules 17 06–11
Main Connectors 18–19 06–11
Ground points identification 20÷21 06–11
How to use the wiring diagrams
22÷26 06–11
Components in descriptive
order 27÷31 06–11
List of tables for system without
“standard and full optional”
cab 32–33 06–11
Components with code in
ascending order 34÷37 06–11
CONTENTS 7
84419887A — 06 — 2011
Page Date
Tables 38÷66 06–11
CHAPTER 6 — Wiring Harnesses and
Connectors
Summary 1 06–11
Components in descriptive
order 2÷6 06–11
Components with code in
ascending order 7÷10 06–11
Harnesses 13÷20 06–11
Connectors 11÷64 06–11
Page Date
90 — PLATFORM, CAB, BODYWORK
CHAPTER 1 — Cab
Bonnet Removal — Installation
2 06–11
Cab assembly with platform
Removal — Installation
3–4–5–6–
7–8–9 06–11
Cab right–hand pillar guard
removal — installation 10 06–11
Cab right–hand top guard
removal — installation 11 06–11
Cab right–hand mudguard
guard removal–installation 12 06–11
Cab left–hand top guard removal–
installation 13 06–11
Windows Replace 14–15–16 06–11
