Skyjack SJIII Series 3220, 4620, 4626,4830, 4832, & 6832 OPERATING MAINTENANCE & PARTS MANUAL 117128AG – PDF DOWNLOAD
FILE DETAILS:
Skyjack SJIII Series 3220, 4620, 4626,4830, 4832, & 6832 OPERATING MAINTENANCE & PARTS MANUAL 117128AG – PDF DOWNLOAD
Language : English
Pages :195
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Skyjack SJIII Series 3220, 4620, 4626,4830, 4832, & 6832 OPERATING MAINTENANCE & PARTS MANUAL 117128AG – PDF DOWNLOAD
SECTION 1
INTRODUCTION
INTRODUCTION
PURPOSE OF EQUIPMENT
The SKYJACK SJIII Series Work Platform is designed to transport and raise personnel, tools and materials to overhead work areas.
USE OF EQUIPMENT
The work platform (Figure 1-2. Page 5) is a highly maneuverable, mobile work station. Lifting and driving MUST be on a flat, level, compacted surface.
DESCRIPTION
The work platform consists of three major assemblies, the platform, lifting mechanism and the base. An operator’s control box is mounted on the platform railing. Auxiliary and emergency controls are located at the base.
PLATFORM
The platform is constructed of a tubular support frame, a skid-resistant deck surface, and 40 inch to 43-1/2 inch (1016-1105mm) high railings (depending on model) with 6″ toe boards and mid-rails. The platform can be entered from the rear through an entry chain or optional spring-returned gate with latch. The platform is also equipped with an extension platform.
IMAGES PREVIEW OF THE MANUAL:

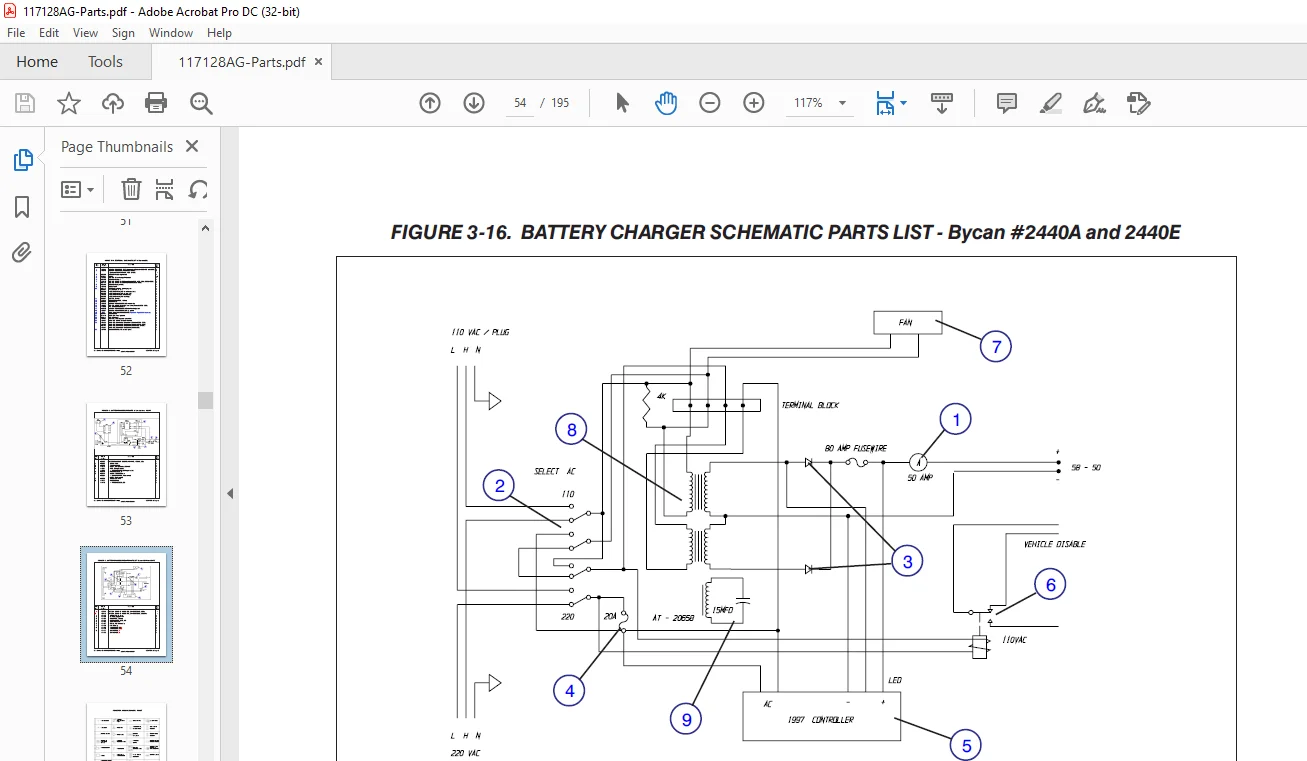

TABLE OF CONTENTS:
Skyjack SJIII Series 3220, 4620, 4626,4830, 4832, & 6832 OPERATING MAINTENANCE & PARTS MANUAL 117128AG – PDF DOWNLOAD

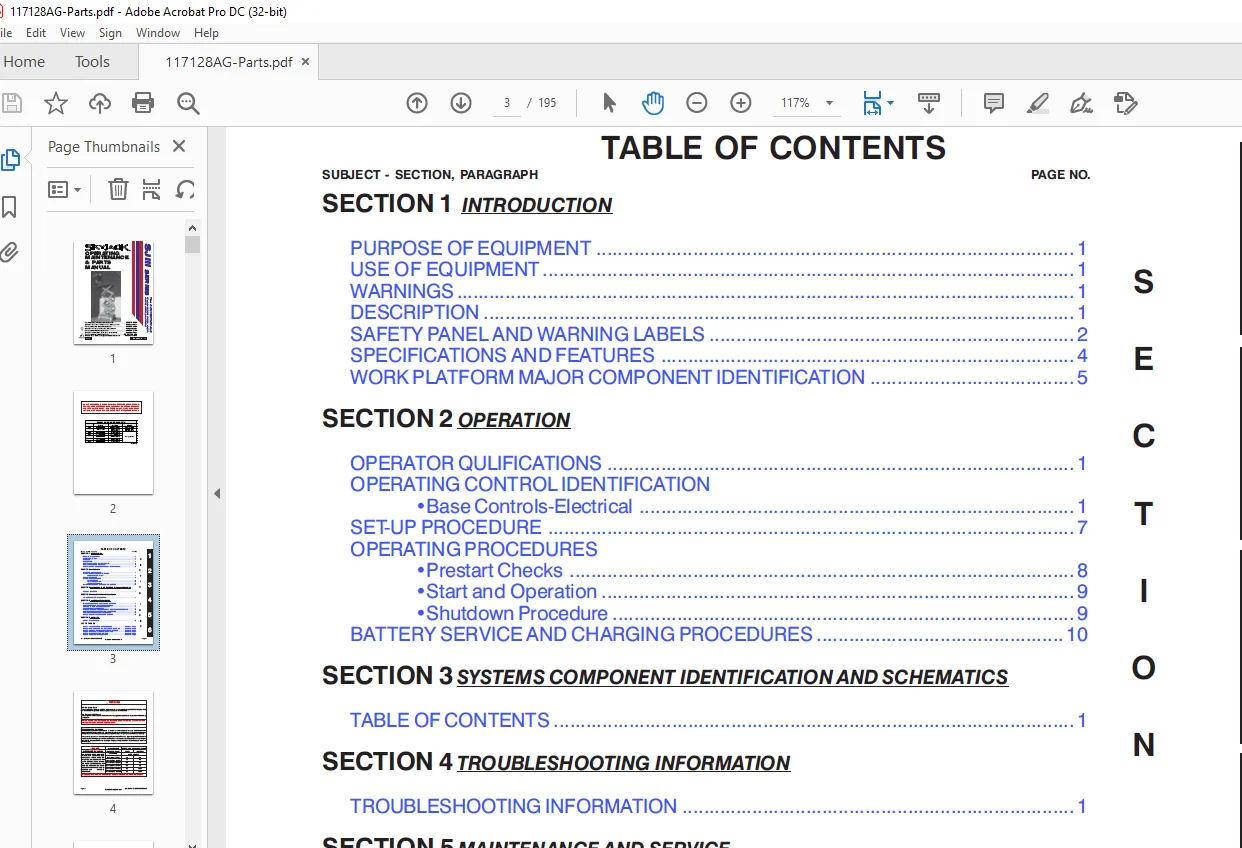

Cover ....................................................... 1 Table of Contents ........................................... 3 Section 1 - Introduction .................................... 7 Section 2 - Operation .......................................12 Section 3 - System Component Identification & Schematics ....24 Section 4 - Troubleshooting .................................65 Section 5 - Maintenance & Service ...........................76 Section 6 - Parts Lists .....................................86
