Skyjack 32xx, 46xx & 68xx Compacts & Conventionals Operating Manual – PDF DOWNLOAD
FILE DETAILS:
Skyjack 32xx, 46xx & 68xx Compacts & Conventionals Operating Manual – PDF DOWNLOAD
Language : English
Pages : 93
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Skyjack 32xx, 46xx & 68xx Compacts & Conventionals Operating Manual – PDF DOWNLOAD
SKYJACK is continuously improving and expanding product features on its equipment, therefore, specifications
and dimensions are subject to change without notice.
Aerial Platform Definition:
A mobile device that has an adjustable position platform supported from ground level by a structure.
Purpose of Equipment:
The SKYJACK Rough Terrain Compact Series aerial platform is designed to transport and raise personnel, tools
and materials to overhead work areas.
Use of Equipment:
The aerial platform is a highly maneuverable, mobile work station. Lifting and driving must be on a flat, level,
compacted surface. It can be driven over uneven terrain only when the platform is fully lowered.
Manual:
The operating manual is considered a fundamental part of the aerial platform. It is a very important way to
communicate necessary safety information to users and operators. A complete and legible copy of this manual
must be kept in the provided weather-resistant storage compartment on the aerial platform at all times.
Operator:
The operator must read and completely understand both this operating manual and the safety panel label located on
the platform and all other warnings in this manual and on the aerial platform. Compare the labels on the aerial platform
with the labels found within this manual. If any labels are damaged or missing, replace them immediately.
Service Policy and Warranty:
SKYJACK warrants each new SJRT Compact Series work platform to be free of defective parts and workmanship
for the first 24 months. Any defective part will be replaced or repaired by your local SKYJACK dealer at no charge
for parts or labor. Contact the SKYJACK Service Department for warranty statement extensions or exclusions.

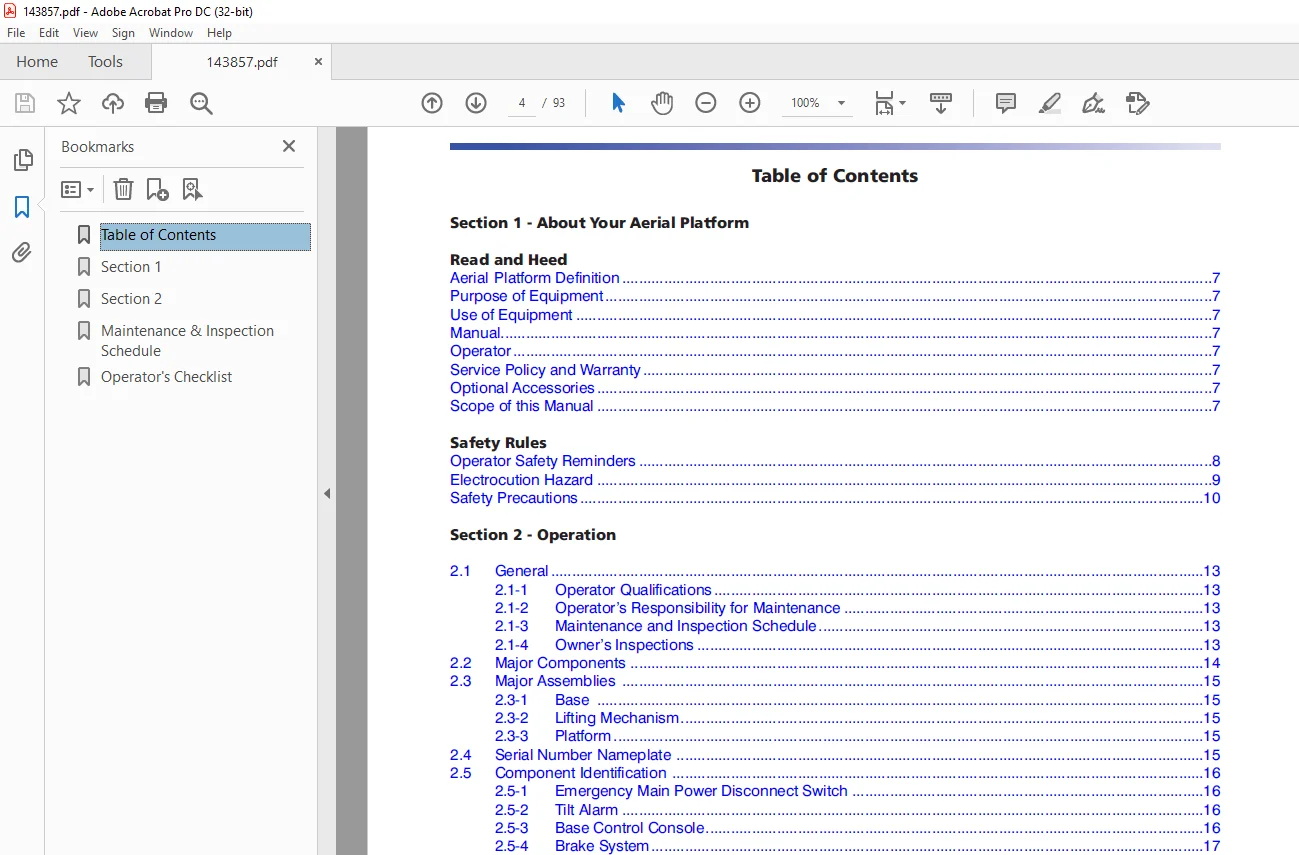

TABLE OF CONTENTS:
Skyjack 32xx, 46xx & 68xx Compacts & Conventionals Operating Manual – PDF DOWNLOAD
Section 1 – About Your Aerial Platform
Read and Heed
Aerial Platform Definition 7
Purpose of Equipment 7
Use of Equipment 7
Manual 7
Operator 7
Service Policy and Warranty 7
Optional Accessories 7
Scope of this Manual 7
Safety Rules
Operator Safety Reminders 8
Electrocution Hazard 9
Safety Precautions 10
Section 2 – Operation
2 1 General 13
2 1-1 Operator Qualifications 13
2 1-2 Operator’s Responsibility for Maintenance 13
2 1-3 Maintenance and Inspection Schedule 13
2 1-4 Owner’s Inspections 13

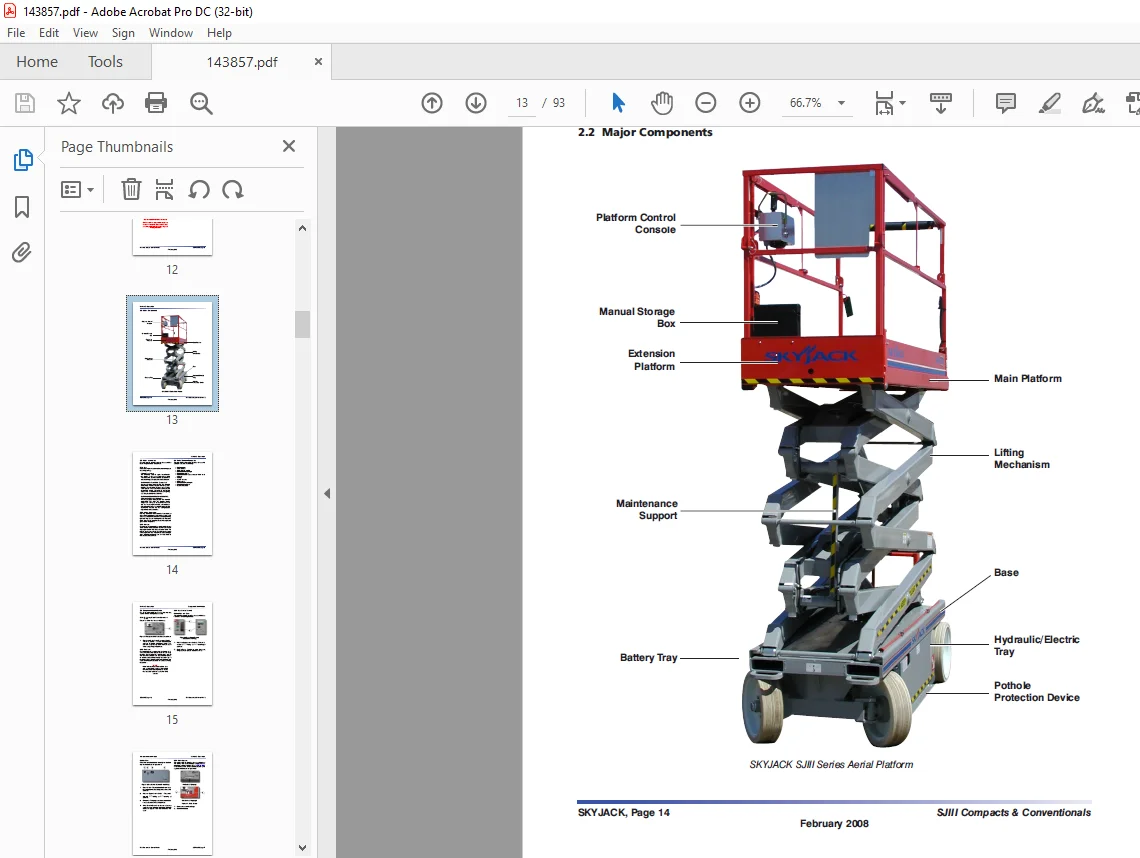

2 2 Major Components 14
2 3 Major Assemblies 15
2 3-1 Base 15
2 3-2 Lifting Mechanism 15
2 3-3 Platform 15
2 4 Serial Number Nameplate 15
2 5 Component Identification 16
2 5-1 Emergency Main Power Disconnect Switch 16
2 5-2 Tilt Alarm 16
2 5-3 Base Control Console 16
2 5-4 Brake System 17
2 5-5 Free-wheeling Valve 18
2 5-6 Battery Charger 18
2 5-7 Pothole Protection Device 18
2 5-8 Emergency Lowering System 19
2 5-9 Maintenance Support 19
2 5-10 Platform Control Console 20
2 5-11 AC Outlet on Platform 20
2 5-12 Manual Storage Box 20
2 5-13 Folding Guardrail System 21
2 5-14 Lanyard Attachment Anchorage 21
2 6 Component Identification (Special Options) 22
2 6-1 Powered Extension Control Console (If Equipped) 22
2 6-2 1500W AC Inverter (If Equipped) 22
2 6-3 Motion Alarm (If Equipped) 22
SJIII Compacts & Conventionals SKYJACK, Page 5
February 2008
Table of Contents
Section 2 – Operation (Continued)
2 7 Operator’s Responsibility 23
2 8 Visual and Daily Maintenance Inspections 24
2 9 Function Tests 31
2 10 Start Operation 38
2 10-1 To Raise or Lower Platform Using Base Control Console 38
2 10-2 To Activate Platform Control Console 38
2 10-3 To Raise or Lower Platform Using Platform Control Console 39
2 10-4 To Drive Forward or Backward 39
2 10-5 To Steer 40
2 10-6 To Select Drive Torque (If Equipped) 40
2 10-7 To Extend/Retract Manual Extension Platform 41
2 10-8 To Extend/Retract Powered Extension Platform (If Equipped) 41
2 10-9 Electrical Inverter (If Equipped) 42
2 10-10 Shutdown Procedure 42
2 11 Guardrail Folding Procedure 43
2 12 Loading/Unloading 44
2 12-1 Lifting 44
2 12-2 Driving 45
2 13 Moving the Aerial Platform Through a Doorway 46
2 14 Winching and Towing Procedures 48
2 14-1 To Release Free-wheeling Valve 48
2 14-2 To Release Brakes Manually 49
2 14-2a Pin Brakes System 49
2 14-2b Disc Brakes System 49
2 15 Emergency Lowering Procedure 50
2 16 Maintenance Support Procedure 51
2 17 Battery Maintenance 52
2 17-1 Battery Service Procedures 52
2 17-2 Battery Charging Operation 52
2 18 Tables 56
2 19 Labels 65
