Same Tractor SOLARIS 45 after ZKDS2302V0MS20001 Parts Catalog Manual – PDF DOWNLOAD

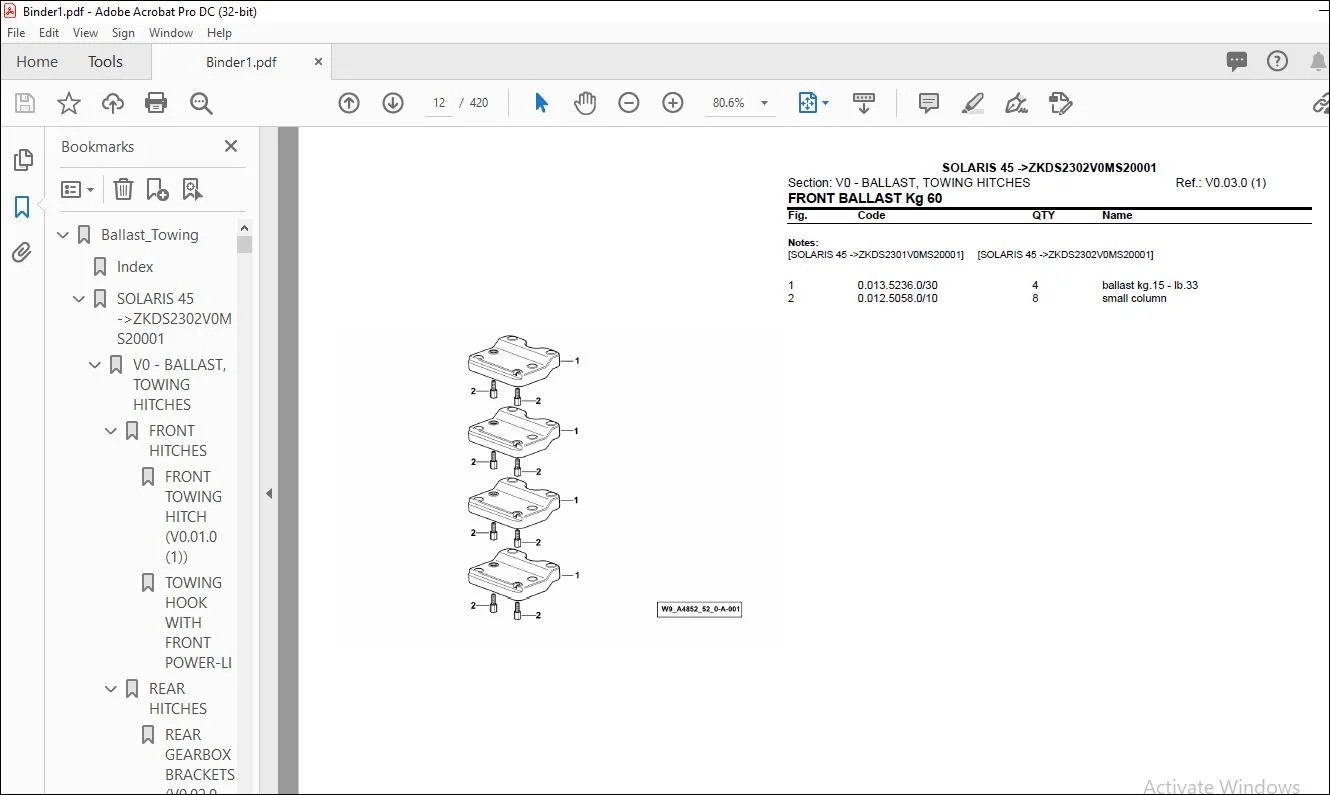

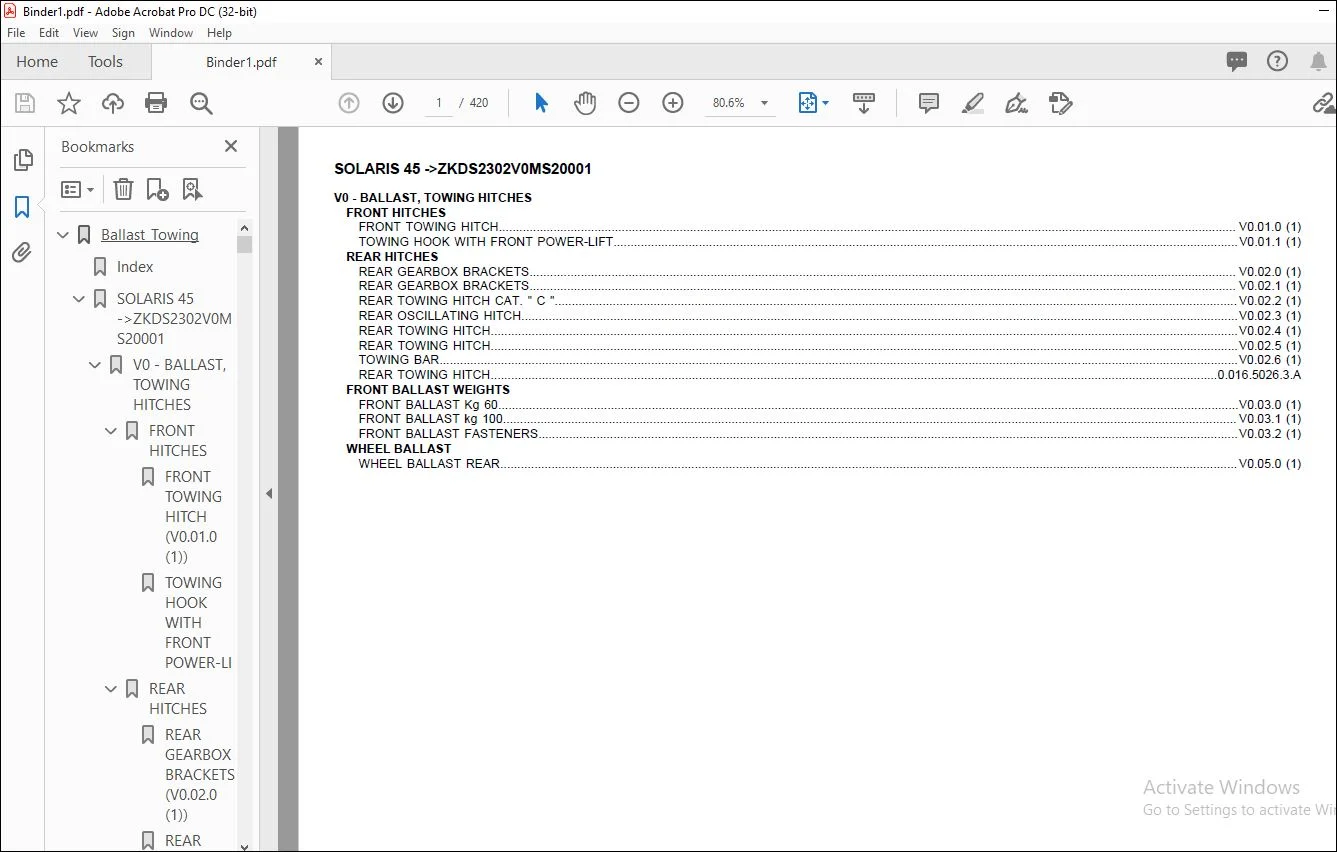

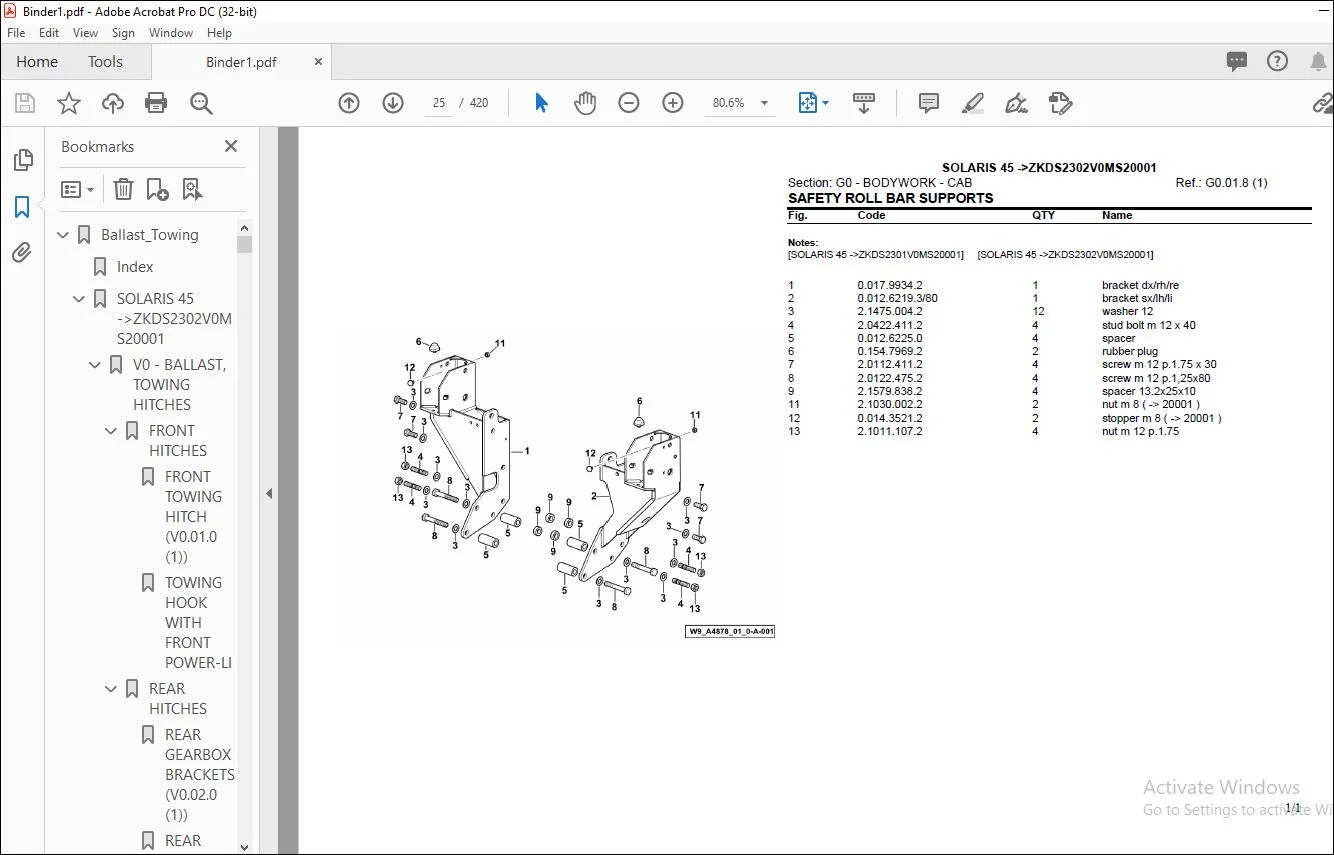

IMAGES PREVIEW OF THE MANUAL:
FILE DETAILS:
Same Tractor SOLARIS 45 after ZKDS2302V0MS20001 Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages : 420
Downloadable : Yes
File Type : PDF
Size : 17.7 MB
TABLE OF CONTENTS:
Same Tractor SOLARIS 45 after ZKDS2302V0MS20001 Parts Catalog Manual – PDF DOWNLOAD
Index 1
SOLARIS 45 ->ZKDS2302V0MS20001 2
V0 – BALLAST, TOWING HITCHES 2
FRONT HITCHES 2
FRONT TOWING HITCH (V0 01 0 (1)) 2
TOWING HOOK WITH FRONT POWER-LIFT (V0 01 1 (1)) 3
REAR HITCHES 4
REAR GEARBOX BRACKETS (V0 02 0 (1)) 4
REAR GEARBOX BRACKETS (V0 02 1 (1)) 5
REAR TOWING HITCH CAT ” C ” (V0 02 2 (1)) 6
REAR OSCILLATING HITCH (V0 02 3 (1)) 7
REAR TOWING HITCH (V0 02 4 (1)) 8
REAR TOWING HITCH (V0 02 5 (1)) 9
TOWING BAR (V0 02 6 (1)) 10
REAR TOWING HITCH (0 016 5026 3 A) 11
FRONT BALLAST WEIGHTS 12
FRONT BALLAST Kg 60 (V0 03 0 (1)) 12
FRONT BALLAST kg 100 (V0 03 1 (1)) 13
FRONT BALLAST FASTENERS (V0 03 2 (1)) 14
WHEEL BALLAST 15
WHEEL BALLAST REAR (V0 05 0 (1)) 15
Bodywork_Cab 16
Index 16
SOLARIS 45 ->ZKDS2302V0MS20001 20
G0 – BODYWORK – CAB 20
HOOD – SIDE PANELS – SUPPORTS 20
HOOD (G0 01 0 (1)) 20
HOOD – SUPPORTS (G0 01 4 (1)) 21
HOOD – SUPPORTS (G0 01 5 (1)) 22
HOOD GAS SPRING (G0 01 6 (1)) 23
HOOD HINGES (G0 01 7 (1)) 24
SAFETY ROLL BAR SUPPORTS (G0 01 8 (1)) 25
SUPPORT FOR SUPPLEMENTARY TANK (G0 01 9 (1)) 26
ENGINE MOUNTING (G0 01 10 (1)) 27
HOOD CATCH (G0 01 11 (1)) 28
PLATE (G0 01 12 (1)) 29
HOOD – SUPPORTS (G0 01 13 (1)) 30
HOOD – SUPPORTS (G0 01 14 (1)) 31
SOUND/THERMAL INSULATION PANELS (G0 01 15 (1)) 32
HOOD SOUNDPROOFING (G0 01 16 (1)) 33
ENGINE HOOD GASKETS (G0 01 17 (1)) 34
GUARD (G0 01 18 (1)) 35
BATTERY SUPPORT (G0 01 22 (1)) 36
BATTERY SUPPORT (G0 01 23 (1)) 37
PEDAL SUPPORT (G0 01 24 (1)) 38
BELTS GUARD (G0 01 25 (1)) 39
WING HOLDER (G0 01 28 (1)) 40
SAFETY ROLL BAR SUPPORTS (G0 01 29 (1)) 41
LETTERING 42
TOWING HITCH IDENTIFICATION PLATE (G0 02 0 (1)) 42
IDENTIFICATION PLATE (G0 02 1 (1)) 43
INFORMATION PLATE (G0 02 3 (1)) 44
PRODUCT PLATE (G0 02 7 (1)) 45
PRODUCT PLATE (G0 02 12 (2)) 46
IDENTIFICATION PLATE (G0 02 24 (1)) 47
IDENTIFICATION PLATE (G0 02 25 (1)) 48
WARNING PLATES (G0 02 27 (1)) 49
WARNING PLATES (G0 02 27 (2)) 50
P T O WARNING PLATE FRONT (G0 02 28 (1)) 51
MECHANICAL ACCELERATOR CONTROL IDENTIFICATION PLATE (G0 02 29 (1)) 52
PTO DATA PLATE (G0 02 31 (1)) 53
PTO DATA PLATE (G0 02 32 (1)) 54
PTO DATA PLATE (G0 02 33 (1)) 55
PTO DATA PLATE 540 (G0 02 34 (1)) 56
PTO DATA PLATE (G0 02 35 (1)) 57
PTO DATA PLATE (G0 02 36 (1)) 58
PLATES (G0 02 37 (1)) 59
PLATES (G0 02 40 (1)) 60
SPEED LABEL (G0 02 41 (1)) 61
PLATES (G0 02 45 (2)) 62
PLATES (G0 02 50 (1)) 63
INFORMATION PLATE (G0 02 51 (1)) 64
INFORMATION PLATE (G0 02 52 (1)) 65
RH CONSOLE IDENTIFICATION PLATES (G0 02 53 (2)) 66
PLATES- FOR 6-WAY DISTRIBUTOR (G0 02 59 (1)) 67
CONTROLS PLATE /LIFT MOTION WARNING PLATE (G0 02 61 (1)) 68
WARNING PLATES (G0 02 62 (1)) 69
WARNING SIGNS ON WATER RADIATOR (G0 02 65 (1)) 70
WARNING SIGNS ON WATER RADIATOR (G0 02 66 (1)) 71
WATER COOLER IDENTIFICATION PLATE (G0 02 67 (1)) 72
CAB STRUCTURE – PLATFORM -SUSPENSION 73
SUPPORTS (G0 03 2 (1)) 73
PLATFORM (G0 03 4 (1)) 74
FOOTPLATE COVER dx/rh/re (G0 03 7 (1)) 75
FOOTPLATE COVER sx/lh/li (G0 03 8 (1)) 76
FOOTPLATE COVER dx/rh/re (G0 03 9 (1)) 77
FOOTPLATE COVER sx/lh/li (G0 03 10 (1)) 78
LH FOOTPLATE WITH AUXILIARY TANK (G0 03 13 (1)) 79
FENDERS – FOOTSTEPS – EXTENSIONS 80
FRONT MUDGUARDS (G0 04 0 (1)) 80
FRONT MUDGUARDS (G0 04 2 (1)) 81
FRONT MUDGUARDS (G0 04 3 (1)) 82
FRONT MUDGUARDS (G0 04 4 (1)) 83
FRONT MUDGUARDS (G0 04 6 (1)) 84
FRONT MUDGUARDS (G0 04 8 (1)) 85
FENDERS (G0 04 10 (1)) 86
MUDGUARDS EXTENSIONS (G0 04 12 (1)) 87
MUDGUARDS EXTENSIONS (G0 04 13 (1)) 88
BRACKET – SPEED LABEL (G0 04 16 (1)) 89
EXTENSION FOR WING (G0 04 17 (1)) 90
INTERIOR TRIM 91
DASHBOARD (G0 06 0 (1)) 91
TUNNEL COVER (G0 06 6 (1)) 92
BRUSHES FOR TUNNEL COVER (G0 06 8 (1)) 93
TUNNEL CAP (G0 06 9 (1)) 94
REAR BEACON MOUNTING (G0 06 10 (1)) 95
LH LIGHT HOLDER FOR EXTINGUISHER AND WARNING TRIANGLE SUPPORT (G0 06 11 (2)) 96
TRIANGLE SUPPORT (G0 06 12 (1)) 97
REAR BEACON MOUNTING (G0 06 13 (1)) 98
REAR BEACON MOUNTING (G0 06 17 (1)) 99
CONTROL CONSOLE RIGHT (G0 06 20 (2)) 100
EXTERIOR TRIM – ROOF 101
PREARRANGEMENT FOR WARNING BEACON (G0 07 4 (1)) 101
REARVIEW MIRROR dx/rh/re (G0 07 5 (1)) 102
FLASHING LIGHT SUPPORT (0 013 2605 4 A) 103
REARVIEW MIRROR (0 9234 147 4/10 A) 104
SEATS 105
DRIVER’S SEAT (G0 08 0 (1)) 105
SEAT SPRINGING (0 010 5356 4 A) 106
SEAT-COMPONENTS (0 012 4782 4/20 A) 107
MECHANICAL CLUTCH CONTROLS 108
CLUTCH CONTROL (G0 10 0 (1)) 108
MECHANICAL BRAKE CONTROLS 109
HANDBRAKE BRACKET FOR TRAILER (G0 11 0 (1)) 109
BRAKE CONTROLS (G0 11 2 (1)) 110
HAND BRAKE (G0 11 3 (1)) 111
MECHANICAL – ELECTRONIC THROTTLE CONTROLS 112
THROTTLE (G0 12 0 (1)) 112
HAND CONTROL FOR MECHANICAL THROTTLE (G0 12 2 (1)) 113
HAND THROTTLE AND CONTROL LEVER LINKAGES (G0 12 3 (1)) 114
STEERING CONTROLS 115
STEERING COLUMN (G0 13 0 (1)) 115
STEERING WHEEL (G0 13 2 (1)) 116
STEERING WHEEL CAP (G0 13 6 (1)) 117
MECHANICAL GEARSHIFT CONTROLS 118
REDUCTION GEAR CONTROL (G0 14 0 (1)) 118
REVERSE GEAR CONTROL (G0 14 1 (1)) 119
GEAR SHIFTING (G0 14 2 (1)) 120
GEAR SHIFTING (G0 14 3 (1)) 121
GEAR SHIFT – CREEP SPEED (G0 14 4 (1)) 122
4WD – DIFFERENTIAL LOCK CONTROLS 123
DIFFERENTIAL LOCK CONTROL (G0 15 0 (1)) 123
4WD – ENGAGEMENT CONTROL (G0 15 1 (1)) 124
PTO CONTROLS 125
INDEPENDENT CLUTCH CONTROL FOR P T O (G0 16 0 (1)) 125
P T O SELECTION CONTROL (G0 16 1 (1)) 126
LIFT CONTROLS 127
CONTROL TIE RODS AND LEVERS (G0 17 0 (1)) 127
REAR LIFT CONTROL (G0 17 1 (2)) 128
REMOTE VALVE CONTROLS 129
DISTRIBUTOR CONTROL (G0 18 0 (1)) 129
ACCESSORIES 130
TRIANGLE SUPPORT (G0 19 1 (1)) 130
BRACKETS FOR WARNING TRIANGLE AND NUMBER PLATE HOLDER (G0 19 2 (1)) 131
LICENCE PLATE HOLDER (G0 19 3 (1)) 132
WARNING TRIANGLES AND EXTINGUISHER (G0 19 7 (1)) 133
WARNING TRIANGLE (G0 19 8 (1)) 134
BRACKET FOR TOOL BOX (G0 19 9 (1)) 135
LUBRICATOR (G0 19 10 (1)) 136
SAFETY ROLL BAR 137
SAFETY ARCH (G0 20 0 (1)) 137
SAFETY ARCH (G0 20 1 (1)) 138
SAFETY ARCH (G0 20 1 (2)) 139
SAFETY ARCH FOLDING (G0 20 2 (1)) 140
SAFETY ARCH (G0 20 6 (1)) 141
Electrical_system 142
Index 142
SOLARIS 45 ->ZKDS2302V0MS20001 144
L0 – ELECTRIC AL SYSTEM 144
BATTERY – ALTERNATOR 144
BATTERY (L0 01 1 (1)) 144
WIRING LOOMS 145
UNDER HOOD WIRING FIXING (L0 02 4 (1)) 145
CABLE HARNESS LICENCE PLATE LIGHT (L0 02 5 (1)) 146
ELECTRICAL SYSTEM FOR SUPPLEMENTARY TANK (L0 02 8 (1)) 147
TRAILER SOCKET-OUTLET (L0 02 9 (1)) 148
CENTRAL WIRING LOOM (L0 02 10 (1)) 149
CENTRAL WIRING LOOM (L0 02 11 (1)) 150
ELECTRICAL EQUIPMENT FRONT – BATTERY LEADS (L0 02 12 (1)) 151
ELECTRCIAL SYSTEM FOR FRONT PTO (L0 02 14 (1)) 152
ELECTRICAL EQUIPMENT REAR (L0 02 15 (1)) 153
ELECTRICAL EQUIPMENT REAR (L0 02 16 (1)) 154
ELECTRICAL EQUIPMENT REAR (L0 02 16 (2)) 155
ELECTRICAL WIRING (L0 02 18 (1)) 156
WIRING FOR REAR LIGHTS (L0 02 19 (1)) 157
ELECTRIC CABLE FOR WORK LIGHT (L0 02 21 (1)) 158
ELECTRICAL SYSTEM – FOR 6-WAY DISTRIBUTOR (L0 02 24 (1)) 159
2-POLE SOCKET – LIGHTS FLASHER RELAY (L0 02 25 (1)) 160
2-POLE SOCKET – LIGHTS FLASHER RELAY (L0 02 26 (1)) 161
FIXING OF PTO CLUTCH INDICATOR RELAY warning light (L0 02 27 (1)) 162
ELECTRICAL SYSTEM (0 012 6949 4/10 A) 163
ELECTRICAL SYSTEM (0 012 6951 4/60 A) 164
ELECTRICAL SYSTEM (0 013 1452 4/10 A) 165
POWER OUTLET SOCKET (2 6032 011 0 A) 166
ECUs 167
ENGINE STOP CONTROL UNIT (L0 03 0 (1)) 167
SENSORS – POTENTIOMETERS – ENABLING SWITCHES 168
PTO CLUTCH CONTROL SWITCH (L0 04 1 (1)) 168
PTO CLUTCH CONTROL SWITCH (L0 04 2 (1)) 169
PTO SELECTOR SWITCH (L0 04 3 (1)) 170
PTO SELECTOR SWITCH (L0 04 4 (1)) 171
CLUTCH PEDAL SWITCH (L0 04 5 (1)) 172
CLUTCH PEDAL SWITCH (L0 04 6 (1)) 173
SEALED SWITCHES (L0 04 7 (1)) 174
SEALED SWITCHES (L0 04 8 (1)) 175
TEMPERATURE AND OIL FILTER CLOGGING SENSOR (L0 04 10 (1)) 176
P T O SWITCH (L0 04 12 (1)) 177
INSTRUMENT PANEL 178
CHRONO-TACHOMETER (L0 05 0 (1)) 178
ELECTRIC REV-HOUR RECORDER TACHOMETER (2 8339 230 0/70 A) 179
ELECTRICAL CONTROLS – PUSHBUTTONS 180
KEYSWITCH BLOCK – STEERING COLUMN SWITCH UNIT – INSTRUMENT PANEL BUTTONS (L0 07 3 (1)) 180
KEYSWITCH BLOCK – STEERING COLUMN SWITCH UNIT – INSTRUMENT PANEL BUTTONS (L0 07 4 (1)) 181
SWITCH – FOR P T O FRONT (L0 07 5 (1)) 182
SWITCH FOR AUXILIARY CONTROL VALVE (L0 07 6 (1)) 183
LIGHTING AND SIGNALLING 184
LICENCE PLATE LIGHT (L0 08 0 (1)) 184
WARNING BEACON (L0 08 1 (1)) 185
HORN AND REFLECTOR (L0 08 2 (1)) 186
HORN AND REFLECTOR (L0 08 3 (1)) 187
REAR LIGHTS (L0 08 4 (1)) 188
REAR LIGHTS (L0 08 5 (1)) 189
SIDE LIGHTS (L0 08 7 (1)) 190
SIDE AND REAR LIGHTS (L0 08 8 (1)) 191
FRONT LIGHTS – FOR RIGHT-HAND DRIVE (L0 08 9 (1)) 192
FRONT LIGHTS – FOR LEFT-HAND DRIVE (L0 08 10 (1)) 193
LIGHT FIXINGS (L0 08 11 (1)) 194
REAR WORKLIGHT (L0 08 12 (1)) 195
WARNING BEACON (0 013 0868 4 A) 196
HEADLAMP COMPONENTS (2 8029 240 0/10 A) 197
HEADLAMP COMPONENTS (2 8029 300 0 A) 198
REAR LIGHT (2 8039 090 0 A) 199
REAR LIGHT (2 8039 100 0 A) 200
HEADLAMP FOR RIGHT-HAND DRIVE (2 8039 230 0 A) 201
HEADLAMP FOR LEFT-HAND DRIVE (2 8039 290 0 A) 202
FRONT LIGHTS dx/rh/re (2 8039 293 0/10 A) 203
FRONT LIGHTS sx/lh/li (2 8039 294 0/10 A) 204
HEADLAMP COMPONENTS (2 8059 230 0 A) 205
HEADLAMP COMPONENTS (2 8059 240 0 A) 206
HEADLAMP COMPONENTS (2 8059 440 0/10 A) 207
HEADLAMP COMPONENTS (2 8059 450 0 A) 208
HEADLAMP COMPONENTS (2 8059 490 0 A) 209
Engine 210
Index 210
SOLARIS 45 ->ZKDS2302V0MS20001 211
B0 – ENGINE 211
GENERAL 211
ENGINE (B0 00 1 (1)) 211
CYLINDER HEAD (6 N8700 01 0 01) 212
CYLINDER HEAD (6 N8700 01 0 02) 213
CYLINDER HEAD (6 N8700 01 0 03) 214
CAMSHAFT (6 N8700 01 0 04) 215
CRANKCASE (6 N8700 01 0 05) 216
MAIN BEARINGS (6 N8700 01 0 06) 217
TIMING CASE (6 N8700 01 0 07) 218
FLYWHEEL HOUSING (6 N8700 01 0 08) 219
OIL PAN (6 N8700 01 0 09) 220
PISTON – CONNECTING ROD (6 N8700 01 0 10) 221
CRANKSHAFT – FLYWHEEL (6 N8700 01 0 11) 222
CAMSHAFT (6 N8700 01 0 12) 223
INTAKE AND EXHAUST (6 N8700 01 0 13) 224
OIL PUMP (6 N8700 01 0 14) 225
LUBRICATION (6 N8700 01 0 15) 226
OIL PIPES FOR TURBOCHARGER (6 N8700 01 0 16) 227
LUBRIC OIL COOLER (6 N8700 01 0 17) 228
LUBRIC OIL FILTER (6 N8700 01 0 18) 229
COOLING (6 N8700 01 0 19) 230
FUEL SUPPLY SYSTEM (6 N8700 01 0 20) 231
INJECTOR NOZZLE HOLDER COMPONENTS (6 N8700 01 0 21) 232
INJECTION PUMP PARTS (6 N8700 01 0 22) 233
FUEL FILTER (6 N8700 01 0 23) 234
CONTROLLER (6 N8700 01 0 24) 235
ELECTRICAL SYSTEM (6 N8700 01 0 25) 236
STARTER PARTS (6 N8700 01 0 26) 237
ALTERNATOR PARTS (6 N8700 01 0 27) 238
SOLENOID VALVE (6 N8700 01 0 28) 239
THERMOSTAT (6 N8700 01 0 29) 240
ACCESSORIES (6 N8700 01 0 30) 241
GASKET SET FOR ENGINE ASSEMBLY (6 N8700 01 0 31) 242
LUBRICATION 243
OIL FILLER NECK (B0 06 0 (1)) 243
COOLING 244
COOLING (B0 09 0 (2)) 244
INTAKE – EXHAUST MANIFOLDS 245
COOLING AIR BAFFLE (B0 10 0 (1)) 245
Engine_accessories 246
Index 246
SOLARIS 45 ->ZKDS2302V0MS20001 247
C0 – ENGINE ACCESSORIES 247
RADIATORS – FANS 247
WATER COOLER (C0 01 0 (1)) 247
WATER COOLER (C0 01 1 (1)) 248
RADIATOR HOSES (C0 01 2 (2)) 249
COLLECTION TANK (C0 01 3 (1)) 250
AIR DUCTING HOOD (C0 01 4 (1)) 251
ENGINE AIR BLOWER (C0 01 5 (1)) 252
WATER COOLER (0 013 8736 4/20 A) 253
WATER COOLER (0 014 0416 4/10 A) 254
INTERCOOLER – AIR CLEANER 255
AIR CLEANER (C0 02 0 (1)) 255
AIR CLEANER HOSE (C0 02 2 (1)) 256
AIR FILTER PARTS (2 4249 610 0 A) 257
FUEL SYSTEM 258
FUEL TANK (C0 03 0 (1)) 258
FUEL SUPPLY SYSTEM (C0 03 1 (2)) 259
FUEL PUMP (C0 03 2 (1)) 260
FUEL SYSTEM – TANK (C0 03 3 (2)) 261
TANK FLOAT (C0 03 4 (1)) 262
FUEL TANK FIXING PARTS (C0 03 5 (1)) 263
TANK SEALS (C0 03 6 (1)) 264
AUXILIARY TANK (C0 03 7 (2)) 265
FUEL FEED PUMP (0 008 6957 4 A) 266
STARTER MOTOR 267
STARTER MOTOR COVER (C0 05 0 (1)) 267
STARTER MOTOR COVER (C0 05 1 (1)) 268
EXHAUST SILENCER 269
EXHAUST SILENCER (C0 06 1 (1)) 269
FLANGE FOR EXHAUST SILENCER (C0 06 2 (1)) 270
Front_lift 271
Index 271
SOLARIS 45 ->ZKDS2302V0MS20001 272
N0 – FRONT LIFT 272
LIFT ASSEMBLY 272
FRONT HYDRAULIC POWER-LIFT (N0 01 0 (1)) 272
CYLINDER PARTS (0 008 7741 4/10 A) 273
Front_pto 274
Index 274
SOLARIS 45 ->ZKDS2302V0MS20001 275
M0 – FRONT PTO 275
PTO INPUT SHAFT 275
DRIVE SHAFT – FRONT P T O SHAFT (M0 01 0 (1)) 275
DRIVE SHAFT – FRONT P T O SHAFT (M0 01 1 (1)) 276
CONNECTING FLANGE (M0 01 2 (1)) 277
FRONT PTO COVER – PROTECTIONS 278
P T O SHAFT PROTECTOR FRONT (M0 02 0 (1)) 278
P T O FRONT – GUARD (M0 02 1 (1)) 279
P T O FRONT – GUARD (M0 02 2 (1)) 280
GEARS AND CLUTCH 281
P T O FRONT (M0 03 0 (1)) 281
P T O FRONT (M0 03 1 (1)) 282
P T O FRONT (M0 03 2 (1)) 283
P T O FRONT (M0 03 3 (1)) 284
HYDRAULIC SYSTEM 285
FRONT PTO HYDRAULIC SYSTEM (M0 04 0 (1)) 285
FRONT PTO HYDRAULIC SYSTEM (M0 04 1 (1)) 286
Hydraulic_and_pneumatic_system 287
Index 287
SOLARIS 45 ->ZKDS2302V0MS20001 288
H0 – HYDRAULIC AND PNEUMATIC SYSTEM| 288
HYDRAULIC SYSTEM 288
PUMP FILTER SUCTION (H0 01 0 (2)) 288
HYDRAULIC PUMP 11+5 5 sx/lh/li bosch (H0 01 2 (1)) 289
S A C AND POWER STEERING HYDRAULIC SYSTEM (H0 01 3 (1)) 290
S A C HYDRAULIC SYSTEM (H0 01 4 (1)) 291
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (H0 01 5 (1)) 292
2WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (H0 01 6 (1)) 293
HYDRAULIC SYSTEM (H0 01 7 (1)) 294
HYDRAULIC SYSTEM (H0 01 8 (1)) 295
HYDRAULIC SYSTEM (H0 01 9 (1)) 296
HYDRAULIC SYSTEM (H0 01 10 (1)) 297
HYDRAULIC PUMP 11+5 5 sx/lh/li bosch (2 4539 884 0 A) 298
STEERING SYSTEM 299
HYDRAULIC STEERING GEAR (H0 02 0 (1)) 299
PIPES FOR HYDROSTATIC STEERING (H0 02 1 (1)) 300
4WD – POWER STEERING (H0 02 2 (1)) 301
2WD – POWER STEERING (H0 02 3 (1)) 302
POWER STEERING (2 4569 001 0 A) 303
FRONT LIFT 304
FRONT LIFT – HYDRAULIC SYSTEM (H0 05 0 (1)) 304
FRONT REMOTE CONTROL VALVES 305
HYDRAULIC SYSTEM WITH CENTRAL AND FRONT QUICK ACTION COUPLERS (H0 06 0 (1)) 305
HYDRAULIC SYSTEM – MID QUICK SERVICE COUPLERS (H0 06 1 (1)) 306
ENGAGEMENT (0 98308 50 3/10 A) 307
REAR REMOTE CONTROL VALVES 308
4-WAY AUXILIARY DISTRIBUTOR (H0 07 0 (1)) 308
6-WAY HIDRAULIC SYSTEM (H0 07 1 (1)) 309
SUPPORT FOR QUICK ACTION REAR COUPLERS (H0 07 2 (1)) 310
SUPPORT FOR QUICK ACTION REAR COUPLERS (H0 07 2 (2)) 311
REAR QUICK ACTION COUPLERS (H0 07 3 (1)) 312
4-WAY DISTRIBUTOR EQUIPMENT (H0 07 4 (1)) 313
PIPES/HOSES FOR QUICK ACTION REAR COUPLERS (H0 07 5 (1)) 314
PIPES/HOSES FOR QUICK ACTION REAR COUPLERS (H0 07 6 (1)) 315
ENGAGEMENT (0 98309 50 3/10 A) 316
ELECTROHYDRAULICS 317
PRESSURE CONTROL VALVE (H0 10 0 (1)) 317
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (2 3729 697 0/10 A) 318
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (2 3729 697 0/20 A) 319
Rear_axle 320
Index 320
SOLARIS 45 ->ZKDS2302V0MS20001 321
E0 – REAR AXLE 321
REAR AXLE 321
REAR AXLE (E0 01 0 (1)) 321
REAR AXLE – STANDARD SEALS (E0 01 1 (1)) 322
REAR AXLE – WATER PROOF SEALS (E0 01 2 (1)) 323
REAR DIFFERENTIAL / HALF-SHAFTS 324
DIFFERENTIAL (E0 02 0 (1)) 324
REDUCTION GEAR UNIT (E0 02 1 (1)) 325
HALF AXLES A = mm 217 (E0 02 2 (1)) 326
HALF AXLES A = mm 277 (E0 02 3 (1)) 327
REAR BRAKES 328
REAR BRAKES (E0 03 0 (1)) 328
BRAKES TITAN ITALIA (0 011 3169 4 A) 329
BRAKES URSUS (0 012 4930 4 A) 330
Rear_lift 331
Index 331
SOLARIS 45 ->ZKDS2302V0MS20001 332
R0 – REAR LIFT 332
LIFT COVER 332
S A C CASE (R0 01 0 (1)) 332
OIL FILLER NECK – AIR BREATHER (R0 01 1 (1)) 333
OIL FILLER NECK – AIR BREATHER (R0 01 1 (2)) 334
LIFT FIXING COMPONENTS (R0 01 2 (1)) 335
LIFT ASSEMBLY 336
LIFTING (R0 02 0 (1)) 336
LIFT CONTROL VALVE 337
REGULATING DISTRIBUTOR (R0 03 0 (1)) 337
DISTRIBUTOR PARTS (R0 03 1 (1)) 339
IN-CAB CONTROLS 341
INTERNAL AND EXTERNAL CONTROLS (R0 04 0 (1)) 341
CONTROLS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (R0 04 1 (1)) 343
SENSOR 344
SENSITIVE ELEMENTS (R0 05 0 (1)) 344
THREE-POINT LINKAGE – LINK ARMS 345
3 POINT HITCH (R0 06 0 (2)) 345
THREE-POINT COUPLING – TOP/LOWER LINK (R0 06 1 (1)) 346
THREE-POINT COUPLING – TOP/LOWER LINK (R0 06 3 (2)) 347
THREE-POINT COUPLING – TOP/LOWER LINK – AUTOM (R0 06 4 (1)) 348
LINKAGE (0 012 5035 4 A) 349
LINKAGE (0 012 5036 4 A) 350
Transmission 351
Index 351
SOLARIS 45 ->ZKDS2302V0MS20001 353
D0 – TRANSMISSION 353
MAIN CLUTCH 353
DOUBLE COUPLING – LUK (D0 01 0 (1)) 353
CLUTCH CONTROL (D0 01 1 (1)) 354
DOUBLE COUPLING – LUK (0 012 5851 4/20 A) 355
CLUTCH HOUSING 356
JUNCTION CASE (D0 02 0 (1)) 356
JUNCTION CASE (D0 02 1 (1)) 357
CLUTCH HOUSING FIXINGS (D0 02 2 (1)) 358
GEARBOX INPUT SHAFT 359
GEARBOX INPUT SHAFT (D0 05 0 (1)) 359
GEARBOX INPUT SHAFT (D0 05 1 (1)) 360
SYNCHRONIZER PARTS (0 008 4951 4 A) 361
PTO INPUT SHAFT 362
P T O – CLUTCH TRANSMISSION SHAFT (D0 06 0 (1)) 362
MAIN SHAFT 363
MAIN SHAFT (D0 07 0 (1)) 363
MAIN SHAFT (D0 07 1 (1)) 364
SECONDARY SHAFT 365
TRANSMISSION SHAFT (D0 08 0 (1)) 365
TRANSMISSION SHAFT (D0 08 1 (1)) 366
SYNCHRONIZER PARTS (0 008 4951 4 A) 367
GEARBOX 368
REAR GEARBOX CASE (D0 09 0 (2)) 368
REAR GEARBOX CASE (D0 09 1 (1)) 369
PLUG FOR TYPES WITHOUT MID PTO (D0 09 2 (1)) 370
PLUG FOR 2WD VERSION (D0 09 3 (1)) 371
INTERNAL AND EXTERNAL GEARBOX CONTROLS 372
INTERNAL CONTROLS (D0 10 0 (1)) 372
INTERNAL CONTROLS (D0 10 1 (1)) 373
INTERNAL CONTROLS (D0 10 2 (1)) 374
INTERNAL CONTROLS (D0 10 3 (1)) 375
LOW SPEED RANGES 376
REDUCTION GEAR UNIT (D0 11 0 (1)) 376
REDUCTION GEAR UNIT (D0 11 1 (1)) 377
SUPER REDUCTION GEAR UNIT (D0 11 2 (1)) 378
BEVEL WHEEL GEAR (D0 11 3 (1)) 379
HYDRAULIC PUMP DRIVE 380
HYDRAULIC PUMP POWER TAKEOFF (D0 13 0 (1)) 380
PTO/GROUNDPSPEED DRIVE 381
P T O SHAFT REAR (D0 14 0 (1)) 381
P T O SHAFT REAR (D0 14 0 (2)) 382
P T O – WITH N’ 540 (D0 14 1 (1)) 383
P T O – WITH N’ 540 (D0 14 1 (2)) 384
P T O – WITH N’ 540 (D0 14 2 (1)) 385
P T O – WITH N’ 540 – 750 (D0 14 3 (1)) 386
P T O – WITH N’ 540 – 750 (D0 14 3 (2)) 387
P T O – WITH N’ 540 – 1000 (D0 14 4 (1)) 388
P T O – WITH N’ 540 – 1000 (D0 14 4 (2)) 389
PTO PACKAGE WITHOUT GROUNDSPEED (D0 14 5 (1)) 390
P T O – SYNCHRONIZED (D0 14 6 (1)) 391
P T O – SYNCHRONIZED 540 – 750 (D0 14 7 (1)) 392
P T O – SYNCHRONIZED 540 – 1000 (D0 14 8 (1)) 393
PTO – PARTS SET WITH STANDARD SEALS (D0 14 9 (1)) 394
PTO – PARTS SET WITH WATER PROOF SEALS (D0 14 10 (1)) 395
P T O SHAFT PROTECTOR REAR (D0 14 11 (1)) 396
P T O SHAFT PROTECTOR REAR (D0 14 12 (1)) 397
4WD ENGAGEMENT POWER TAKE-OFF – 4WD PARKING BRAKE 398
4WD – ENGAGEMENT CONTROL (D0 15 0 (1)) 398
COMPLETION (D0 15 1 (1)) 399
COMPLETION (D0 15 2 (1)) 400
PTO PACKAGE WITHOUT GROUNDSPEED (D0 15 3 (1)) 401
MID POWER TAKE-OFF 402
MID PTO – STANDARD OIL SEAL (D0 18 0 (1)) 402
MID PTO – WATERPROOF OIL SEAL (D0 18 1 (1)) 403
CENTRAL P T O (D0 18 2 (1)) 404
CENTRAL P T O + SYNCRO (D0 18 3 (1)) 405
MID PTO PACKAGE (D0 18 4 (1)) 406
Wheels 407
Index 407
SOLARIS 45 ->ZKDS2302V0MS20001 408
S0 – WHEELS 408
FRONT WHEEL BOLTS 408
FRONT WHEEL MOUNTING (S0 01 0 (1)) 408
REAR WHEEL BOLTS 409
REAR WHEEL BOLTS (S0 02 0 (1)) 409
2WD FRONT WHEELS 410
2WD – FRONT WHEELS 7 00-12″ pr 6 (S0 03 0 (1)) 410
WHEELS 411
WHEELS 6 50/80 R12″ PR 4 (S0 04 0 (1)) 411
WHEELS 7 00×12″ pr 4 (S0 04 1 (1)) 412
WHEELS 27-8 50-15″ pr 4 (S0 04 2 (1)) 413
WHEELS 13 6-16″ pr 4 (S0 04 9 (2)) 414
WHEELS 200/70R-16″ (S0 04 10 (1)) 415
WHEELS 240/70 R16″ (S0 04 11 (1)) 416
WHEELS 280/70 R18″ (S0 04 16 (1)) 417
WHEELS 11 2R20″ (S0 04 17 (1)) 418
WHEELS 320/70 R20″ A8 (S0 04 19 (1)) 419
WHEELS 360/70R-20″ (S0 04 20 (1)) 420
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME MANUAL used by the dealerships to diagnose your vehicle
- No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
- Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
- So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
I.G
