Sakai Asphalt Roller SW352 TW352 SW502 TW502 Service Manual – PDF DOWNLOAD
The Sakai Asphalt Roller SW352 TW352 SW502 TW502 Service Manual PDF offers comprehensive guidance for maintenance and repair of these rollers, aiding operators in ensuring optimal performance and longevity of the equipment.
FILE DETAILS:
Sakai Asphalt Roller SW352 TW352 SW502 TW502 Service Manual – PDF DOWNLOAD
Language : English
Pages : 176
Downloadable : Yes
File Type : PDF

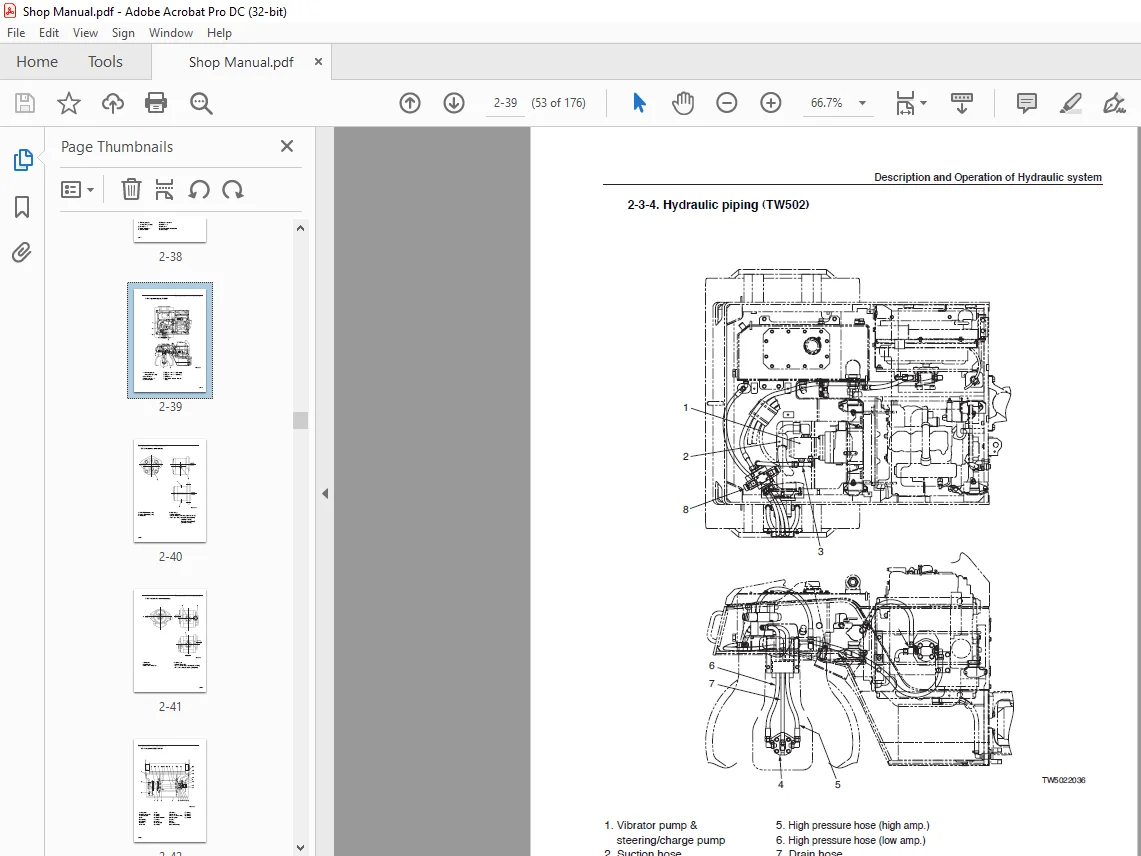

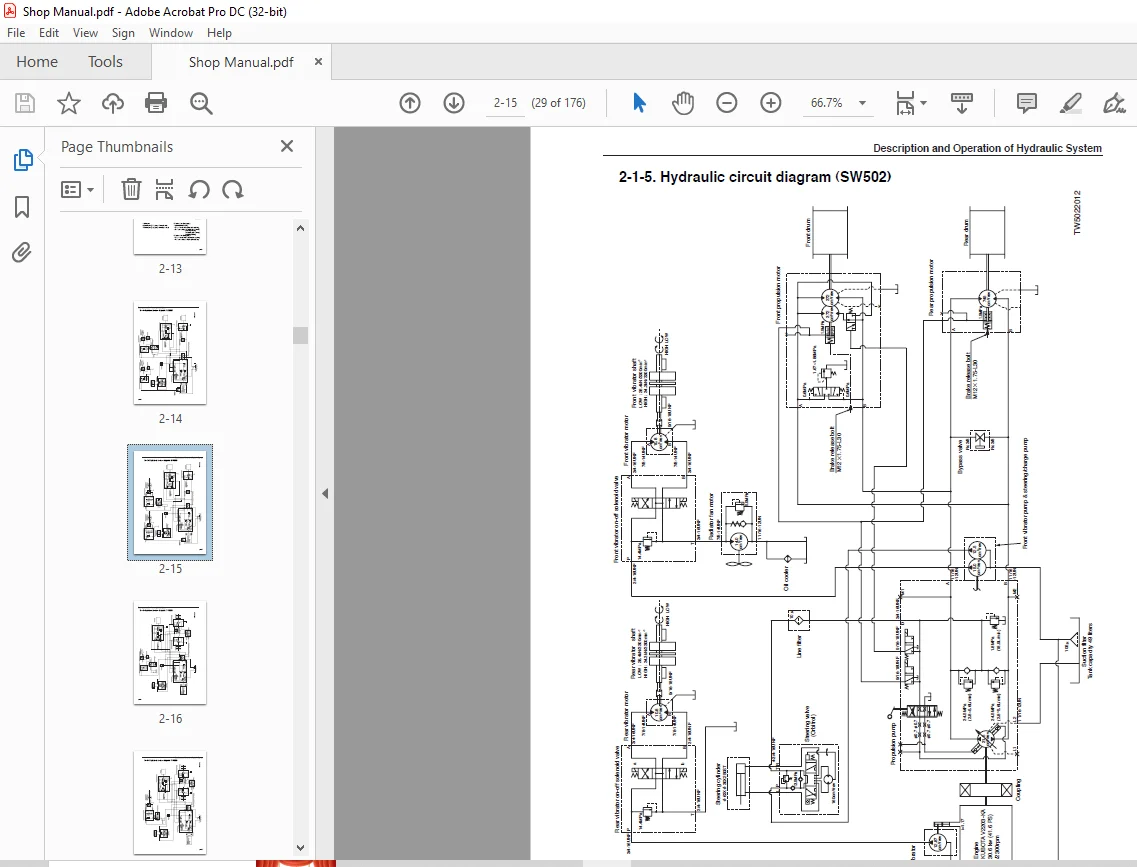

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Sakai Asphalt Roller SW352 TW352 SW502 TW502 Service Manual – PDF DOWNLOAD
- Generally, rollers tend to come large-sized and find their applications in dangerous fields such as rough terrain, steep slopes or slippery areas. Faulty rollers may risk a grave accident.
- For purpose-built rollers to negotiate problem terrain with the ultimate in performance maintained free from failure over the longest possible period of time, adequate handling and regular preventive maintenance recommended are of prime importance. If a trouble developes, it should be effectively corrected with proper safety measures taken.
- This service manual is intended to serve as a guide particularly for maintenance personnel to perform quality service by gaining working knowledge of and reliable maintenance techniques for machines in question.
- Included in this literature are descriptions of SPECIFICATIONS, STRUCTURE & OPERATION, INSPECTION & ADJUSTEMNT, FAULT DIAGNOSIS and DISASSEMBLY & ASSEMBLY. Systematic explanations are being given to each of these five cathegories in this sequence.
- Rollers principally concern qualitative factors as represented by ‘compaction density’, to say nothing of quantitative elements like ‘productivity’. SPECIFICATIONS section includes performance data of major significance e.g. ‘vibratory frequency’ to be checked when servicing machines in question.
- For reasonable maintenance services, it is a precondition to know the vital portions of machines in question and how they work. Referring to relevant electric wiring and hydraulic circuit diagrams, STRUCTURE & OPERATION instructs location of key units and function of systems into which the key units are assembled.
- Adjustment practice to restore a faulty machine to the normal operating state involves measurement procedure which compares measured figures with the standard values. INSPECTION & ADJUSTMENT specifies conditions to measurement and standard values. Safety precautions are also given where necessary. Illustrations included indicate important points like gauge connection location.
- Numerous ways are available to track down the cause of trouble. Important is, of course, to make a diagnosis in a reasonable manner, not blindly. FAULT DIAGNOSIS provides a detailed description of ‘Precautions for Trouble Diagnosis’ and ‘How to Make a Diagnosis’ first, then proceeds to instruction of diagnosis procedures on a variety of fault diagnosis modes. For effective fault finding, this chapter employs block-type flow charts easy to handle. Electric wiring diagrams used herein identify wires by means of color coding and identification numbers. Standard values or fault finding conditions are noted where necessary.
- In the final section, DISASSEMBLY & ASSEMBLY, descriptions are being given of removal, reinstallation, disassembly and reassembly procedures of key units in this order with many solid illustrations easy to understand in order to display vital part of units to handle. Because works to be performed in this cathegory will enevitably have a high potential to invite danger, this section involves many precautionary statements.
- Fully understand the contents of this manual and make the best of it. We will make utmost efforts to make this manual more useful through revisions. Your opinions and advices will be particularly welcome and carefully considered.

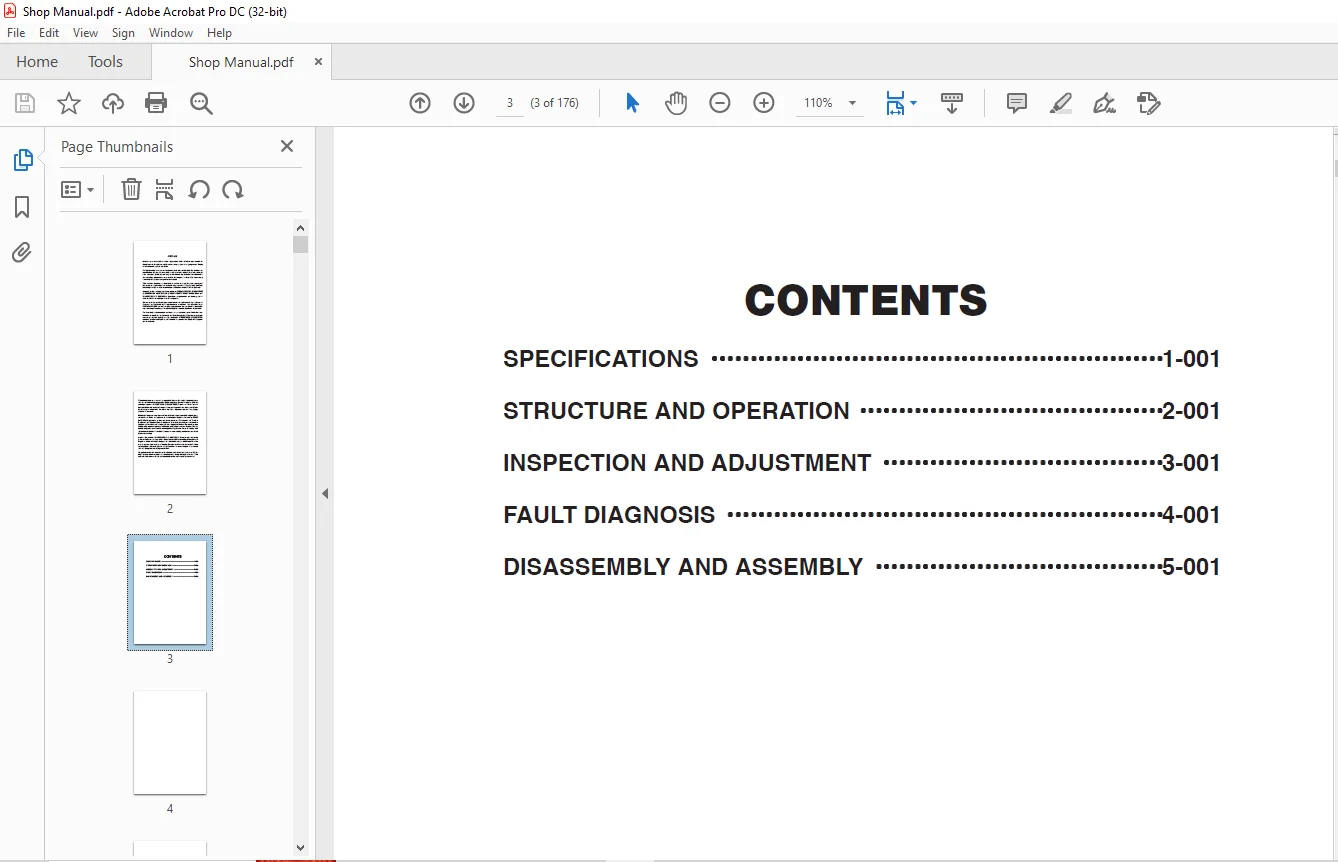

TABLE OF CONTENTS:
Sakai Asphalt Roller SW352 TW352 SW502 TW502 Service Manual – PDF DOWNLOAD
SPECIFICATIONS 1-001
STRUCTURE AND OPERATION 2-001
INSPECTION AND ADJUSTMENT 3-001
FAULT DIAGNOSIS 4-001
DISASSEMBLY AND ASSEMBLY 5-001
