Rex PAC 12-15 Rollers Operation & Parts Manual #436 – PDF DOWNLOAD
DESCRIPTION:
Rex PAC 12-15 Rollers Operation & Parts Manual #436 – PDF DOWNLOAD
- WARRANTY Rex . warrants products of its manufacture against defects in workmanship and material for a period of six months from date of shipment to customer and in consequence of this warranty, any part or parts of such products proving defective within the above specified time will be repaired or replaced F.O.B. factory, providing such parts are returned, trans- prepaid, to the factory and found defective by Rex .
- This warranty will not apply to any product which shall have been repaired or altered out-side of factory in any way so as, in Chain-belt’s judgement, to affect its stability, or reliability, nor which has been subjected to misuse, negligence or accident
- Rex liability as a manufacturer is limited to the replacement of defective parts, and no allowance will be made for labor performed, delays or expense incident to the replacement of defective parts nor for any consequential damages or injuries. Rex Inc.
- assumes no responsibility for engines, electrical equipment or any other equipment and accessories not manufactured by Rex Inc. beyond the warranty of the manufacturer of such equipment or accessories. Rex Inc
- reserves the right to make changes in design from time to time as are deemed desirable without incurring the obligation to furnish them for ma-chines previously sold or shipped.
CHECK FOR SHORTAGE OR DAMAGE
- Upon receipt of equipment, a visual inspection should be made. While the equipment is in transit, any delay or damage to it is the responsibility of the carrier, therefore, before unloading from car or truck, a check for shortages or damages should be made.
- In the event of either, a representative of the carrier must make a full description of the shortage or damage on the freight bill. Any claims for shortages or damages must be made by you to the transportation company
- All machines carry a machine Serial Number. The ma-chine Serial Number Plate is located on the left side of the steering wheel mount. Always supply the machine Serial Number when referring to machine or ordering re-pair parts. Order repair parts through your Rex Distributor being specific on shipping instructions.
- OPERATION Before starting — a complete lubrication check of the machine should be made in accordance with the lubrication chart; engine oil level, radiator coolant, hydraulic oil, air cleaner, etc. All grease fittings should be lubricated.
- A general tightening of all nuts and bolts should be made, inspect fuel lines, hydraulic lines and fittings for tightness to prevent leaks. Tire chart must be checked for minimum and maximum pressure for ply used. Refer to tire chart.
- Fill fuel tank in accordance with engine manufacturer’s specifications shown in engine manual. Also before starting, the operator should familiarize himself with the proper starting and engine operating procedure as outlined in the engine manual.
TO START (FIGS. 2 & 2A)
1. Set parking brake. Push brake down to set.
2. Place the 4-speed transmission in neutral.
3. Turn key and start engine. Use throttle-shift control to increase engine speed for warm-up.
4. Place throttle-shift control in neutral.
5. Select and shift to desired gear in 4-speed trans-mission.
6. Release parking brake.
7. Move throttle-shift control in desired direction.
STEERING
- The Rex place is directionally controlled by means of a standard steering wheel turned in the conventional manner. The steering wheel is connected directly to an ORBITROL rotary servo control. A hydraulic pump, belt driven from the engine provides the oil flow and pressure to the servo control at the steering wheel and is directed to the power steering cylinder at the front by means of two hydraulic lines. There are no mechanical connections in this full fluid steering system. In the event of an engine failure or for emergency steering conditions, the ORBITROL auto
TABLE OF CONTENTS:
Rex PAC 12-15 Rollers Operation & Parts Manual #436 – PDF DOWNLOAD
DESCRIPTION
CHAIN CASE – DRIVE AXLE
DESCRIPTION
COUPLING MATERIAL, DISASSEMBLY
DIESEL ENGINE, AIR BLOCK REMOVAL
PAGE NO ,
DIFFERENTIAL
thru
DROP BOX
FRONT AXLE
LUBRICATION
OPERATION
Starting
Steering
Brakes
Drive Train
PARTS, REPAIR
Section
PUMP, STEERING
thru
SHORTAGE OR DAMAGE CLAIM
SPECIFICATIONS
STEERING CYLINDER
TRANSMISSION, T
thru
TRANSMISSION, T
thru
WARRANTY
CONTROLS
Forward – Reverse
Hydraulic Brake
Parking Brake
Throttle
ENGINE & ACCESSORIES (Power Options) Con tinental Model
F Gasoline
F Gasoline
F Gasoline
Ford Model
DD Diesel
X English Diesel
FRAME COVERS – HOOD & PANELS
Ballast – Covers
GEAR BOX (Drop Type) PARKING BRAKE
HYDRAULIC BRAKES
INSTRUMENT PANEL
LIGHTING EQUIPMENT
POWER STEERING
Hydraulic Lines
Hydraulic Pump
Orbitrol Steering Unit
Ram
Tres, Wheels & Axles
SPRAY SYSTEM – MATS – SCRAPERS
TORQUE CONVERTER TRANSMISSION
Differential (Rockwell Std)
Warner T
Warner TA (-Speed)
VIDEO PREVIEW OF THE MANUAL:

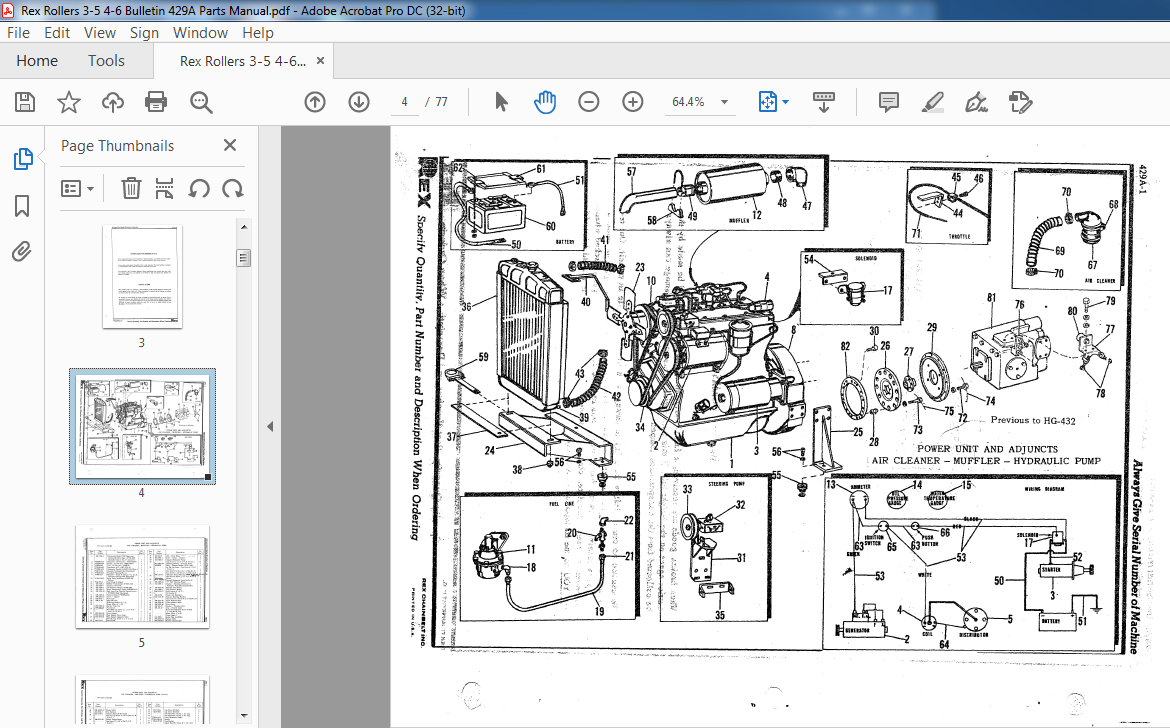

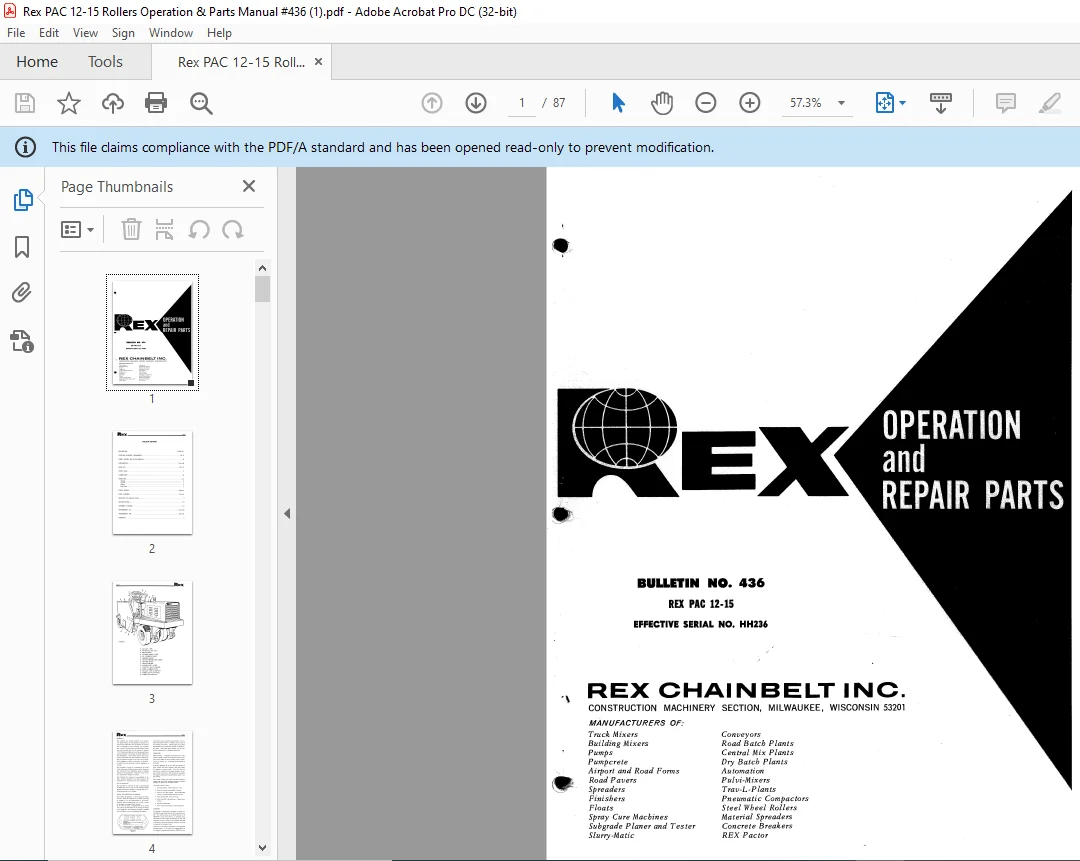

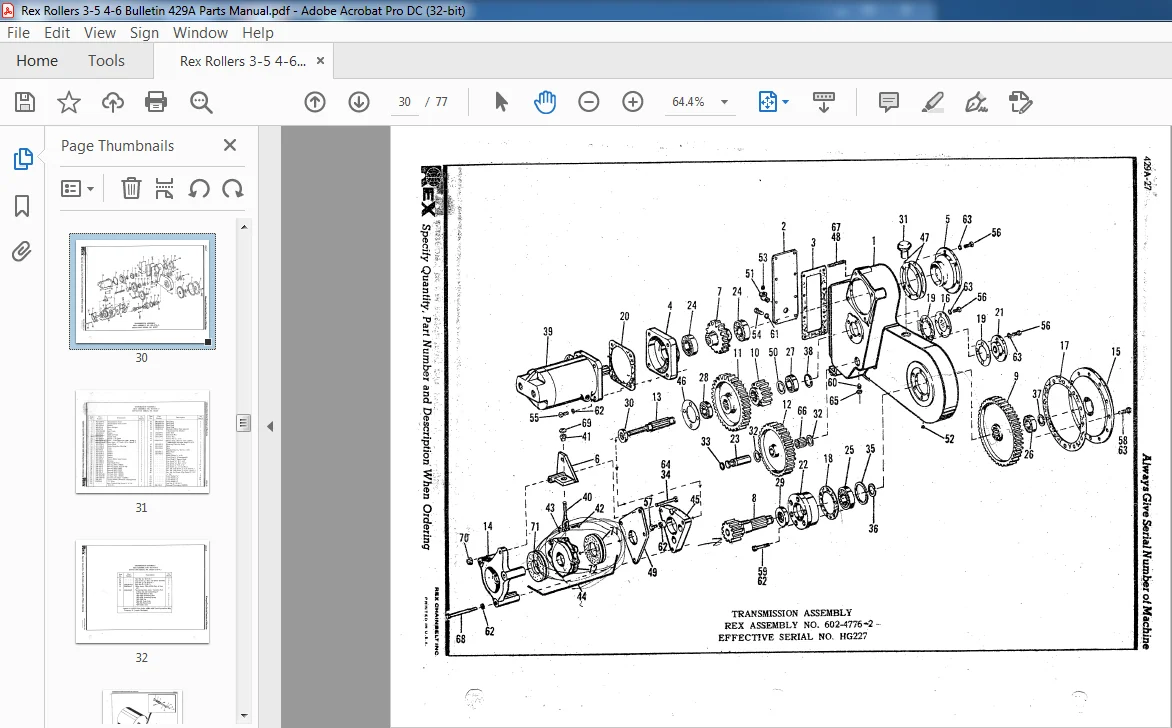

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
- Require some other service manual or have any queries: please WRITE to us at [email protected]
