NISSAN TRUCK VG30E Series Service Manual PDF DOWNLOAD
FILE DETAILS:
NISSAN TRUCK VG30E Series Service Manual PDF DOWNLOAD
Language : English
Pages : 91
Downloadable : Yes
File Type : PDF

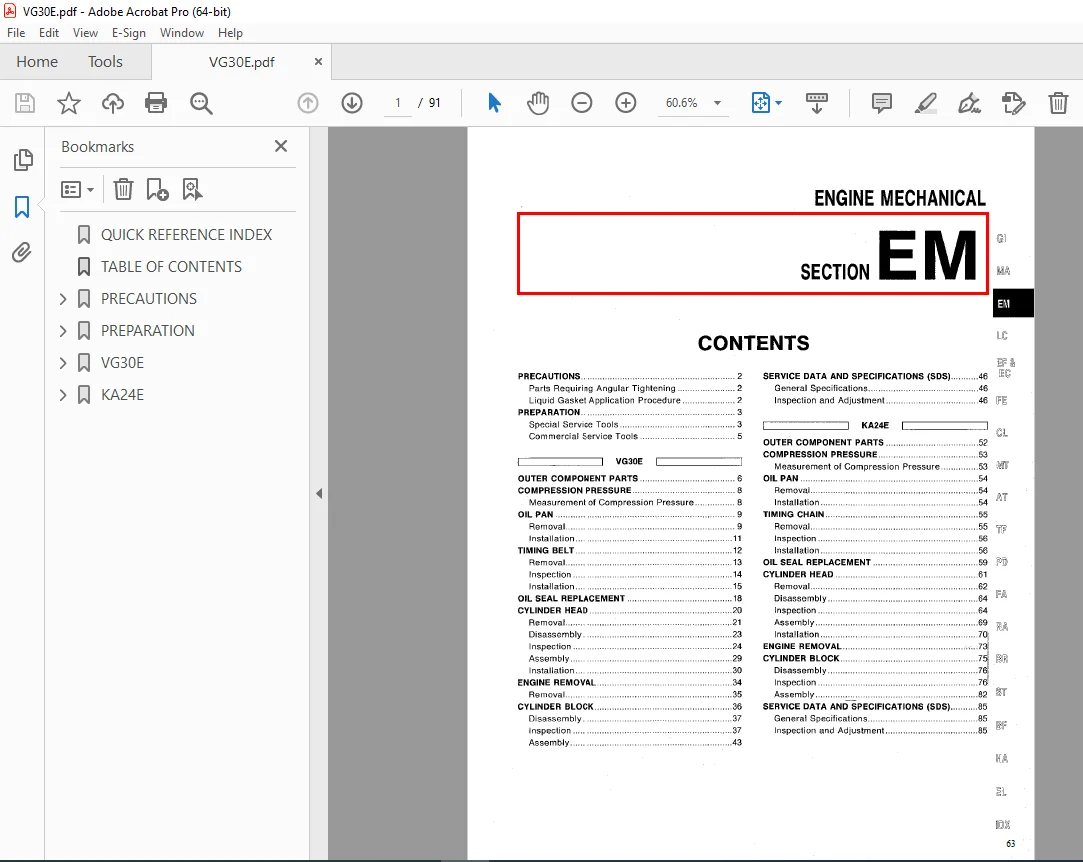

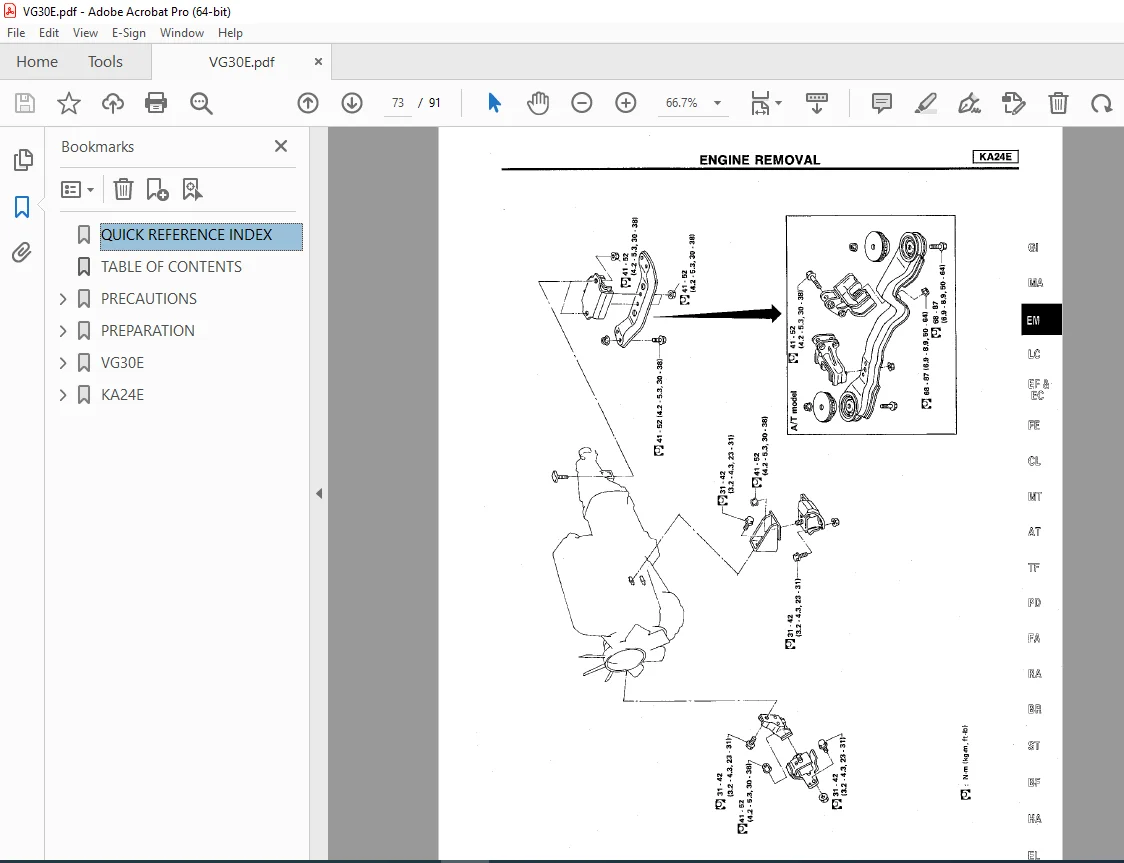

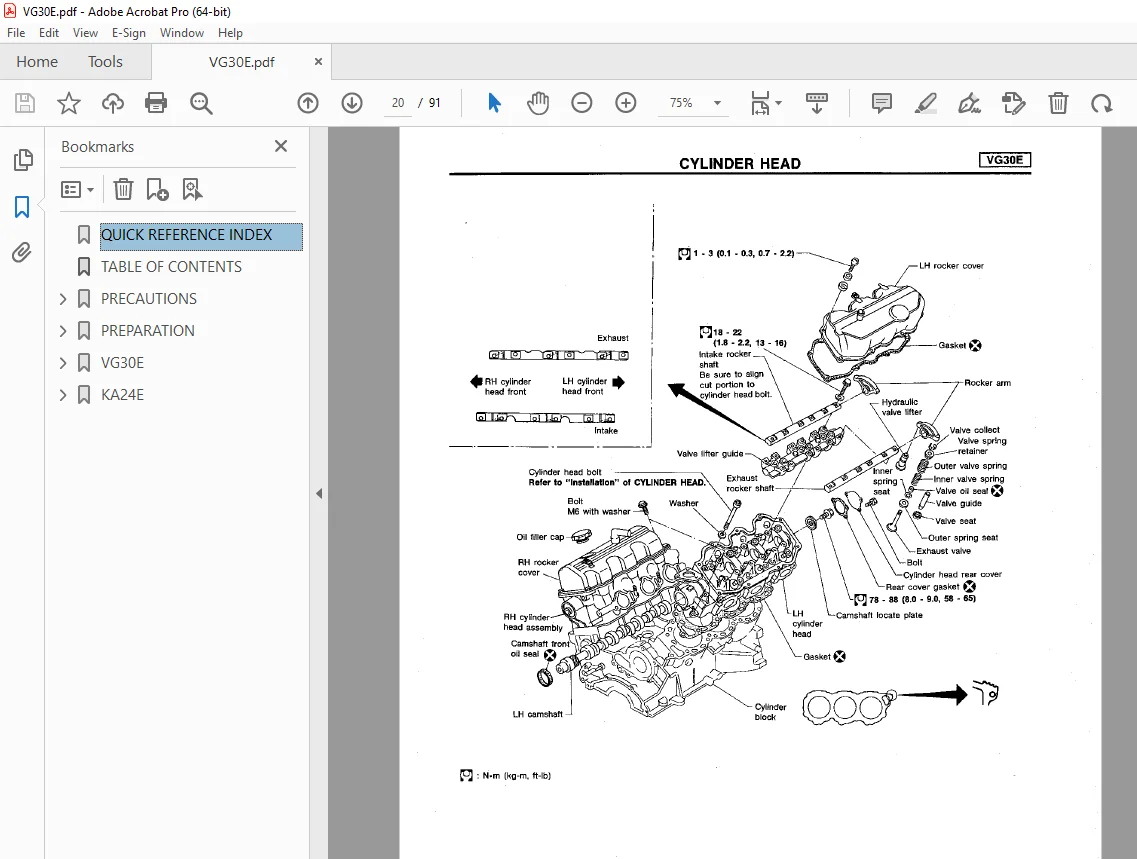

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
NISSAN TRUCK VG30E Series Service Manual PDF DOWNLOAD
CONTENTS
PRECAUTIONS 2
Parts Requiring Angular Tightening 2
Liquid Gasket Application Procedure 2
PREPARATION 3
Special Service Tools 3
Commercial Service Tools 5
VG30E
OUTER COMPONENT PARTS 6
COMPRESSION PRESSURE 8
Measurement of Compression Pressure 8
OIL PAN 9
Removal 9
Installation 11
TIMING BELT 12
Removal 13
Inspection 14
Installation 15
OIL SEAL REPLACEMENT 18
CYLINDER HEAD 20
Removal 21
Disassembly 23
Inspection 24
Assembly 29
Installation 30
ENGINE REMOVAL 34
Removal 35
CYLINDER BLOCK 36
Disassembly 37
Inspection 37
Assembly 43
SERVICE DATA AND SPECIFICATIONS (SDS) 46
General Specifications 46
Inspection and Adjustment 47
OUTER COMPONENT PARTS 52
COMPRESSION PRESSURE 53
Measurement of Compression Pressure 53 ~TI1
OIL PAN 54
Removal 54
Installation 54
TIMING CHAIN 55
Removal 55
Inspection 55
Installation 56
OIL SEAL REPLACEMENT56
CYLINDER HEAD 61
Removal 62
Disassembly 64
Inspection 64
Assembly 69
Installation 70
ENGINE REMOVAL 73
CYLINDER BLOCK 75
Disassembly 76
Inspection 76
Assembly 82
SERVICE DATA AND SPECIFICATIONS (SDS) 85
General Specifications 85
Inspection and Adjustment 85
DESCRIPTION:
PRECAUTIONS
- Parts Requiring Angular Tightening
- • Some important engine parts are tightened using an angular- tightening method rather than a torque setting method.
- • If these parts are tightened using a torque setting method, dispersal of the tightening force (axial bolt force) will be two or three times that of the dispersal produced by using the correct angular-tightening method.
- • Although the torque setting values (described in this manual) are equivalent to those used when bolts and nuts are tightened with an angular-tightening method, they should be used for reference only.
- • To assure the satisfactory maintenance of the engine, bolts and nuts must be tightened using an angular-tightening method.
- • Before tightening the bolts and nuts, ensure that the thread and seating surfaces are clean and coated with engine oil.
- • The bolts and nuts which require the angular-tightening method are as follows: (1) Cylinder head bolts (2) Connecting rod cap nuts
