Nissan Note E11 Service Workshop Manual – PDF DOWNLOAD
Video Preview:

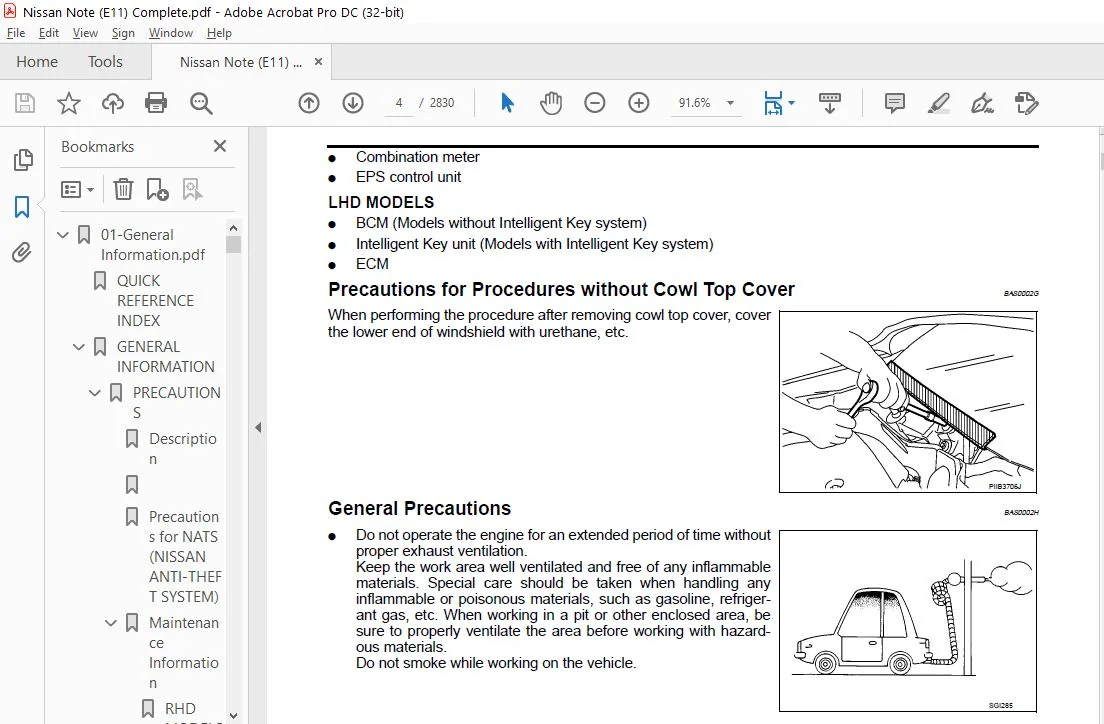

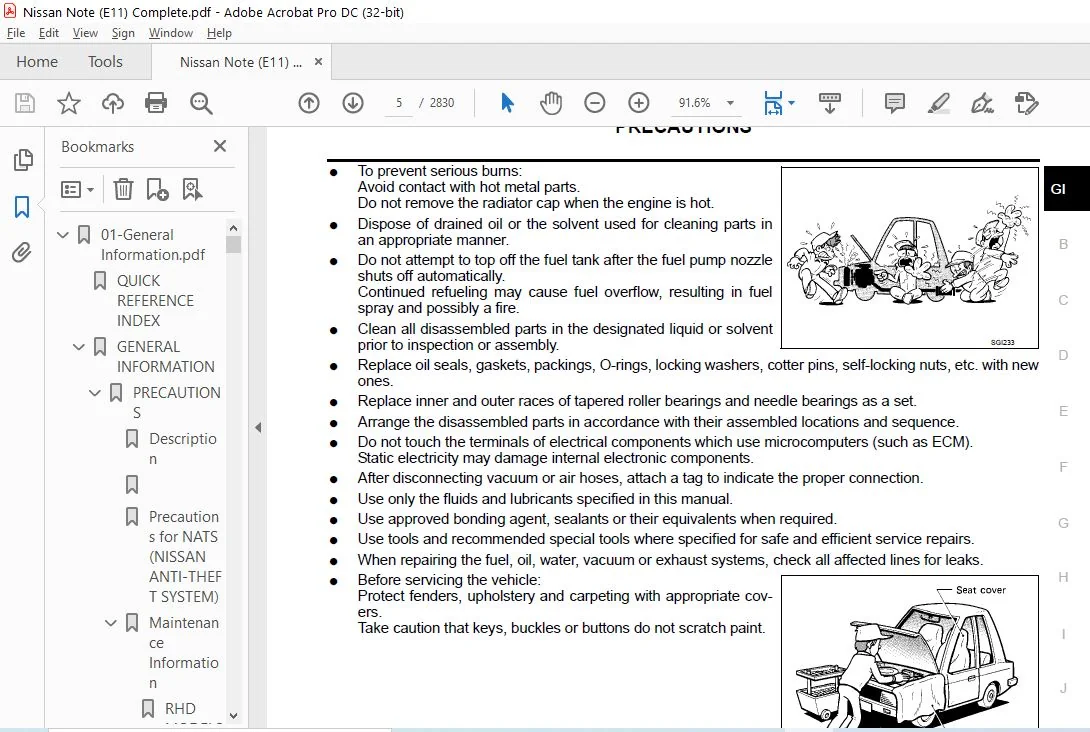

Image Preview:
Description:
Nissan Note E11 Service Workshop Manual – PDF DOWNLOAD
- Observe the following precautions to ensure safe and proper servicing. These precautions are not described in each individual section. Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT BELT PRE-TENSIONER” BAS0002E The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision.
- Information necessary to service the system safely is included in the SRS and SB section of this Service Manual. WARNING: l To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a collision which would result in air bag inflation, all maintenance must be performed by an authorized NISSAN/INFINITI dealer. l Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal injury caused by unintentional activation of the system.
- For removal of Spiral Cable and Air Bag Module, see the SRS section. l Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors. Precautions for NATS (NISSAN ANTI-THEFT SYSTEM) BAS0002F NATS will immobilize the engine if someone tries to start it without the registered key of NATS. Both of the originally supplied ignition key IDs have been NATS registered. The security indicator is located on the instrument panel.
- The indicator blinks when the immobilizer system is functioning. Therefore, NATS warns outsiders that the vehicle is equipped with the anti-theft system. l When NATS detects trouble, the security indicator lamp lights up while ignition switch is in “ON” position. This lighting up indicates that the anti-theft is not functioning, so prompt service is required.
- l When servicing NATS (trouble diagnoses, system initialization and additional registration of other NATS ignition key IDs), CONSULT-II hardware and CONSULT-II NATS software is necessary. Regarding the procedures of NATS initialization and NATS ignition key ID registration, refer to CONSULTII operation manual, NATS. Therefore, CONSULT-II NATS software (program card and operation manual) must be kept strictly confidential to maintain the integrity of the anti-theft function.
- l When servicing NATS (trouble diagnoses, system initialization and additional registration of other NATS ignition key IDs), it may be necessary to re-register original key identification. Therefore, be sure to receive all keys from vehicle owner. A maximum of four or five key IDs can be registered into NATS. l When failing to start the engine first time using the key of NATS, start as follows.
- 1. Leave the ignition key in “ON” position for approximately 5 seconds. 2. Turn ignition key to “OFF” or “LOCK” position and wait approximately 5 seconds. 3. Repeat step 1 and 2 again. 4. Restart the engine while keeping the key separate from any others on key-chain. Maintenance Information BAS0004J If any of following part is replaced, always replace with new* one. If it’s not (or fail to do so), the electrical system may not be operated properly. *: New one means a virgin control unit that has never been energized on-board. RHD MODELS l BCM (Models without Intelligent Key system) l Intelligent Key unit (Models with Intelligent Key system) l ECM l IPDM E/R

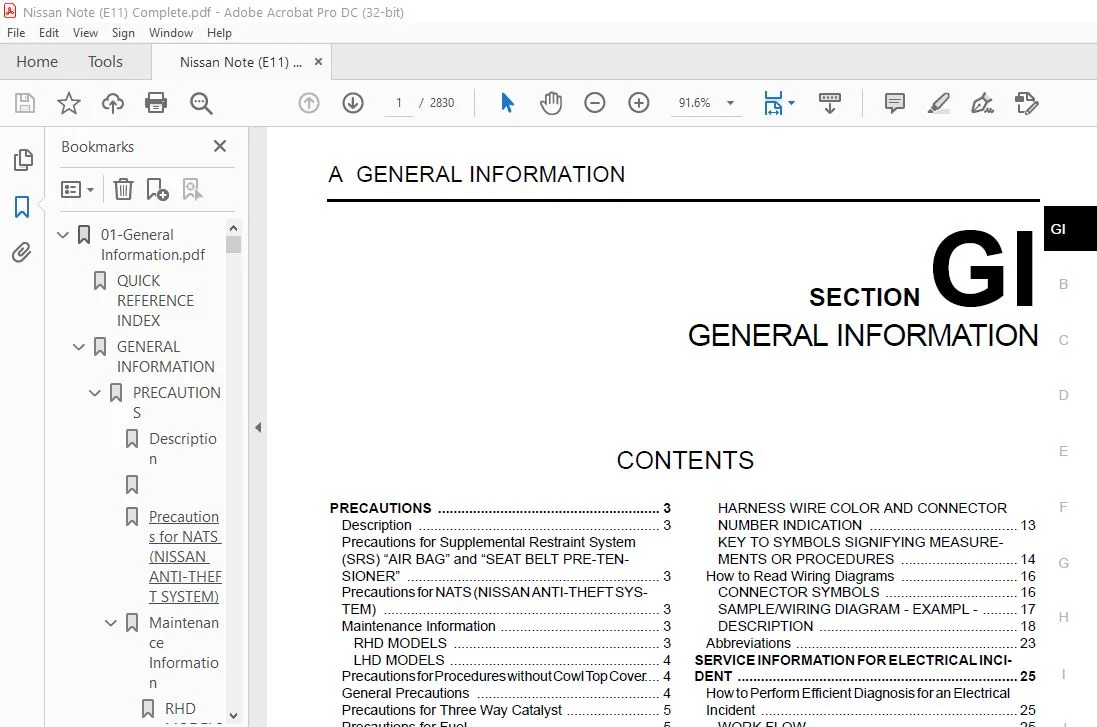

Table Of Contents:
Nissan Note E11 Service Workshop Manual – PDF DOWNLOAD
PRECAUTIONS ………………………………………………… 3
Description …………………………………………………….. 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TENSIONER”
……………………………………………………….. 3
Precautions forNATS(NISSANANTI-THEFTSYSTEM)
…………………………………………………………….. 3
Maintenance Information ………………………………….. 3
RHD MODELS …………………………………………….. 3
LHD MODELS ……………………………………………… 4
PrecautionsforProcedureswithoutCowlTopCover ….. 4
General Precautions ……………………………………….. 4
Precautions for Three Way Catalyst …………………… 5
Precautions for Fuel ………………………………………… 5
GASOLINE ENGINE (REGULAR GASOLINE)….. 5
GASOLINE ENGINE (PREMIUM GASOLINE) ….. 6
DIESEL ENGINE ………………………………………….. 6
Precautions for Multiport Fuel Injection System or
Engine Control System ……………………………………. 6
Precautions for Turbocharger (If Equipped) ………… 6
Precautions for Hoses ……………………………………… 7
HOSE REMOVAL AND INSTALLATION ………….. 7
HOSE CLAMPING ……………………………………….. 7
Precautions for Engine Oils ………………………………. 7
HEALTH PROTECTION PRECAUTIONS ……….. 7
ENVIRONMENTAL PROTECTION PRECAUTIONS
………………………………………………………… 8
Precautions for Air Conditioning ………………………… 8
HOW TO USE THIS MANUAL ……………………………. 9
Description …………………………………………………….. 9
Terms ……………………………………………………………. 9
Units ……………………………………………………………… 9
Contents ………………………………………………………… 9
Relation between Illustrations and Descriptions … 10
Components …………………………………………………..11
RHD MODELS …………………………………………….. 3
How to Follow Trouble Diagnoses ……………………. 12
DESCRIPTION …………………………………………… 12
HOW TO FOLLOW TEST GROUPS IN TROUBLE
DIAGNOSES ………………………………………. 12
HARNESS WIRE COLOR AND CONNECTOR
NUMBER INDICATION ……………………………….. 13
KEY TO SYMBOLS SIGNIFYING MEASUREMENTS
OR PROCEDURES ………………………… 14
How to Read Wiring Diagrams ………………………… 16
CONNECTOR SYMBOLS ……………………………. 16
SAMPLE/WIRING DIAGRAM – EXAMPL – ……… 17
DESCRIPTION …………………………………………… 18
Abbreviations ………………………………………………… 23
SERVICE INFORMATIONFORELECTRICALINCIDENT
……………………………………………………………… 25
HowtoPerformEfficientDiagnosis for anElectrical
Incident ………………………………………………………… 25
WORK FLOW …………………………………………….. 25
INCIDENT SIMULATION TESTS ………………….. 25
CIRCUIT INSPECTION ……………………………….. 28
Control Units and Electrical Parts …………………….. 33
PRECAUTIONS …………………………………………. 33
SMJ INSTALLATION …………………………………… 34
CONSULT-II CHECKING SYSTEM ……………………. 35
Description ……………………………………………………. 35
Function and System Application …………………….. 35
Nickel Metal Hydride Battery Replacement ……….. 35
Checking Equipment ……………………………………… 36
CONSULT-II Start Procedure …………………………… 36
CONSULT-II Data Link Connector (DLC) Circuit … 38
INSPECTION PROCEDURE ……………………….. 39
LIFTING POINT ……………………………………………….. 40
Commercial Service Tools ………………………………. 40
Garage Jack, Safety Stand and 2-Pole Lift ………… 40
Board-On Lift ………………………………………………… 41
TOW TRUCK TOWING …………………………………….. 42
Tow Truck Towing ………………………………………….. 42
TOWING AN AUTOMATIC TRANSAXLE
MODEL WITH FOUR WHEELS ON GROUND… 42
Vehicle Recovery (Freeing a Stuck Vehicle) ………. 42
FRONT ……………………………………………………… 42
REAR ……………………………………………………….. 43
TIGHTENING TORQUE OF STANDARD BOLTS … 44
Tightening Torque Table …………………………………. 44
GI-2
IDENTIFICATION INFORMATION ……………………… 45
Model Variation ……………………………………………… 45
IDENTIFICATION NUMBER …………………………. 46
IDENTIFICATION PLATE …………………………….. 47
ENGINE SERIAL NUMBER (CR ENGINE) …….. 47
ENGINE SERIAL NUMBER (HR ENGINE) …….. 47
ENGINE IDENTIFICATION (K9K ENGINE) ……..48
AUTOMATIC TRANSAXLE NUMBER …………….48
Dimensions ……………………………………………………48
Wheels & Tyres ………………………………………………48
TERMINOLOGY ……………………………………………….49
ISO 15031-2 Terminology List …………………………..49
Please Note:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
