New Holland LW270 B Wheel Loader SERVICE MANUAL
FILE DETAILS:
New Holland LW270 B Wheel Loader SERVICE MANUAL
Size: 76.6 MB
Format: PDF
Language: English
Number of Pages: 193 pages
Brand: New Holland
DESCRIPTION:
New Holland LW270 B Wheel Loader SERVICE MANUAL
SAMPLE PAGE FROM THE MANUAL:
- All maintenance and repair interventions explained in the Manual must be performed exclusively by the Service Organization of the Manufacturer, observing strlctty the instructions explained using, whenever necessary, the recommended wedfic tools. Whoeyer performs the operations reported mthout following exactty the precautions is responsible on his own.
- for the damages that may result. Neither the Factory nor any Organizations in its Distribution Network, including but not limited to national. regional or local distributors. are responsible for any liability arising from any damage resulting lrom defects caused by parts and’or components not approved by the Factory tor use in maintaining andlor repairing promote manufactured or merchandrzed by the Factory. In any case. no warranty ol any kind is made or shall be irroosed with respect to products manufactured or merchandized by the Factory.
- when failures are caused by the use ol parts andr’or components not approved by the Factory. GENERALITIES Read this Manual carefully before starting. operating. maintaining, fuelling or servicing the machine. Read and comply with all safety precautions beiore any intervention.
- Do not allow unauthorised personnel to operate or service this machine. Do not wear rings. wrist watches, jeweliew, loose or hanging garments, such as ties. tom clothing, scarves. unbuttoned or unzipped jackets that can get caught in mov‘ng parts. Wear certified safety clothes such as: hard hat. no-siip footwear, heavy gloves, ear protection, salety glasses, reflector vests, respirators.
- Ask your employer about specific safety equipment requirements. Keep the operator‘s compartment. step plates. grab-rails and handles clean and clear of foreign obiccts. oil. grease. mud or snow to minimize the danger of slipping or stum- bling. Remove mud or grease from your shoes before attempting to momt or operate the machine. 00 not jump on or oil the machine. Always keep both hands and one foot. or both feet and one hand in contact with steps and grab rails.
- Do not use controls or hoses as hand holds when climbing on or off the machine. Hoses and controls are movable parts and do not provide solid support. Besides, controls may be inadvertently moved and cause enameled move- ment of the machine or its attachments.
- Never operate the machine or its attachments from any position other than sitting in the driver’s seat. Keep head. body. limbs. hands and feet inside the opera- ior’s compartment at all times to reduce exposure to external hazards .
- Be careful of possible slopery conditions of the steps and hand rails as well as of the ground around the machine. Do not leave the machine until it is has come to a complete stop. Check the seat safety belt at least lmce per year and replace a it it shows signs ot wear, traying or other weakness that could lead to failure.
VIDEO PREVIEW OF THE MANUAL:

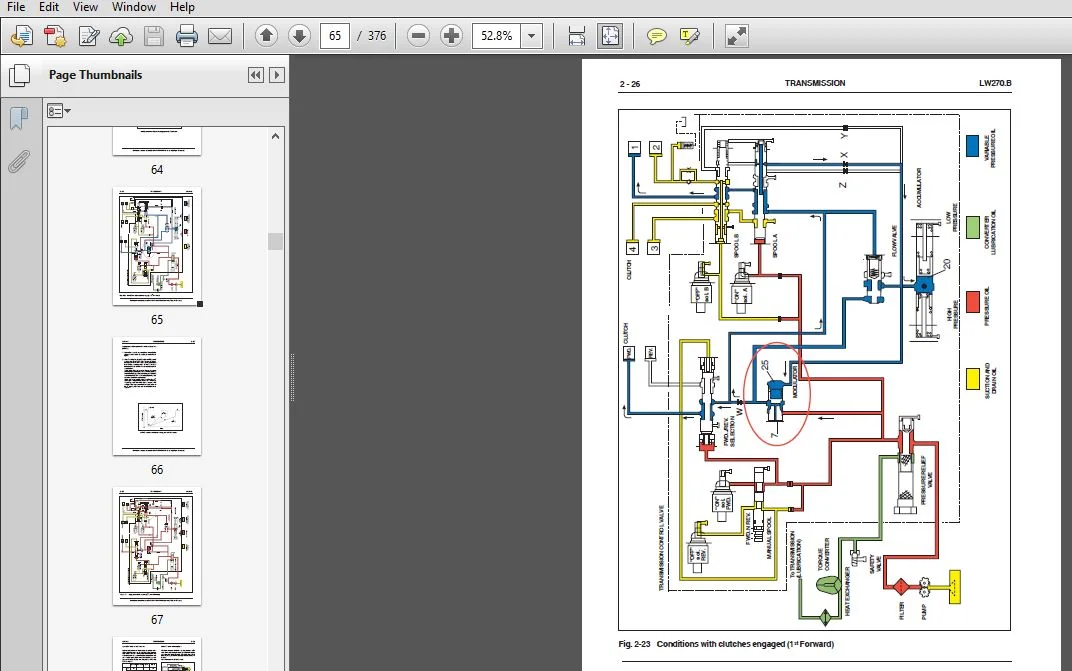

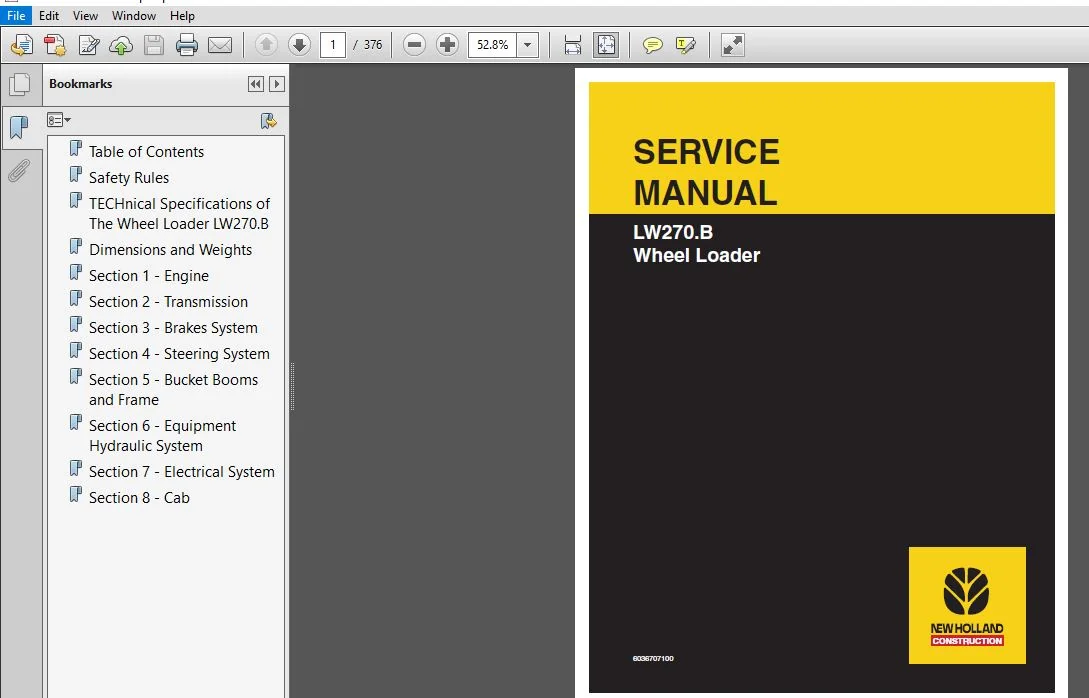

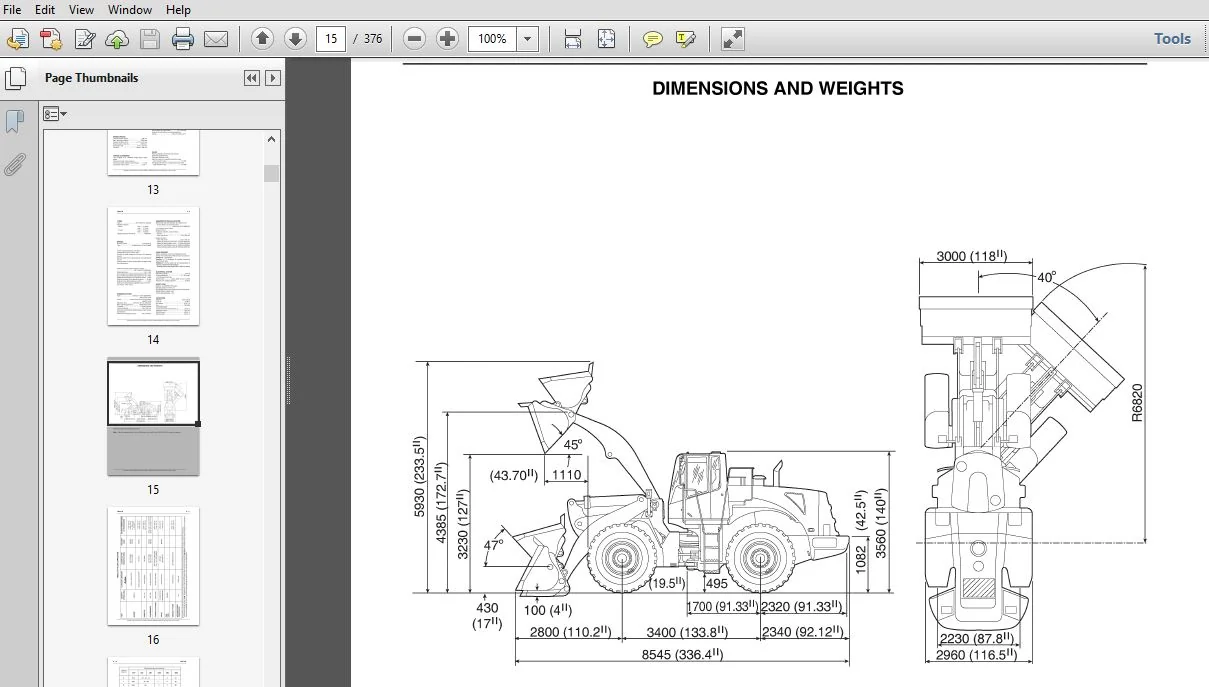

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
New Holland LW270 B Wheel Loader SERVICE MANUAL
Table of Contents 5
Safety Rules 6
TECHnical Specifications of The Wheel Loader LW270 B 13
Dimensions and Weights 15
Section 1 – Engine 20
Section 2 – Transmission 36
Section 3 – Brakes System 194
Section 4 – Steering System 220
Section 5 – Bucket Booms and Frame 244
Section 6 – Equipment Hydraulic System 258
Section 7 – Electrical System 298
Section 8 – Cab 347
