NEW HOLLAND LW170 LW190 WHEEL LOADER SERVICE MANUAL
FILE DETAILS:
NEW HOLLAND LW170 LW190 WHEEL LOADER SERVICE MANUAL
Size: 7.31 MB
Format: PDF
Language: English
Number of Pages: 300 pages
Brand: New Holland
Type of document: Service Manual
Model:LW170 LW190
Part No: 75131016
DESCRIPTION:
NEW HOLLAND LW170 LW190 WHEEL LOADER SERVICE MANUAL
GENERAL INFORMATION:
- The warranty coverage that is extended to your machine is explained in the Warranty and Limitation of Liability form. Your dealer will provide you with a copy of the warranty and retain a copy which you have signed. After you read the warranty, ask your dealer to explain any points that you may not understand.
- The machine was designed to power and propel itself. It is intended to move material in the normal and customary applications. Do not modify or alter or permit anyone else to modify or alter this machine or any of its components mechanical function with first consulting an authorized
- New Holland Construction dealer. If you have any questions regarding machine modifications, contact New Holland Construction, 245 E. North Ave., Carol Stream, IL 60188. Your safety and the safety of those around you depend upon the care and good judgment you use while operating this equipment.
- Read the safety precautions carefully. After you have operated the machine for 50 hours, take your machine and this manual to your selling dealer. He will perform the factory recommended 50-hour service. You will be responsible for the cost of lubricants, fluids, filters and other items replaced as part of normal maintenance.
- Prior to taking the machine to your selling dealer for service, it is recommended that you contact them to determine any other charges for which you may be responsible. All data given in this book is subject to product variations.
- Dimensions and weights are approximate only and the illustrations do not necessarily show machines in standard condition. For exact information about any particular machine, please consult your New Holland Construction dealer.
- Read this Manual carefully before starting, operating, maintaining, fuelling or servicing the machine. Read and comply with all safety precautions before any intervention. Do not allow unauthorised personnel to operate or service this machine. Do not wear rings, wrist watches, jewellery, loose or hanging garments, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can get caught in moving parts.
- Wear certified safety clothes such as: hard hat, noslip footwear, heavy gloves, ear protection, safety glasses, reflector vests, respirators. Ask your employer about specific safety equipment requirements. Keep the operator’s compartment, step plates, grab-rails and handles clean and clear of foreign objects, oil, grease, mud or snow to minimize the danger of slipping or stumbling. Remove mud or grease from your shoes before attempting to mount or operate the machine.
- Do not jump on or off the machine. Always keep both hands and one foot, or both feet and one hand in contact with steps and grab rails. Do not use controls or hoses as hand holds when climbing on or off the machine. Hoses and controls are movable parts and do not provide solid support. Besides, controls may be inadvertently moved and cause unexpected movement of the machine or its attachments.
- Never operate the machine or its attachments from any position other than sitting in the driver’s seat. Keep head, body, limbs, hands and feet inside the operator’s compartment at all times to reduce exposure to external hazards . Be careful of possible slippery conditions of the steps and hand rails as well as of the ground around the machine. Do not leave the machine until it is has come to a complete stop.
- Check the seat safety belt at least twice per year and replace it if it shows signs of wear, fraying or other weakness that could lead to failure. STARTING NEVER START OR OPERATE A FAILED MACHINE. Before operating the machine, always ensure that any unsafe condition has been satisfactorily corrected. Check brakes, steering and attachment controls before moving off.
- Report any malfuctioning part or system to the maintenance managers for proper action. Ensure all protective guards and panels as well as all safety devices provided are in place and in good operating condition. Ensure that nobody is in the machine operating range before moving off or operating the attachment. WALK COMPLETELY AROUND the machine before mounting. Sound the horn. Before starting machine, check, adjust and lock the driver’s seat for maximum comfort and control of the machine. Fasten your seat belts(when fitted). Obey all flag signals and signs.
- Due to the presence of flammable fluids on the machine, never check or fill fuel tanks or accumulator batteries near fires, open flames, or sparks. REMEMBER THAT SPECIAL STARTING FLUIDS ARE FLAMMABLE. Scrupolously follow recommendations printed on the containers and in this Manual. DO NOT PUNCTURE OR BURN CONTAINERS. Containers must be stored in fresh, well ventilated places and out of the reach of unauthorised persons.
- Strictly follow the instructions provided by the Manufacturer. Never use these products near fires, open flames, or sparks. OPERATING Check wheel and rim retainers before each working shift. If necessary, tighten to the torque specified. Do not run the engine of this machine in closed buildings without proper ventilation capable to remove harmful exhaust gases.
- Roll Over Protective Structures (ROPS) are required on wheel or crawler loaders, dozers, or graders. NEVER OPERATE the machine if such protective structure is removed. Keep the operator’s compartment free of foreign objects, especially if not firmly secured. Never use the machine to transport objects, unless proper securing points are provided. DO NOT CARRY RIDERS ON THE MACHINE
- Study and familiarize with escape routes alternate to normal exit routes. According to law provisions, seat belts must be fitted with Roll Over Protection Structures or cabs. Keep safety belts fastened during operation. For your personal safety, do not climb on or off the machine while it is in motion.
- Make sure that bystanders are clear of the machine operating range before starting the engine and operating the attachment. Sound the horn. Obey all indications provided by flags, signs and signals. DO NOT COAST OR FREEWHEEL down hills. Engage the most suitable gear speed to keep the machine under control.
VIDEO PREVIEW OF THE MANUAL:

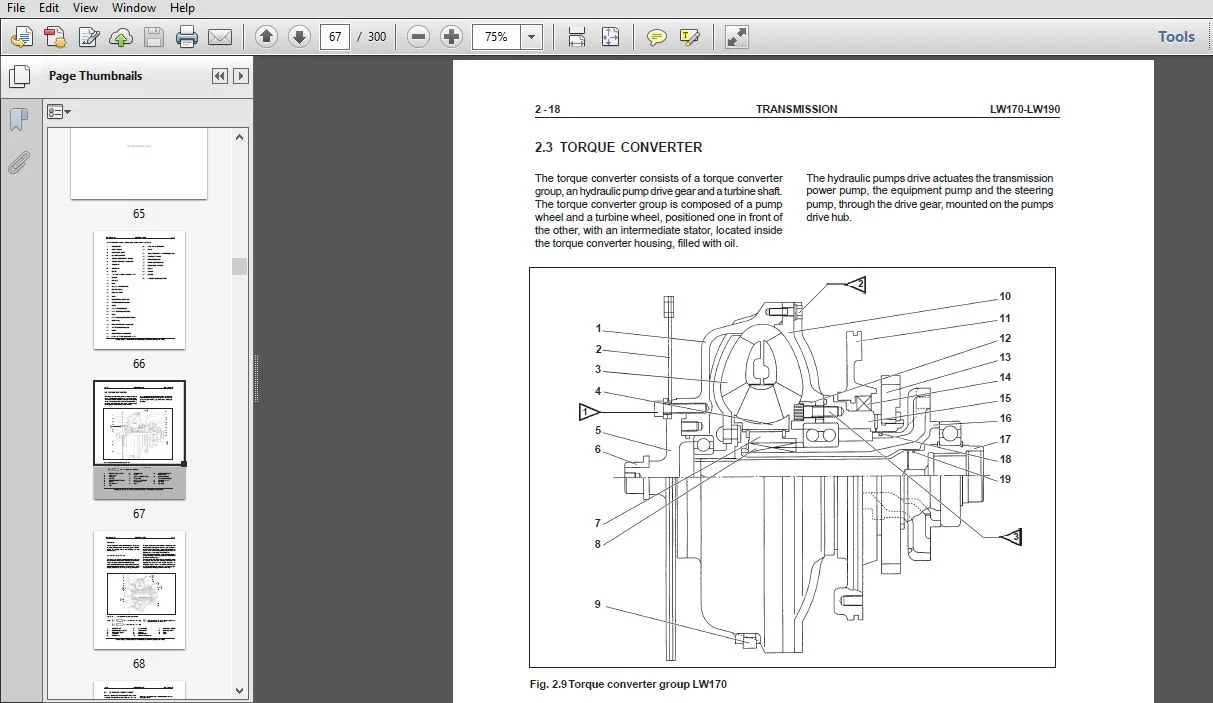

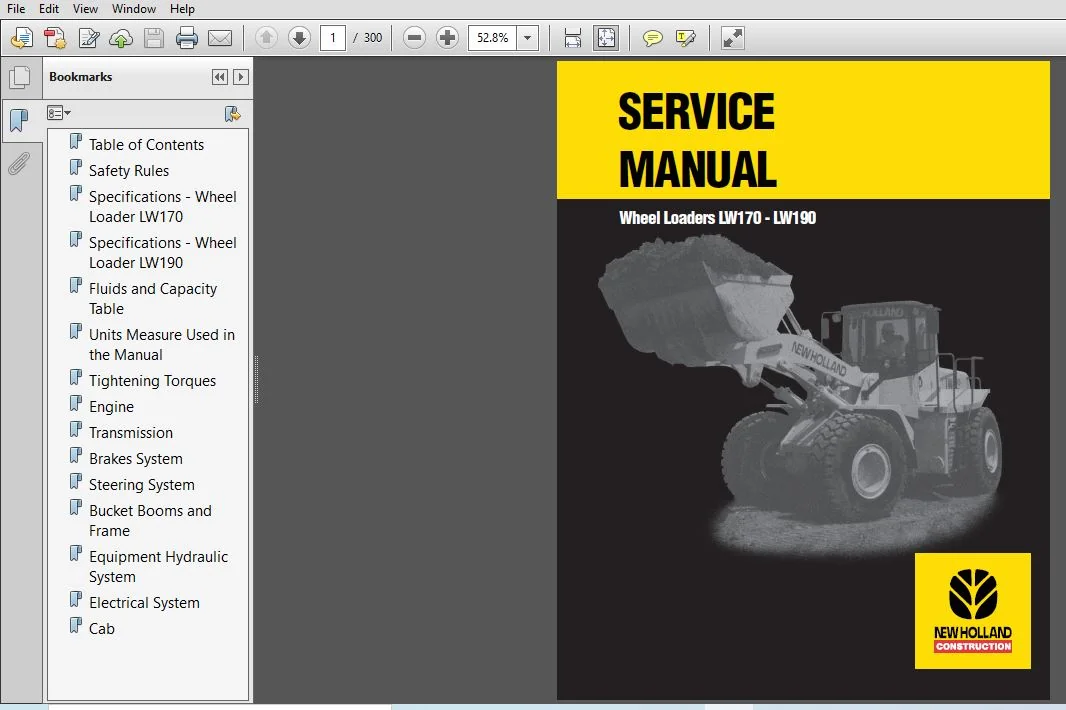

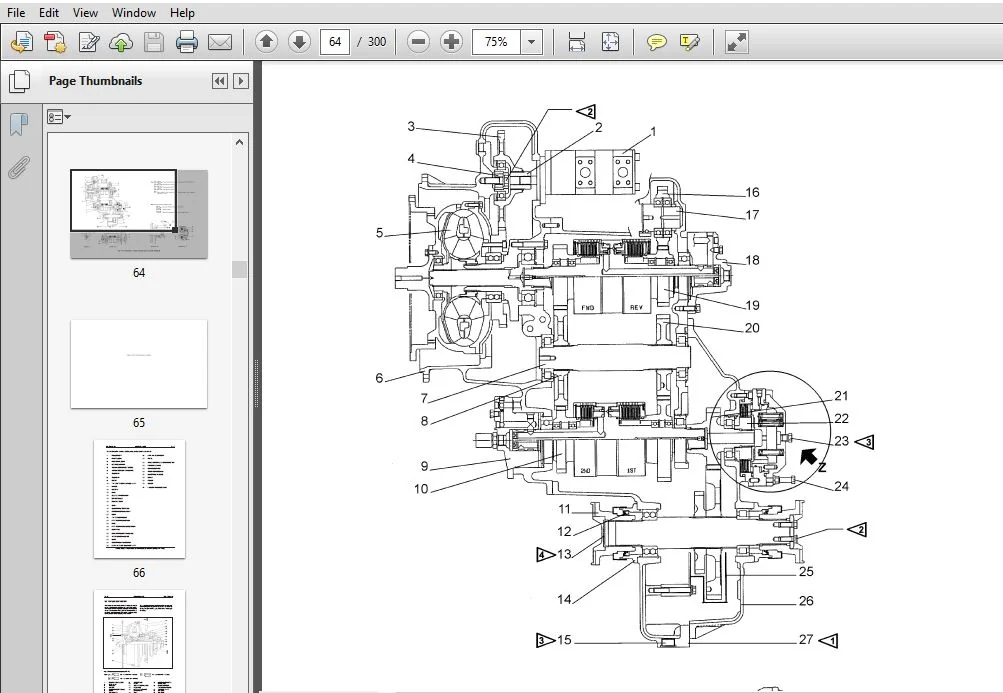

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
NEW HOLLAND LW170 LW190 WHEEL LOADER SERVICE MANUAL
Table of Contents 12
Safety Rules 14
Specifications – Wheel Loader LW170 21
Specifications – Wheel Loader LW190 25
Fluids and Capacity Table 27
Units Measure Used in the Manual 28
Tightening Torques 30
Engine 32
Transmission 44
Brakes System 120
Steering System 148
Bucket Booms and Frame 176
Equipment Hydraulic System 188
Electrical System 226
Cab 290
