New Holland Ford 1200,1300,1500,1700,1900 Tractor Service Manual
FILE DETAILS:
New Holland Ford 1200,1300,1500,1700,1900 Tractor Service Manual
Size: 112 MB
Format: PDF
Language: English
Number of Pages: 2 Folder
Brand: New Holland
Type of Machine: Tractor
Type of document: Service Manual
Model: Tractor 1200,1300,1500,1700,1900
DESCRIPTION:
New Holland Ford 1200,1300,1500,1700,1900 Tractor Service Manual
SAMPLE PAGES FROM THE MANUAL:
This supplement contains service and repair information not included in the 1000 Series Tractor Repair Manual, SE 3771.
The clutch used is a dry, organic-type assembly which is mechanically-operated. The entire clutch assembly consists of the clutch pressure plate, clutch disc, flywheel, release bearing, and housing assembly. The clutch disc is installed between the flywheel and the pressure plate assembly. The clutch pressure plate is attached to the flywheel with six bolts. A single clutch is standard on all models. A dual clutch is optional for model 1900 tractors.
- In the clutch “engaged”position,the spring-loaded pressure plate presses the clutch disc into contact with the engine flywheel and the drive from the engine is transmitted to the transmission by the friction between the linings of the clutch disc and the surfaces of the flywheel and pressure plate.
- The clutch pedal is connected by an adjustment rod to a bellcrank and cross shaft assembly on which a fork is mounted. The clutch cross shaft is secured to the fork by one spring pin on model 1300 and by two spring pins on all other models. This fork engages a sliding release bearing and hub assembly.
TABLE OF CONTENTS:
New Holland Ford 1200,1300,1500,1700,1900 Tractor Service Manual
- SUPPLEMENT
- PART ONE ENGINE
- PART TWO, FUEL SYSTEM
- PART THREE, ELECTRICAL SYSTEM
- PART FOUR, TRANSMISSION AND CLUTCH
- PART FIVE, DIFFERENTIAL, REAR AXLE AND RELATED PARTS
- PART SIX, HYDRAULICS
- PART SEVEN, STEERING AND FRONT AXLE
- PART EIGHT, WHEELS AND TIRES
VIDEO PREVIEW OF THE MANUAL:

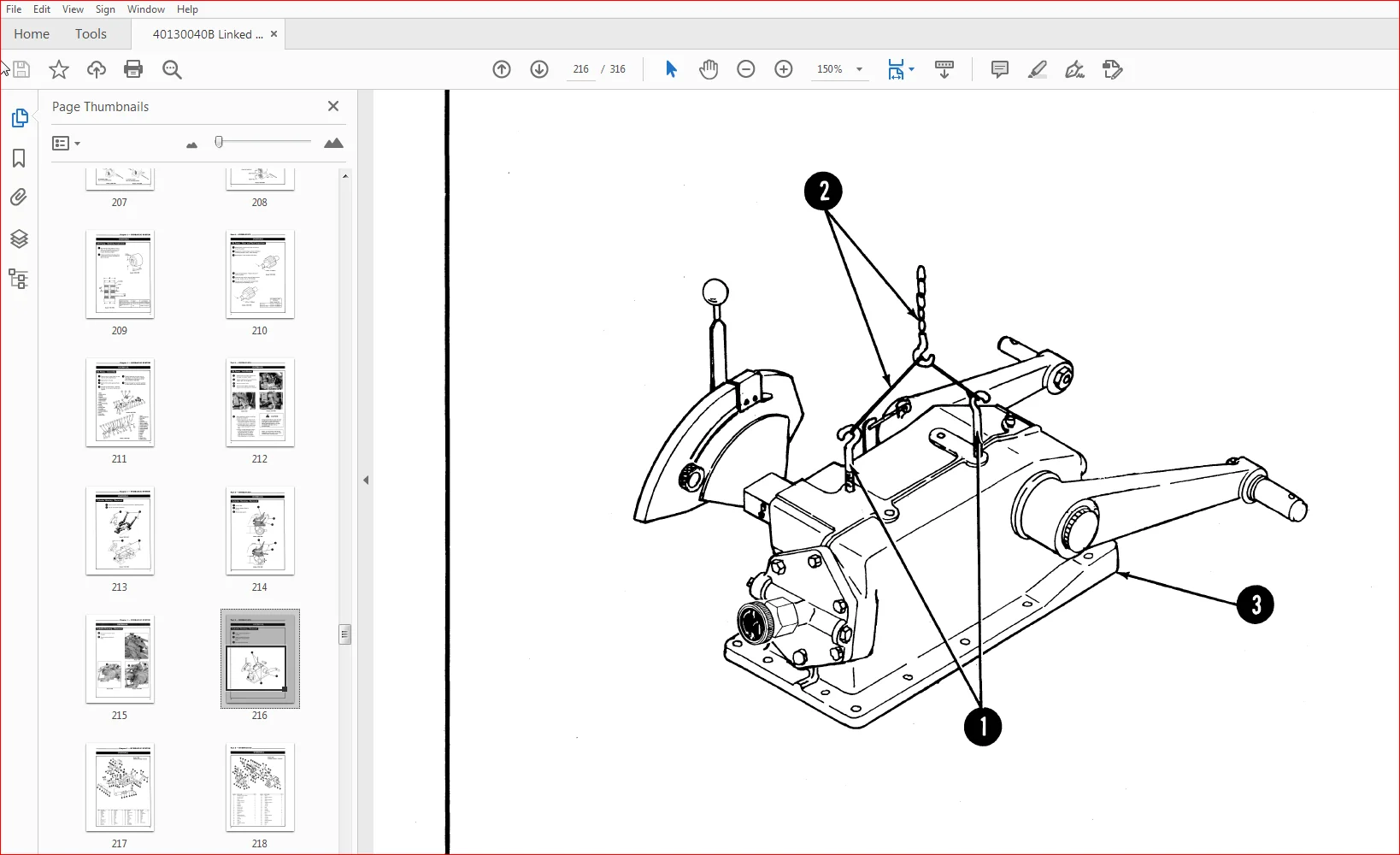

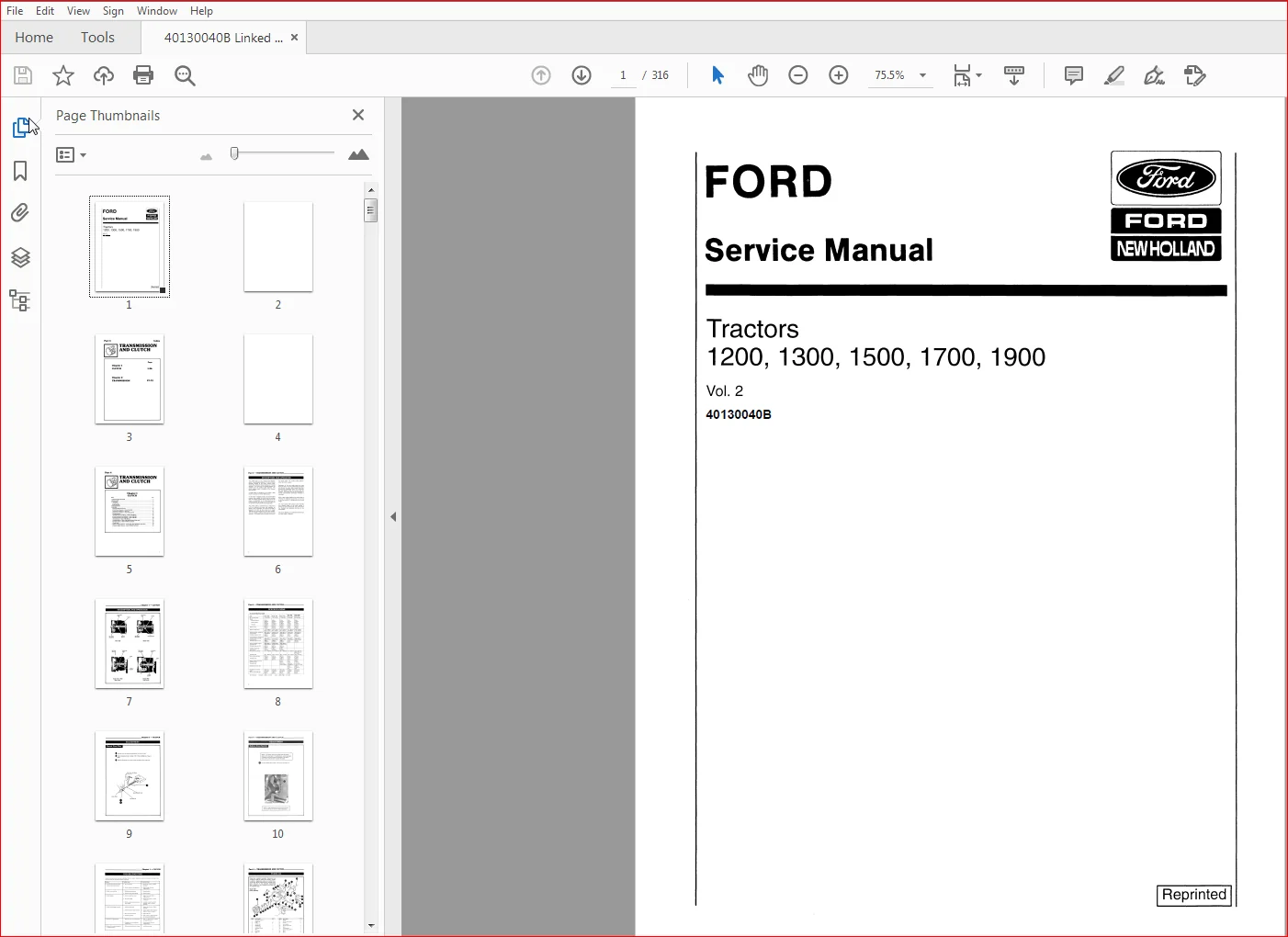

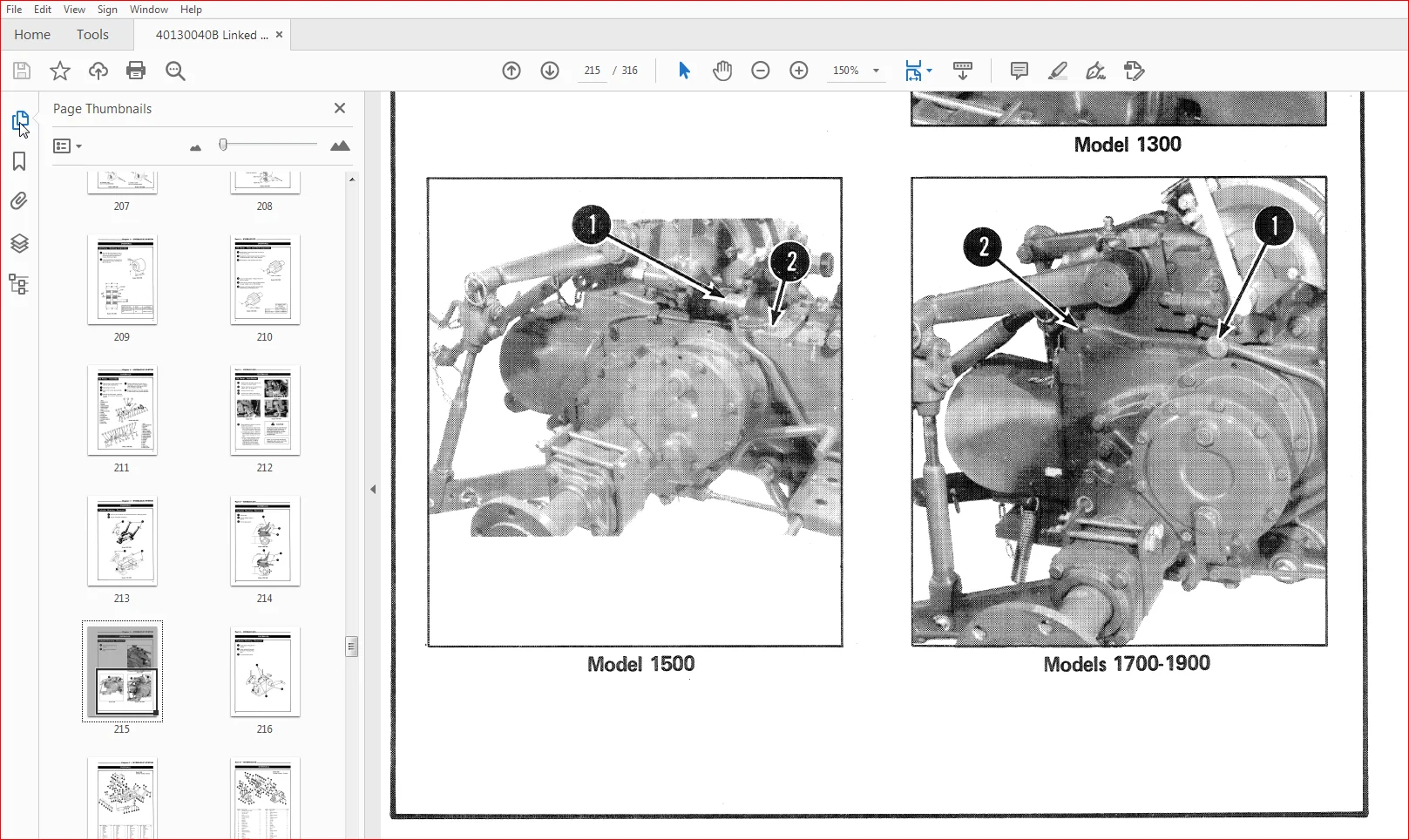

IMAGES PREVIEW OF THE MANUAL:
