New Holland FL5, FL5B, FD5 Crawler Dozer Service Repair Manual (60406358)
FILE DETAILS:
New Holland FL5, FL5B, FD5 Crawler Dozer Service Repair Manual (60406358)
- Format: PDF
- Language: English
- Brand: New Holland
- Type of machine: Crawler Dozer
- Type of document: Service Manual
- Model: FL5, FL5B, FD5 Crawler Tractor-Dozer
- Number of Pages: 210 pages
- Print No.: 60406358
VIDEO PREVIEW:

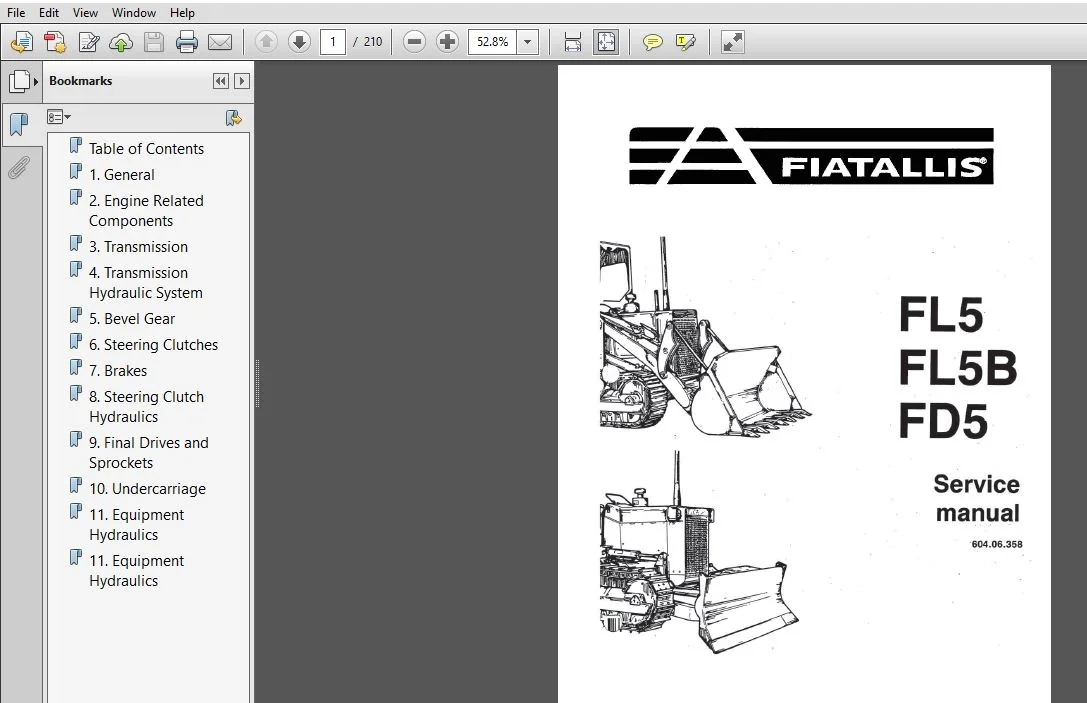

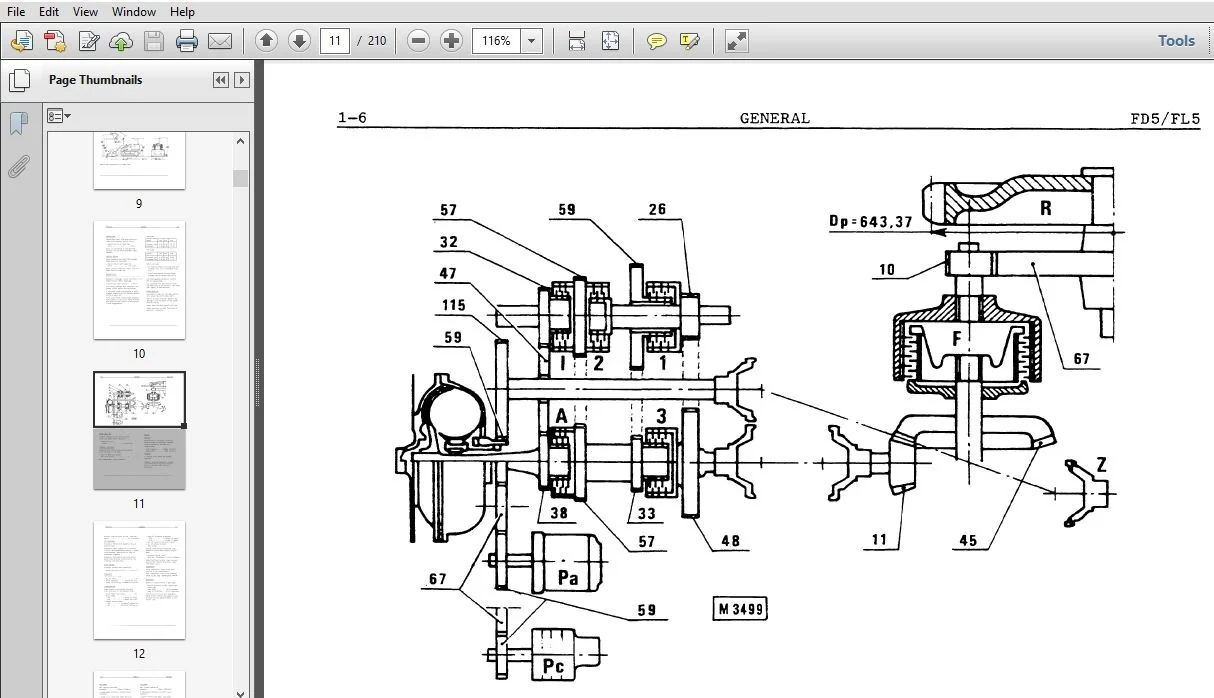

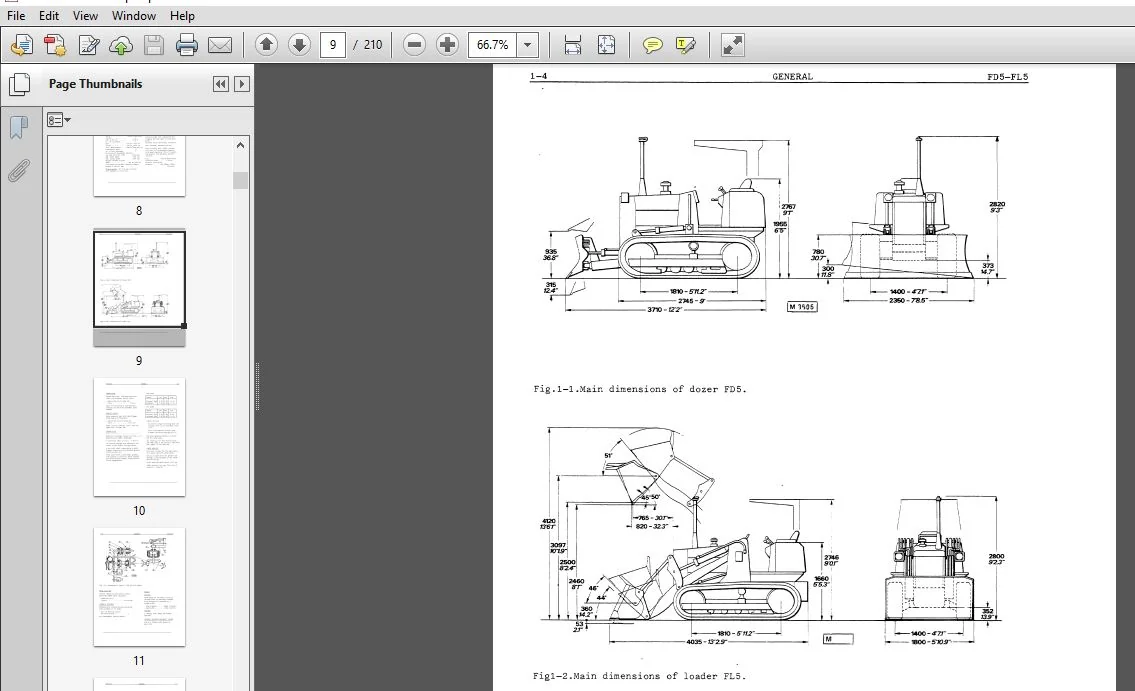

SCREENSHOTS OF THE MANUAL:
DESCRIPTION:
New Holland FL5, FL5B, FD5 Crawler Dozer Service Repair Manual (60406358)
- GENERAL – Study the Operation and Maintenance instruction Manual belore starting. operating. maintaining. fueling, or servicing machine. Read and hccd all machine-mounted safety signs be- fore starting, operating, maintaining. fueling or sewi- cing machine.
- Machine-mounted safety signs have been color coded yellow with black borders and lettering for warning and red with white borders and lettering for danger points. Do not allow unauthorized personnel to service or maintain this machine.
- Do not perform any work on equipment that is not authorized. Follow the Mainte- nance and Service procedures. Study the Operation and Maintenance Instruction Manual before starting. operating, maintaining, fueling or servicing this ma- chine.
- Always wear safety glasses with side shields. Do not wear rings. wrist watches, jewelry, or loose or hanging apparel, such as ties. tom clothing. scarves. unbuttoned or unzipped jackets that can catch on me- ving parts. Wear proper safety equipment as authori- zed for the job. Examples: hard hats. safety shoes, heavy gloves. ear protectors. safety glasses or goggles. reflector vest. or respirators.
- Consult your employer for specific safety equipment requirements. Do not use controls or hoses as handhelds when clim- bing on or off machine. Hoses and controls are mova- ble and do not provide a solid support. Controls may also be inadvertently moved causing accidental machi- ne or equipment movement. 00 not jump on or off machine. Keep two hands and one foot, or two feet and one hand. in contact with steps and grab-rails and handles at all times.
- Machine should not be serviced with anyone in the operator’s seat unlessthay are quafified to operate the machine and are assisting in the servicing. Keep operator’s compartment. stepping points, grab- rails and handles clean of foreign objects. oil. grease, mud or snow accumulation to minimize the danger of slipping or stumbling Clean mud or grease from shoes before attempting to mount or operate the machine.
- Never attempt to operate the machine or its tools from any other position than seated in the operator‘s seat. Keep operator’s compartment clear of loose objects. it movement of an attachment bymmns of the machi- ne‘s hydraulic system is required for service or main- tenance, do not raise or lower attachments from any position other than when seated in the operator’s seat.
- Before starting machine or moving attachment or tool, make sure to set brakes, sound horn and call for an all clear. Raise attachment slowly.
