New Holland Fiatallis Wheel Loader FW60, FW80 Service Repair Manual (76589732)
File Details:
New Holland Fiatallis Wheel Loader FW60, FW80 Service Manual_76589732
Size: 268 MB
Format: PDF
Language: English
Number of Pages: 160
Brand: New Holland
Type of document: Service Manual
Model: FW60, FW80
Part No: 76589732
Sample Page From the Manual:
New Holland Fiatallis Wheel Loader FW60, FW80 Service Repair Manual (76589732)
The measuring device is handled as follows:
• Take up the instrument as shown in Fig. 20, press the grips together and hold in this position.
• Press down the locking button with the thumb of the other hand and keep button depressed.
• Relax the hold on the grips, The measuring device is now tensioned and locked and thus ready for checking the toothed belt tension.
• Slide the measuring device onto the toothed belt. While doing this, pay attention that the rollers are flush and make good contact with the fiat side of the beft and that the tension sensing finger engages between two teeth.
• Irrespective of the belt width, always slide the measuring device up to the edge of the belt. Tnen by swiftly pressing together the grips, release the lock, and then let go quickly.
Before reading off the scale, check that the instrument is freely attached to the toothed belt and does not touch any other components. Repeat the measuring process by pressing together and then swiftly releasing the grips, in order to rule out any doubt To assure that the basic settings of crankshaft and camshaft do not get changed when mounting the toothed belt, both shafts are locked in position by screwing in the adjusting pins.
Table Of Contents:
New Holland Fiatallis Wheel Loader FW60, FW80 Service Repair Manual (76589732)
Group ~0-Servicing material, sealing kits,
lubricants
Group 01-Engine
Group 08-Fuellines
Group 20-Frame
Group 22-Hydrostatic drive
Group 23-Front axle
Group 24-Brakes
Group 26-Rear Axle
Group 27-Steering
Group 33-Electrical system
Group 34-Cab
Group 36-Hydraulic system
Group 41-Cab heating
Video Preview:

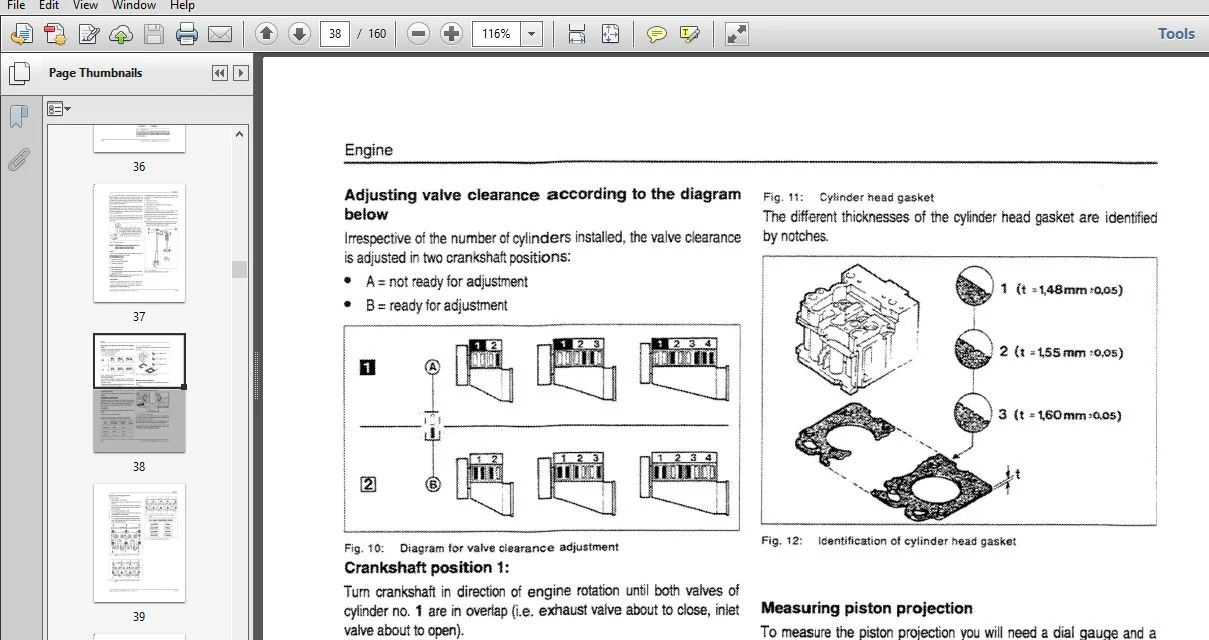

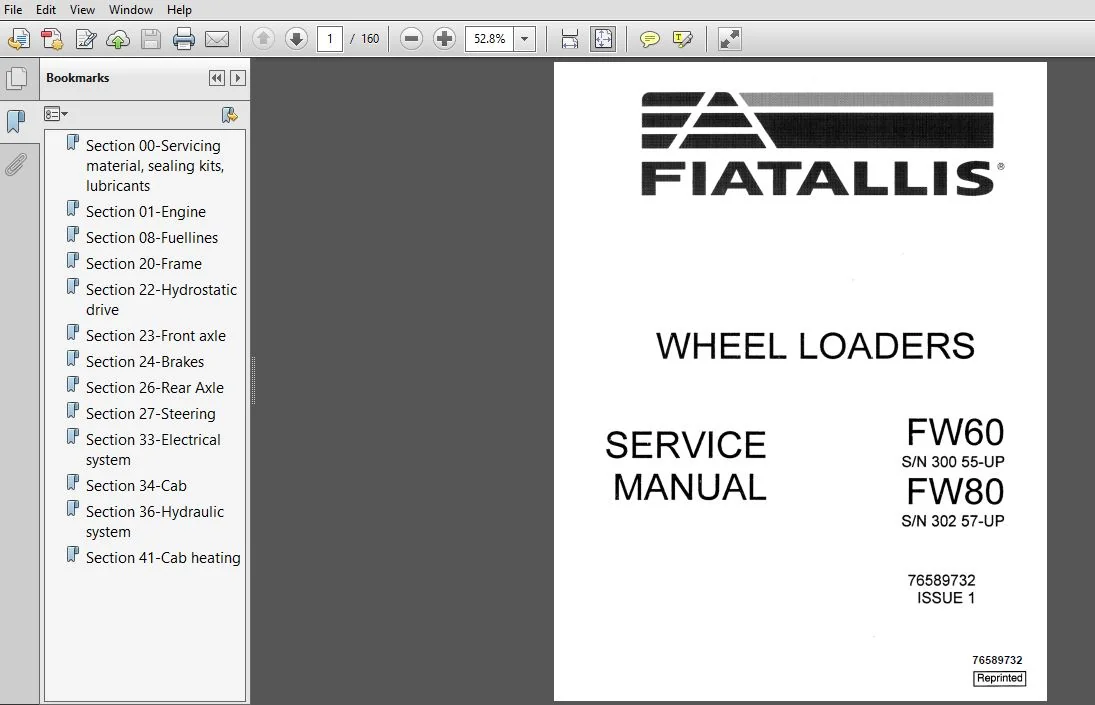

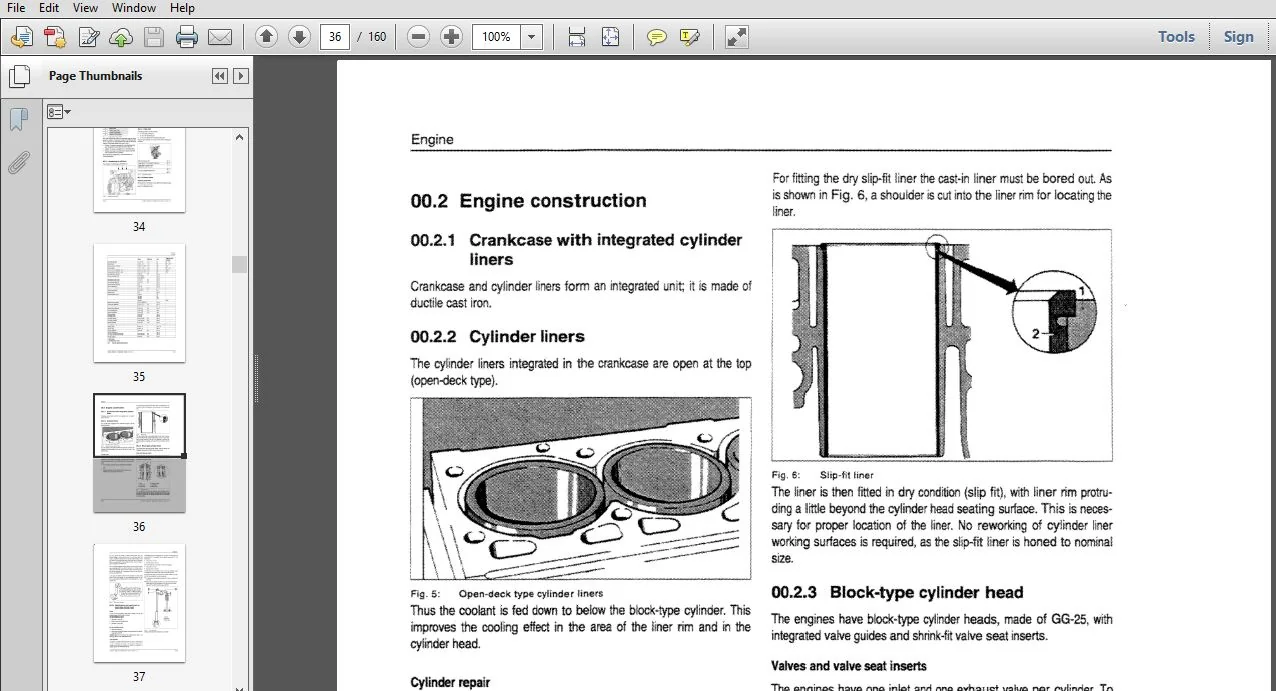

Image Preview:
Please Note:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
