New Holland FiatAllis HD-11EP, 11-B Crawler Tracors Transmission Service Manual (70666686)
FILE DETAILS:
New Holland FiatAllis HD-11EP, 11-B Crawler Tracors Transmission Service Manual (70666686)
- Format: PDF
- Language: English
- Brand: Fiat
- Type of machine: Crawler Tractors
- Type of document: Service Manual
- Model: Fiat Allis HD11EP 11-B Crawler Tractors
- Number of Pages: 80 pages
- Part No.: 70666686
VIDEO PREVIEW:

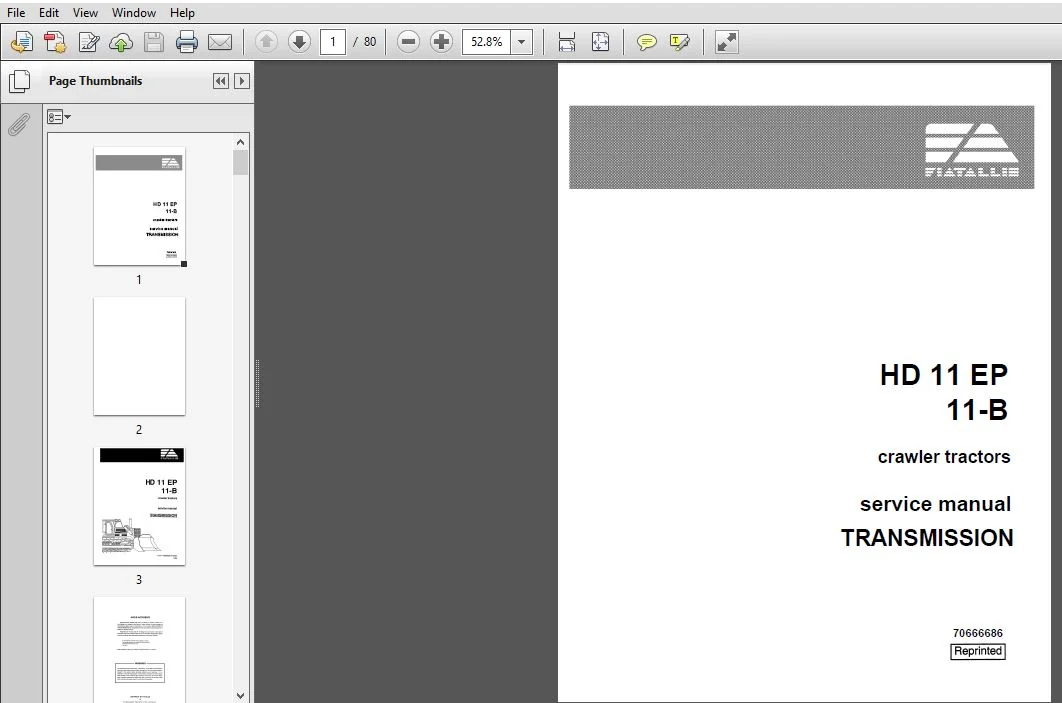

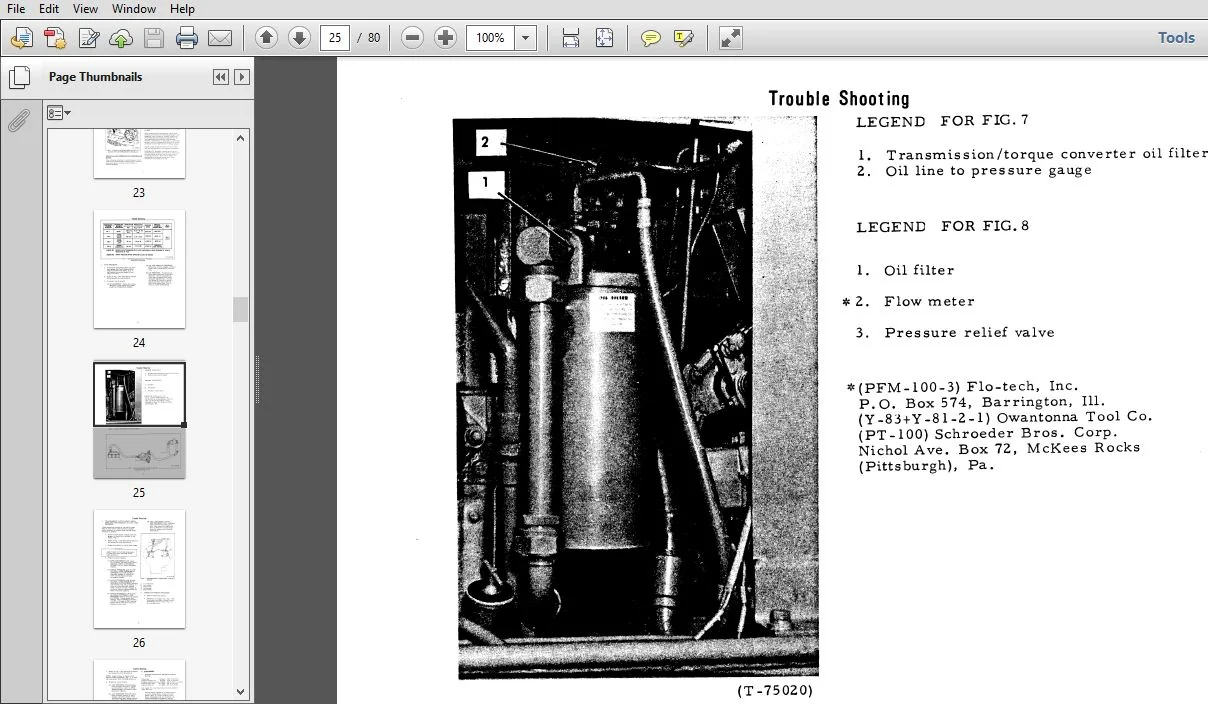

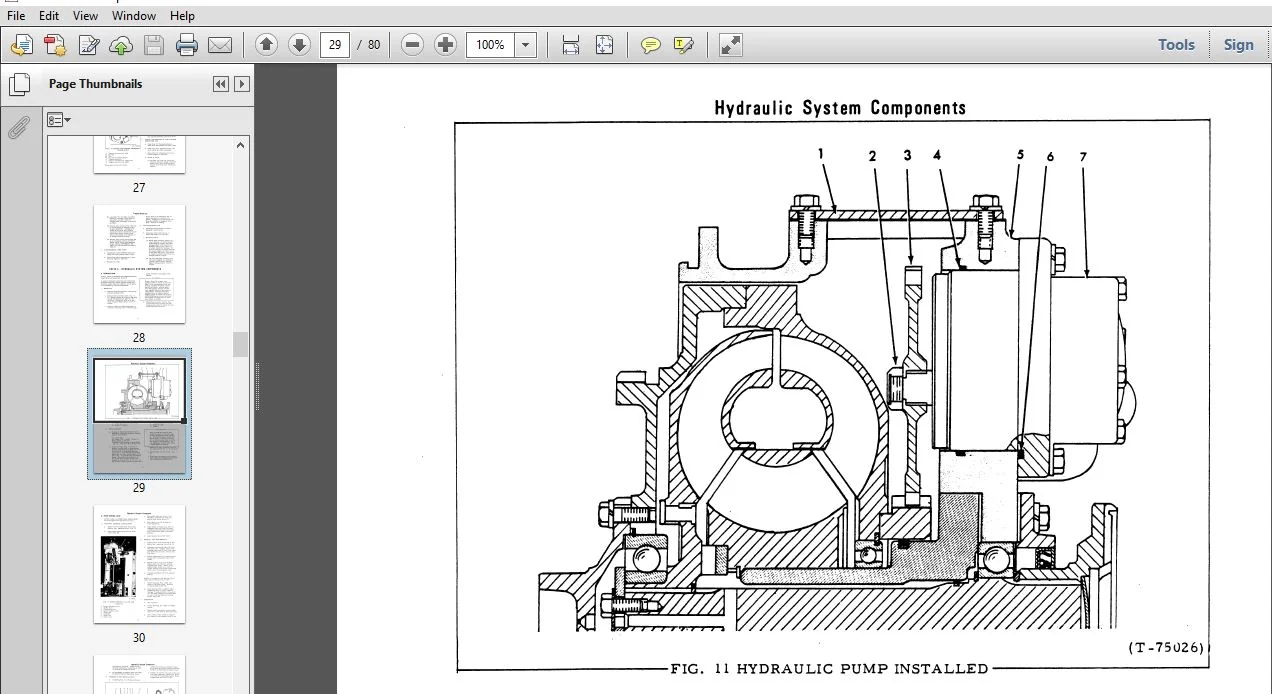

SCREENSHOTS OF THE MANUAL:
DESCRIPTION:
New Holland FiatAllis HD-11EP, 11-B Crawler Tracors Transmission Service Manual (70666686)
- GENERAL
- Study the Operation and Maintenance Instruction Manual be- fore starting. operating. maintaining, fueling. or servicing machine. Read and heed all machine-mounted safety signs before starting. operating. maintaining. fueling or servicing machine.
- Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head. body, limbs. hands and feet inside operator’s compartment at all times to reduce exposureto hazards outsidethe operator’s compartment.
- Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features.
- The follow- ing are examples of dangerous work areas: slopes. over hangs. timber. demolitions. fire. high walls. drop off. backfills. rough terrain. ditches. ridges. excavations. heavy traffic. crowded parking. crowded maintenance and closed areas. Use extreme care when in areas such as these. An operator must know the machine’s capabilities.
- working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine. Keep two hands and onefoot. or two feet and one hand. in contact with steps grab rails and handles at all times.
- Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
TABLE OF CONTENTS:
New Holland FiatAllis HD-11EP, 11-B Crawler Tracors Transmission Service Manual (70666686)
I GENERAL DESCRIPTION
A MechanicalOperation 5
B HydraulicOperation 7
2 HYDRAULIC SYSTEM LUBRICANT SPECIFICATIONS,
CAPACITY AND SERVICE
A LubricantSpecifications 8
B CapacityandService 8
3 TROUBLE SHOOTING
A General _ 8
B PressureChecking 9
C FlowChecking I3
4 HYDRAULIC SYSTEM COMPONENTS
A HydraulicPump 14
B SpeedContrOIValve 16
C PressureRelieralve 17
D VenturiPump’ 19
E Push Start Pump (Special equipment) 19
F Diverter Valve (Special equipment) 21
G Ground Speed Governor (Special equipment) 22
H HeatExchanger_ 24
5 TORQUE CONVERTER
A Removal 25
B Disassembly 27
C Inspection 28
D Assembly Z9
E Installation 34
6 TRANSMISSION
A Removal 34
B Disassemb1y 3fD
C Inspection 42
D Assembly 43
E Installation (with bevel gear and pinion adjustment check) 51
7 BEVEL GEAR AND SHAFT ’
A Removal 53
B Installation 54
C Adjustments 55
D Finallnstallation 57
8 DRIVE SHAFT UNIVERSAL JOINT
A Removal, Disassembly, and Inspection 57
B AssemblyandInstallation 57
9 FITS AND TOLERANCES
A HydraulicSystem 59
B TorqueConverter 59
C Transmission 60
D BevelGearandShaft 60
E SpecifiedTorques 61
10 SERVICETOOLS 61
PLEASE NOTE:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
