NEW HOLLAND Fiat Allis FX220LC Crawler Excavator Operator’s Manual
FILE DETAILS:
NEW HOLLAND Fiat Allis FX220LC Crawler Excavator Operator’s Manual
Size : 8.40 MB
Format : PDF
Language : English
Brand: Fiat
Type of machine: Excavator
Type of document: Service Manual
Model: Fiat Allis FX220LC Crawler Excavator
Number of Pages: 70 pages
Print No.: 59822020
Date Modified: 01/1992
DESCRIPTION:
NEW HOLLAND Fiat Allis FX220LC Crawler Excavator Operator’s Manual
SAMPLE PAGE FROM THE MANUAL:
- In this rileyou will find mostvatuabio information concerning operation. lubrication. and maintenance of your FIAT HITACHI excairator. Observe the instructions in this manual for: – your personal safety – operating safety – ready and efficient performance of your excavator. Periodic preventive inspections and maintenace are the surest means of keeping the machine in proper working order.
- Prompt detection and correction of minor Irregularlties. and immediate replacement of worn oiit or broken parts will prevent failures and avoid expenses. Replace damaged graphics. Observe safety precautions to prevent injury and damage. if you find errors when reading this manual or it you have some suggestions or hints please contact:
- FIAT HITACHI STABILIMENTO DI IMOLA Strada Stataie 610 Seiice. 43/A 40026 lmoia (BO) – iTALY TEL: 0542/601 111 – TELEFAX: 0512640381 – TELEX: 511285 BENEX Note: The intormations given in this manual are based on the development state of the machine at the time when this manual was written.
- Deviations in technical data, illustrations. and dimensions are possible. due to the progress in technical development. , Damages and defects causedby incorrect operationand maintenance are not covered bythe manufacturers guarantee. Delivery of the excavator The excavator is delivered ready for work including ten per cent fuel and hydraulic oil.
- All iubrlcation points are greased. lithe excavator has been coated with a paint protection (preservation wax) in the plant. this coating must not necessarily be removed. It offers an additional corrosion prevention. The paint protection may be removed with: – cleaning agent. e.g. Conrad solvent RV 5339 E 45430. – solvents. 0.9. Allpur 150 K or Purtex 65. – vapour blast apparatus.
- Prior to tlrst operation, inspect the excavator thoroughty with our service engineer. Note: It the excavatoris equipped with atire suppression system. make sure that the system Is readyteroperatien. For yourspare part orders please reter to the ‘lnlormation tor use at the catalogue‘ on the pages otthe spare parts catalogue. USE ONLY GENUINE FIAT HFI’ACHI SPARE AND WEAR PARTS! Q For all questions related to your excavator please contact our FIAT HITACHI STABILIMENTO Di IMOLA Service Department indicating the model and serial number at your excavator.
- This manual contains instructions for the correct care and maintenance 0! the machlne. Note: . The inlormations given in this manual are based on the development state ol the machine at the time when this manual was written. Deviations in technical data, illustrations, and dimensions are possible, due to the progress in technical development. Damages and detects caused by Incorrect operatlon and maintenance are notcovered byhemanutacturers guarantee.
- Definitions: Service polnts: Unit or system where the prescribed maintenance work has to be perlormed (9.9. engine. Iubriftcatlon point). Service lntervals: Number of operating hours after Which the maintenance work has to be perlormed ( 9.9. every 10 Operating Hours, at 10, 20. 30 hours, etc…).
- General recommendations Thoroughly clean all grease fittings. caps and plugs belore lubricating. Replace oil drain plugs and oil level plugs seals before removing mters. Fill up luel tank at the end of every workday to prevent condensation oi moisture. llis recommendedto carry outoilchangeln assemblies when theyare still at operating temperature to speed up draining.
VIDEO PREVIEW OF THE MANUAL:

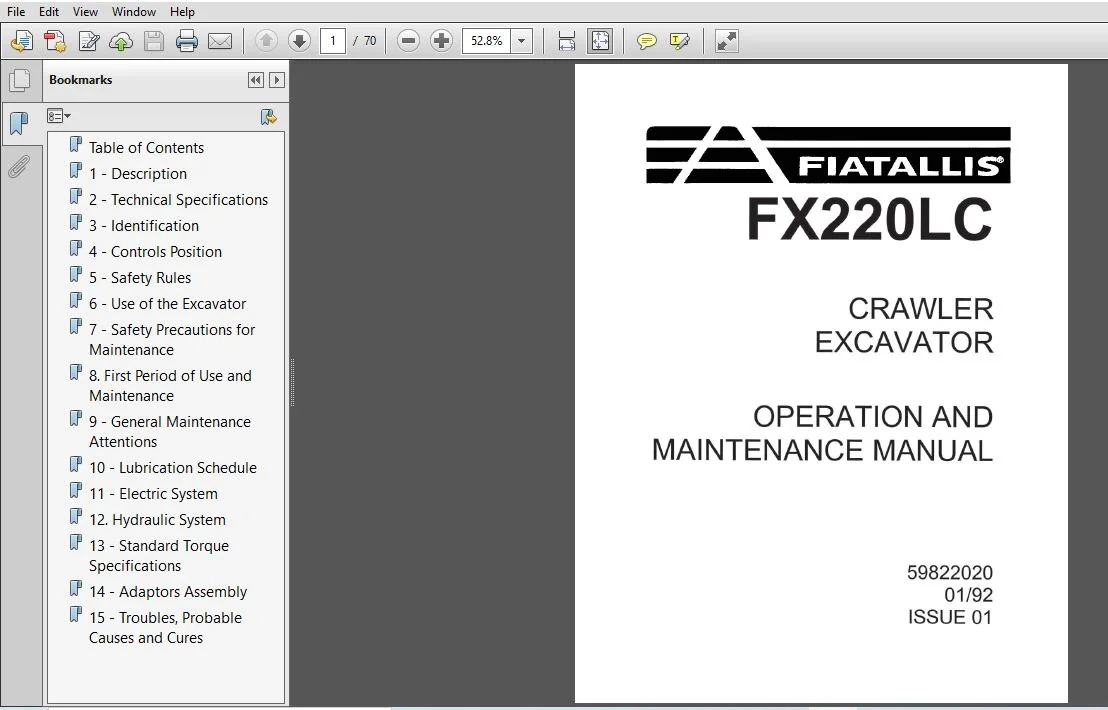

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
NEW HOLLAND Fiat Allis FX220LC Crawler Excavator Operator’s Manual
Table of Contents 7
1 – Description 8
2 – Technical Specifications 10

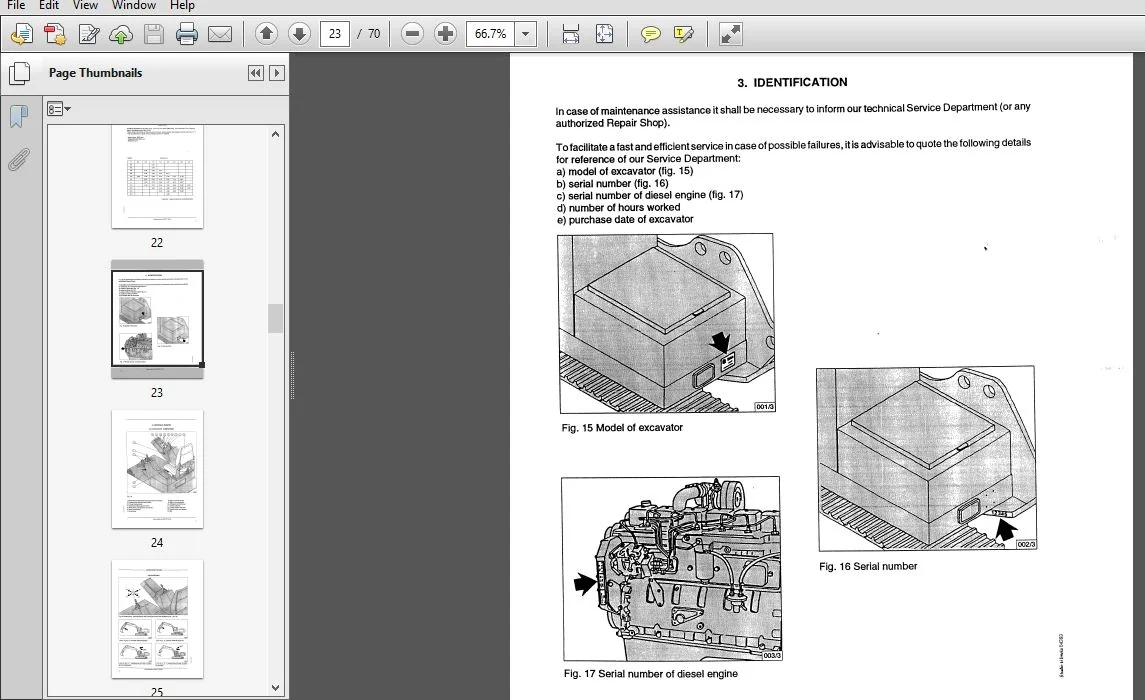

3 – Identification 23

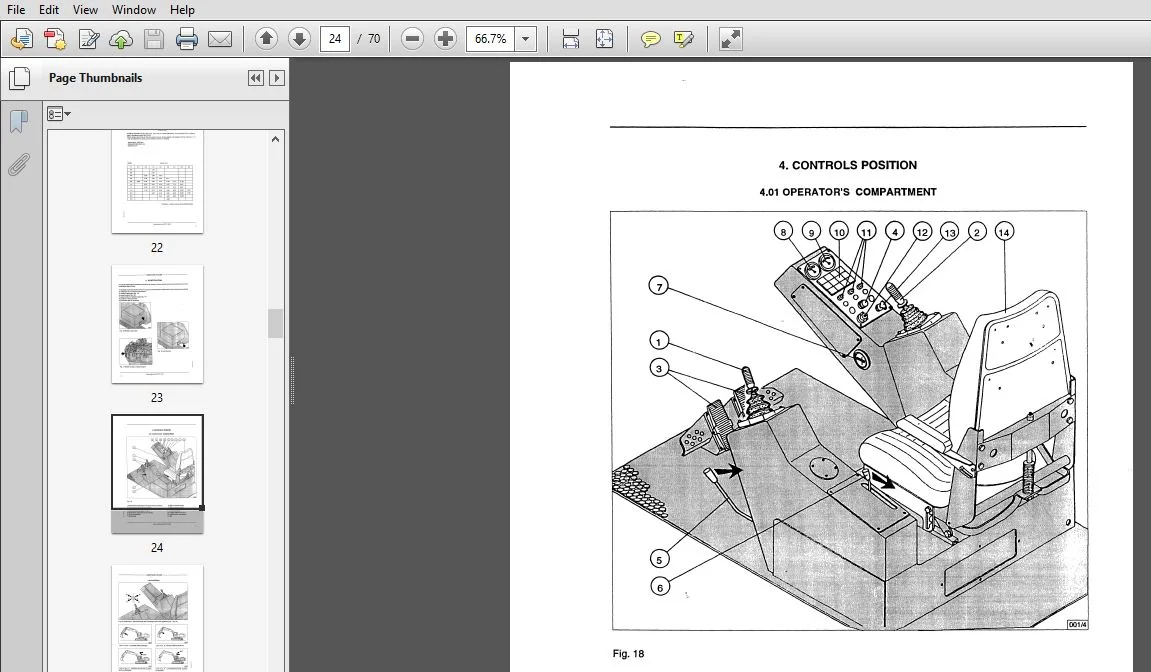

4 – Controls Position 24
5 – Safety Rules 34
6 – Use of the Excavator 35
7 – Safety Precautions for Maintenance 42
8 First Period of Use and Maintenance 43
9 – General Maintenance Attentions 52
10 – Lubrication Schedule 53
11 – Electric System 55
12 Hydraulic System 58
13 – Standard Torque Specifications 60
14 – Adaptors Assembly 64
15 – Troubles, Probable Causes and Cures 66
