New Holland F140B VHP F170B VHP F200B VHP Motor Graders Service Repair Manual (48050427D)
File Details :
New Holland F140B VHP F170B VHP F200B VHP Motor Graders Service Repair Manual
Size : 76.6 MB
Format : PDF
Language : English
Brand: New Holland
Type of machine: Motor Graders
Type of document: Service Manual
Model: F140B VHP F170B VHP F200B VHP
Number of Pages: 1303 Pages
Part Number: 48050427D
Video Preview:
Image Preview:

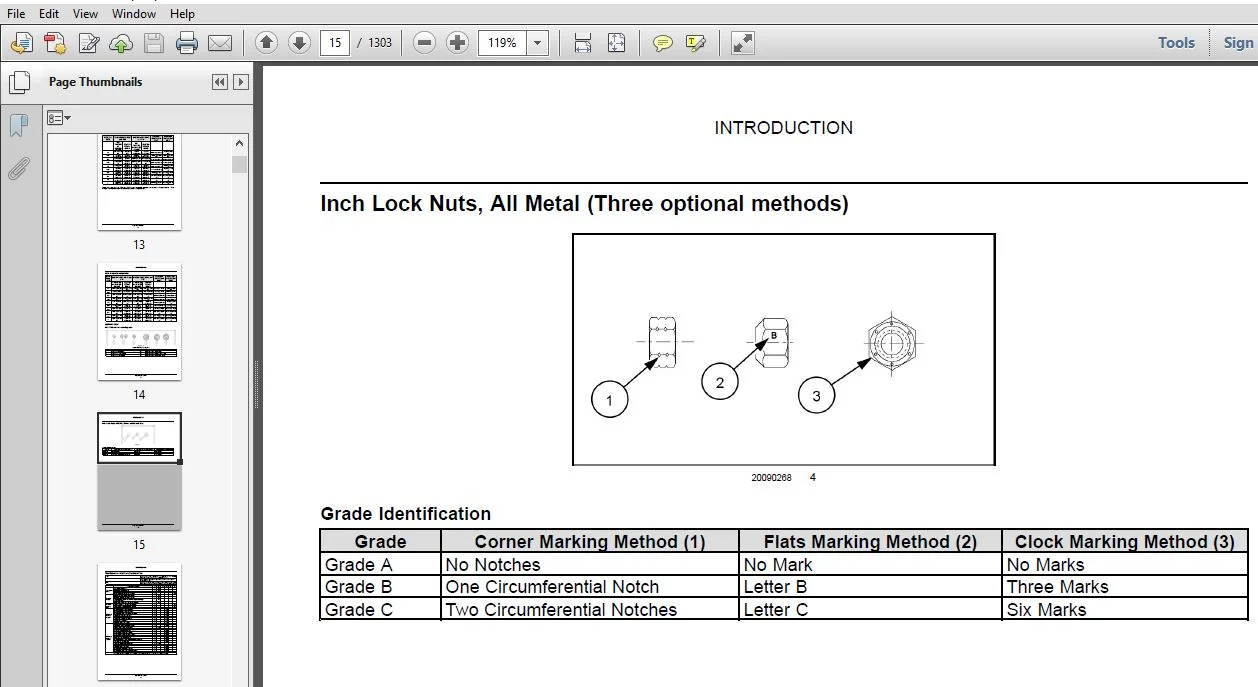

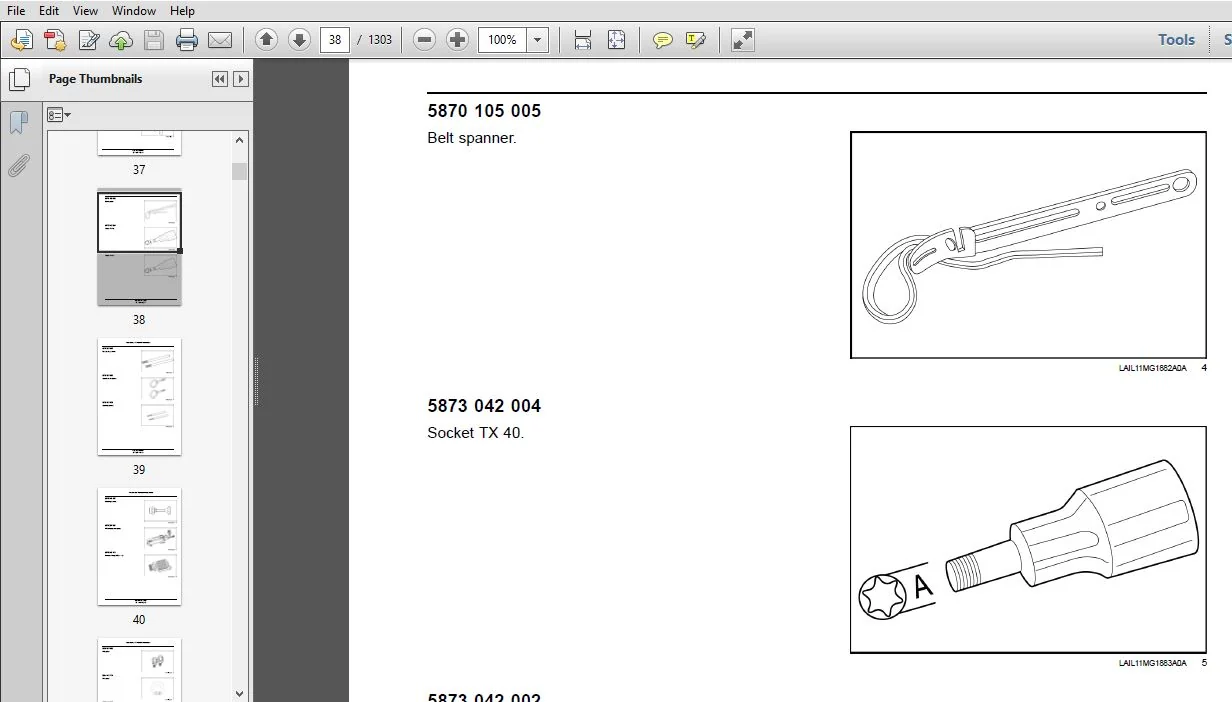

Sample Page From the Manual:

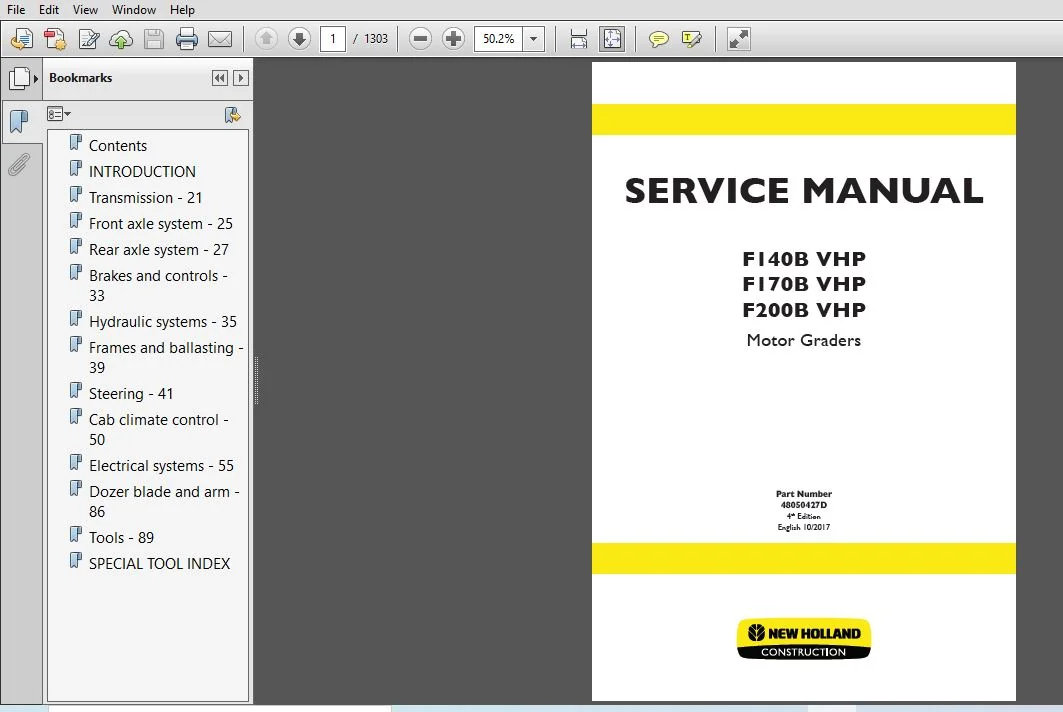

New Holland F140B VHP F170B VHP F200B VHP Motor Graders Service Repair Manual (48050427D)
- If the machine has one or more batteries with anti-spill caps, do not operate the machine if the caps are not working properly or if they are not in place. The anti-spill caps prevent the leakage of electrolyte which can cause personal injury and damage to the machine in the event of a rollover accident. The anti-spill caps have a valve with a stem made from lead and rubber.
- When the anti-spill cap is turned, the weight of the lead secures the rubber stem against the breather hole, thus preventing a loss of electrolyte. If the breather hole and the valve are clogged by foreign material, the pressure inside the battery may increase enough to crack the battery case. Always check the breather hole for clogging when checking the electrolyte level. If the breather hole is clogged, turn the anti-spill cap and clean it.
- Rapidly move the anti-spill cap up and down. You should feel the displacement of the valve. Otherwise, wash the anti-spill cap and loosen the valve. Rapidly move the anti-spill cap up and down in order to remove the water. When removing an anti-spill cap, check the condition of the rubber gasket. If the rubber gasket is missing or damaged, fit a new anti-spill cap.
- LAIL11MG1370A0A 1 Anti-spill caps that are missing or broken MUST be replaced with new ones. DO NOT use any other type of cap to replace the anti-spill caps. When fitting a new battery, the battery MUST have antispill caps. If the anti-spill caps of the old battery are in good condition, the caps may be re-used.
Table Of Contents:
New Holland F140B VHP F170B VHP F200B VHP Motor Graders Service Repair Manual (48050427D)
INTRODUCTION
Transmission 21
[21 113] Powershift transmission 21 1
[21 135] Powershift transmission external controls 21 2
[21 105] Powershift transmission hydraulic components 21 3
[21 155] Powershift transmission internal components 21 4
[21 700] Torque converter 21 5
[21 900] Hydraulic pump drive 21 6
Front axle system 25
[25 400] Non-powered front axle 25 1
Rear axle system 27
[27 100] Powered rear axle 27 1
[27 106] Rear bevel gear set and differential 27 2
[27 120] Planetary and final drives 27 3
Brakes and controls 33
[33 110] Parking brake or parking lock 33 1
Hydraulic systems 35
[35 000] Hydraulic systems 35 1
Frames and ballasting 39
[39 100] Frame 39 1
[39 140] Ballasts and supports 39 2
Steering 41
[41 200] Hydraulic control components 41 1
Cab climate control 50
[50 100] Heating 50 1
[50 104] Ventilation 50 2
[50 200] Air conditioning 50 3
Electrical systems 55
[55 000] Electrical system 55 1
[55 100] Harnesses and connectors 55 2
[55 201] Engine starting system 55 3
[55 301] Alternator 55 4
[55 302] Battery 55 5
[55 010] Fuel injection system 55 6
[55 024] Transmission control system 55 7
[55 051] Cab Heating, Ventilation, and Air-Conditioning (HVAC) controls 55 8
[55 050] Heating, Ventilation, and Air-Conditioning (HVAC) control system 55 9
[55 020] Transmission speed sensors 55 10
[55 DTC] FAULT CODES 55 11
Dozer blade and arm 86
[86 110] Dozer blade 86 1
Tools 89
[89 128] Ripper assembly 89 1
