New Holland E35BSR Tier 4 Compact Crawler Excavator Operator’s Manual 87722094 – PDF DOWNLOAD

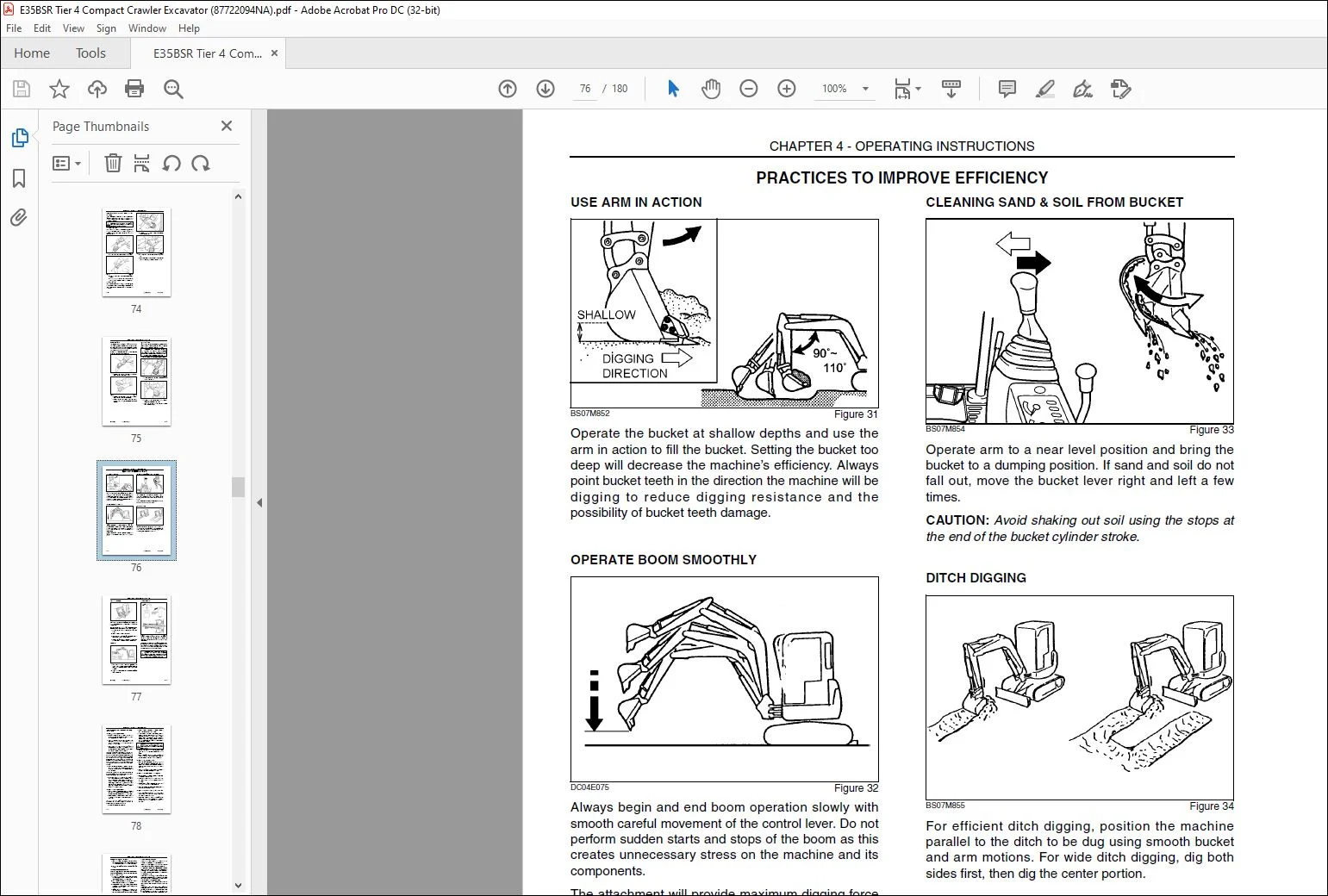

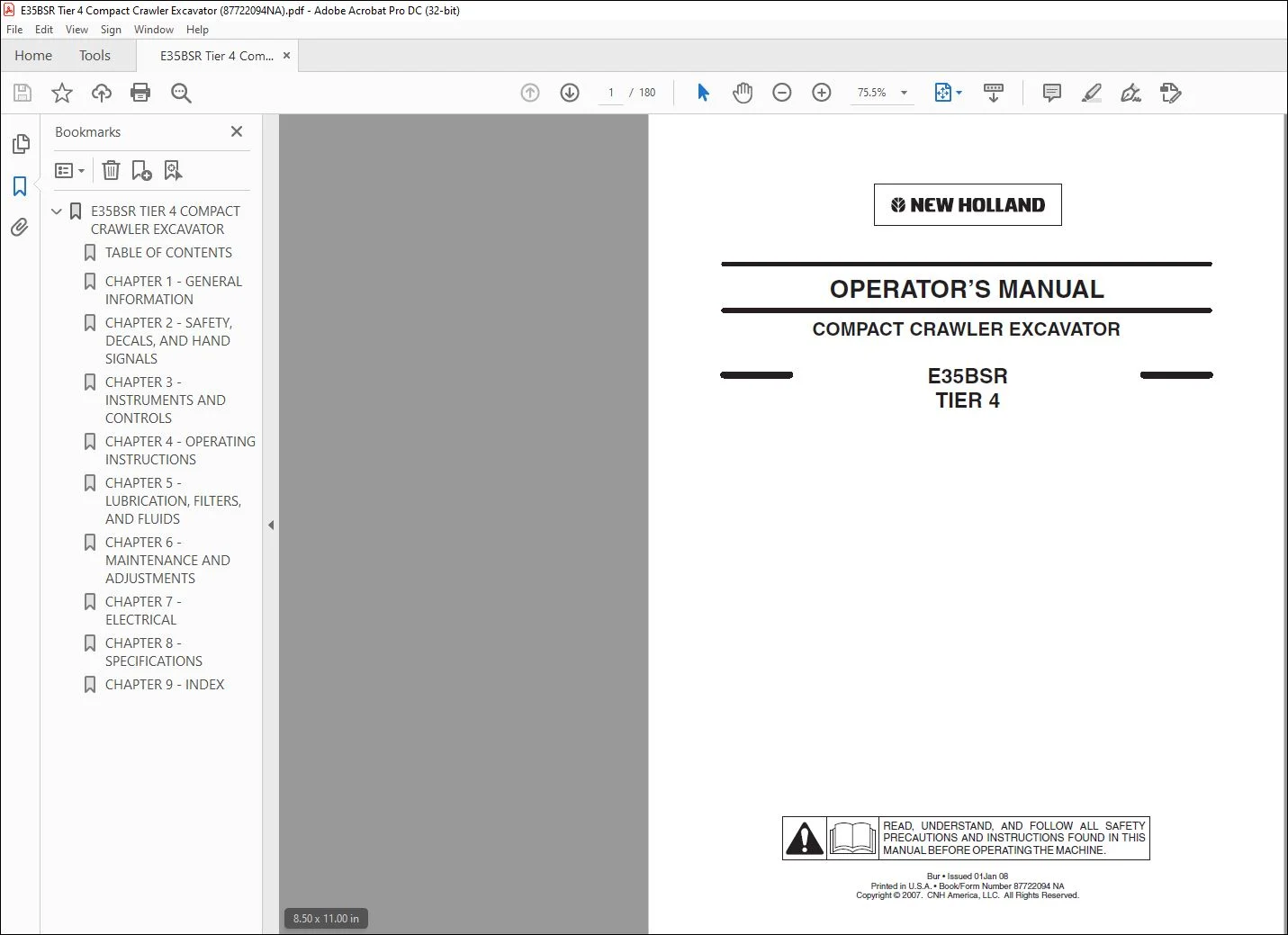

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
New Holland E35BSR Tier 4 Compact Crawler Excavator Operator’s Manual 87722094 – PDF DOWNLOAD
GENERAL INFORMATION:
TO THE OWNER:
E35BSR COMPACT CRAWLER EXCAVATOR – TIER 4:
- Your machine has been designed and built to the highest standards of quality. It conforms to all current safety
regulations. The risk of accidents can never be completely excluded. That is why it is essential to observe
elementary safety rules and precautions. - Read this manual carefully, paying particular attention to the instructions concerning safety, operation and
maintenance so as to avoid the risk of injury while operating or servicing the machine. - The standard attachments and tools of this machine are designed to carry out all kinds of earth moving and
rehandling operations. If you want to use this machine to handle a load (pipes, culverts, formwork, etc.), make sure
that it is equipped to carry out this kind of work. For this type of application, the machine must be equipped with
safety valves, a load handling chart corresponding to the type of machine and its attachment and a load fixing
point. All legal requirements must also be strictly observed. - Do not use this machine for any application or purpose other than those described in this manual. If the machine is
to be used for work involving the use of special attachments, accessories or equipment, consult your New Holland
Dealer in order to make sure that any adaptations or modifications made are in keeping with the machine’s
technical specifications and with prevailing safety requirements. - Any modification or adaptation which is not approved by the manufacturer may invalidate the machine’s initial
conformity with safety requirements. - The machine must undergo regular inspections, the frequency of which varies according to the type of use. Consult
your authorized New Holland Dealer. - Before permitting a new operator on this machine, make sure:
- That the operator has received the necessary training on how to operate the machine correctly and safely.
- That the operator has read and understood the instructions given in this manual.
- Contact your dealer for operator manuals translated into Spanish or French Canadian.
- Always keep this manual in the operator’s compartment (in the seat back, behind the operator’s seat). Make sure it
is complete and in good condition. If you wish to obtain extra copies, or copies in languages other than that of the
country of use, consult your authorized New Holland Dealer. - Your New Holland Dealer is available for any further information. They will also provide any after-sales service you
may need, and genuine New Holland spare parts, your guarantee of quality and match.

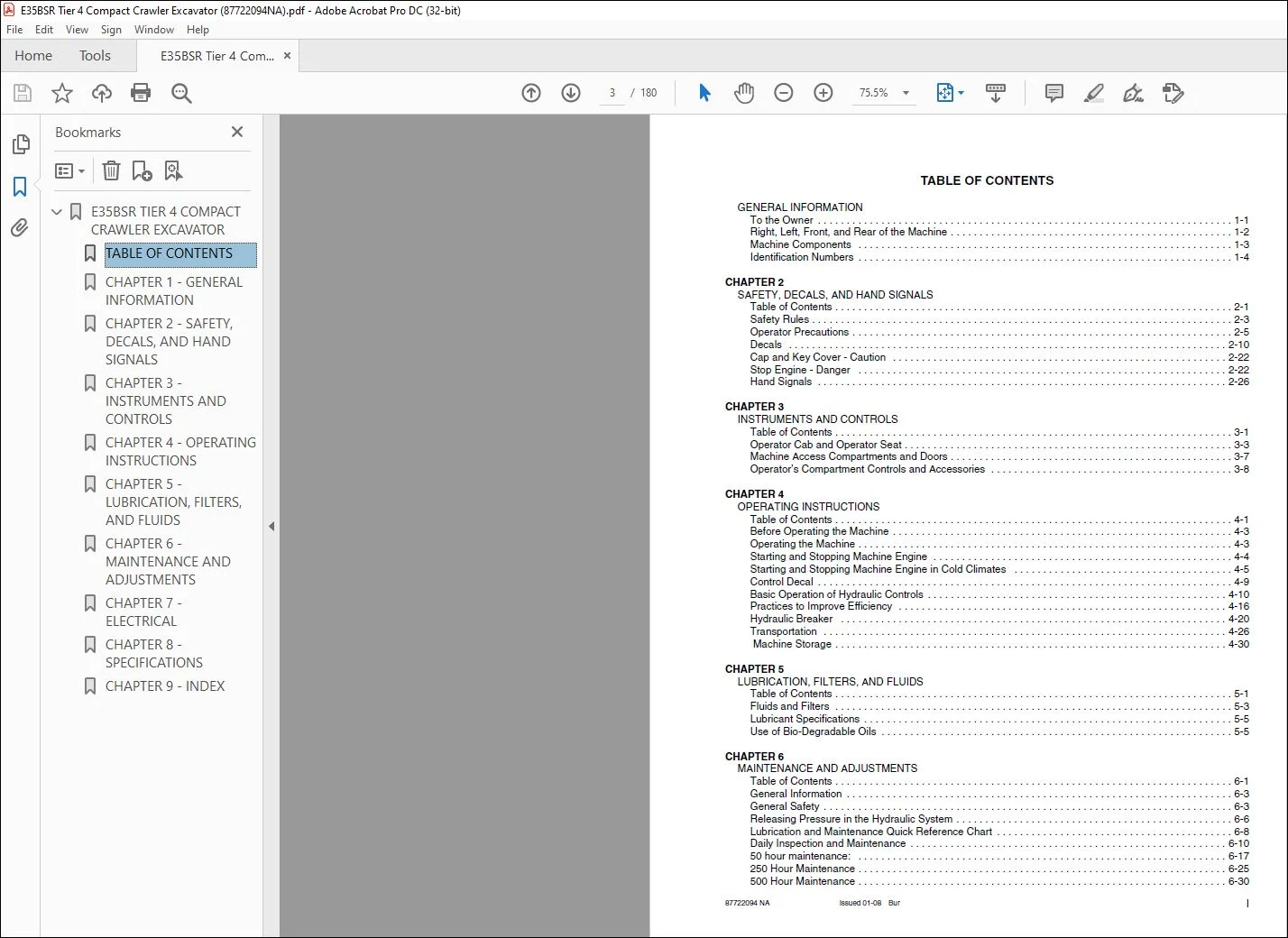

TABLE OF CONTENTS:
New Holland E35BSR Tier 4 Compact Crawler Excavator Operator’s Manual 87722094 – PDF DOWNLOAD
GENERAL INFORMATION
To the Owner 1-1
Right, Left, Front, and Rear of the Machine 1-2
Machine Components 1-3
Identification Numbers 1-4
CHAPTER 2
SAFETY, DECALS, AND HAND SIGNALS
Table of Contents 2-1
Safety Rules 2-3
Operator Precautions 2-5
Decals 2-10
Cap and Key Cover – Caution 2-22
Stop Engine – Danger 2-22
Hand Signals 2-26
CHAPTER 3
INSTRUMENTS AND CONTROLS
Table of Contents 3-1
Operator Cab and Operator Seat 3-3
Machine Access Compartments and Doors 3-7
Operator’s Compartment Controls and Accessories 3-8
CHAPTER 4
OPERATING INSTRUCTIONS
Table of Contents 4-1
Before Operating the Machine 4-3
Operating the Machine 4-3
Starting and Stopping Machine Engine 4-4
Starting and Stopping Machine Engine in Cold Climates 4-5
Control Decal 4-9
Basic Operation of Hydraulic Controls 4-10
Practices to Improve Efficiency 4-16
Hydraulic Breaker 4-20
Transportation 4-26
Machine Storage 4-30
CHAPTER 5
LUBRICATION, FILTERS, AND FLUIDS
Table of Contents 5-1
Fluids and Filters 5-3
Lubricant Specifications 5-5
Use of Bio-Degradable Oils 5-5
CHAPTER 6
MAINTENANCE AND ADJUSTMENTS
Table of Contents 6-1
General Information 6-3
General Safety 6-3
Releasing Pressure in the Hydraulic System 6-6
Lubrication and Maintenance Quick Reference Chart 6-8
Daily Inspection and Maintenance 6-10
50 hour maintenance: 6-17
250 Hour Maintenance 6-25
500 Hour Maintenance 6-30
II Issued 01-08 Bur 87722094 NA
1000 Hour Maintenance 6-34
1500 Hour Maintenance 6-37
2000 Hour Maintenance 6-38
5000 Hour Maintenance 6-47
Special Procedures 6-48
CHAPTER 7
ELECTRICAL
Table of Contents 7-1
CHAPTER 8
SPECIFICATIONS
Table of Contents 8-1
General Specifications 8-3
Lifting Capacities 8-10
Torque Specifications 8-11
CHAPTER 9
INDEX
VIDEO PREVIEW OF THE MANUAL:
