NEW HOLLAND E27B Compact Hydraulic Excavator SERVICE MANUAL
FILE DETAILS:
NEW HOLLAND E27B Compact Hydraulic Excavator SERVICE MANUAL
Size: 1.0 MB
Fomat: PDF
Language: English
Brand: NEW HOLLAND
Type of document: SERVICE Manual
Model: E27B
Part No: S5PV0023E02
Number of page: 765 pages
DESCRIPTION:
NEW HOLLAND E27B Compact Hydraulic Excavator SERVICE MANUAL

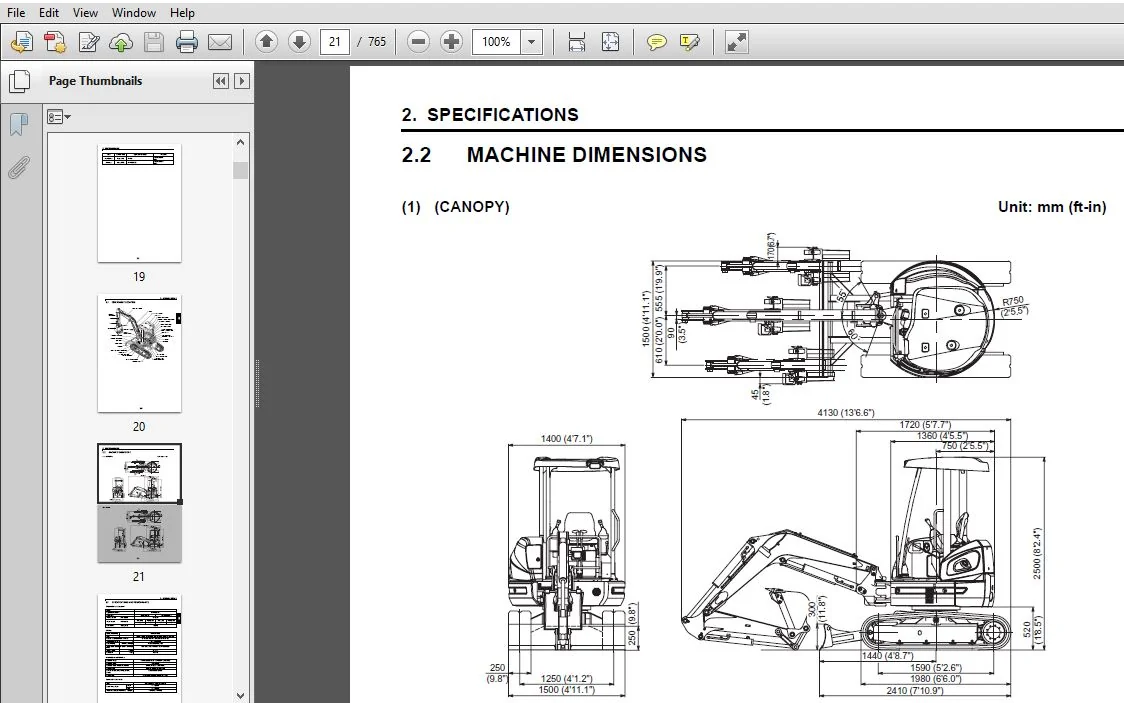

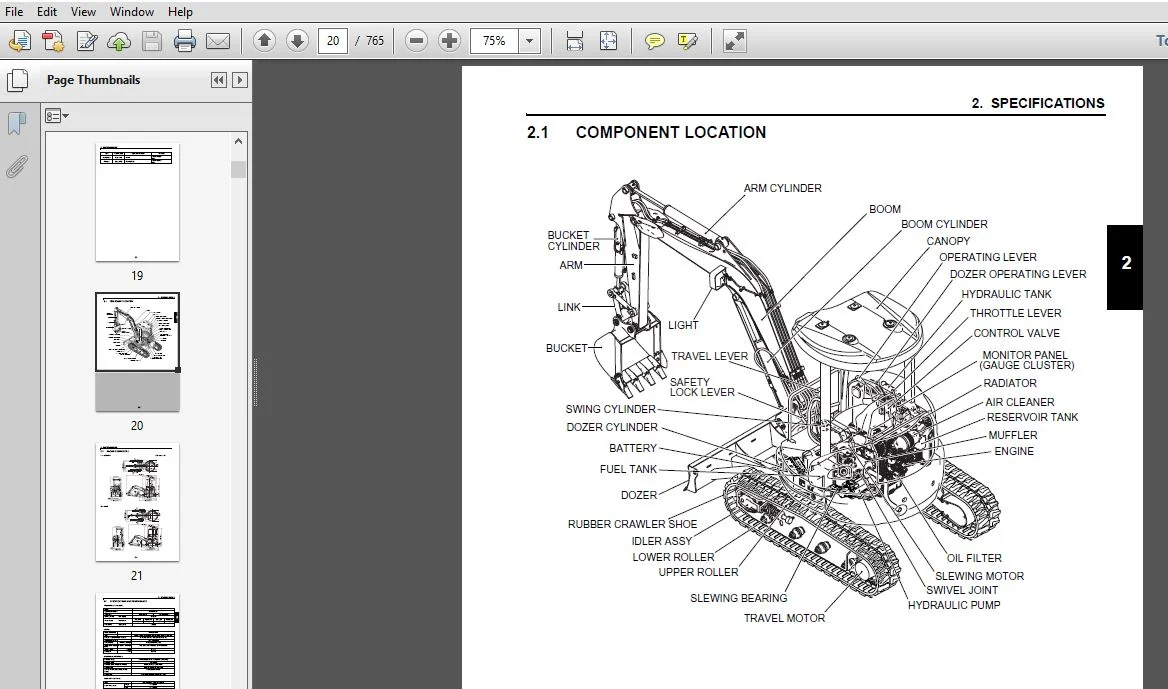

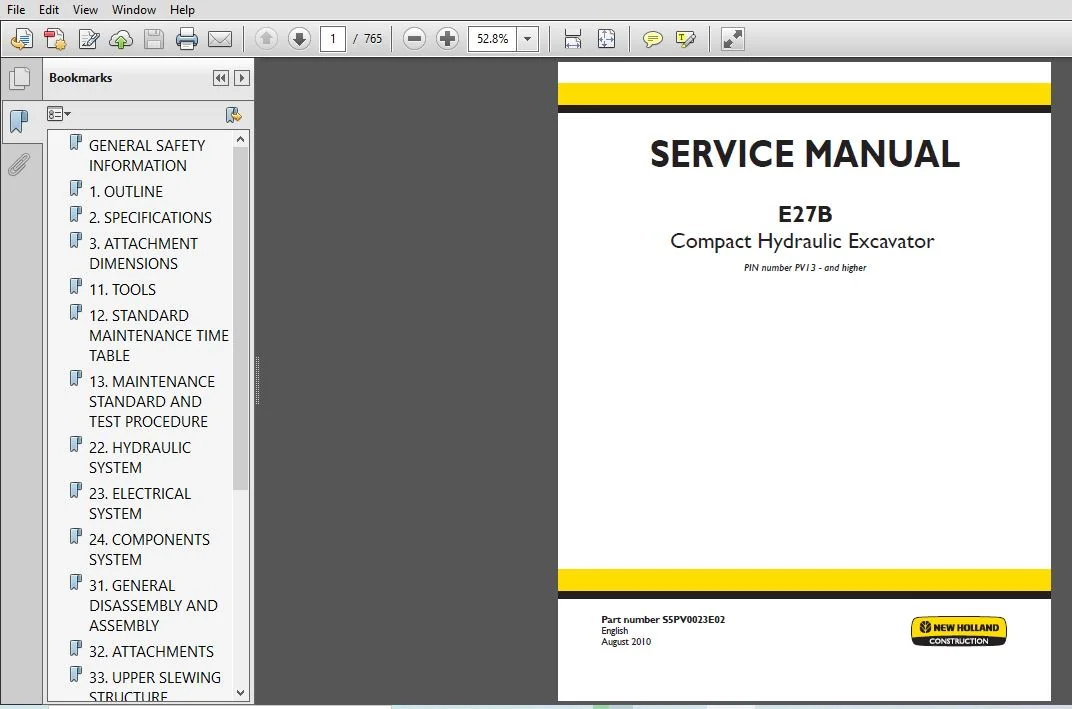

SAMPLE PAGE FROM THE MANUAL:
- contained in the manual and on the machine should be read and understood by all personnel before starting any work with or on the machine. Read the operator’s manual and make sure you understand the machine controls. All equipment has a limit. Make sure you understand the speed, brakes, steering, stability, and load characteristics of this machine.
- DO NOT remove the operator’s manual or the safety manual from the machine. The safety information given in this manual does not replace safety codes, insurance needs, federal, state, or local laws. Make sure that your machine has the correct equipment according to these rules or laws.
- Additional safety messages are used in the text of the manual to show specific safety hazards. Operation, inspection and maintenance should be performed at designated intervals. It may be necessary to shorten the intervals based on machine operating conditions.
- The safety information contained in the manual is intended only to supplement safety codes, insurance requirements, local laws, rules and regulations. Pay close attention to safety messages in this manual and on the machine. A
- ll safety messages are identified by either “DANGER”, “WARNING” and/or “CAUTION”. 1) DANGER- Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury and is represented as follows: 2) WARNING- Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury and is represented as follows:
- CAUTION- Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against possible damage to the machine and its components and is represented as follows:
- Read and understand all Warning plates and decal on the machine before Operating, Maintaining or Repairing this machine. Always wear protective glasses and protective shoes when performing maintenance or service. Wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing if welding is necessary. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.
- Disconnect the battery and hang a “Do Not Operate” tag in the Operator’s Compartment. Remove the ignition keys. If possible, make all repairs with the machine parked on a firm level surface. Block the machine to prevent unexpected movement.
- Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack stands, capable of supporting the machine, before performing any disassembly. Relieve all pressure in air, oil or water systems before any lines, fittings or related items are disconnected or removed. Always make sure all raised components are blocked correctly and be alert for possible pressure when disconnecting any device from a system that utilizes pressure.
- Lower the bucket, dozer, or other attachments to the ground before performing any work on the machine. If this cannot be done, make sure the bucket, dozer, ripper or other attachment is blocked correctly to prevent it from dropping unexpectedly.
- Use steps and grab handles when mounting or dismounting a machine. Clean any mud or debris from steps, walkways or work platforms before using. Always face to the machine when using steps, ladders and walkways. When it is not possible to use the designed access system, provide ladders, scaffolds, or work platforms to perform safe repair operations.
VIDEO PREVIEW OF THE MANUAL:
IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
NEW HOLLAND E27B Compact Hydraulic Excavator SERVICE MANUAL
GENERAL SAFETY INFORMATION 3
1 OUTLINE 8
2 SPECIFICATIONS 18
3 ATTACHMENT DIMENSIONS 34
11 TOOLS 58
12 STANDARD MAINTENANCE TIME TABLE 74
13 MAINTENANCE STANDARD AND TEST PROCEDURE 86
22 HYDRAULIC SYSTEM 108
23 ELECTRICAL SYSTEM 136
24 COMPONENTS SYSTEM 168
31 GENERAL DISASSEMBLY AND ASSEMBLY 268
32 ATTACHMENTS 272
33 UPPER SLEWING STRUCTURE 304
34 TRAVEL SYSTEM 438
42 TROUBLESHOOTING (HYDRAULIC SYSTEM) 508
43 TROUBLESHOOTING (ELECTRICAL SYSTEM) 520
44 TROUBLESHOOTING (ENGINE) 532
51 ENGINE 544
