New Holland D262 Engine Service Manual (70667141) New Holland D262
FILE DETAILS:
New Holland D262 Engine Service Manual (70667141) New Holland D262
- Format: PDF
- Language: English
- Brand: New Holland
- Type of document: Service Manual
- Model: D262 Engine
- Number of Pages: 178 pages
- Re-Print No.: 70667141
VIDEO PREVIEW:

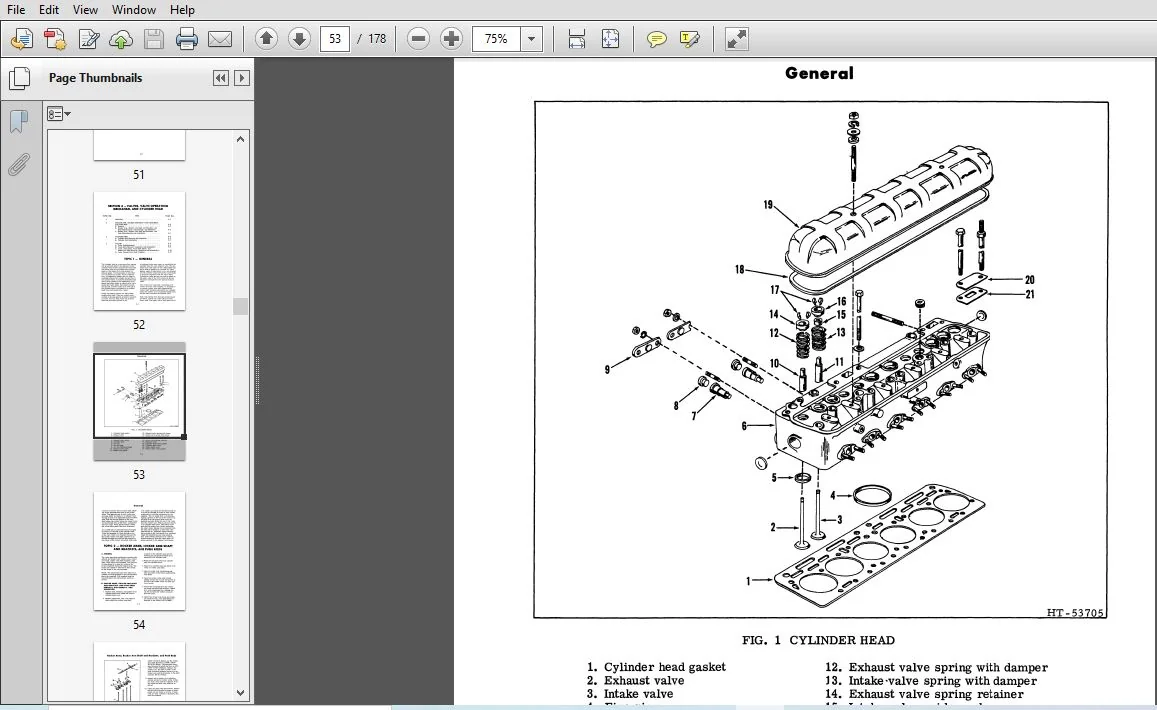

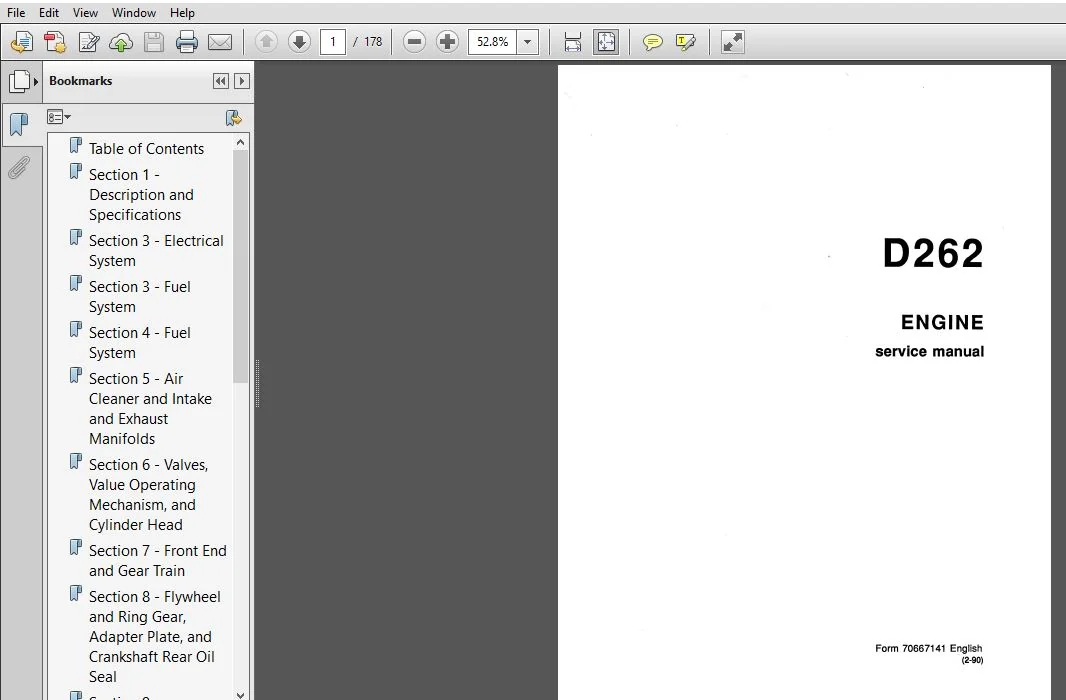

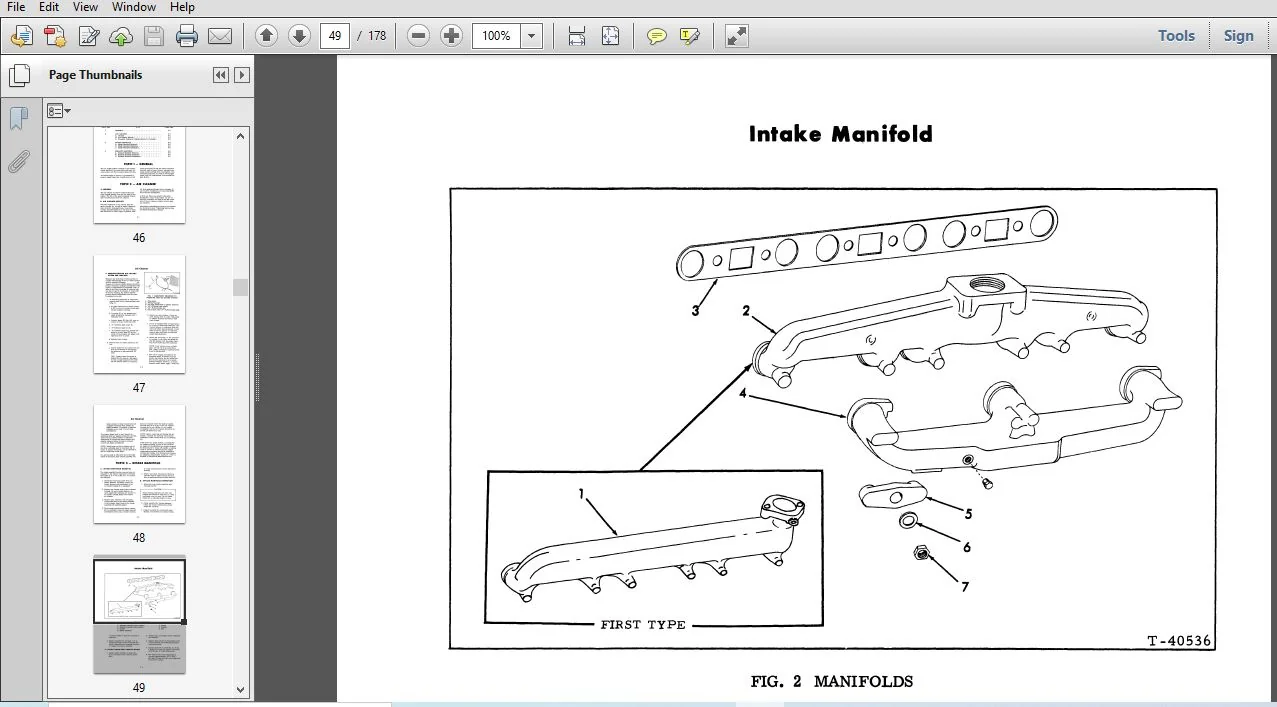

SCREENSHOTS OF THE MANUAL:
DESCRIPTION:
New Holland D262 Engine Service Manual (70667141) New Holland D262
- GENERAL
- Study the Operation and Maintenance instruction Manuaibe- lore starting. operating. maintaining, lueling. or servicing machine. Fioad and heed a’i machine-mounted salcty signs bolore starting, operating. maintaining. tueing or servicing machine.
- Machine-monted eatety signs have been ooior coded yellow mth black border and lettering tor WARNING and red with white border and lettering tor DANGER points. Never attempt to operate the machine or its tools from any position other then sealed in the operator’s seat. Keep head. body. limbs, hands and lee: inside operators compartment at all times to reduce exposure to hazards outsidethe operator’s compartment. Do not allow unauthorized mrsonnel to operate service or maintain this machine. Always check work are: for dangerous lentures.
- The lollow- ing are examples of dangerous work areas: slopes. over hangs,timber. demolitions.iiro. high waflr..drop oil. back ms. rough terrain. ditches. ridges, excavations. heavy trait‘c. crowded parking. crowded maintenance and closed areas.
- Use extreme care when in areas such aatheee. An operator must know the machine’s capabilities. When worimg on slopes or near drop oils be alert to asoid loose or soft conditions that could cause sudden tipping; or ice; of control. 00 not iumponor oll machine. Keeptwo hands and one loot. or two teet and one hand.
- In comaot with steps grab rails and handles at at! times. Do not use controls or horses as hand holds when climbing on or oil machine. Hose: and cannot. are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or oqu‘pmont movement.
- Keep operators compartment. stepping points. graboraiis and handles ciearolioroign objects. oii.9-toaso, mud or snow accumulationto minimize the dangerctslioping orstumbiing. Clean mud orgreasetrom shoes beiore attempting to mount or operate the machine. Be caroiul of sfiooery conditions on stopping points. hand rails_and onthe ground. Wear eatery boots or shoeethat have a high slip resistant sole material. For your personal protection.
- Do not attempt to climb on or oil machine while machine is in motion. Never leave themachlne unattended with the engine running. Always lodt up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures oi the Operazion and Maintenance instmction Manual. Always set the parking brake when leaving the machine tor any reason.
TABLE OF CONTENTS:
New Holland D262 Engine Service Manual (70667141) New Holland D262
Table of Contents ………………………………………………………….. 12
Section 1 – Description and Specifications ……………………………………. 13
Section 3 – Electrical System ……………………………………………….. 20
Section 3 – Fuel System …………………………………………………….. 26
Section 4 – Fuel System …………………………………………………….. 26
Section 5 – Air Cleaner and Intake and Exhaust Manifolds ……………………….. 46
Section 6 – Valves, Value Operating Mechanism, and Cylinder Head ………………… 52
Section 7 – Front End and Gear Train …………………………………………. 72
Section 8 – Flywheel and Ring Gear, Adapter Plate, and Crankshaft Rear Oil Seal …… 78
Section 9 – Lubricating System ………………………………………………. 84
Section 10 – Camshaft, Camshaft Bearings, and Valve Lifters …………………….. 96
Section 11 – Pistons, Piston Rings, Connecting Rods, and Connecting Rod Bearings …..106
Section 12 – Crankshaft and Crankshaft Gear, Main Bearings, and Main Bearing Caps ….118
Section 13 – Cylinder Block and Cylinder Sleeves ……………………………….128
Section 14 – Engine Removal and Installation …………………………………..138
Section 15 – Engine Disassembly and Assembly …………………………………..140
Section 16 – Fits and Tolerances, Torque Specifications, and Stud Gauge Heights ……144
Section 17 – Troubleshooting …………………………………………………158
Section 18 – Service Tools ………………………………………………….172
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
