Nagano Ns35-2 Parts Catalog Manual
FILE DETAILS:
Nagano Ns35-2 Parts Catalog Manual
LANGUAGE:ENGLISH
PAGES:215
DOWNLOADABLE:YES
FILE TYPE:PDF
VIDEO PREVIEW OF THE MANUAL:
IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Nagano Ns35-2 Parts Catalog Manual
1. This parts catalogue covers all components for excavator model NS35-2 when ordering parts refer to the under mentioned items.
2. To read the parts catalogue:
a) Parts marked with * are composed of assembly parts, ☆ shows component parts.
b) Originally the parts are shown in essential numbers for unit machine in the column, however, the component parts are meant for unit.
c) Parts marked with ◯ in the parts No. column are not supplied by single piece but are supplied in components are assembly.
d) Marks appearing in the column of interchangeability are as follows:
A……. New parts can take place of old parts, but no vice-versa.
B……. No interchangeability between new and old parts.
C……. Discontinued.
D……. Newly added parts.
E……. Both new and old parts applicable.
Q……. Quantity altered.
e) In the column of applicable machines are shown the machine serial numbers for which the parts in the same column are used.
The year and month appearing there instead of machine serial number means the time of alteration.
f) Standards and dimentions of parts are shown in the remarks column. Note “Inc. ~” in case of supply in assembly.
TABLE OF CONTENTS:
Nagano Ns35-2 Parts Catalog Manual

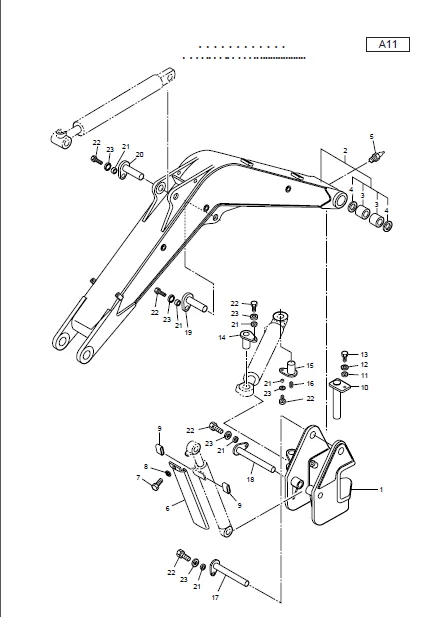

A11 : WORK EQUIPMENT (1) 2
A12 : WORK EQUIPMENT (2) 4
B10 : SWING FRAME 8
B15 : FLOOR PLATE 12
B21 : CONTROL SYSTEM (1) 16
B22 : CONTROL SYSTEM (2) 18
B23 : CONTROL SYSTEM (3) 22
B24 : CONTROL SYSTEM (4) 26
B25 : CONTROL SYSTEM (5) 30
B30 : TANK UNIT 34
B40 : ENGINE COVER 38
B50 : CANOPY 42
B61 : CABIN(1) 44
B62 : CABIN(2) 50
B63 : CABIN(1) 52
B64 : CABIN(2) 56
C11 : TRACK FRAME (1) 62
C12 : TRACK FRAME (2) 66
(POWER UNIT)
D21 : POWER UNIT (1) 72
D22 : POWER UNIT (2) 76
D23 : POWER UNIT (3) 80
D24 : POWER UNIT (4) 82
E10 : WORK EQUIPMENT PIPING 86
E21 : UPPER FRAME PIPING(1) 90
E22 : UPPER FRAME PIPING(2) 92
E23 : UPPER FRAME PIPING(3) 94
E24 : UPPER FRAME PIPING(4) 98
E25 : UPPER FRAME PIPING(5) 102
E30 : CHASSIS FRAME PIPING 104
F11 : CONTROL VALVE(1) 108
F12 : CONTROL VALVE(2) 112
F20 : BOOM CYLINDER 116
F22 : ARM CYLINDER 120
F24 : BUCKET CYLINDER 124
F26 : SWING CYLINDER 126
F28 : DOZER CYLINDER 128
F40 : SWIVEL JOINT 130
F45 : PUMP 132

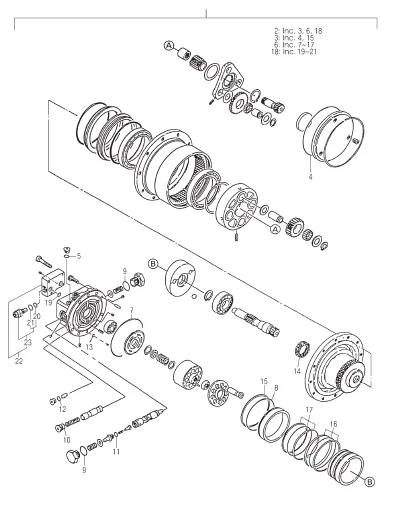

F50 : DRIVE MOTOR 134
F55 : TURNING MOTOR 136
F61 : HYDRAULIC COMPONENT 138
G10 : ELECTRIC SYSTEM(1) 142
G12 : ELECTRIC SYSTEM(2) 146
H10 : LABEL (JAPANESE) 150
H10B : LABEL (ENGLISH) 154
J11 : OPTION BUCKET 158
J12 : LONG ARM 160
J21 : PTO PIPING 162
J22 : J/D PATTERN PIPING 164
J30 : TOPS ROOF 168
J35 : TOPS CAB 170
J36 : DOOR(FRONT, SIDE) 176
J41 : ARM REST 180
J42 : JOYSTICK VALVE(FOR ARM REST) 182
K10 : TOOLS
