Massey Ferguson MF7244 Tractor Workshop Manual – PDF DOWNLOAD
DESCRIPTION:
Massey Ferguson MF7244 Tractor Workshop Manual – PDF DOWNLOAD
GENERAL INSTRUCTIONS
IMPORTANT NOTE
All maintenance and repair works described in this manual must be carried out only by the AGCO service network,
strictly complying with the instructions given and using the required special tools.
Anybody carrying out the above interventions without strictly complying with the prescriptions is fully responsible
for the occurred damages.
ADJUSTMENT SHIMS
During any adjustment, select the adjustment shims measuring them individually, by a micrometer, and then summing
up the detected values: do not rely on the wrong measurement of the complete pack or on the rated value
stated for each ring.
ROTARY SH AFT SEALS
For a correct fitting of the rotary shaft seals, comply with the following precautions:
– before assembly, leave the seals in oil bath, for at least half an hour, using the same oil they should contain;
– carefully clean the shaft and make sure its working surface isn’t damaged;
– direct the seal edge to the fluid; in case of hydrodynamic edge, the stripes must be directed so that, considering
the shaft rotation direction, the fluid is brought back to the sealing means;
– lay a thin layer of lubricant on the seal edge (oil rather than grease) and fill with grease the gap between seal
edge and dust edge in case of double edge seals;
– fit the seal in the relevant housing pressing it or using a drift with flat contact surface; do not beat it with hammer
or drift;
– during driving, make sure the seal is perpendicular to its housing and, at the end of the driving, make sure it
touches the shoulder;
– to prevent damaging the seal edge against the shaft, lay a suitable protection during installation of both parts.
“O-RINGS”
Lubricate 0-rings before fitting them in their seats to prevent any rolling over and twisting, during assembly/installation,
thus jeopardizing their sealing action.
SEALANTS
Before laying the sealant on the mating surfaces, prepare them as follows:
– remove possible scales through a metal brush;
– thoroughly degrease the surfaces by one of the following cleansers: trichloroethylene, oil, or a solution of water and soda.
VIDEO PREVIEW OF THE MANUAL:

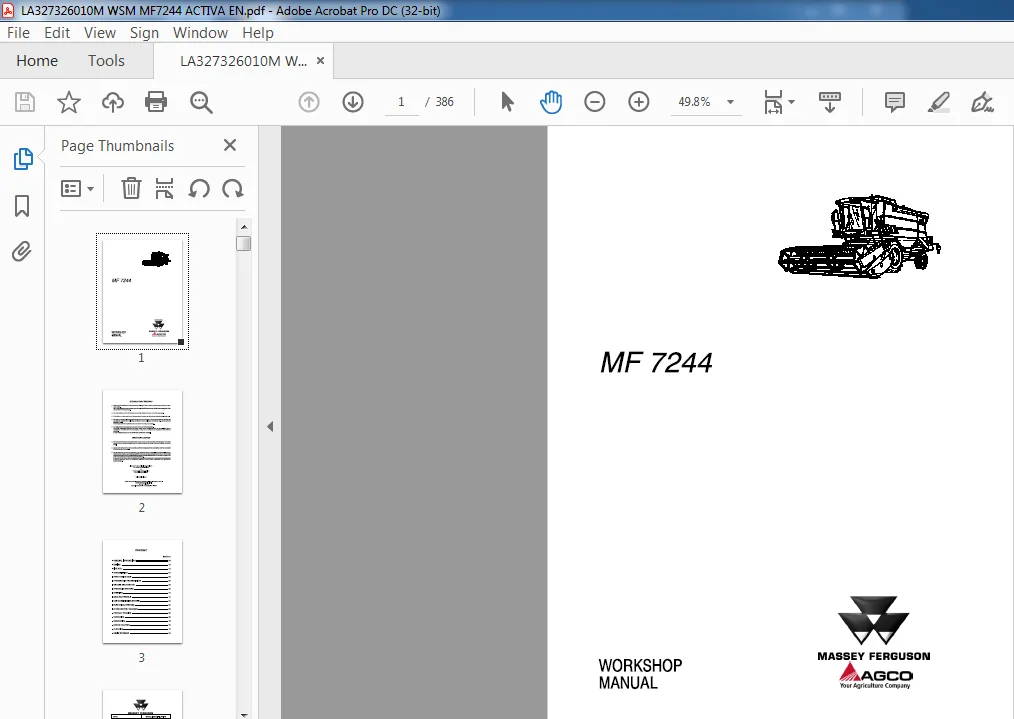

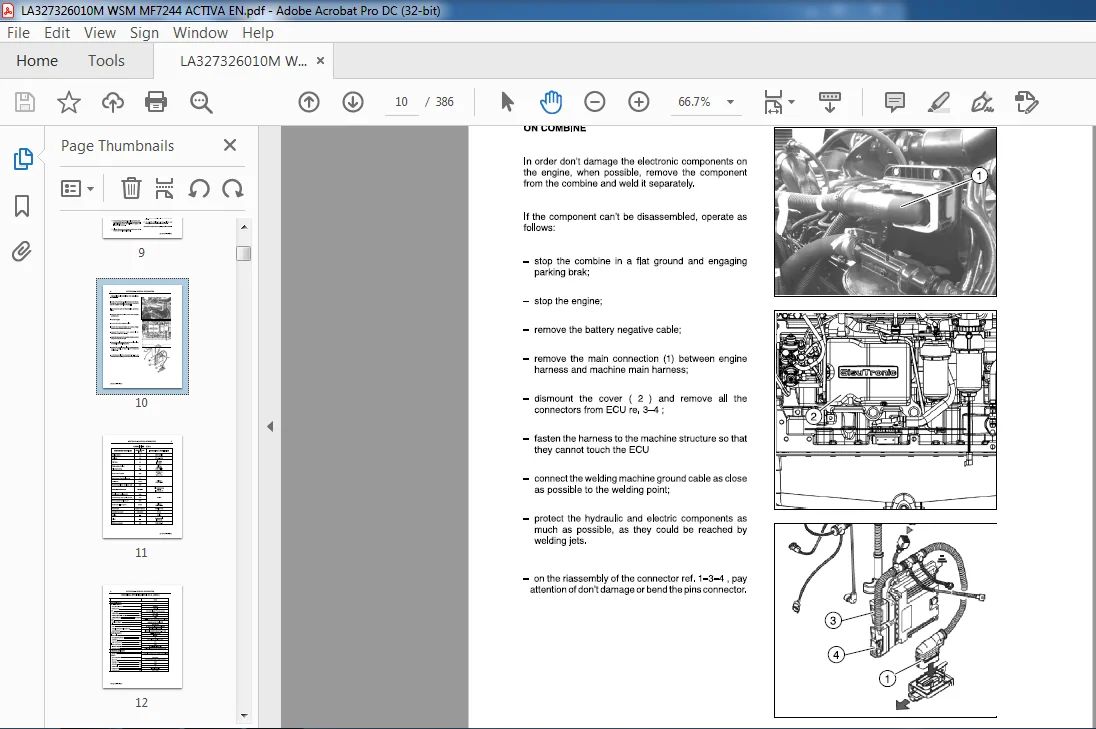

IMAGES PREVIEW OF THE MANUAL:

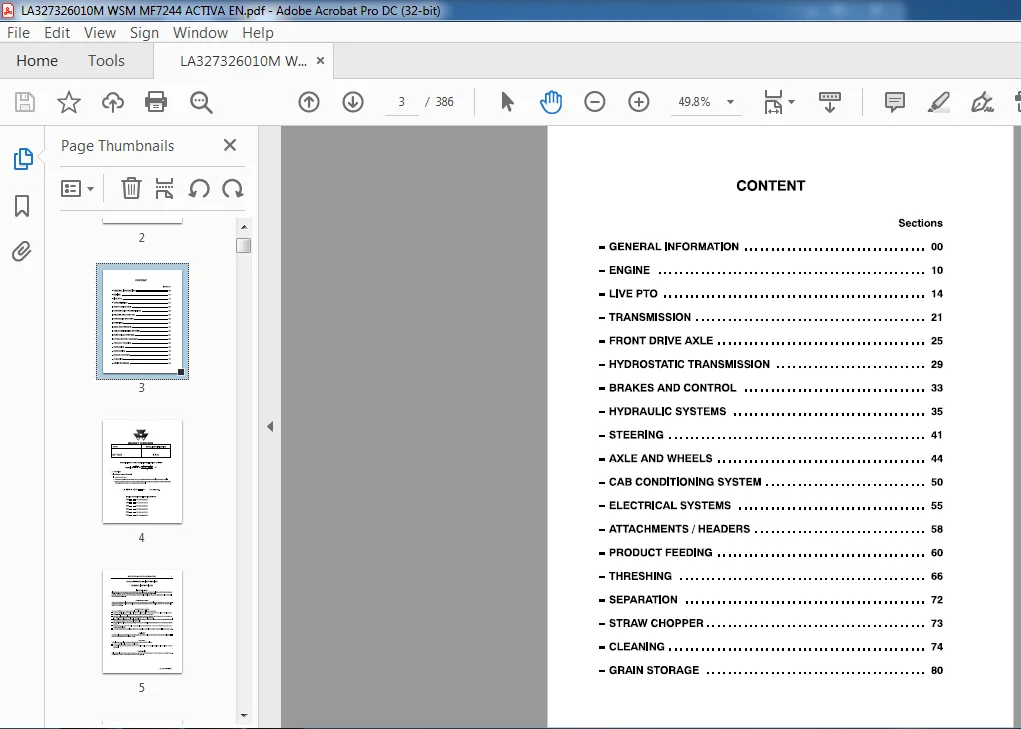

TABLE OF CONTENTS:
Massey Ferguson MF7244 Tractor Workshop Manual – PDF DOWNLOAD
GENERAL INFORMATION 00
– ENGINE 10
– LIVE PTO 14
– TRANSMISSION 21
– FRONT DRIVE AXLE 25
– HYDROSTATIC TRANSMISSION 29
– BRAKES AND CONTROL 33
– HYDRAULIC SYSTEMS 35
– STEERING 41
– AXLE AND WHEELS 44
– CAB CONDITIONING SYSTEM 50
– ELECTRICAL SYSTEMS 55
– ATTACHMENTS/ HEADERS 58
– PRODUCT FEEDING 60
– THRESHING 66
– SEPARATION 72
– STRAW CHOPPER 73
– CLEANING 7 4
– GRAIN STORAGE 80
