Massey Ferguson MF255 265 270 275 290 Shop Manual
FILE DETAILS:
Massey Ferguson MF255 265 270 275 290 Shop Manual
Language: English
Size: 32.6 MB
Pages: 109
Format: PDF
Downloadable: YES
DESCRIPTION:
Massey Ferguson MF255 265 270 275 290 Shop Manual
SAMPLE PAGES FROM THE MANUAL:
Recommended toe-in is 3,2 mm (1/8 inch) and is acyusted by turning right-hand tie rod end (E) into or out of tube (T), Tb remove the axle assembly, first remove hood, grille, side panels, battery, battery support, shield and grille frame. Remove snap ring (5) and pull the center steering shaft (11) down out of arm (2) and support (1). Be careful not to lose shims (6) or damage seal (9), Support axle and engine separately. Remove retaining clips, then remove retaining pin (14). Use a puller to withdraw pivot pin (16) out toward front.
- Fore and aft play of axle is adjusted by thickness of shims (15) and washer (19). Tb remove axle support (1), first remove radiator and power steering cylinder Remove mounting bolts, then lower support housing from tractor. Inspect all parts for wear or damage and renew if necessary. Ream new bushings after installation to provide desired operating clearance.
- To reinstall axle support and axle assembly, reverse the removal procedure. Tighten cap screws retaining axle support casting to 271 N-m (200 ft.-lbs.) torque. Add shims (15) as necessary to limit fore and aft play of axle to 0.08-0.25 mm (0,003-0.010 inch). Be sure shims are to the front and thrust washer (19) is to the rear. SPINDLES AND WHEEL HUBS All Models 2. It is recommended that front wheel bearings be cleaned, inspected and repacked with grease after every 500 hours of operation, or annually, whichever comes first. A good quality multipurpose lithium base grease is recommended for repacking bearings.

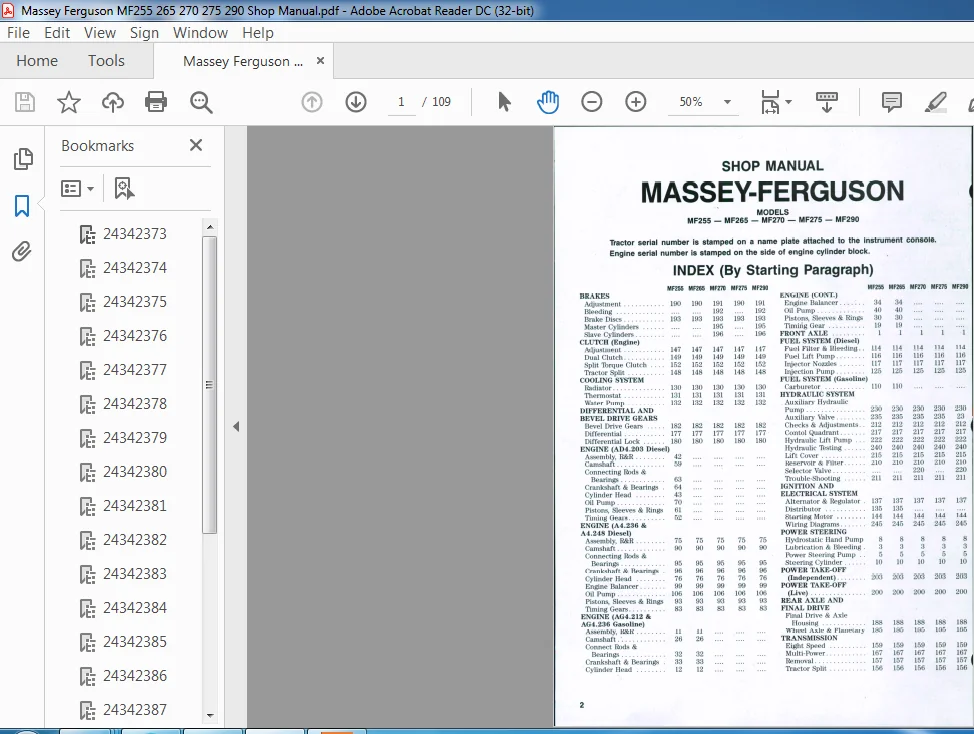

TABLE OF CONTENTS:
Massey Ferguson MF255 265 270 275 290 Shop Manual
BRAKES
Adjustment 190
Bleeding
Brake Discs 193
Master Cylinders
Slave Cylinders
CLUTCH (Engine)
Adjustment 147
Dual Clutch 149
Split Tbrque Clutch 152
Tractor Split 148
COOLING SYSTEM
Radiator 130
Thermostat 131
Water Pump 132
DIFFERENTIAL AND
BEVEL DRIVE GEARS
Bevel Drive Gears 182
Differential 177
Differential Lock 180
ENGINE (AD4.203 Diesel)
Assembly, R&R 42
Camshaft 59
Connecting Rods &
Bearings 63
Crankshaft & Bearings . 64
Cylinder Head 43
Oil Pump 70
Pistons, Sleeves & Rings 61
Timing Gears 52
ENGINE (A4.236 &
A4.248 Diesel)
Assembly, R&R 75
Camshaft 90
Connecting Rods &
Bearings 95
Crankshaft & Bearings . 96
Cylinder Head 76
Engine Balancer 99
Oil Pump 106
Pistons, Sleeves & Rings 93
Timing Gears 83
ENGINE (AG4.212 &
AG4.236 Gasoline)
Assembly, R&R 11
Camshaft.’ 26
Connect Rods &
Bearings 32
Crankshaft & Bearings . 33
Cylinder Head 12
ENGINE (CONT.)
Engine Balancer 34
Oil Pump 40
Pistons, Sleeves & Rings 30
Timing Gear 19
FRONT AXLE 1
FUEL SYSTEM (Diesel)
Fuel Filter & Bleeding 114
Fuel Lift Pump 116
Iryector Nozzles 117
Iryection Pump 125
FUEL SYSTEM (Gasoline)
Carburetor 110
HYDRAULIC SYSTEM
Auxiliary Hydraulic
Pump 230
Auxiliary Valve 235
Checks & Adjustments. . 212
Contol Quadrant 217
Hydraulic Lift Pump . . . 222
Hydraulic Testing 240
Lift Cover 215
Reservoir & Filter 210
Selector Valve
Trouble-Shooting 211
IGNITION AND
ELECTRICAL SYSTEM
Alternator & Regulator 137
Distributor 135
Starting Motor 144
Wiring Diagrams 245
POWER STEERING
Hydrostatic Hand Pump 8
Lubrication & Bleeding 3
Power Steering Pump 5
Steering Cylinder 10
POWER TAKE OFF
(Independent) 203
POWER TAKE OFF
(Live) 200
REAR AXLE AND
FINAL DRIVE
Final Drive & Axle
Housing 188
Wheel Axle & Planetary 185
TRANSMISSION
Eight Speed 159
Multi-Power 167
Removal 157
Tractor Split 156
VIDEO PREVIEW OF THE MANUAL:

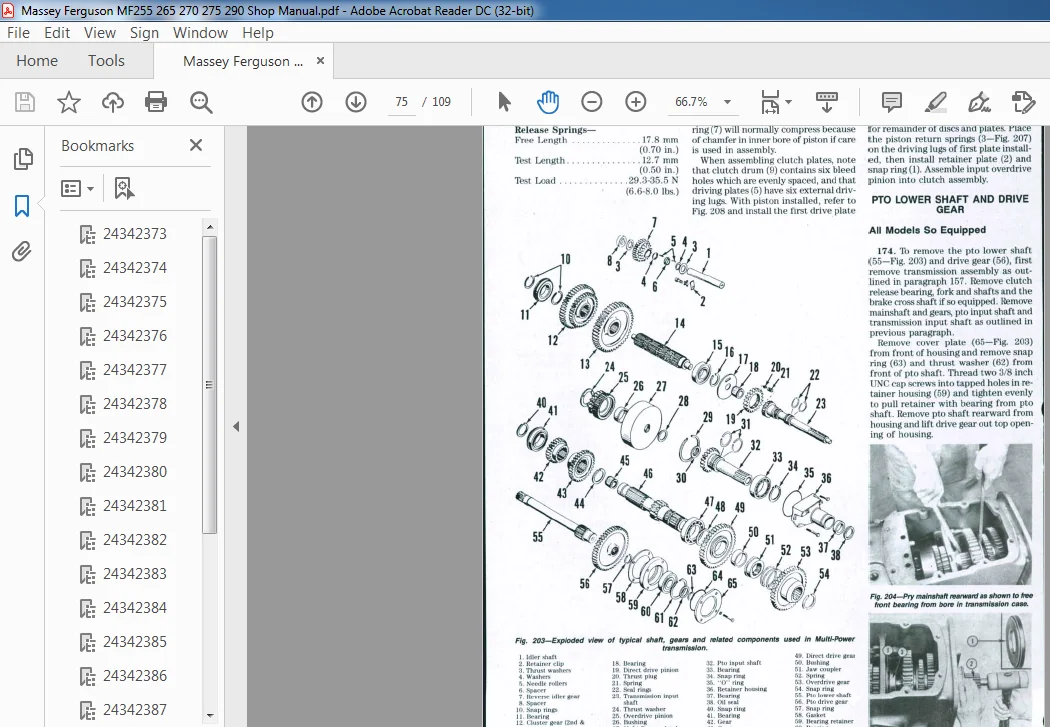

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
- The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
- Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
