Manitou 7600 SERIES 3 Stage Mast Parts Manual R393 – PDF DOWNLOAD
DESCRIPTION:
Manitou 7600 SERIES 3 Stage Mast Parts Manual R393 – PDF DOWNLOAD
GENERAL INFORMATION
The purpose of this catalog is to provide illustrations for identifying andorderingMast components/parts.
Because of themultitude of Mast Models and components utilized, the illustrations provide a general description
and therefore may not show the exact shape or detail of the components/parts represented.
TheMast parts are identified by an ItemNumber on the illustration or picture page. Find the ItemNumber
for the part desired, then locate that ItemNumber under the ”Items” column following the illustration. The Part
Numberwill be located directly to the right of the ItemNumber. Also provided is a partDescription,Quantity of
parts required and the mast Model number.
Most important when ordering parts, is providing the correct serial number as assigned to the mast at the
factory. Keep accurate records of all modifications or improvementsmade to the mast aftermanufacture. (All
Mast modifications must be authorized byK–DManitou.) Notify the PartsDept. of any changes thatmay affect
your parts order.

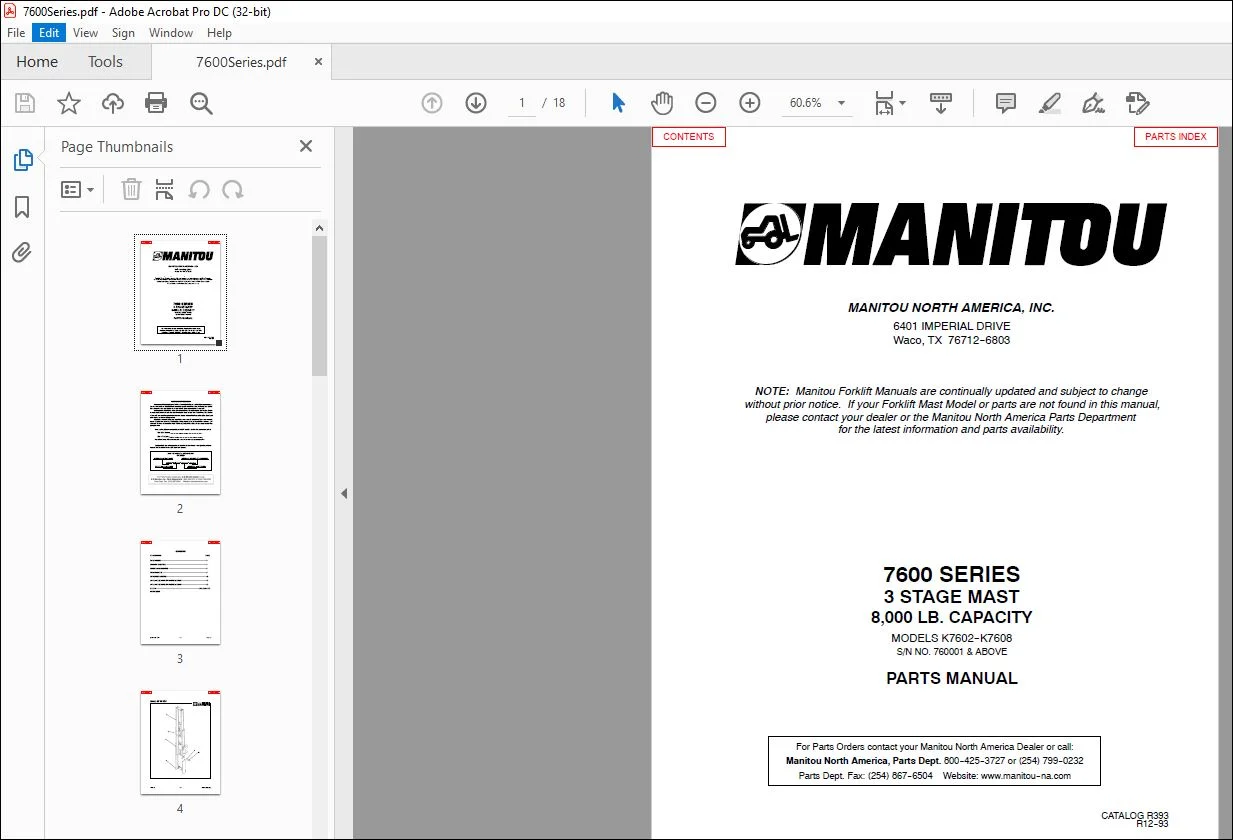

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Manitou 7600 SERIES 3 Stage Mast Parts Manual R393 – PDF DOWNLOAD
RAIL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PRIMARY CYLINDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SECONDARY CYLINDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CHAIN SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
HYDRAULIC SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
CARRIAGE, MODELS K7691, K7696 & K7697 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
CARRIAGE, MODELS K7690, K7698 & K7699 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
DECALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SUPPLEMENT
PARTS INDEX
