LIEBHERR LTM 11200-9.1 Load chart Manual 073409 T3 T3Y (V..) – PDF DOWNLOAD
1. Explanations
1.1 The load capacity values in the tables are stated in metric tons [t].
1.2 The working radius is the horizontal gravity center distance of the load from
the rotational axis of the crane superstructure measured at the ground. The
radius stated is valid under load conditions, i.e. including boom flexure.
1.3 Boom positions differing from those given in the load capacity tables are not
permissible.
1.4 The boom may only be manoeuvred into those areas specified in the load
chart, even if no load is suspended, otherwise there is a risk of the crane
toppling.
1.5 The stated load capacities contain the weights of the load bearing, lifting and
slinging tackle. The possible weight for the load to be lifted is therefore
reduced according to the weights of the afore-mentioned tackle.
1.6 Additional information and limitations are specified in the operating mode
symbol for select operating modes. See „Limitation descriptions for operating
modes“ on page 86.
TABLE OF CONTENTS:
LIEBHERR LTM 11200-9.1 Load chart Manual 073409 T3 T3Y (V..) – PDF DOWNLOAD

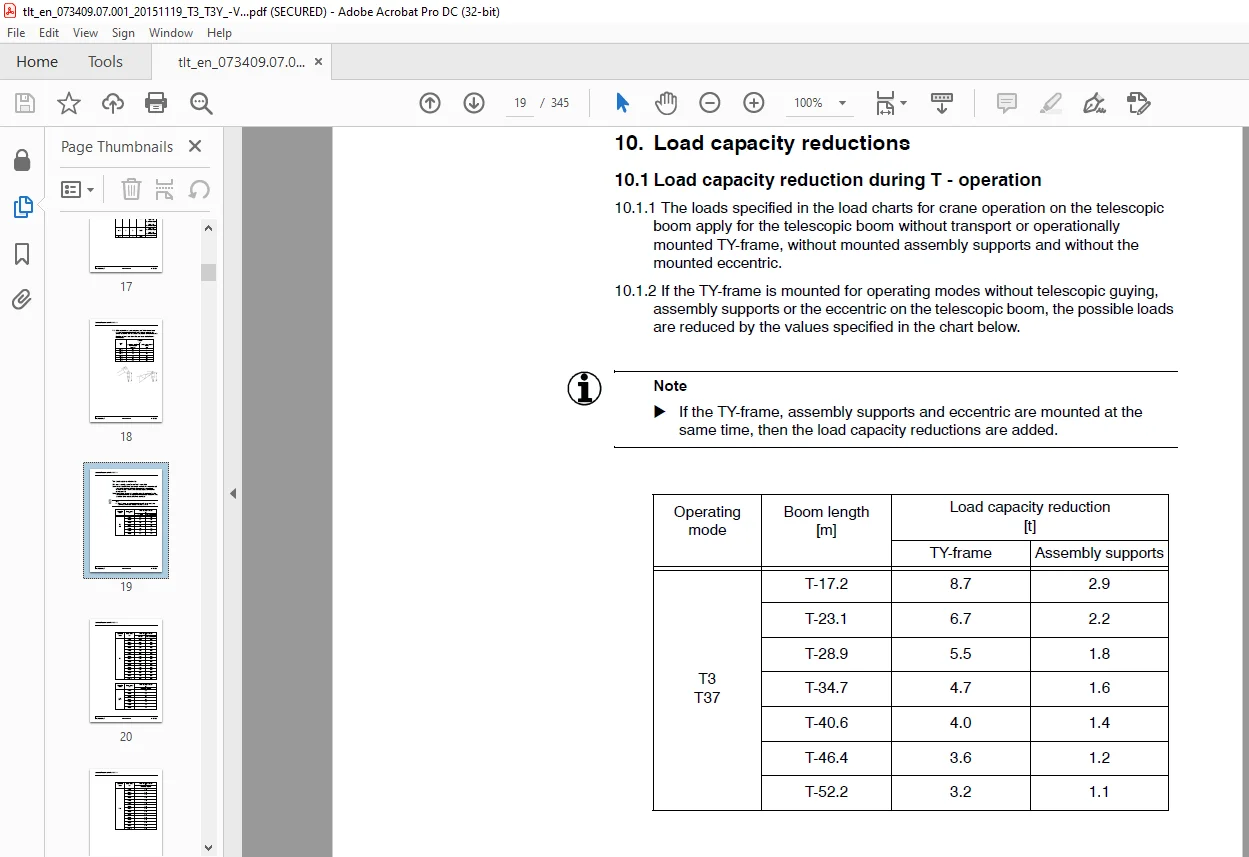

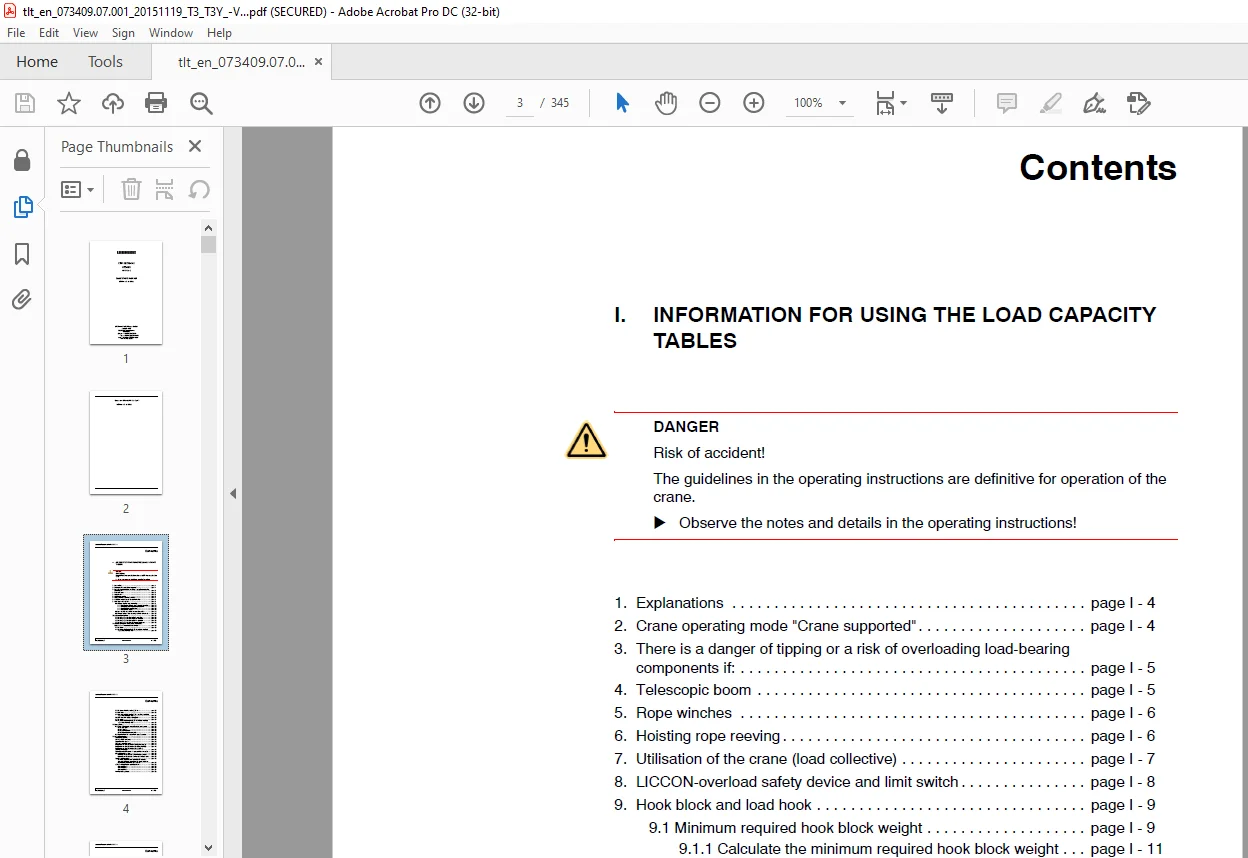

I. INFORMATION FOR USING THE LOAD CAPACITY TABLES................................................................................................................... 3 II. LOAD CAPACITY TABLES............................................................................................................................................ 5 1. Explanations..................................................................................................................................................... 6 2. Crane operating mode "Crane supported"........................................................................................................................... 6 3. There is a danger of tipping or a risk of overloading load-bearing components if:................................................................................ 7 4. Telescopic boom.................................................................................................................................................. 7 5. Rope winches..................................................................................................................................................... 8 6. Hoisting rope reeving............................................................................................................................................ 8 7. Utilisation of the crane (load collective)....................................................................................................................... 9 8. LICCON-overload safety device and limit switch................................................................................................................... 10 9. Hook block and load hook......................................................................................................................................... 11 9.1 Minimum required hook block weight.......................................................................................................................... 11 9.1.1 Calculate the minimum required hook block weight...................................................................................................... 13 9.1.2 Establishing rope weight for rope diameter............................................................................................................ 13 9.1.3 Establishing the reeving factor....................................................................................................................... 14 9.1.4 Calculation examples.................................................................................................................................. 15 9.2 Load capacity, rope pulleys and operating weight............................................................................................................ 16 9.3 Distance between hook and pulley set in the boom head....................................................................................................... 18 10. Load capacity reductions........................................................................................................................................ 19 10.1 Load capacity reduction during T - operation............................................................................................................... 19 10.2 Load capacity reduction during TN - operation.............................................................................................................. 24 10.3 Load capacity reduction during TF - operation.............................................................................................................. 37 10.4 Load capacity reduction with mounted boom nose............................................................................................................. 61 11. Maximum permissible slewing speed of the crane's superstructure with suspended nominal load..................................................................... 62 11.1 T3-boom.................................................................................................................................................... 62 11.2 T3-boom with fixed lattice fly jib (F) or with hydraulically adjustable lattice fly jib (NZF).............................................................. 63 11.3 T3-boom with luffing lattice fly jib (N)................................................................................................................... 64 11.4 T37-boom................................................................................................................................................... 65 11.5 T37-boom with fixed lattice fly jib (F) or with hydraulically adjustable lattice fly jib (NZF)............................................................. 66 11.6 T37-boom with luffing lattice fly jib (N).................................................................................................................. 67 11.7 T7-boom.................................................................................................................................................... 68 11.8 T7-boom with fixed lattice fly jib (F) or with hydraulically adjustable lattice fly jib (NZF).............................................................. 69 12. Boom system..................................................................................................................................................... 70 12.1 Abbreviations for the assemblies of the boom system........................................................................................................ 70 12.1.1 Main boom............................................................................................................................................ 70 12.1.2 Y-Guying............................................................................................................................................. 70 12.1.3 Additional boom...................................................................................................................................... 70 12.1.4 Telescopic boom extension............................................................................................................................ 70 12.2 Combination of the assemblies to operating modes........................................................................................................... 71 13. Explanation of symbols.......................................................................................................................................... 72 Hoisting rope reeving........................................................................................................................................... 72 Load capacity in metric tons.................................................................................................................................... 72 Operating mode symbol........................................................................................................................................... 72 Main boom operating modes....................................................................................................................................... 73 Additional boom operating modes with fixed lattice fly jib...................................................................................................... 76 Additional boom operating modes with luffing lattice fly jib.................................................................................................... 78 Additional boom operating modes with hydraulically adjustable lattice fly jib................................................................................... 81 Operating mode that can only be operated with accessories!...................................................................................................... 84 Assembly operating modes........................................................................................................................................ 85 Assembly and disassembly of the telescope extension......................................................................................................... 85 Assembly and disassembly of telescope sections 2 and 3...................................................................................................... 85 Special operating modes......................................................................................................................................... 86 Operating modes for crane operation with expansive area of the hoist load exposed to wind. For example, for the lifting of rotors for wind power plants..... 86 Limitation descriptions for operating modes..................................................................................................................... 88 Characteristics: 1)......................................................................................................................................... 88 Characteristics: 2)......................................................................................................................................... 88 Characteristics: 3)......................................................................................................................................... 89 Working radius symbols.......................................................................................................................................... 90 Telescopic boom length.......................................................................................................................................... 91 Short code...................................................................................................................................................... 91 Hoisting rope reeving........................................................................................................................................... 91 Main boom angle................................................................................................................................................. 92 Extension positions of the telescopic sections.................................................................................................................. 92 Counterweight................................................................................................................................................... 92 Slewing range................................................................................................................................................... 92 Crane operation "Crane supported"............................................................................................................................... 93 Permissible wind speed.......................................................................................................................................... 93 14. Wind influences during crane operation.......................................................................................................................... 94 14.1 Definition of terms........................................................................................................................................ 94 14.2 Wind influence on the LICCON-overload safety device........................................................................................................ 96 14.2.1 Wind from the rear................................................................................................................................... 96 14.2.2 Wind from the front.................................................................................................................................. 96 14.2.3 Wind from the side................................................................................................................................... 96 14.3 Permissible wind speed and surface susceptibility to wind.................................................................................................. 97 14.3.1 Establishing the maximum permissible wind speed...................................................................................................... 99 14.3.2 Calculating the maximum permissible wind speed using a formula....................................................................................... 99 14.3.3 Establishing the maximum permissible wind speed by way of wind force diagrams........................................................................101 14.3.4 Wind force diagrams..................................................................................................................................103 [...] [...] ........................................................................................................................................................111 T3 --........................................................................................................................................................114 T3 V6m.......................................................................................................................................................186 T3 V2V10+6m..................................................................................................................................................252 T3YAY20° --..................................................................................................................................................306 T3YAY20° V6m.................................................................................................................................................326 T3YEY20° V2 V2VE10+6m.......................................................................................................................................339 T3YAY20° 0° --..............................................................................................................................................341 T3YA1200t * --).............................................................................................................................................344
