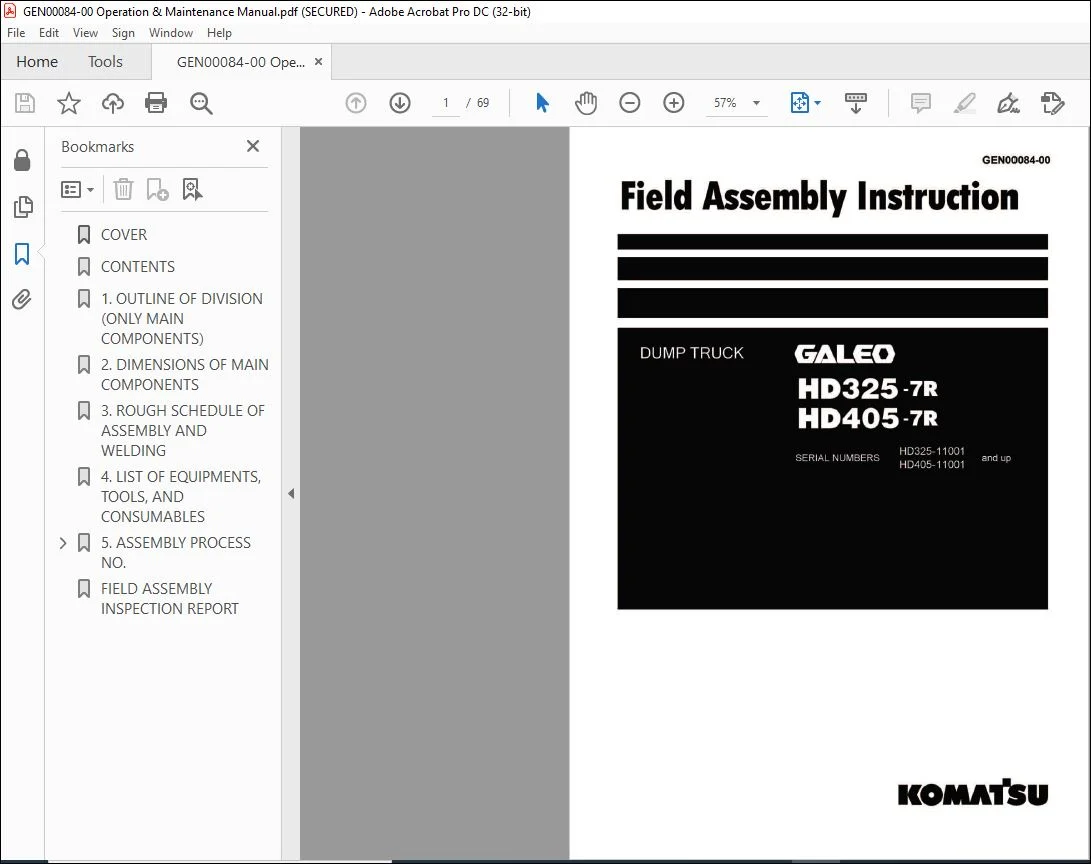

Komatsu Galeo HD325-7R HD405-7R Dump Truck Field Assembly Manual GEN00084-00 – PDF DOWNLOAD
FILE DETAILS:
Komatsu Galeo HD325-7R HD405-7R Dump Truck Field Assembly Manual GEN00084-00 – PDF DOWNLOAD
Language : English
Pages : 69
Downloadable : Yes
File Type : PDF
Size: 6.15 MB
IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Komatsu Galeo HD325-7R HD405-7R Dump Truck Field Assembly Manual GEN00084-00 – PDF DOWNLOAD
HD325-11001 and up
HD405-11001 and up
1 Outline of division (Only main components) 1
2 Dimensions of main components 2

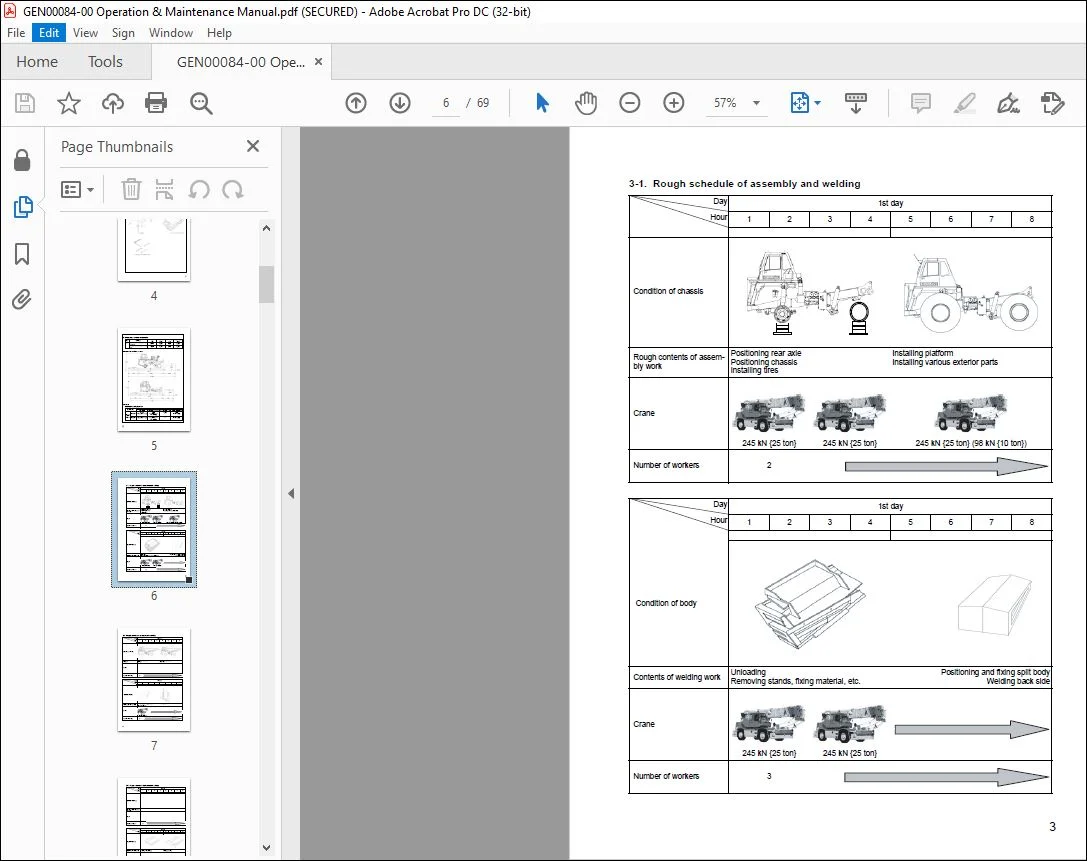

3 Rough schedule of assembly and welding 3
4 List of equipments, tools, and consumables 6
5 Assembly process No 10
0010 Oil, grease, and coolant 10
0020 Levels of oil, grease, and coolant 11
0030 Slinging bare machine 12
0040 Positioning bare machine 13
0045 Assembly of tire and wheel assembly 14
0050 Installing tire and wheel assembly 15
0060 Installing rear tire valve extension 16
0065 Installing rear monitor 17
0080 Installing L H platform 18
0090 Installing L H handrail 19
0100 Installing radio antenna and fixing its cable 20
0110 Installing side view mirrors 21
0120 Installing under view mirrors (For general overseas countries) 22
0121 Installing under view mirrors (For EU) 23
0140 Installing left side mudguard 24
0150 Installing right side mudguard 25
0160 Preparation of installing body 26
0170 Welding body 27
0180 Installing 150-mm body spill guard (If equipped) 28

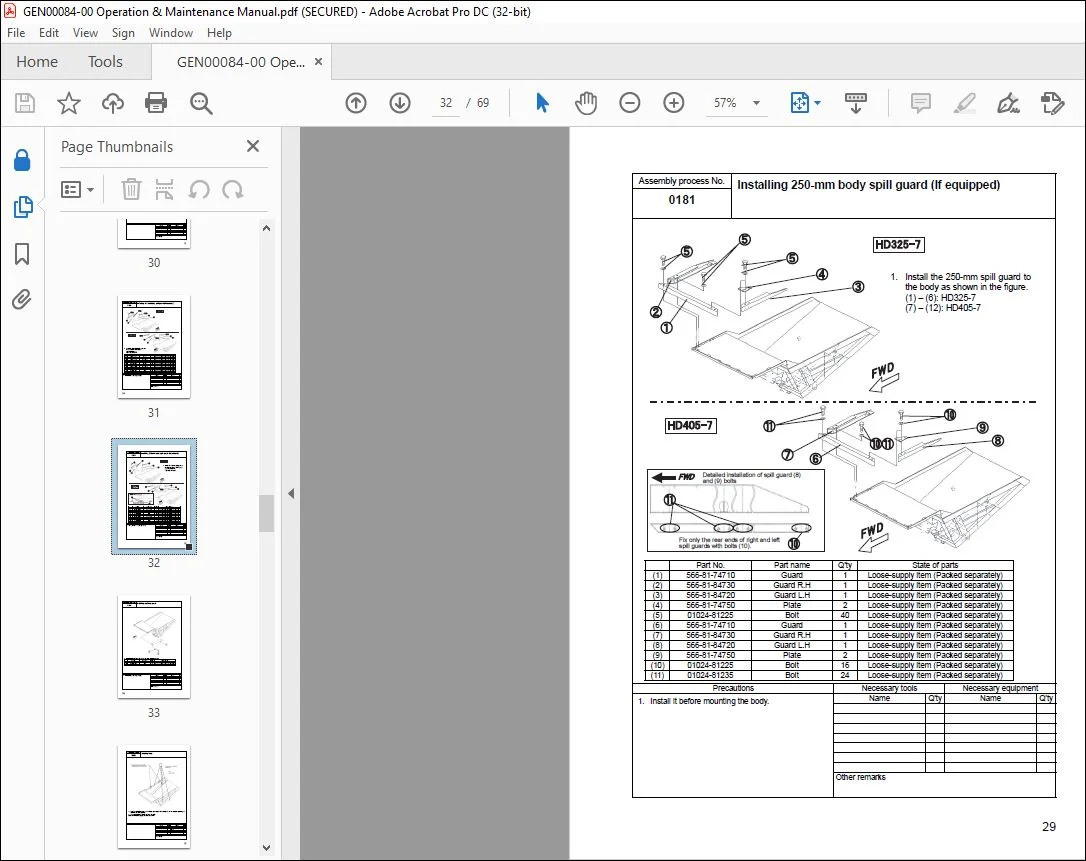

0181 Installing 250-mm body spill guard (If equipped) 29
0191 Installing platform guard 30
0200 Slinging body 31
0210 Installing body hinge pin 32
0220 Installing hoist cylinder 33
0230 Installing body shim 34
0240 Adjusting body shims 35
0250 Installing muffler flange 36
0260 Installing body accessories 37
0270 Connecting dump sensor 38
0280 Procedure for adjusting dump sensor 39
0290 Calibrating dump control 40
0300 Greasing 41
0310 Touching up 42
0320 Adjusting suspension 43
0330 Sticking body decal 44
0340 Adjustment of view range in mirror (For EU) 45
0341 Adjustment of view range in mirror (For general overseas countries) 46
0350 Check and addition of lubricants (1/2) 47
0360 Check and addition of lubricants (2/2) 48
C-0010 Preparation of welding body 49
C-0020 Assembly of split body 50
C-0030 Tack welding body 51
C-0040 Welding body 52
C-0050 Welding body instruction (1/2) 53
C-0060 Welding body instruction (2/2) 54
C-0070 Turn over the body 55
C-0080 Welding body protector (1/2) 56
C-0090 Welding body protector (2/2) 57
C-0100 Finishing and painting welded parts of body 58
Appendix
Field assembly inspection report
