Kobelco SK100 III Hydraulic Excavator Service Manual – PDF DOWNLOAD
DESCRIPTION:
Kobelco SK100 III Hydraulic Excavator Service Manual – PDF DOWNLOAD
The GENERAL Section deals with general specifications. operation and troubleshooting. etc. Further details regarding Systems, Components anti Procedure may be found in each respective section.
- The SYSTEMS Sutton includes descriptions specific to the mechanism of each system. each system’s relation to other systems. and procedures for repair. maintenance. removal and installation.
- In the COMPONENTS Section is information concerning the construction, functions, assemhly and assembly of this model. Maintenance standards for each component are also entered in detail.
- The PROCEDURE Section contains instructions regarding the installation of optimal parts and subsequent necessary modifications.’
When checking or repairing the machine we suggest that you refer to this manual carefully. We hope that reference to this manual will help to maintain it high level of working efficiency and reliability. For further dctafls on maintenance and checks refer to the “OPERATORS MANUAL” which has been supplied with the machine.
- Although all data was correct at the time of printing. due to continual design changes and improvements. some content: may not conform to the actual machine. Take special care to order parts only after confirming the validity of the parts number in the “PARTS MANUAL.”
- If you notice any explanatory discrepanCies. after consulting one of our representatives. please update your manual according to the latest data. However. in the event of any specification changes. we will issue revised edition.
TABLE OF CONTENTS:
Kobelco SK100 III Hydraulic Excavator Service Manual – PDF DOWNLOAD
*GENERAL
YW01. SPECIFICATION
OPERATION AND CONTROLS
УWОЗ. LOCA TION AND WEIGHT OF COMPONENТS
YW04. MAINTENANCE STANDARD AND
TEST PROCEDURE
YWO5. TROUBLE SHOOTING
PREVENTIVE MAINTENANCE
(Refer to Operators Manual)
YW07. WORKING STANDARD
*SYSTEMS
YW11. DRIVE SYSТEM
YW12. HYDRAULIC SYSTEM
YW15. SWING SYSTEM
YW18. TRAVEL SYSTEM
YW21. АТТАСНМЕNТS
YW22. CONTROL SYSTEM
YW23. UPPER FRAМE
YW2S. ELECТRICAL SYSTEM
УW2б. AIR-CONDITIONER SYSTEM
YW50. ENGINE
*COMPONENТS
12. HYDRAULIC PUMP
13. CONTROL VALVE
14. OTHER VALVES
15. HYDRAULIC MOTOR
16. SWIVEL JOINT
17. HYDRAULIC CYLINDER
21. REDUCТION UNIT
*PROCEDURE
VIDEO PREVIEW OF THE MANUAL:

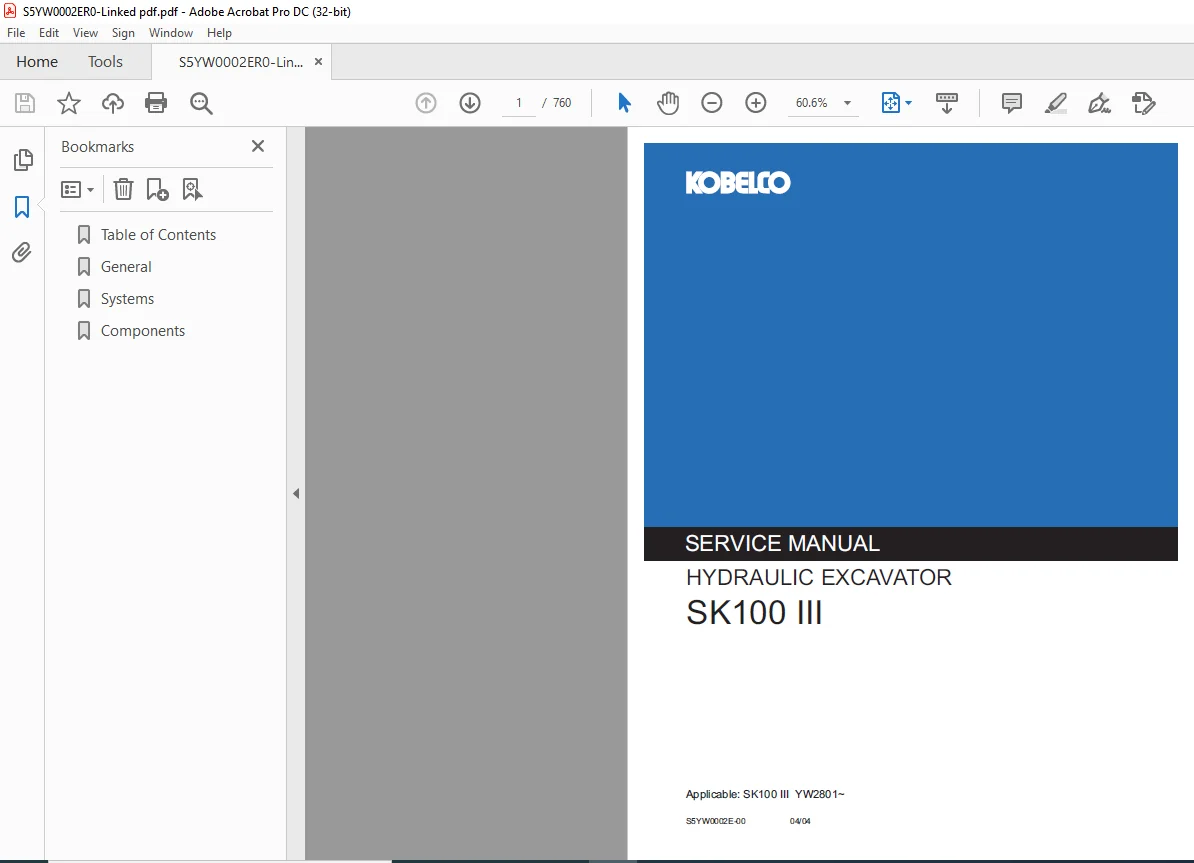

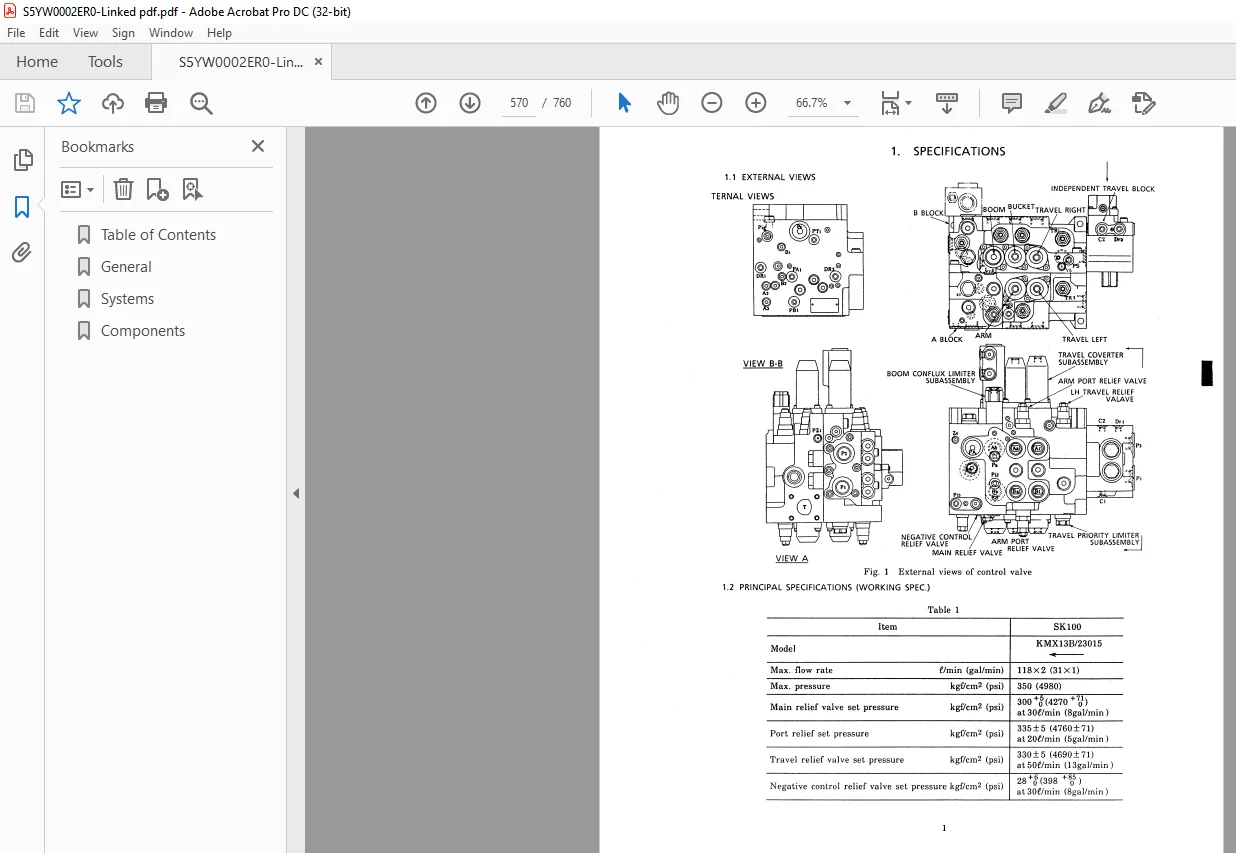

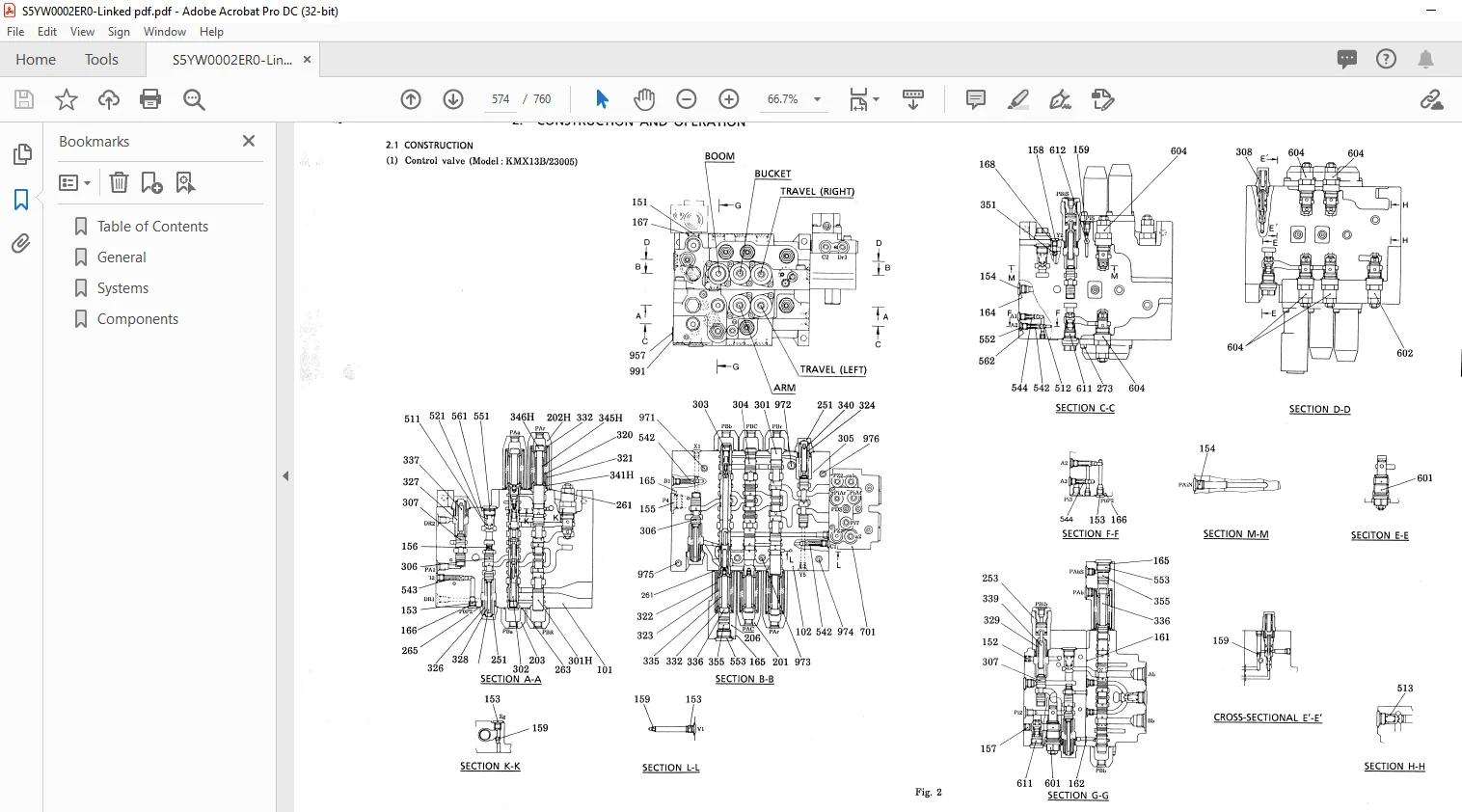

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
- Require some other service manual or have any queries: please WRITE to us at [email protected]
