Kawasaki Wheel Loader EX1900 6 Service Manuals & Operational & Parts Manual
File Details:
Kawasaki Wheel Loader EX1900 6 Service Manuals & Operational & Parts Manual
Language : English
Pages : 500+
Size : 33.9 MB
Downloadable : Yes
Format : PDF
Video Preview:

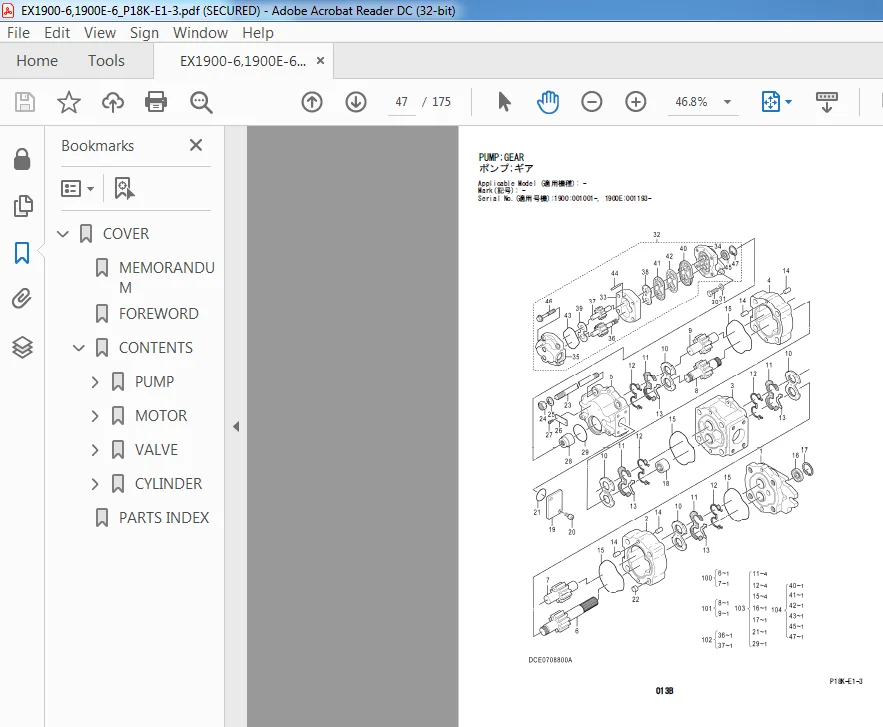

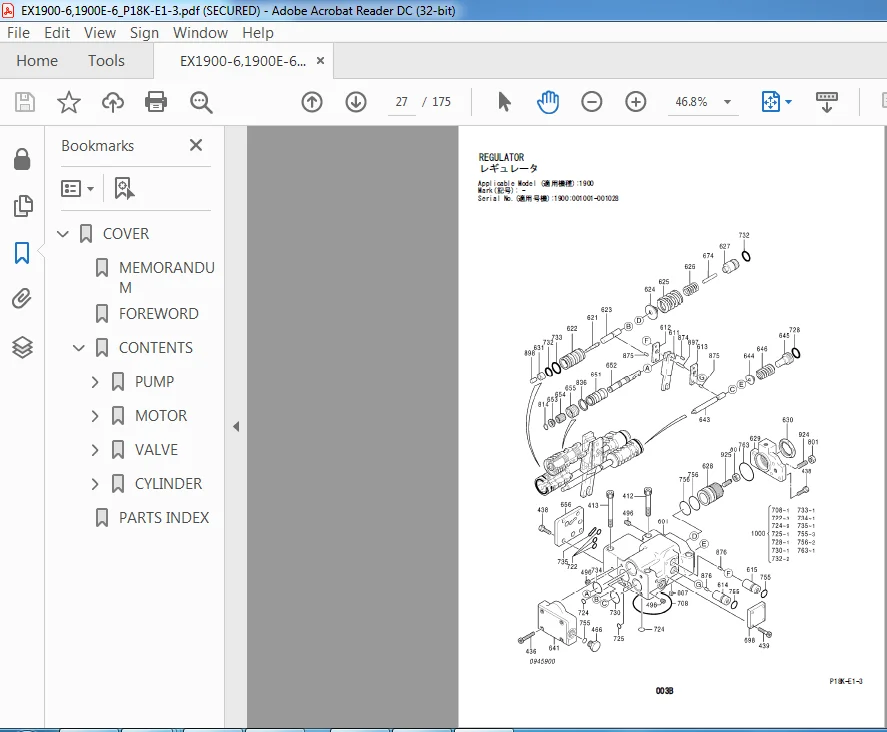

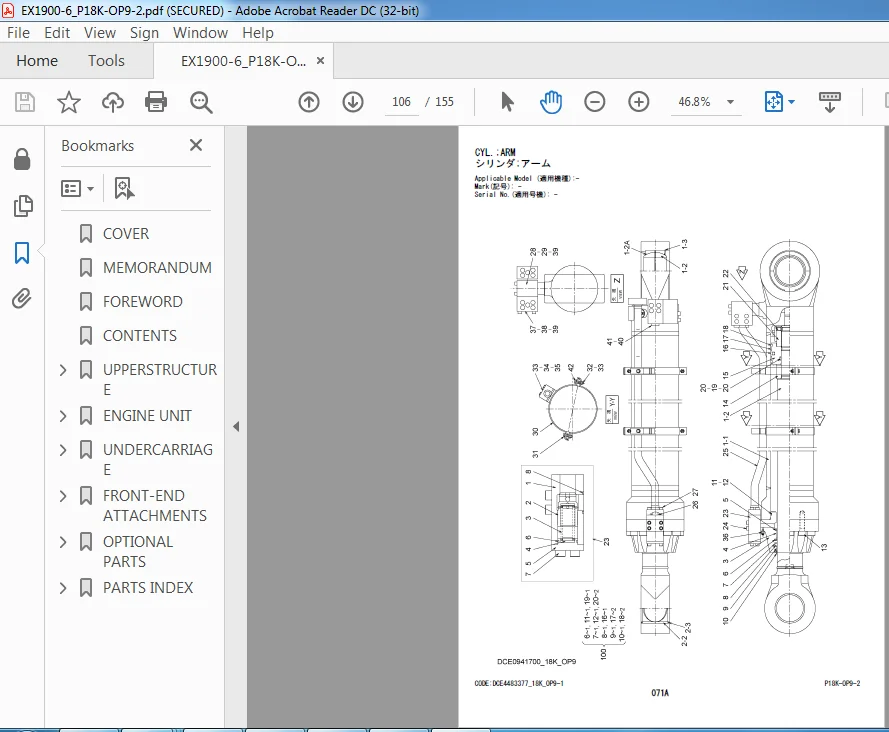

Image Preview:
Table of Contents:
Kawasaki Wheel Loader EX1900 6 Service Manuals & Operational & Parts Manual
SECTION 1 GENERAL
Group 1 Precautions for Disassembling and
Assembling
Group 2 Tightening
Group 3 Painting
Group 4 Bleeding Air from Hydraulic
Oil Tank
SECTION 2 UPPERSTRUCTURE
Group 1 Cab
Group 2 Counterweight
Group 3 Pump Device
Group 4 Control Valve
Group 5 Swing Device
Group 6 DQR Valve
Group 7 Shuttle Valve
Group 8 EHC Valve
Group 9 Oil Cooler Fan Motor
Group 10 Compressor Drive Motor
Group 11 Air Conditioner
Group 12 Grease Pump
SECTION 3 UNDERCARRIAGE
Group 1 Swing Bearing
Group 2 Travel Device
Group 3 Travel Brake Valve
Group 4 Center Joint
Group 5 Adjuster Cylinder
Group 6 Front Idler
Group 7 Upper and Lower Rollers
Group 8 Track
Group 9 Accumulator
Group 10 Welding Repair Procedure
SECTION 4 FRONT ATTACHMENT
Group 1 Front Attachment
Group 2 Cylinder
Group 3 Bushing and Point
Description:
Kawasaki Wheel Loader EX1900 6 Service Manuals & Operational & Parts Manual
- Read this manual carefully to learn how to operate and service your machine correctly. Failure to do so could result in personal injury and/or machine damage. This standard specification machine can be operated under the following conditions without being modified. Atmospheric Temperature: -20 °C to 50 °C (-4 °F to 122 °F) Altitude: 0 m to 2000 m (0 ft to 6600 ft) In case the machine is used under conditions other than described above, contact your authorized dealer. This manual should be considered a permanent part of your machine and should remain with the machine when you sell it. This machine is of metric design. Measurements in this manual are metric.
- Use only metric hardware and tools as specified. • SI Units (International System of Units) are used in this manual. For reference MKS system units and English units are also indicated in parentheses after the SI units. Example : 24.5 MPa (250 kgf/cm², 3550 psi) Right-hand and left-hand sides are determined by facing in the direction of forward travel. Write product identification numbers in the Machine Numbers section. Accurately record all the numbers to help in tracing the machine should it be stolen.
- Your dealer also needs these numbers when you order parts. If this manual is kept on the machine, also file the identification numbers in a secure place off the machine. Use only diesel fuel with quality specified in JIS K-2204, EN-590 or ASTM D-975 which contents 15 ppm or lower sulfur.
- Also use fuel that complies with solid contamination level of class 18/16/13 of ISO4406-1999 (solid contamination includes dust). If the fuel specified above is not used, exhaust gas that exceeds the regulation values may be discharged, causing serious problem on the engine. Contact your authorized dealer. Warranty is provided as a part of Hitachi’s support program for customers who operate and maintain their equipment as described in this manual.
- The warranty is explained on the warranty certificate which you should have received from your dealer. All information, illustrations and specifications in this manual are based on the latest product information available at the time of publication. The right is reserved to make changes at any time without notice. This warranty provides you the assurance that Hitachi will back its products when defects occur within the warranty period.
- In some circumstances, Hitachi also provides field improvements, often without charge to the customer, even if the product is out of warranty. Should the equipment be abused or modified to change its performance beyond the original factory specifications, the warranty will become void and field improvements may be denied. Setting fuel delivery above specifications or otherwise overpowering machines will result in such action. Moreover, when replacement parts are required, be sure to use genuine Hitachi parts. Failure to do so may result in voiding the warranty and/or denial of field improvements. The Yellow Pages in this operator’s manual contain IMPORTANT SAFETY INFORMATION.
- Read these pages thoroughly and familiarize yourself with the safety standards and recommendations set forth in these yellow pages of the manual. Follow all safety instructions prior to and while operating the excavator. Only qualified, experienced operators officially licensed (according to local law) should be allowed to operate the machine. Moreover, only officially licensed personnel should be allowed to inspect and service the machine.
- Prior to operating this machine, including communication system, in a country other than a country of its intended use, it may be necessary to make modifications to it so that it complies with the local regulatory standards (including safety standards) and legal requirements of that particular country. Please do not export or operate this machine outside of the country of its intended use until such compliance has been confirmed. Please contact Hitachi Construction Machinery Co., Ltd. or any of our authorized distributor or dealer if you have any questions concerning compliance.
