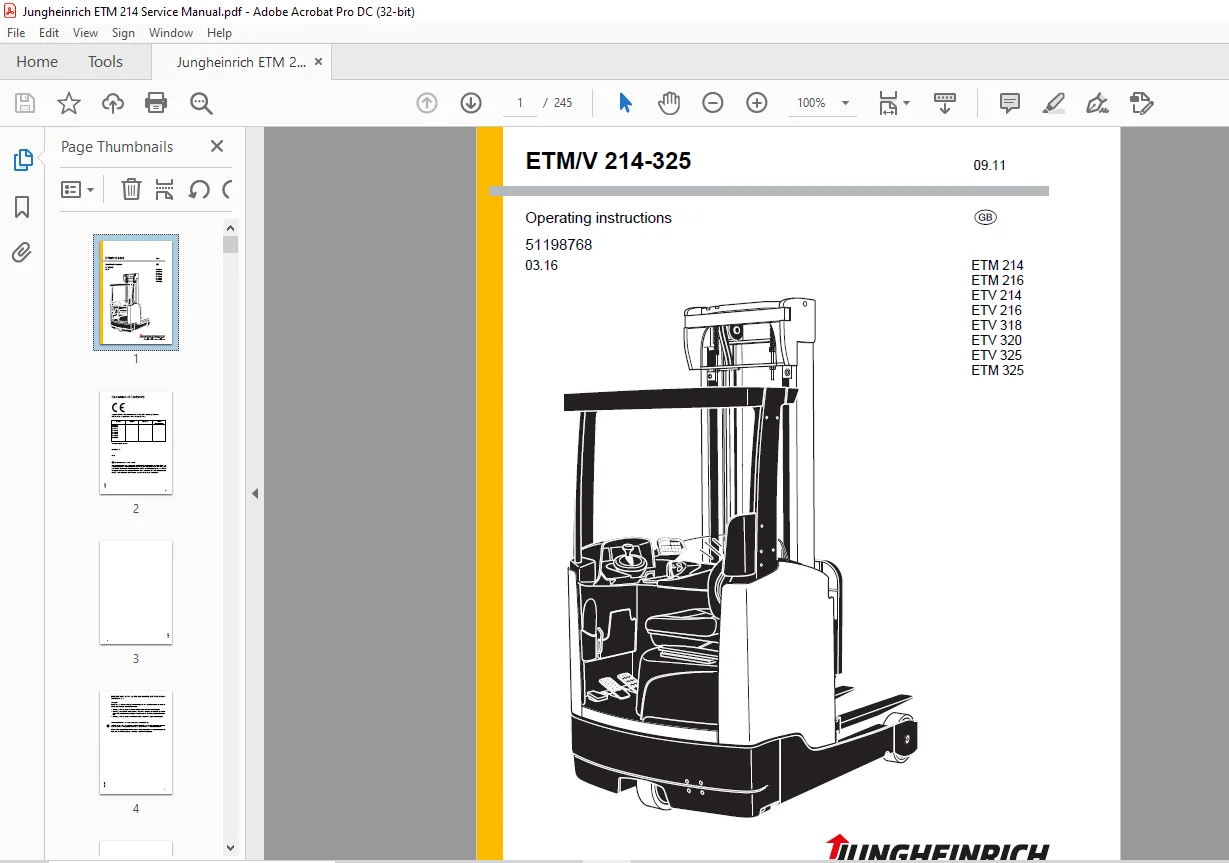

ETM/V 214-325
Important notes on transporting and mounting load lifting devices
to reach trucks
Transport
Depending on the overall height of the lifting mast and the local conditions transport
can be performed in three different ways
– Standing, with the lifting mast mounted (for trucks with low overall height)
– Standing, with martially mounted lifting mast tilted towards the overhead guard (for
trucks with medium overall height). Hydraulic line for the lifting function is interrupted.
– Standing, with the lifting mast dismounted (for trucks with large overall height)
- The present ORIGINAL OPERATING INSTRUCTIONS are designed to provide sufficient instruction for the safe operation of the industrial truck.
- The information is provided clearly and concisely. The chapters are arranged by letter and the pages are numbered continuously.
- The operator manual details different industrial truck models. When operating and servicing the industrial truck, make sure that the particular section applies to your truck model.
- Our trucks are subject to ongoing development. We reserve the right to alter the design, equipment and technical features of the system.
- No guarantee of particular features of the truck should therefore be assumed from the present operating instructions.
IMAGES PREVIEW OF THE MANUAL:

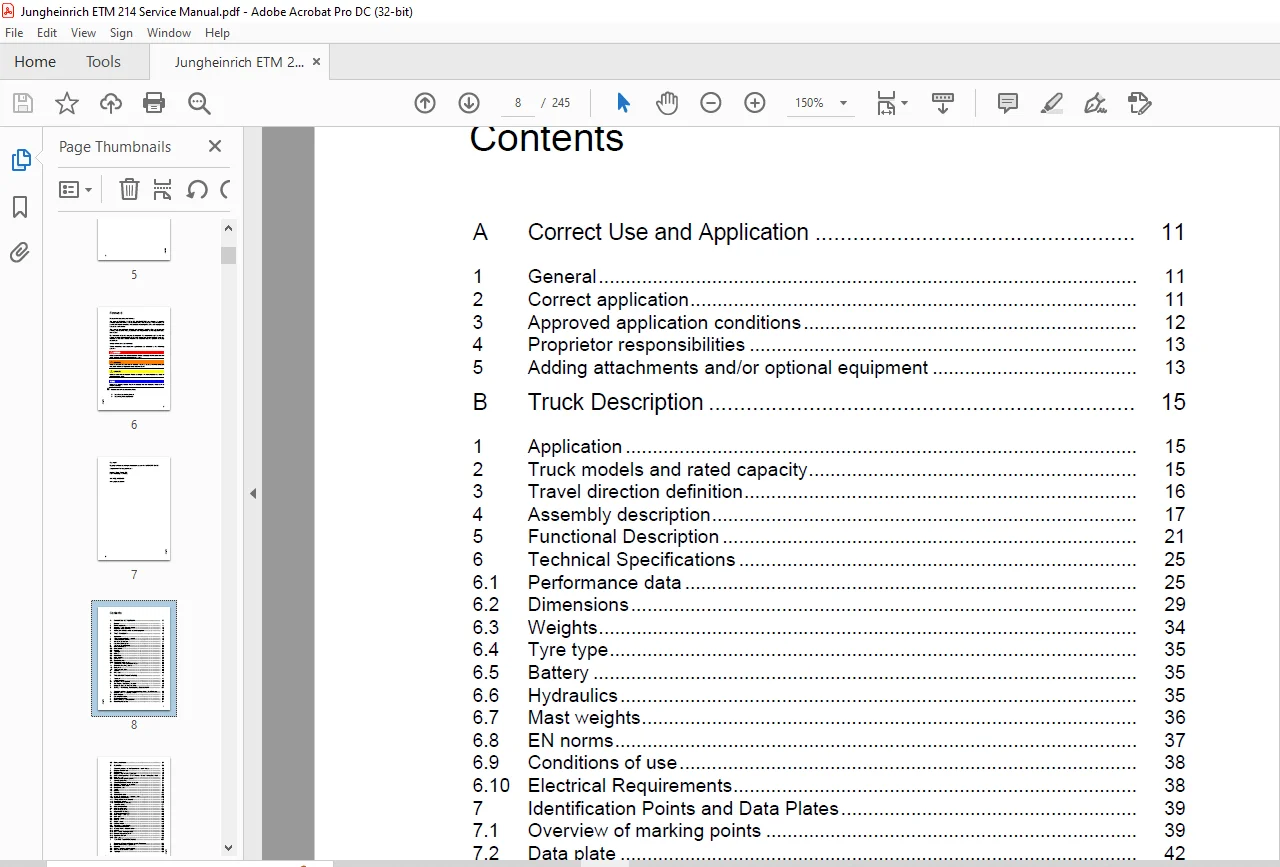

TABLE OF CONTENTS:
Jungheinrich ETM 214 ETM 216 ETV 214 ETV 216 ETV 318 ETV 320 ETV 325 ETM 325 Operating instructions Manual – PDF DOWNLOAD
Correct Use and Application
General
Correct application
Approved application conditions Proprietor responsibilities
Adding attachments and/or optional equipment
Truck Description
Application
Truck models and rated capacity
Travel direction definition
Assembly description
Mast weights
EN norms
Conditions of use
6 10 Electrical Requirements
Identification Points and Data Plates
Overview of marking points
7 2 Data plate
7 3 Truck capacity plate
Stability
8 1 Wind loads
Transport and Commissioning
Transport
Lifting by crane

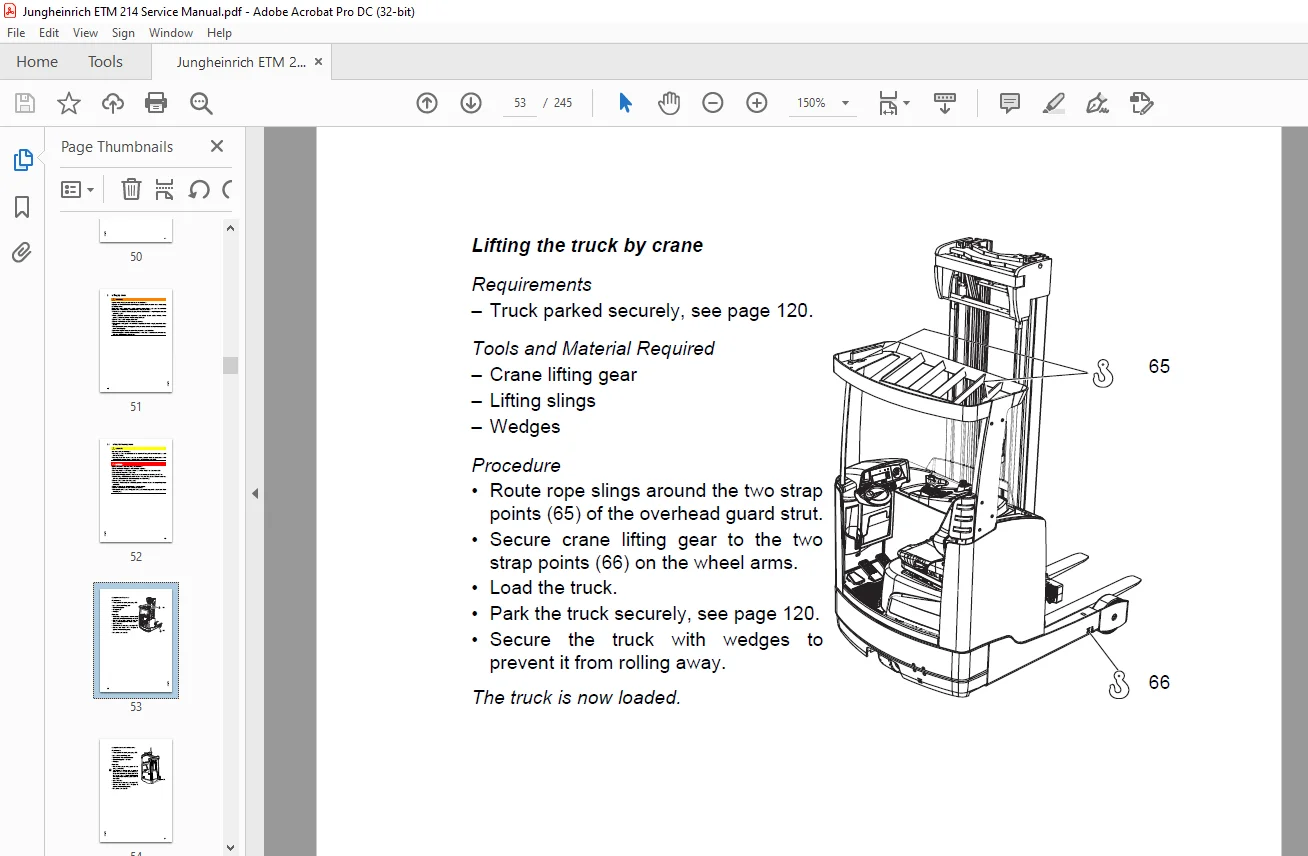

Lifting the truck by crane
