JLG Toucan 861 Service Manual MA0280-01 – PDF DOWNLOAD
FILE DETAILS:
JLG Toucan 861 Service Manual MA0280-01 – PDF DOWNLOAD
Language : English
Pages : 88
Downloadable : Yes
File Type : PDF
DESCRIPTION:
JLG Toucan 861 Service Manual MA0280-01 – PDF DOWNLOAD
FOREWORD
- This handbook has been compiled to assist you in properly operating and maintaining your Aerial Work Platform Model Toucan861. It contains detailed descriptions of control and maintenance procedures to be performed by the user, including their periodicity.
- It also contains technical information and procedures enabling a qualified personnel to detect possible failures and perform the necessary adjustments or repairs. Verify that this manual corresponds to the work platform model you will be maintaining. Before any maintenance on the work platform, you must read and understand the operating and safety procedures described in the corresponding Operator’s and Safety Handbook.
- To perform the maintenance procedures described in this manual, a basic knowledge in mechanics, hydraulics and electricy is necessary
- . Certains procedures require specific competences, tooling, and handling equipment. We therefore recommend that these repair and maintenance procedures are carried out only by authorized and qualified personnel. Constant improvement make it necessary that JLG reserve the right to make specification and equipment changes without notice. If you have any questions on operating, maintenance procedures, contact your authorized JLG distributor.
- Description
- The work platform consists of a self propelled all welded steel frame, a telescopic mast mounted on a turntable and a pendular jib. The platform is mounted at the end of the jib. The drive function is accomplished by two hydraulic motors that propel the rear axle.
- Both these motors integrate the parking brake operating through lack of pressure. Steering is accomplished by means of a hydraulic cylinder.
- The hydraulic power unit supplying the functions of the work platform is located on the base of the turntable on the right hand side of the telescopic mast. The turntable rotation movement is accomplished through a worm gear reducer located at the base of the turntable.
- The movements of the telescopic mast and pendular jib are accomplished by means of hydraulic cylinders. The work platform movements are controlled from the control panels through hydraulic control valves controlled electrically located on the right hand side of the telescopic mast. For hydraulic control valve with manual control, the main control valve (located in the platform) is supplied by the hydraulic power unit.
- The emergency and breakdown control valve, located under the oil tank (left hand side of the mast) is supplied by the hand pump. The energy for the control and power circuits of the work platform is supplied by a 24 Vdc battery

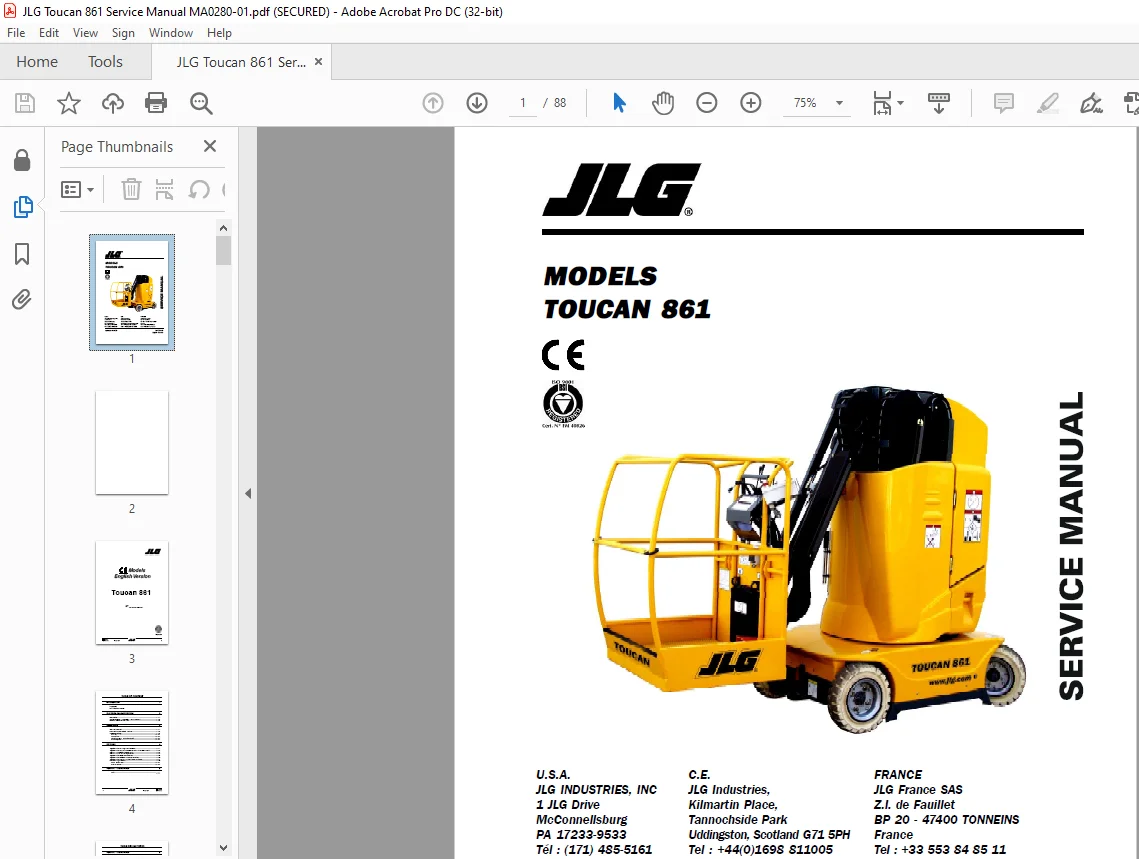

IMAGES PREVIEW OF THE MANUAL:

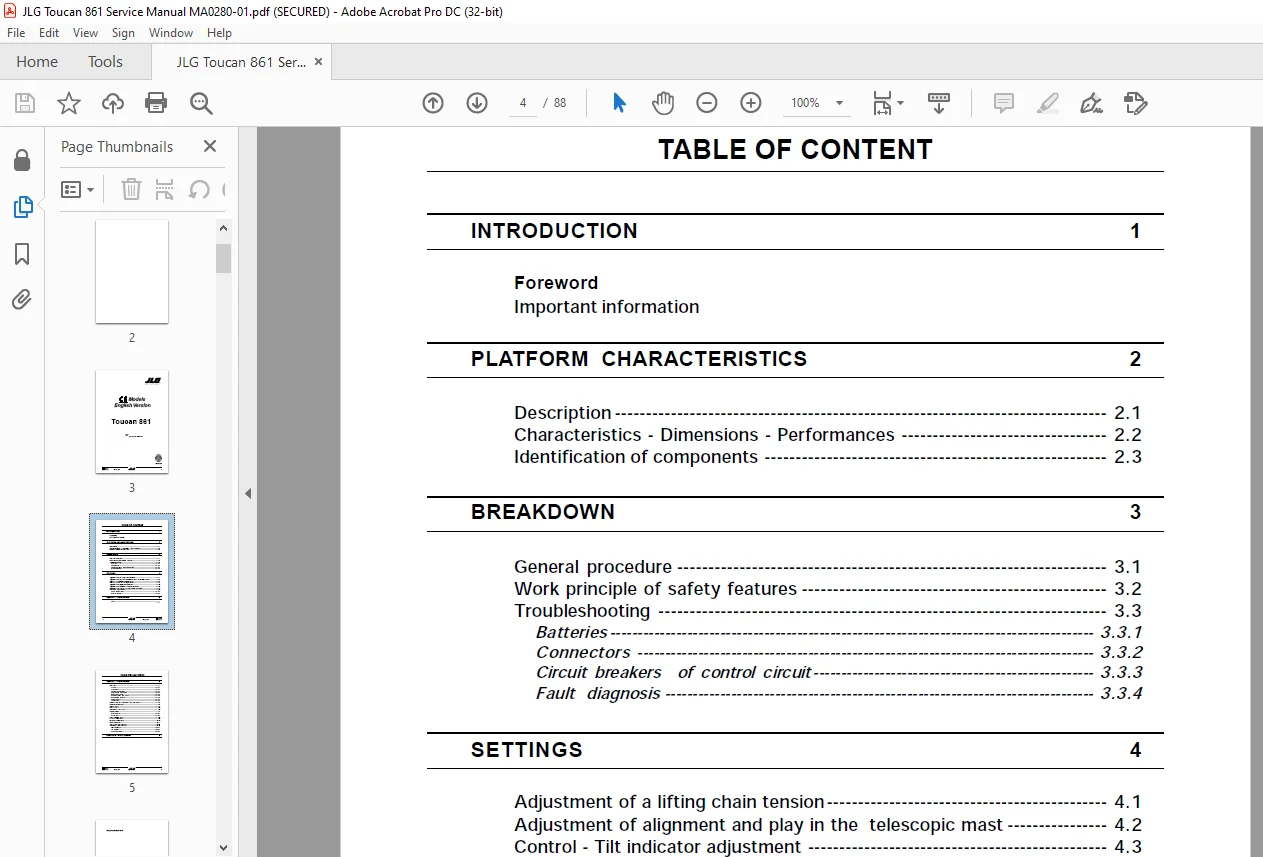

TABLE OF CONTENTS:
JLG Toucan 861 Service Manual MA0280-01 – PDF DOWNLOAD
2 1 Description 15
2 2 Characteristics – Dimensions – Performances 16

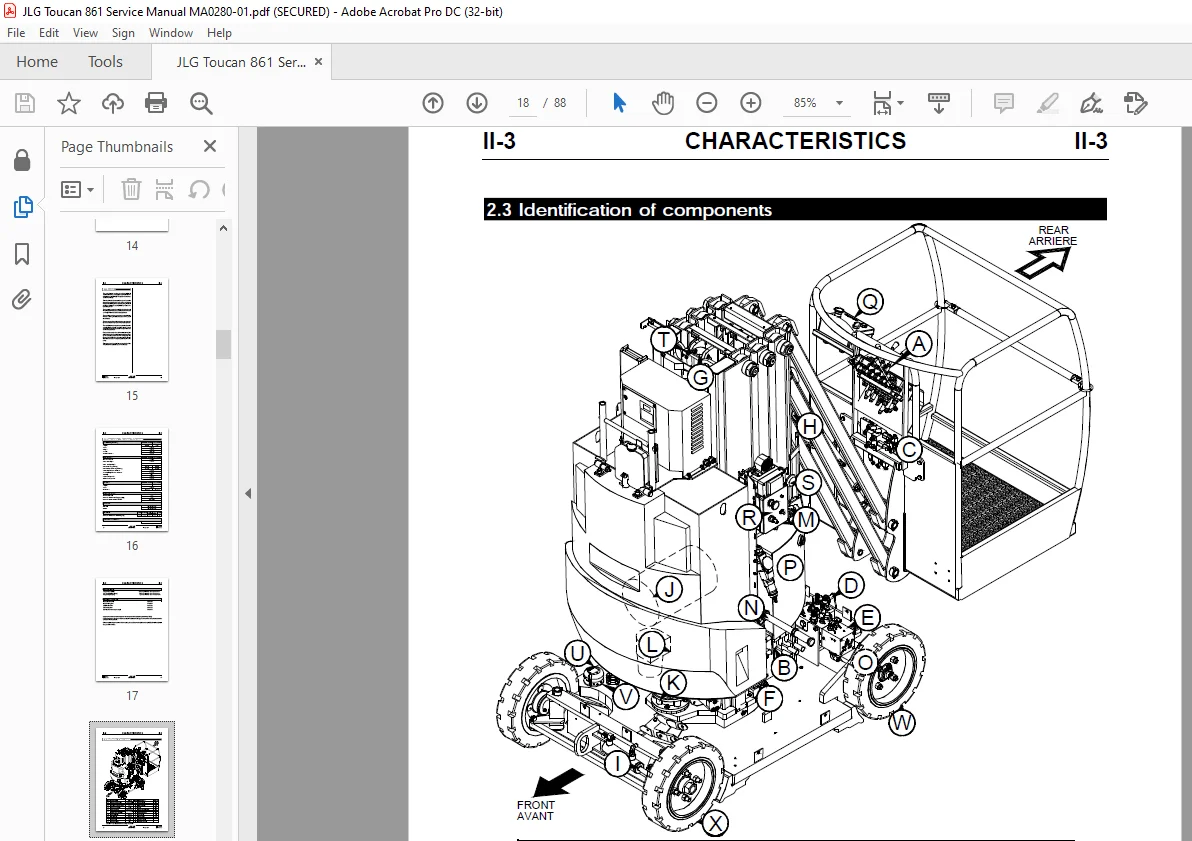

2 3 Identification of components 18
3 1 General procedure 23
3 2 Operating principles of safetyfeatures 24
3 3 Troubleshooting 25
4 1 Lifting chains tensionadjustment 47
4 2 Adjustment of telescopicmast alignment and play 48
4 3 Control-Tilt sensor setting 49
4 4 Control-Incline sensoradjustment 50
4 5 Adjustment for slack chainsensors 51
4 6 Battery discharge indicatoradjustment 52
4 7 Adjustment of flashing lightpressure switches 53
4 8 Hydraulic adjustments 54
5 1 General 59
5 2 Maintenance and installationof guide rings 65
5 3 Mast roller removal 66
5 4 Slewing ring 68
5 5 Hand pump 69
5 6 Hydraulic power unit 70
5 7 Wheel motors 73
5 8 Upper control valve 76
5 9 Lower control valve 78
5 10 Release control valve 79
5 11 Drive manifold 80
5 12 Upper auxillary manifold 82
5 13 Cylinder supply manifold 83
