Hyundai Ceres HL955A Operator’s Manual – PDF DOWNLOAD
FILE DETAILS:
Hyundai Ceres HL955A Operator’s Manual – PDF DOWNLOAD
Language : English
Pages : 275
Downloadable : Yes
File Type : PDF
Size: 50.6 MB
IMAGES PREVIEW OF THE MANUAL:
VIDEO PREVIEW OF THE MANUAL:
DESCRIPTION:
Hyundai Ceres HL955A Operator’s Manual – PDF DOWNLOAD
FOREWORD:
This manual contains several instructions and safety recommendations regarding driving, handling,
lubrication, maintenance, inspection, and adjustment of the machine.
The manual is to promote safety maintenance and enhance machine performance.
Keep this manual handy and have all personnel read it periodically.
If you sell the machine, be sure to give this manual to the new owners.
This machine complies with the EC directive “2006/42/EC”.
1. Read and understand this manual before operating the machine.
This operator’s manual may contain attachments and optional equipment that are not available in
your area. Please consult your local Hyundai distributor for those items you require.
Improper operation and maintenance of this machine can be hazardous and could result in serious
injury or death.
Some actions involved in the operation and maintenance of the machine can cause a serious accident
if they are not done in a manner described in this manual.
The procedures and precautions are given in this manual apply only to the intended uses of the
machine.
If you use your machine for any unintended uses that are not specifically prohibited, you must be
sure that it is safe for you and others. In no event should you or others engage in prohibited uses of
actions as described in this manual.
Some illustrations in this manual show details or attachments that can be different from your
machine. Covers and guards might have been removed for illustrative purposes.
2. Inspect the jobsite and follow the safety recommendations in the safety hints section before
operating the machine.
3. Use genuine Hyundai spare parts for the replacement of parts.
We expressly point out that Hyundai will not accept any responsibility for defects resulting from nongenuine
parts or non-workmanlike repair.
In such cases, Hyundai cannot assume liability for any damage.
Continuing improvements in the design of this machine can lead to changes in detail which may not
be reflected in this manual. Consult Hyundai or your Hyundai distributor for the latest available information
for your machine or questions regarding information in this manual.

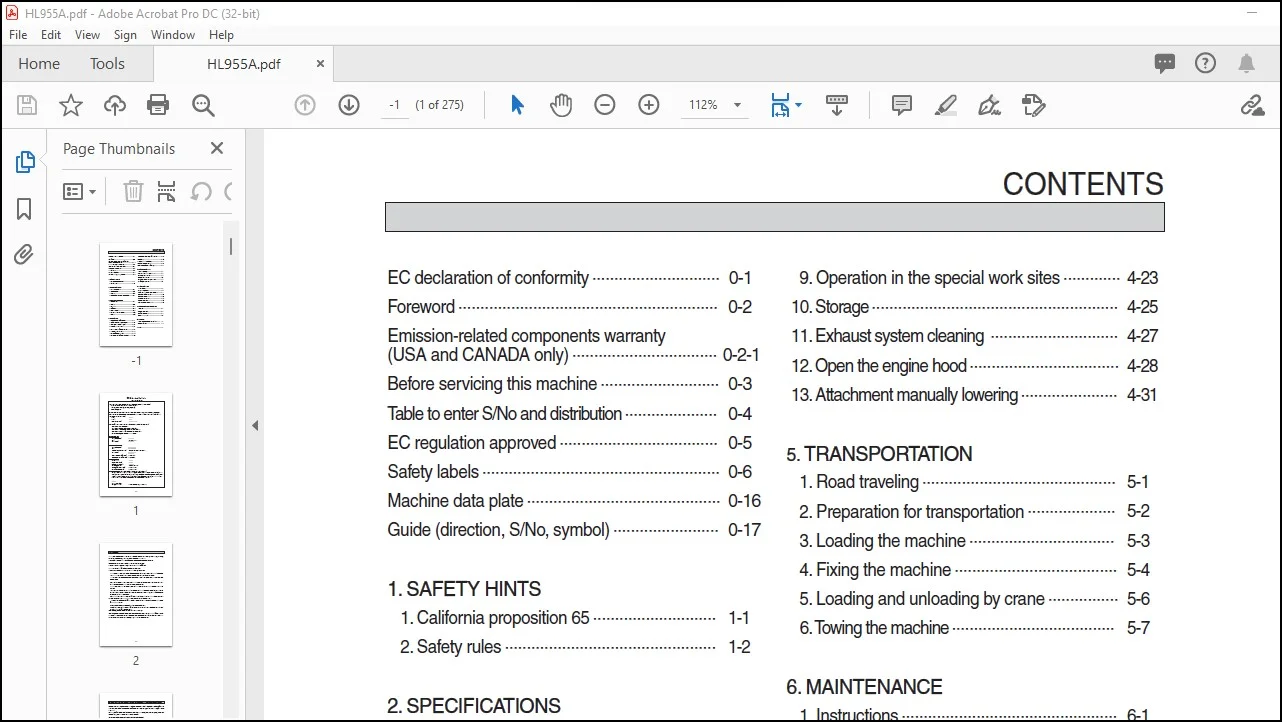

TABLE OF CONTENTS:
Hyundai Ceres HL955A Operator’s Manual – PDF DOWNLOAD
EC declaration of conformity 0 1
Foreword 0 2
Emission related components warranty
(USA and CANADA only) 0 2 1
Before servicing this machine 0 3
Table to enter S/No and distribution 0 4
EC regulation approved 0 5
Safety labels 0 6
Machine data plate 0 16
Guide (direction, S/No, symbol) 0 17
1. SAFETY HINTS
1. California proposition 65 1 1
2. Safety rules 1 2
2. SPECIFICATIONS
1. Major components 2 1
2. Specifications 2 2
3. Weight 2 6
4. Specification for major components 2 7
3. CONTROL DEVICES
1. Cab devices 3 1
2. Cluster 3 2
3. Monitors 3 13
4. Switches 3 44
5. Control device 3 49
6. Air conditioner and heater 3 53
7. Others 3 56
4. OPERATION
1. Suggestion for new machine 4 1
2. Check before starting the engine 4 2
3. Starting and stop the engine 4 3
4. Warming up operation 4 8
5. Operation of the working device 4 9
6. Traveling of the machine 4 10
7. Efficient working method 4 15
8. Adjustment of the work equipment 4 22
9. Operation in the special work sites 4 23
10. Storage 4 25
11. Exhaust system cleaning 4 27
12. Open the engine hood 4 28
13. Attachment manually lowering 4 31
5. TRANSPORTATION
1. Road traveling 5 1
2. Preparation for transportation 5 2
3. Loading the machine 5 3
4. Fixing the machine 5 4
5. Loading and unloading by crane 5 6
6. Towing the machine 5 7
6. MAINTENANCE
1. Instructions 6 1
2. Tightening torque 6 5
3. Spec of fuel, coolant and lubricants 6 8
4. Maintenance check list 6 10
5. Maintenance chart 6 13
6. Service instruction 6 15
7. Electrical system 6 50
8. Air conditioner and heater 6 53
7. TROUBLESHOOTING GUIDE
1. Engine 7 1
2. Electrical system 7 2
3. Power train system 7 3
4. Hydraulic system 7 4
8. OTHERS
1. Central grease lubrication system 8 1
2. Quick coupler 8 9
INDEX 9 1
