Honda Outboard Motor GB30 Service Repair Manual – PDF DOWNLOAD
FILE DETAILS:
Honda Outboard Motor GB30 Service Repair Manual – PDF DOWNLOAD
Language : English
Pages : 35
Downloadable : Yes
File Type : PDF
Size: 1.5 MB

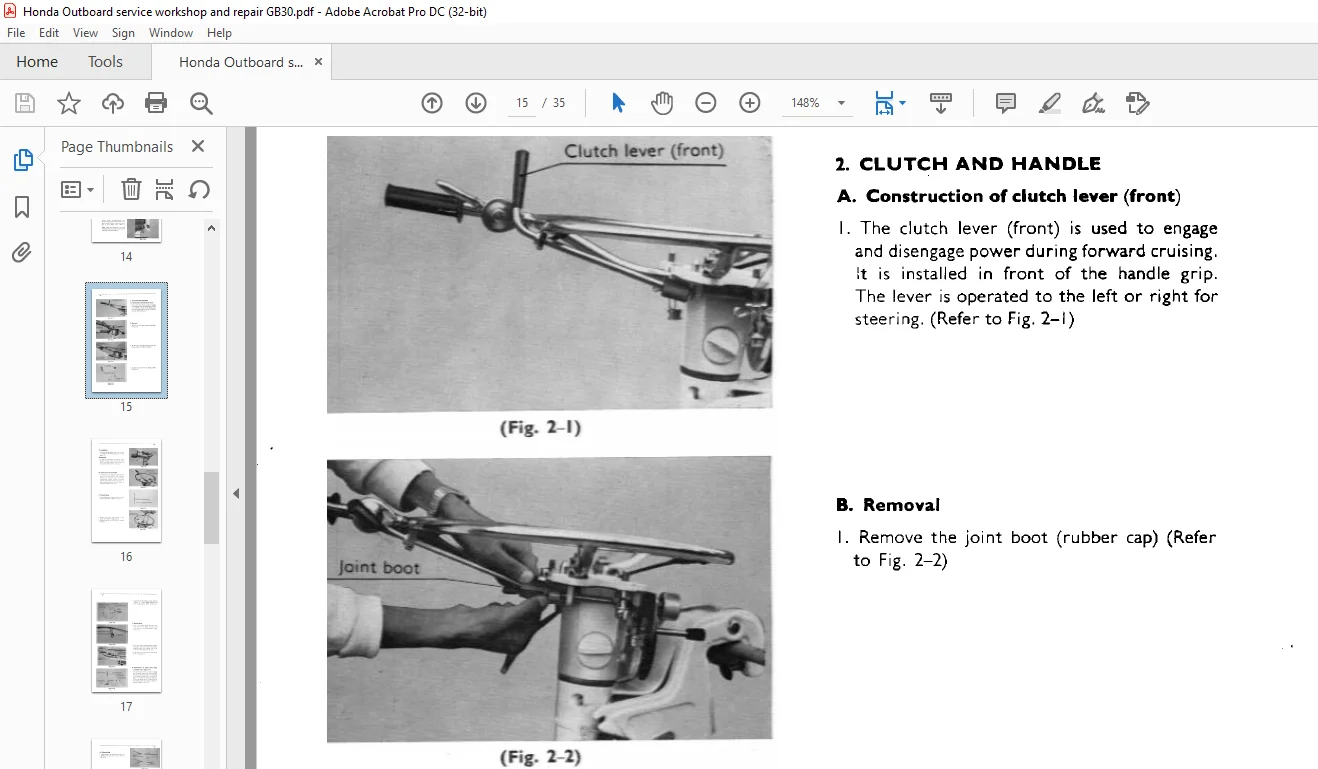

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Honda Outboard Motor GB30 Service Repair Manual – PDF DOWNLOAD
MAJOR FEATURES ARE SHOWN IN THE FOLLOWING:
I. Applications of engine
Installation and removal of the engine can be made simply by two engine mounting bolts. A minimum
of effort allows using the engine as a power source for other purposes such as generator, pump,
and other civil engineering machinery.
2. Maximum handling ease
Employment of the loop type steering handle and clutch permits simple control for forward, reverse,
and stop, without stopping the engine.
3. Low speed crusing
Since this is a four-cycle engine, irregular rotation at a low speed range is eliminated; such “rough”
running is common with two-cycle engines. Continuous low speed cruising is hence possible. The engine
does not become overhe2ted and hence can be used for unreasonable loads such as towing a nonpowered
boat.
4. Low fuel consumption
The fuel consumption is approximately 20% lower than that of the 2-cycle outboard engine. for
continuous operation, the Honda designated fuel (Mitsubishi) should be used.
S. Minimum vibration
Precise manufacti;re of each part and shock absorption between the loop handle and the engine are
combined to prevent conveyance of vibration to the operator.
6. Easy starting
The carburetor of the engine is a fixed type and requires no adjustment; the engine can be easily started
by means of the engine starter lock device and recoil starter .The engine starter lock device can be also
used for securing the engine when powering other machinery.
7. High durability
Employment of ball bearings plus usage of select material and highly accurate production techniques
eliminate trouble and adds particularly superior anticorrosion resistivity.

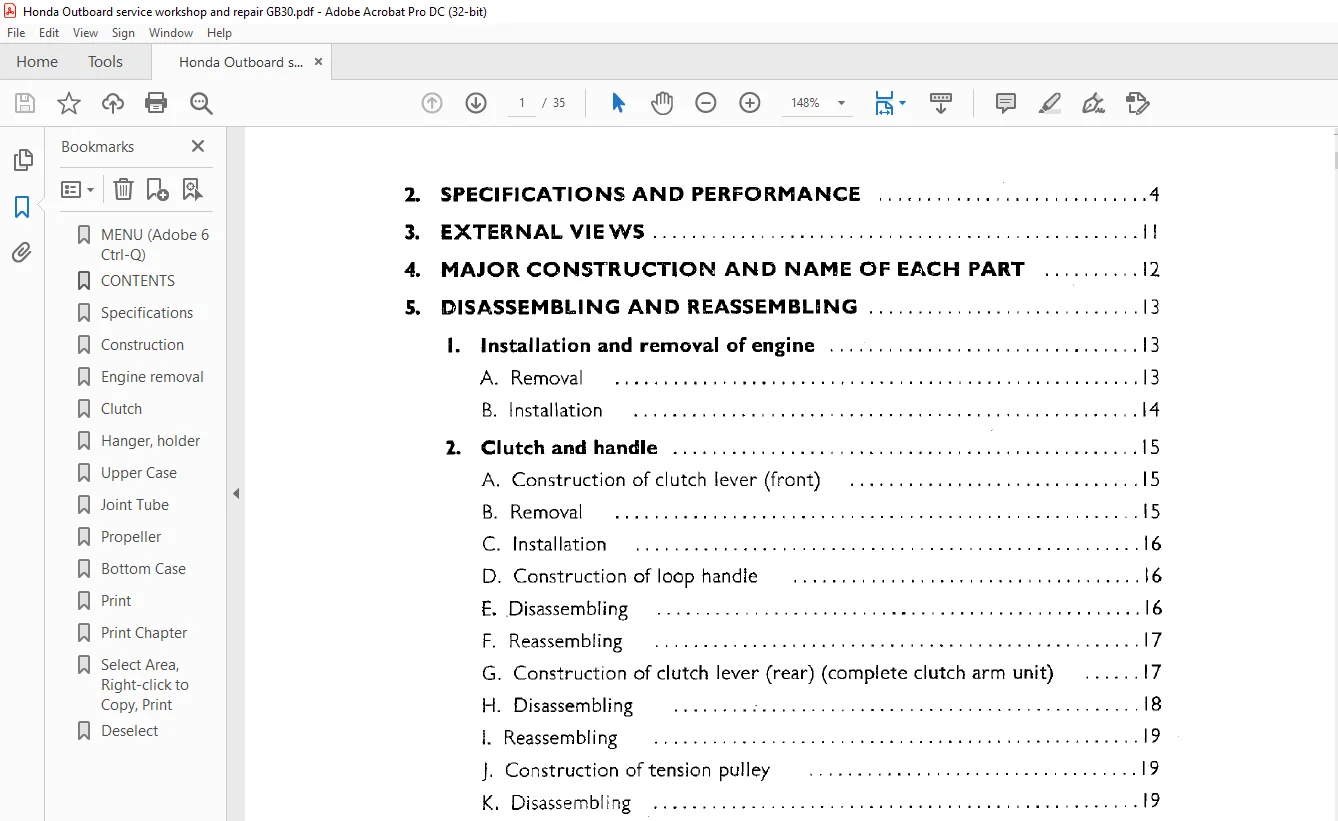

TABLE OF CONTENTS:
Honda Outboard Motor GB30 Service Repair Manual – PDF DOWNLOAD
MENU (Adobe 6 Ctrl-Q) 0
CONTENTS 1
Specifications 4
Construction 12
Engine removal 13
Clutch 15
Hanger, holder 20
Upper Case 25
Joint Tube 29
Propeller 30
Bottom Case 32
Print 0
Print Chapter 35
Select Area, Right-click to Copy, Print 0
Deselect 0
