FILE DETAILS:
Gehl V270 GEN:2 Gehl V330 GEN:2 Manitou-Mustang 2700V NXT2 Manitou-Mustang 3300V NXT2 Skid Steer Loader Service Manual 50950192 – PDF DOWNLOAD
Language : English
Pages : 290
Downloadable : Yes
File Type : PDF
Size: 171 MB
IMAGES PREVIEW OF THE MANUAL:

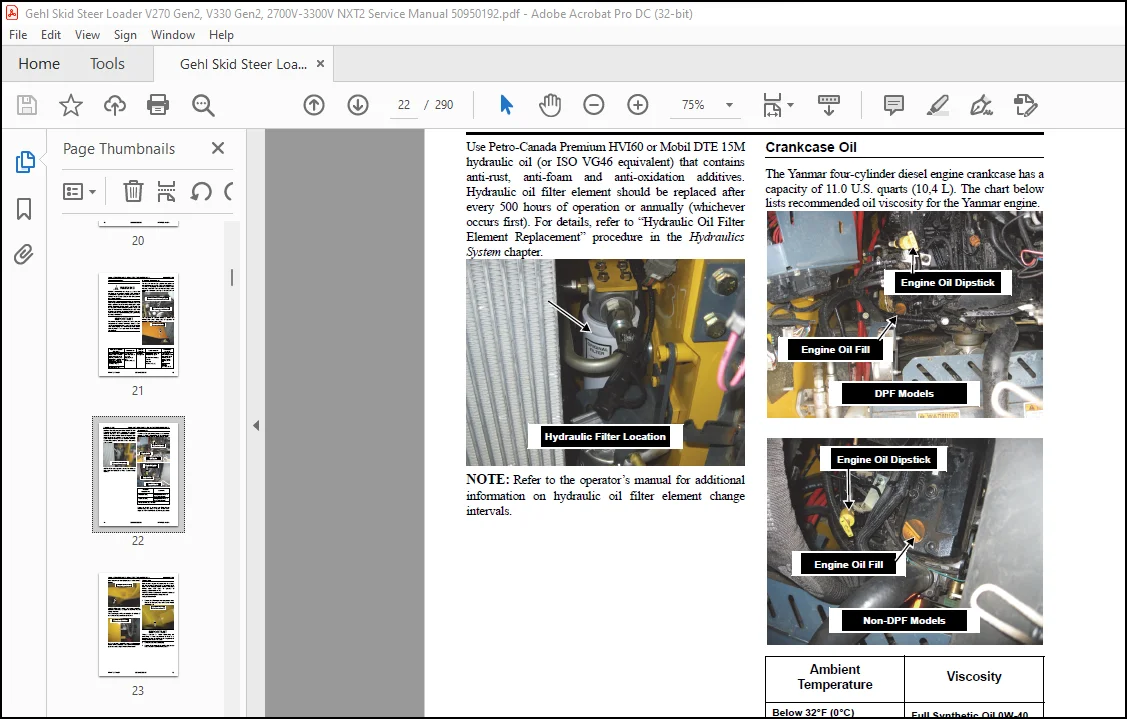

DESCRIPTION:
Gehl V270 GEN:2 Gehl V330 GEN:2 Manitou-Mustang 2700V NXT2 Manitou-Mustang 3300V NXT2 Skid Steer Loader Service Manual 50950192 – PDF DOWNLOAD
INTRODUCTION:
- With correct maintenance and proper use, the Gehl V270 GEN:2, V330 GEN:2 and Manitou/
Mustang 2700V NXT2, 3300V NXT2 skid-steer loaders will give years of dependable service. This
service manual is intended to be a guide in the assembly and disassembly, installation and removal,
adjustment and testing, troubleshooting and replacement of components that together make up the - Gehl GEN:2 and Manitou/Mustang NXT2 skid-steer loaders.
- In many of the procedures found within, the installation steps are the exact opposite of the removal steps,
and therefore the opposite procedure is not written. Instead, a note to reverse the procedure is stated. This
reduces redundancy and excessive pages in the manual. In cases though, where the assembly and
disassembly or removal and installation procedures differ, and additional steps or safety concerns are
paramount, the entire reverse procedure is written to include the additional information. - The Table of Contents and the Index can be used to make finding a procedure easier. Many schematics,
photographs and line art drawings are used to help perform the necessary repairs, tests and adjustments
that the skid-steer loader needs to keep it in good running condition. - If you have any questions, please contact your authorized Gehl, Manitou or Mustang dealer, or call the
Gehl, Manitou and Mustang Service Department for assistance.

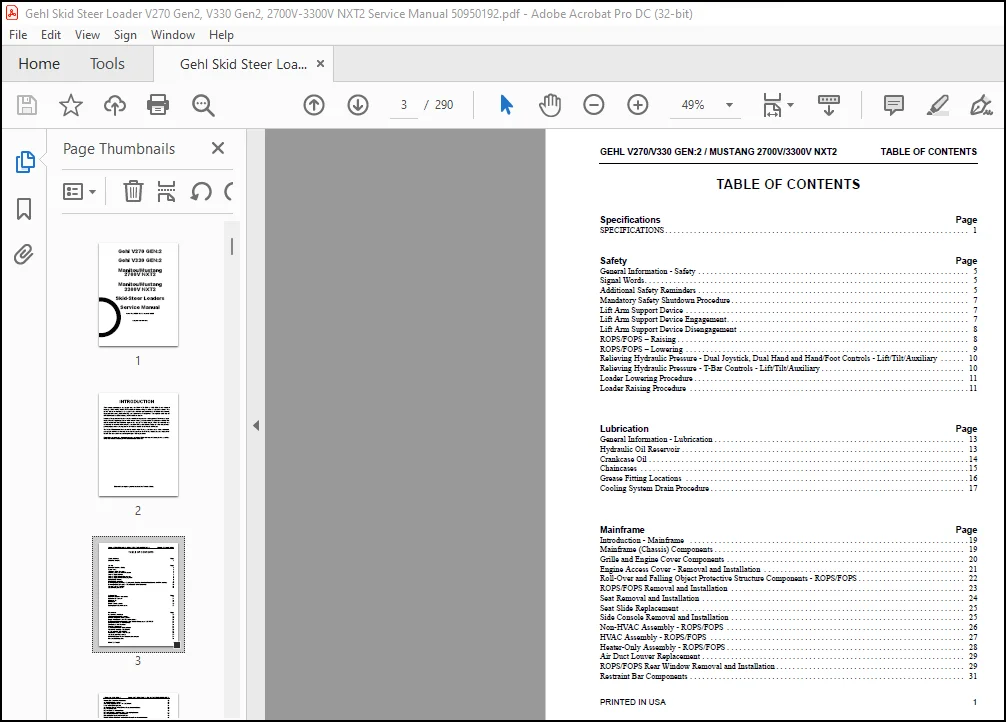

TABLE OF CONTENTS:
Gehl V270 GEN:2 Gehl V330 GEN:2 Manitou-Mustang 2700V NXT2 Manitou-Mustang 3300V NXT2 Skid Steer Loader Service Manual 50950192 – PDF DOWNLOAD
Specifications Page
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Page
General Information – Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Signal Words. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Additional Safety Reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Mandatory Safety Shutdown Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Lift Arm Support Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Lift Arm Support Device Engagement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Lift Arm Support Device Disengagement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
ROPS/FOPS – Raising . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
ROPS/FOPS – Lowering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Relieving Hydraulic Pressure – Dual Joystick, Dual Hand and Hand/Foot Controls – Lift/Tilt/Auxiliary . . . . . . 10
Relieving Hydraulic Pressure – T-Bar Controls – Lift/Tilt/Auxiliary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Loader Lowering Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Loader Raising Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Lubrication Page
General Information – Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Hydraulic Oil Reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Crankcase Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Chaincases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Grease Fitting Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cooling System Drain Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Mainframe Page
Introduction – Mainframe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Mainframe (Chassis) Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Grille and Engine Cover Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Engine Access Cover – Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Roll-Over and Falling Object Protective Structure Components – ROPS/FOPS . . . . . . . . . . . . . . . . . . . . . . . . . . 22
ROPS/FOPS Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Seat Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Seat Slide Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Side Console Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Non-HVAC Assembly – ROPS/FOPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
HVAC Assembly – ROPS/FOPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Heater-Only Assembly – ROPS/FOPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Air Duct Louver Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
ROPS/FOPS Rear Window Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Restraint Bar Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
TABLE OF CONTENTS GEHL V270/V330 GEN:2 / MUSTANG 2700V/3300V NXT2
2 PRINTED IN USA
Restraint Bar Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
All-Tach® Hitch Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Actuator Group Components – All-Tach® Hitch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Power-A-Tach® Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
All-Tach® and Power-A-Tach® Hitch Removal and Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Lift Arm Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Lift Arm Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Lift Arm, Rear Link and Timing Link Bushing Replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Lift Arm Stop Installation and Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Control Console Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Clean-Out Cover, Floor Plate and Kickplate Cover Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Crossmember Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Hydraulic Oil Reservoir Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Main Fuel Tank and Auxiliary Fuel Tank Removal and Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Fuel Sensor Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Rear Grille Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Rear Grille Latch Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Wheel Drives Page
Introduction – Wheel Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Wheel Drive Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Drive Chain Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Axle Housing Assembly Removal and Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Axle Assembly Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Drive Chain Removal and Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Axle and Wheel Bearing Disassembly and Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Controls Page
Introduction – Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Control Locations – Dual Joystick, Dual Hand and Hand/Foot Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Control Locations – T-Bar Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Wheel Drive – Lift/Tilt Components – T-Bar Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Wheel Drive – Lift/Tilt Components – Hand/Foot Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Wheel Drive – Lift/Tilt Components – Dual Joystick Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Wheel Drive – Lift/Tilt Components – Dual Hand Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Control Handle Assembly (Both Control Handles) Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Control Handle Removal and Installation – Electrical Auxiliary Grip – Dual Joystick,
Dual Hand and Hand/Foot Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Control Handle Removal and Installation – T-Bar Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
T-Bar Control Handle Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Dual Joystick, Dual Hand and Hand/Foot Control Handle Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Pivot Tube Removal and Installation, Disassembly and Assembly – T-Bar Controls . . . . . . . . . . . . . . . . . . . . . . . 81
Control Handle Position Adjustment – T-Bar Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Control Handle Tracking Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Neutral Centering Test and Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Lift/Tilt Control Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Lift/Tilt Control Adjustment – T-Bar Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Electrical Foot Throttle Components – Dual Joystick, Dual Hand and T-Bar Controls . . . . . . . . . . . . . . . . . . . . . 90
Electrical Foot Throttle Removal and Installation – T-Bar, Dual Hand and Dual Joystick Controls . . . . . . . . . . . 91
GEHL V270/V330 GEN:2 / MUSTANG 2700V/3300V NXT2 TABLE OF CONTENTS
PRINTED IN USA 3
Hydrostatic System Page
Introduction – Hydrostatic System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Hydrostatic Components – Single-Speed – T-Bar Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Hydrostatic Components – Two-Speed – T-Bar Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Hydrostatic Components – Single-Speed – Hand/Foot, Dual Hand and Dual Joystick Controls . . . . . . . . . . . . . . 95
Hydrostatic Components – Two-Speed – Hand/Foot, Dual Hand and Dual Joystick Controls. . . . . . . . . . . . . . . . 96
Charge Pressure Test and Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Hydrostatic Pump Relief Valves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Hydrostatic Pump Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Hydrostatic Pump Drive Coupling Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Drive Motor Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Troubleshooting Guide – Hydrostatic System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Hydrostatic/Hydraulic Schematic – Dual Joystick Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Hydrostatic/Hydraulic Schematic – Hand/Foot Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Hydrostatic/Hydraulic Schematic – T-Bar Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Hydrostatic/Hydraulic Schematic – Dual Hand Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Hydraulic System Page
Introduction – Hydraulic System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Troubleshooting Guide – Hydraulic System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Hydraulics – Tank Hydraulic Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Hydraulics – No Hydraglide Ride Control Components – T-Bar Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Hydraulics – Hydraglide Ride Control Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Hydraulics – Standard Auxiliary Components – Hand/Foot and Dual Joystick Controls. . . . . . . . . . . . . . . . . . . 119
Hydraulics – Standard Auxiliary Components – Dual Hand Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Hydraulics – Standard Auxiliary Components – T-Bar Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Hydraulics – High-Flow Auxiliary Components – Dual Joystick and Hand/Foot Controls . . . . . . . . . . . . . . . . . 122
Hydraulics – High-Flow Auxiliary Components – T-Bar Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Hydraulics – High-Flow Auxiliary Components – Dual Hand Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Hydraulics – Self-Leveling Components – T-Bar Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Hydraulics – Non-Self-Leveling Components – T-Bar Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Hydraulics – Self-Leveling Components – Hand/Foot, Dual Hand and Dual Joystick Controls . . . . . . . . . . . . . 127
Hydraulics – Non-Self-Leveling Components – Hand/Foot, Dual Hand and Dual Joystick . . . . . . . . . . . . . . . . . 128
Hydraulics – Standard Auxiliary Lift Arm Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Hydraulics – High-Flow Auxiliary Lift Arm Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Hydraulics – Power-A-Tach® Components – All Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Pressure Check, Test and Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Tilt Cylinder Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Tilt Circuit Spool Leakage Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Self-Leveling Valve Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Lift Cylinder Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Lift Circuit Spool Leakage Test 136
Solenoid Valve Test – Lift Arm Pilot Supply, Joystick Drive Supply, Power-A-Tach, Brake/Two-Speed,
Safety Locks and Ride Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Hydraulic Oil Filter Element Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Lift Cylinder Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Tilt Cylinder Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Tilt Cylinder Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Lift Cylinder Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
TABLE OF CONTENTS GEHL V270/V330 GEN:2 / MUSTANG 2700V/3300V NXT2
4 PRINTED IN USA
Lift/Tilt Cylinder Disassembly / Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Auxiliary Pump Removal and Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Self-Leveling Valve (Optional) Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Self-Leveling Valve Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Brake/Two-Speed, Lift Arm Pilot Supply and Safety Lock Solenoid Valves – Removal and Installation . . . . . . 150
Lift/Tilt, Joystick Drive Supply, Brake/Two-Speed, All-Tach and Hydraglide™ Ride Control
Solenoid Valves – Disassembly and Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Main Control Valve Components – Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Main Control Valve Components – High-Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Control Valve Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Control Valve Disassembly and Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Control Valve Solenoid Removal and Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Inlet Relief Valve, Port Relief Valve and High-Flow Relief Valve Removal and Installation . . . . . . . . . . . . . . . 160
Hydraglide™ Ride Control Accumulator Removal and Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Electrical System Page
Introduction – Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Description of Operation – Right and Left Instrument Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Troubleshooting Guide – Electrical System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Electrical Chassis Components – DPF Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Electrical Chassis Components – Non-DPF Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Electrical Chassis Components – Hydraglide™ Ride Control/Two Speed Components . . . . . . . . . . . . . . . . . . . 170
Electrical ROPS/FOPS Components – DPF Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Electrical ROPS/FOPS Components – Non-DPF Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Electrical Engine Components – DPF Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Electrical Engine Components – Non-DPF Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Power Distribution Module Test and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Interlock Control Module Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Interlock Control Module Truth Table – PN 137753 – Earlier Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Interlock Control Module Truth Table – PN 50305144 – Later Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Two-Speed, Ride Control and Float Module Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Two-Speed, Ride Control and Float Module Truth Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
High-Flow Controller Module Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Standard Auxiliary Flow Controller Module Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Standard Auxiliary Flow Module Truth Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Control Handle Actuation Buttons – Two-Speed and Ride Control and Float Module. . . . . . . . . . . . . . . . . . . . . 189
Electrically-Controlled Standard Auxiliary Hydraulic Flow System Test and Operation. . . . . . . . . . . . . . . . . . . 190
Engine Throttle Test and Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Seat Switch Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Electrical Lights Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Restraint Bar Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Restraint Bar Switch Removal and Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Master Disconnect Switch – Remote Battery Terminal Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . 196
Front and Rear Work Light Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Dome Light Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Information Center Electronic Display Removal and Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Information Center Electronic Display – The Display Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
DPF (Diesel Particulate Filter) Regeneration (DPF Models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Regen Terms and Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Stationary Regeneration Safety (DPF Models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
GEHL V270/V330 GEN:2 / MUSTANG 2700V/3300V NXT2 TABLE OF CONTENTS
PRINTED IN USA 5
Other Stationary Regeneration Topics (DPF Models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Stationary Regeneration Procedure (DPF Models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Stationary Regeneration Abort Procedure (DPF Models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
DPF Regen Flowcharts Introduction (DPF Models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
DPF Regen Flowcharts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Electrical Heater Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Electrical HVAC Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Electrical 14-Pin Auxiliary Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Electrical Engine Schematic (DPF Models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Electrical Engine Schematic (Non-DPF Models). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Electrical Chassis Schematic (DPF Models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Electrical Chassis Schematic (Non-DPF Models). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Electrical ROPS/FOPS Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Engine Page
Introduction, Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Troubleshooting Guide, Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Engine Components – DPF Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Engine Components – Non-DPF Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Air Cleaner and Exhaust Components – DPF Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Air Cleaner and Exhaust Components – Non-DPF Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Radiator/Cooler Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Oil Filter Element Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Air Cleaner Assembly Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Air Filter Element Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Battery and Battery Tray Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Starter Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Exhaust Pipe Removal and Installation – DPF Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Muffler Removal and Installation – Non-DPF Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Alternator Belt Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Radiator/Cooler Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Fan Shroud and Mounting Plates Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Fan Shroud Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Fan Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Engine Removal and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Engine Diagnostic Fault Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Yanmar 4TNV98C-CT/NMS/T4 Engine Diagnostic Fault Codes (DPF Models) . . . . . . . . . . . . . . . . . . . . . . . . 267
Yanmar 4TNV98T-ZXNMSR / 4TNV98T-ZXNMSF/IT4EUF Engine Diagnostic
Fault Codes (Non-DPF Models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
INDEX 275
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
S.V
