Ford 6.0L DIT Power Stroke F Series Super Duty Direct Injection Turbocharged Diesel Engine Manual – PDF DOWNLOAD

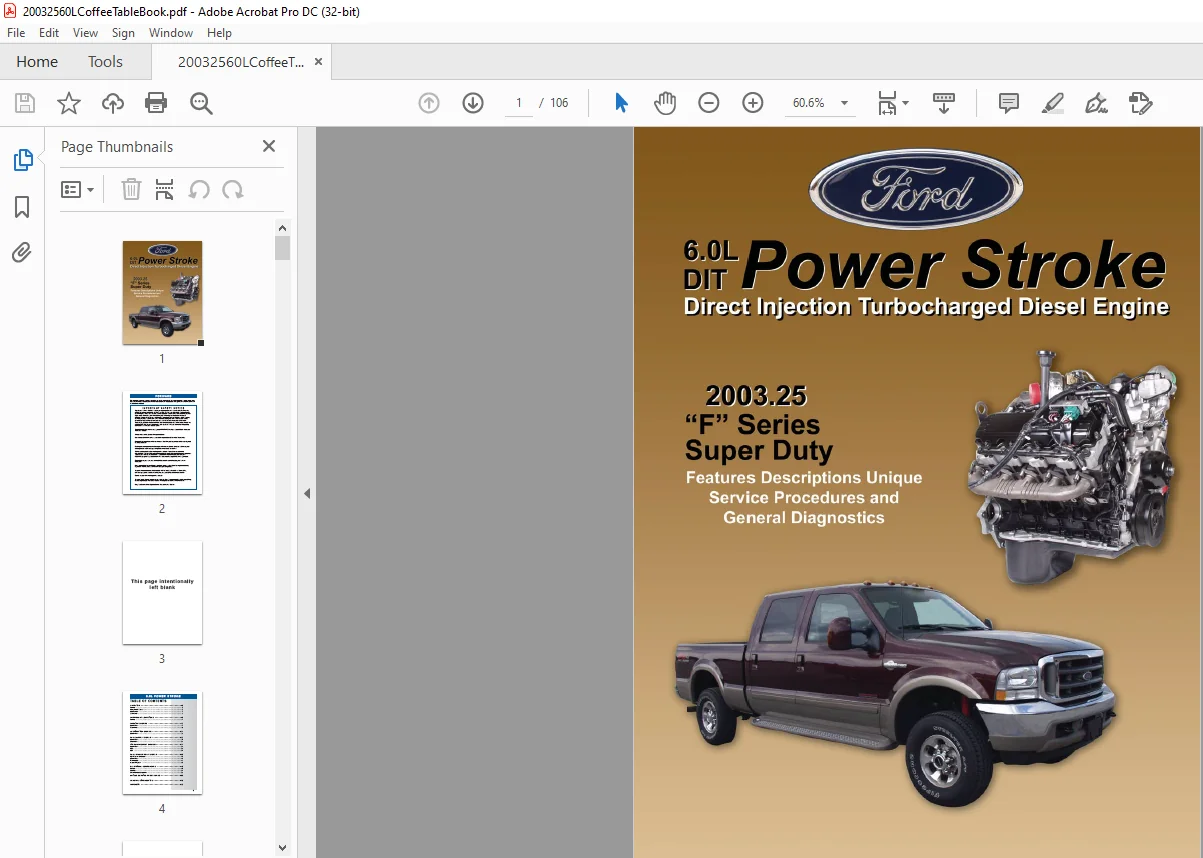

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Ford 6.0L DIT Power Stroke F Series Super Duty Direct Injection Turbocharged Diesel Engine Manual – PDF DOWNLOAD
FORWARD :
This publication is intended to provide technicians and service personnel with an overview of technical advancements in the 6.0L POWER STROKE Diesel Engine. The information contained in this publication will supplement information contained in available service literature.
IMPORTANT SAFETY NOTICE:
Appropriate service methods and proper repair procedures are essential for the safe, reliable operation of all motor vehicles, as well as, the personal safety of the individual performing the work. This manual provides general directions for accomplishing service repair work with tested, effective techniques. Following the directions will assure reliability. There are numerous variations in the procedures; techniques, tools, parts for servicing vehicles and the skill of the individual doing the work. This manual cannot possibly anticipate all such variations and provide advice or cautions as to each. Accordingly, anyone who departs from the instructions provided in this manual must first establish that they do not compromise their personal safety or the vehicle integrity by their choice of methods, tools or parts.
- The following list contains some general WARNINGS that you should follow when you work on a vehicle.
- Always wear safety glasses for eye protection.
- Use safety stands whenever a procedure requires you to be under the vehicle.
- Be sure that the ignition switch is always in the OFF position, unless otherwise required by the procedure.
- Never perform any service to the engine with the air cleaner removed and the engine running unless a turbocharger compressor inlet shield is installed.
- Set the parking brake when working on the vehicle. If you have an automatic transmission, set it in PARK unless instructed otherwise for a specific service operation.
- If you have a manual transmission, it should be in REVERSE (engine OFF) or NEUTRAL (engine ON) unless instructed otherwise for a specific service operation.
- Operate the engine only in a well-ventilated area to avoid the danger of carbon monoxide.
- Keep yourself and your clothing away from moving parts when the engine is running, especially the fan, belts, and the turbocharger compressor.
- To prevent serious burns, avoid contact with hot metal parts such as the radiator, turbocharger pipes, exhaust manifold, tail pipe, catalytic converter and muffler.
- Do not smoke while working on the vehicle.
- To avoid injury, always remove rings, watches, loose hanging jewelry, and loose clothing before beginning to work on a vehicle. Tie long hair securely behind the head.
- Keep hands and other objects clear of the radiator fan blades.

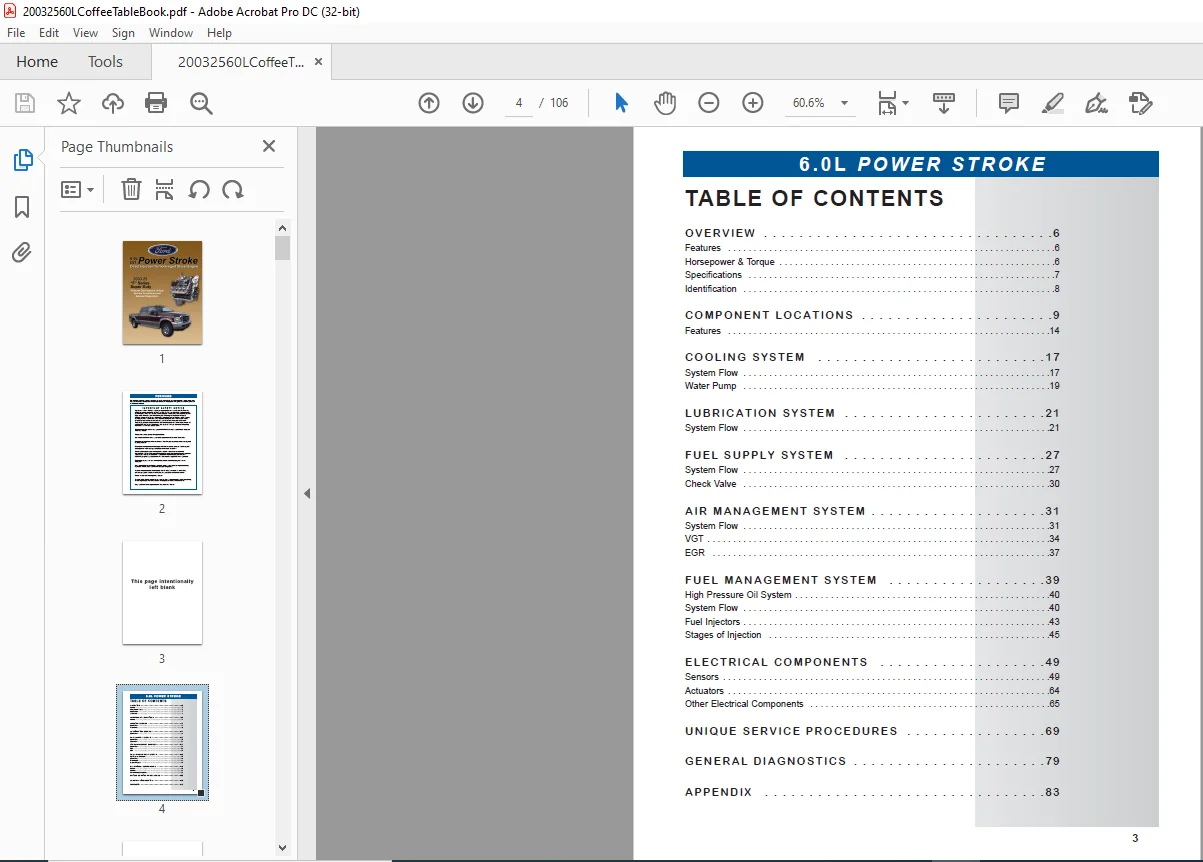

TABLE OF CONTENTS:
Ford 6.0L DIT Power Stroke F Series Super Duty Direct Injection Turbocharged Diesel Engine Manual – PDF DOWNLOAD
OVERVIEW 6
Features 6
Horsepower & Torque 6
Specifications 7
Identification 8

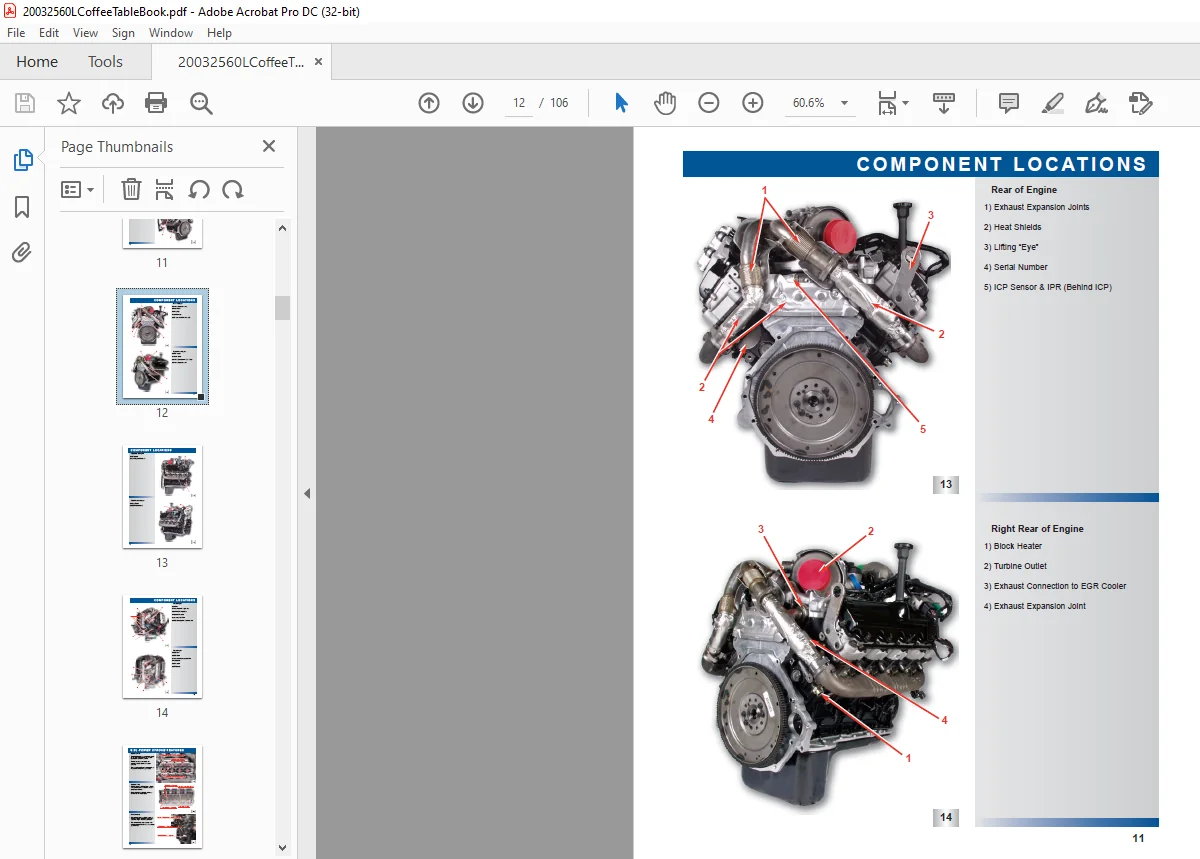

COMPONENT LOCATIONS 9
Features 14
COOLING SYSTEM 1 7
System Flow 17
Water Pump 19
LUBRICATION SYSTEM 2 1
System Flow 21
FUEL SUPPLY SYSTEM 2 7
System Flow 27
Check Valve 30
AIR MANAGEMENT SYSTEM 3 1
System Flow 31
VGT 34
EGR 37
FUEL MANAGEMENT SYSTEM 3 9
High Pressure Oil System 40
System Flow 40
Fuel Injectors 43
Stages of Injection 45
ELECTRICAL COMPONENTS 4 9
Sensors 49
Actuators 64
Other Electrical Components 65
UNIQUE SERVICE PROCEDURES 6 9
GENERAL DIAGNOSTICS 7 9
APPENDIX 8 3
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
